Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 5 illustrations

Illustrations

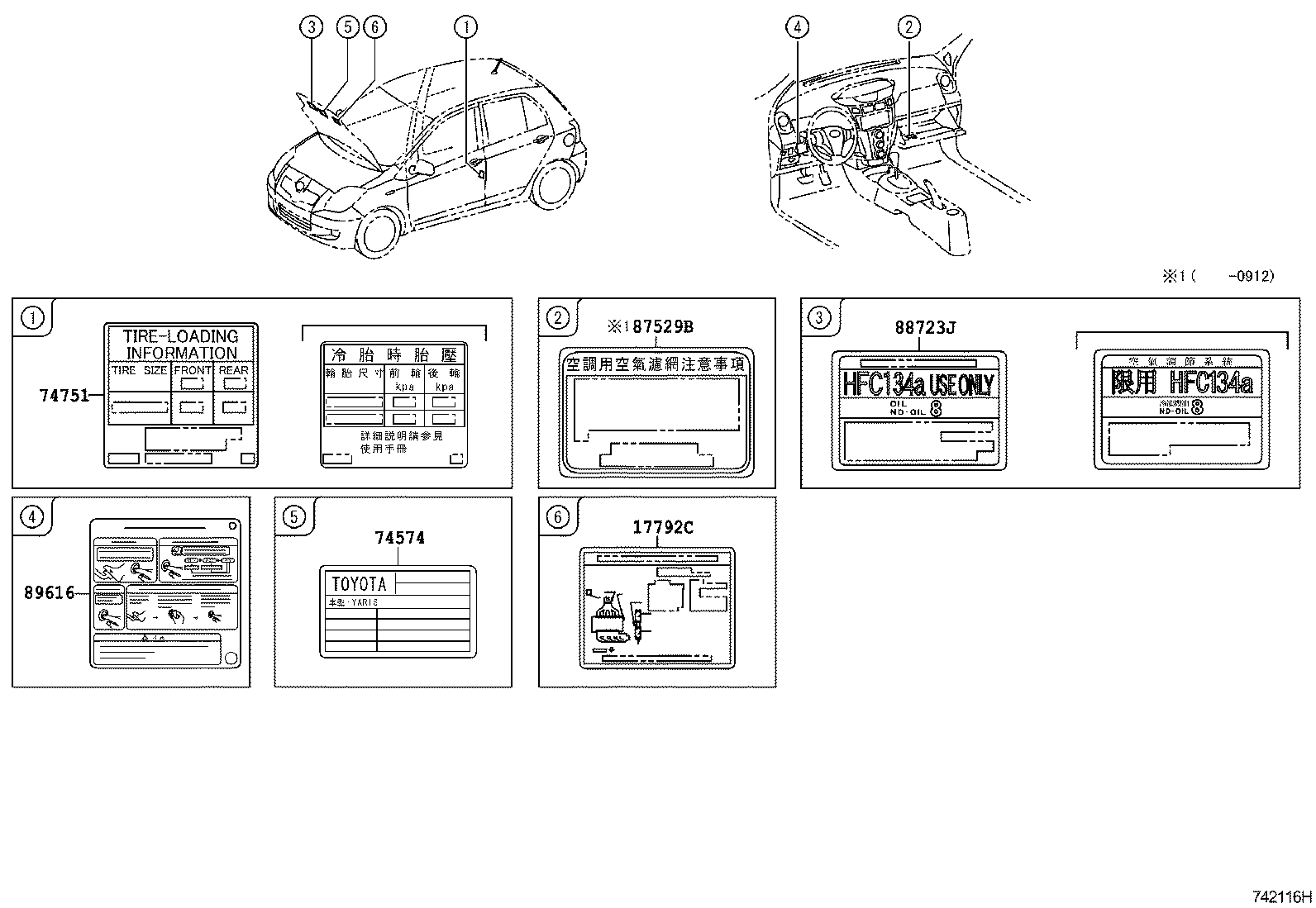

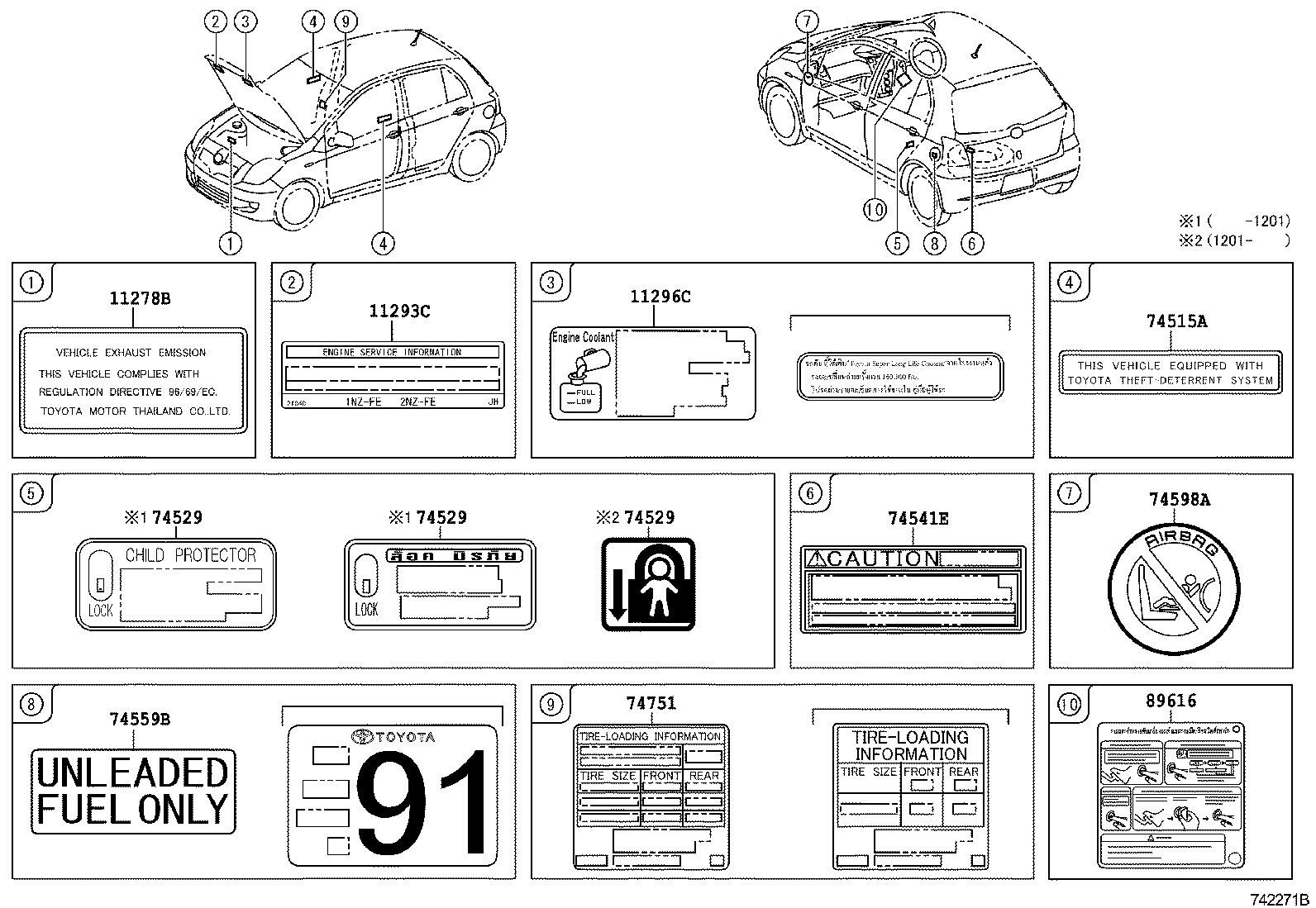

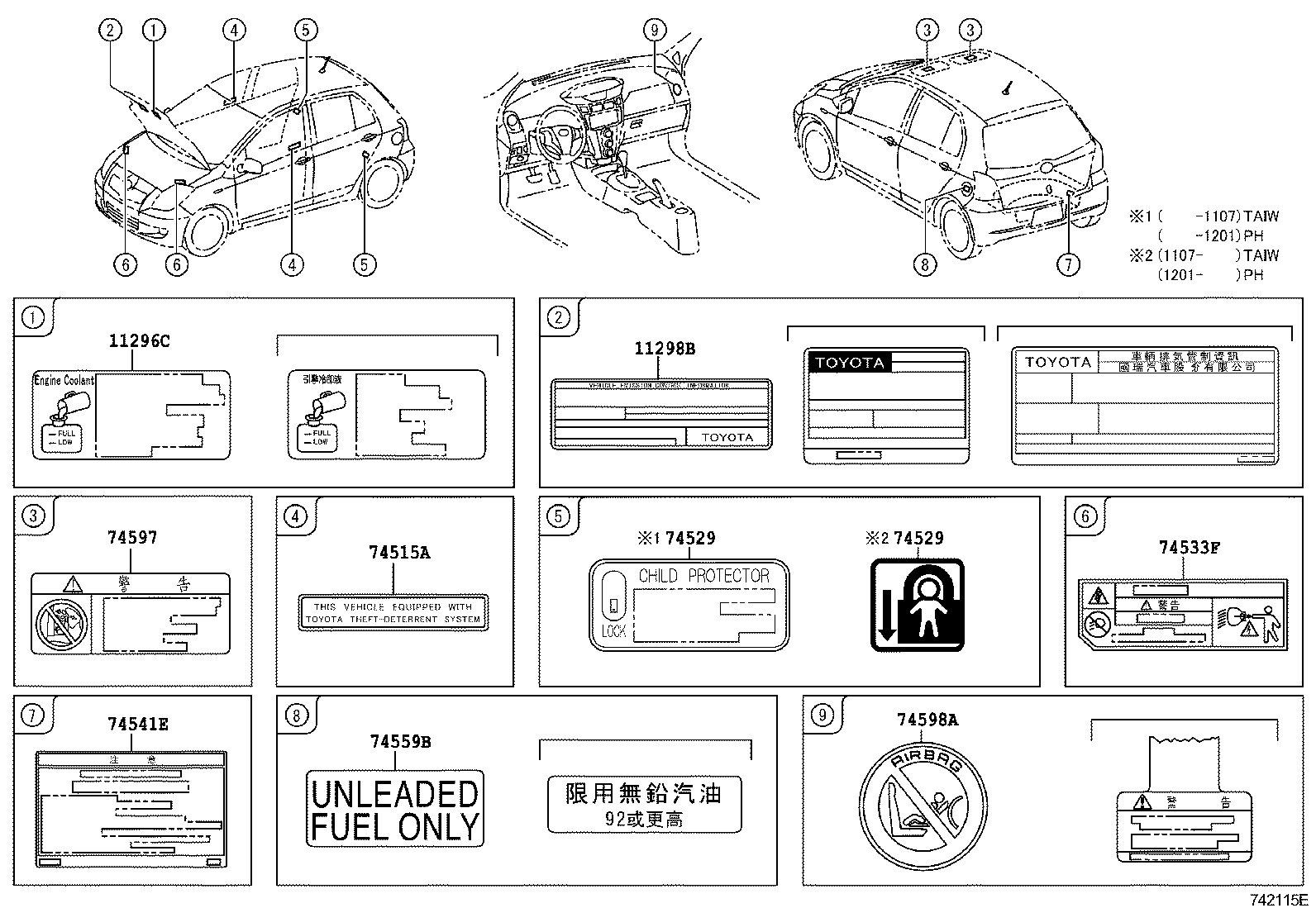

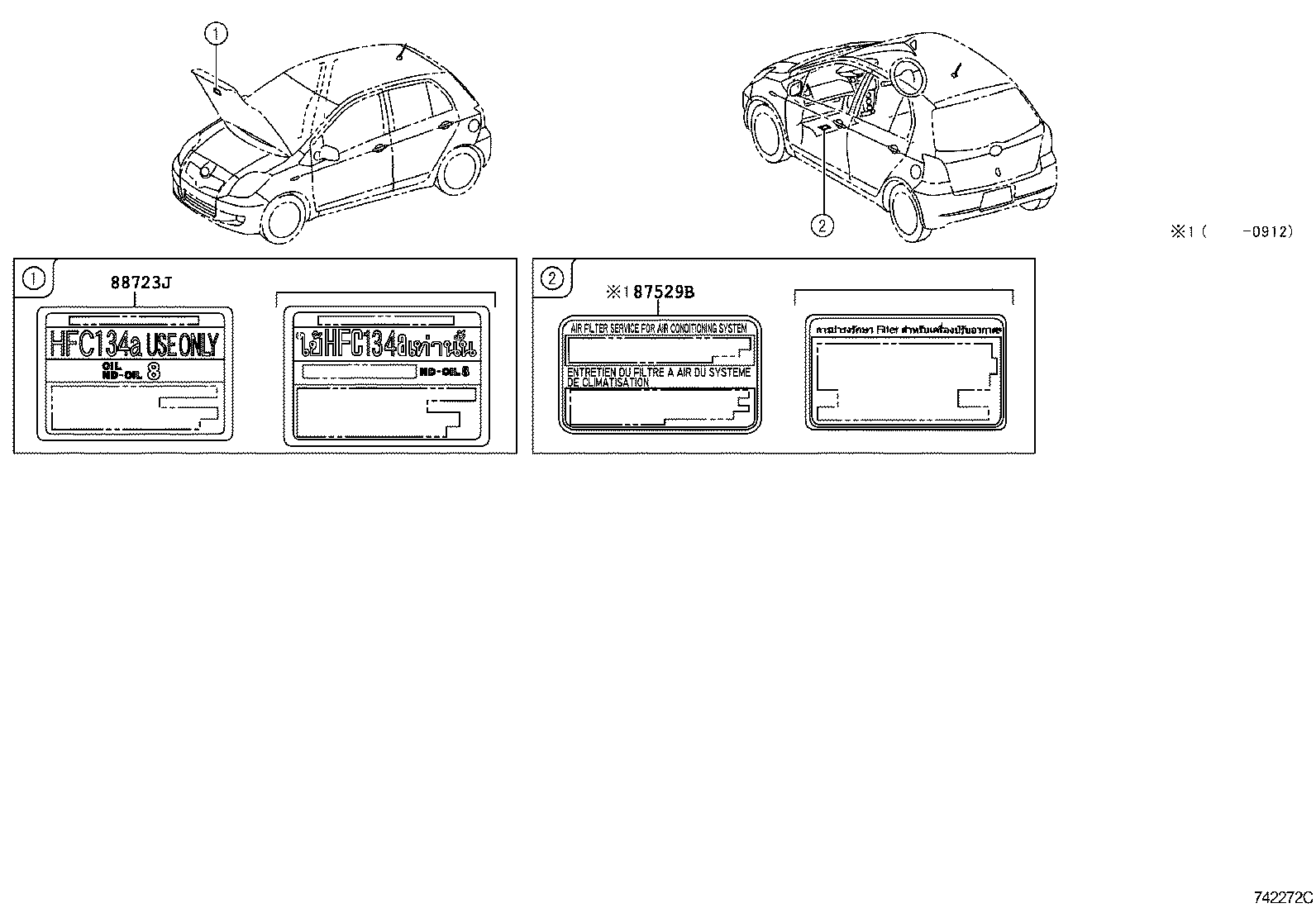

Figure 745904 745904 2006-01 → — Figure 742271B 742271B 2006-01 → — Figure 742272C 742272C 2006-01 → — Figure 742115E 742115E 2006-11 → — Figure 742116H 742116H 2006-11 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11293C Label, Tune-up Specification Information
11296C Label, Engine Service Information
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
74515A Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74533F Label, Headlamp Voltage Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74574 Plate, Noise Identification
74597 Label, Driver & Passenger Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723J Label, Cooler Service Caution, NO.2
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
