Toyota Yaris (ASIA)
2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General
Supported model
Data version 2015-01
Mudguard & Spoiler

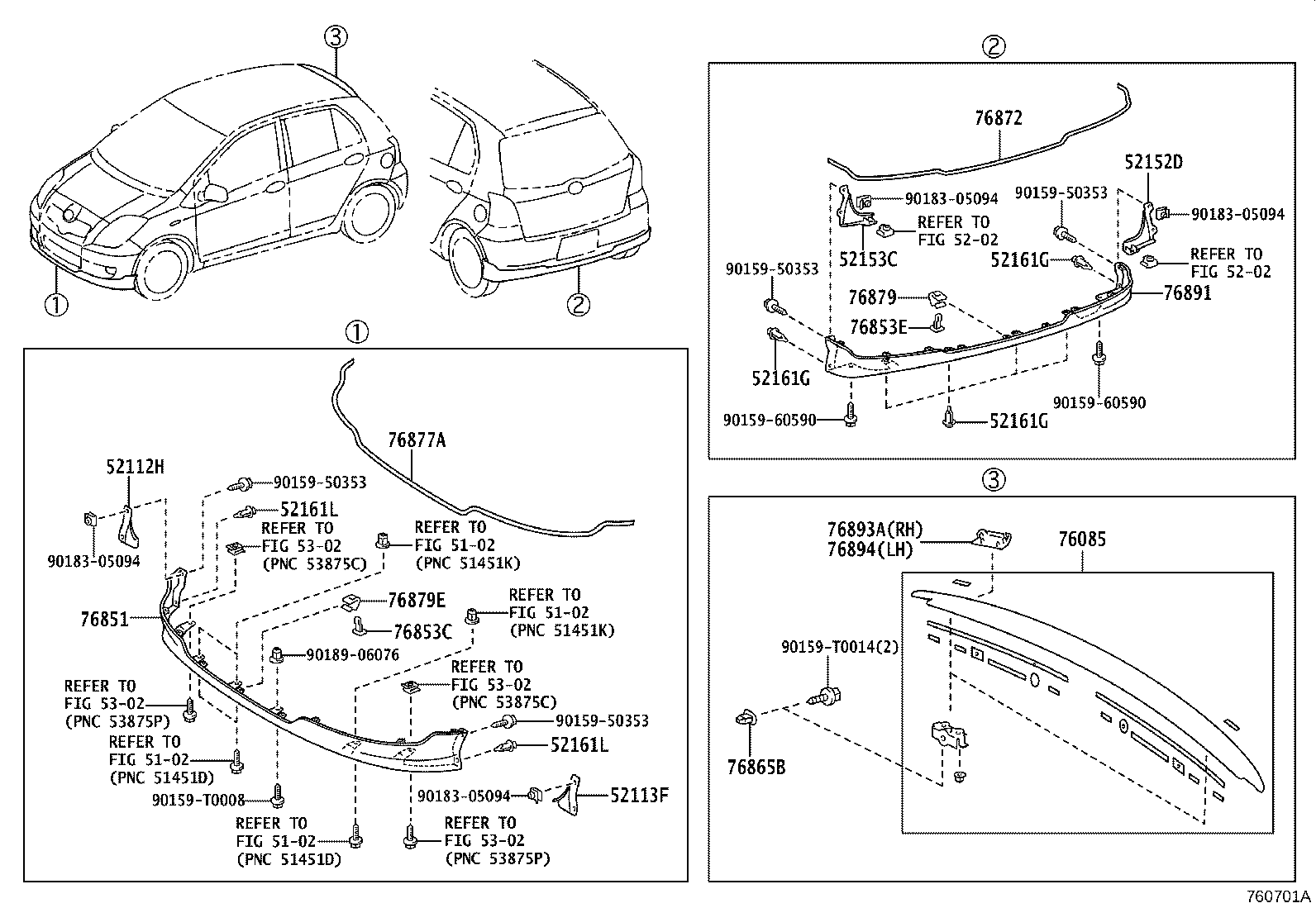

23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112H | Extension, Front Bumper, RH |
| 52113F | Extension, Front Bumper, LH |
| 52152D | Extension, Rear Bumper, RH |
| 52153C | Extension, Rear Bumper, LH |
| 52161G | Piece, Rear Bumper |
| 52161L | Piece, Front Spoiler |
| 76085 | Spoiler Sub-assy, Rear |
| 76851 | Cover, Front Spoiler |
| 76853C | Retainer, Front Spoiler, NO.1 |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76865B | Retainer, Rear Spoiler |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76877A | Protector, Front Spoiler |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76879E | Clip, Front Spoiler |
| 76891 | Spoiler, Rear NO.1 |
| 76893A | Cover, Rear Spoiler, RH |
| 76894 | Cover, Rear Spoiler, LH |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76919 | Pad, Side Mudguard |
| 76923 | Retainer, Side Mudguard |
| 76925D | Protector, Side Mudguard, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
