Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

26 part groups · 9 illustrations

Illustrations

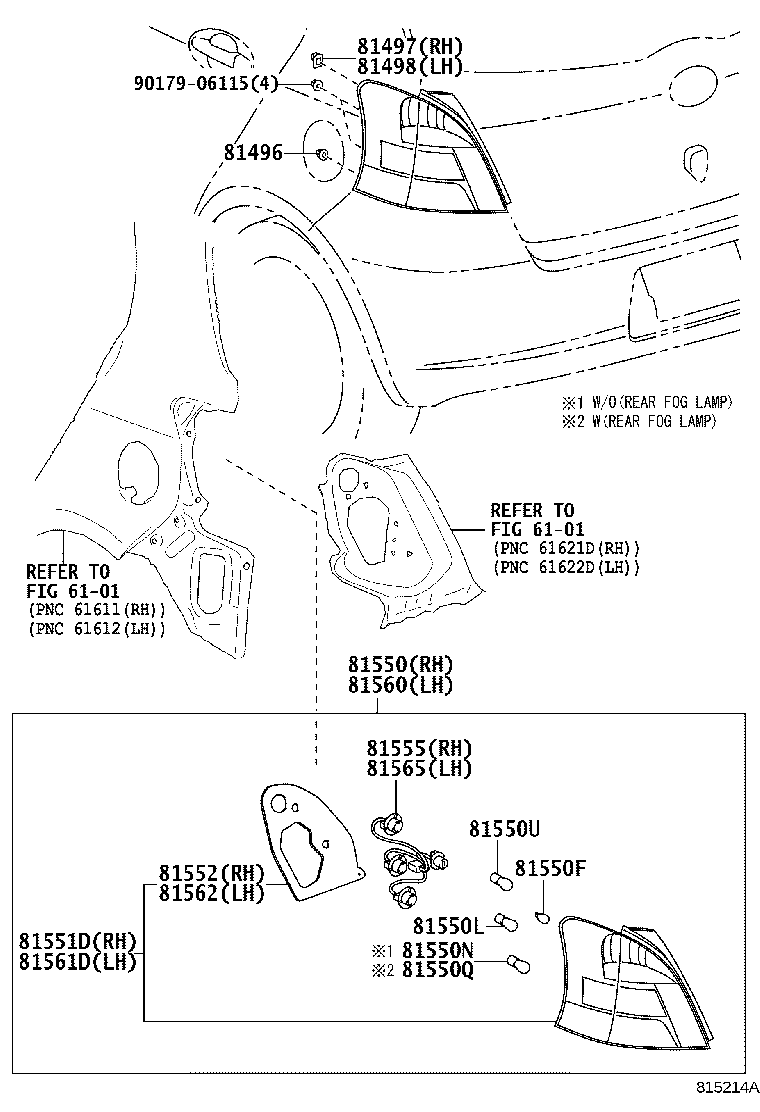

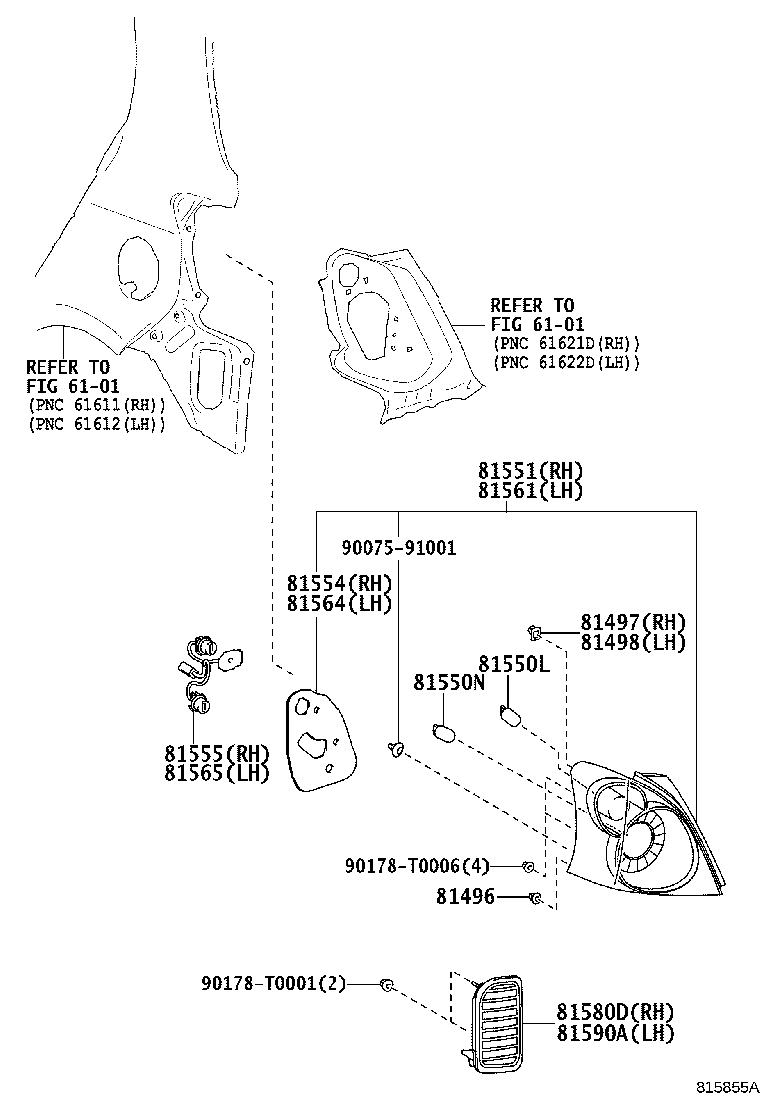

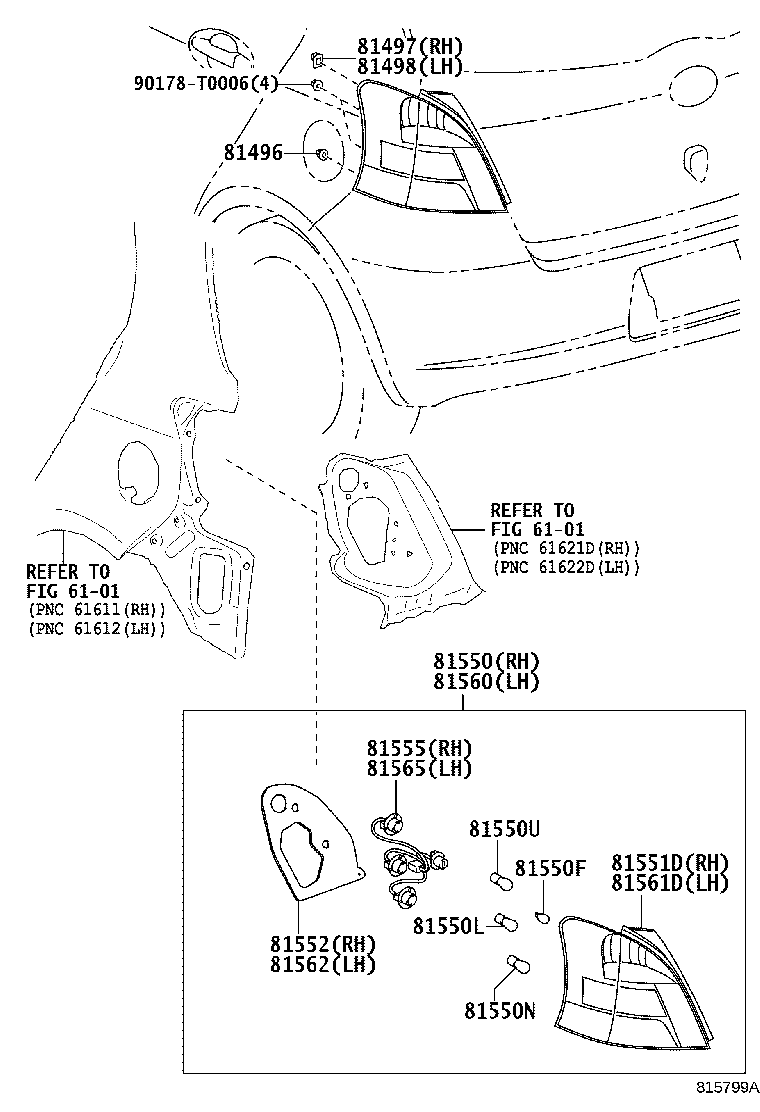

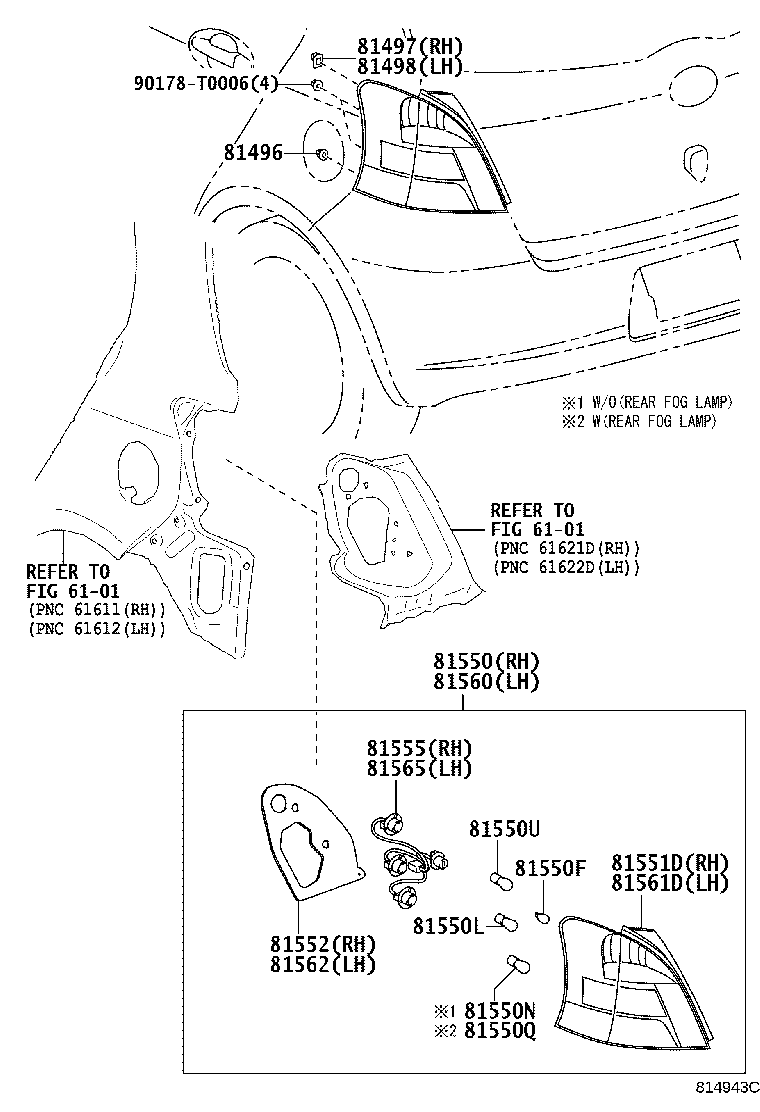

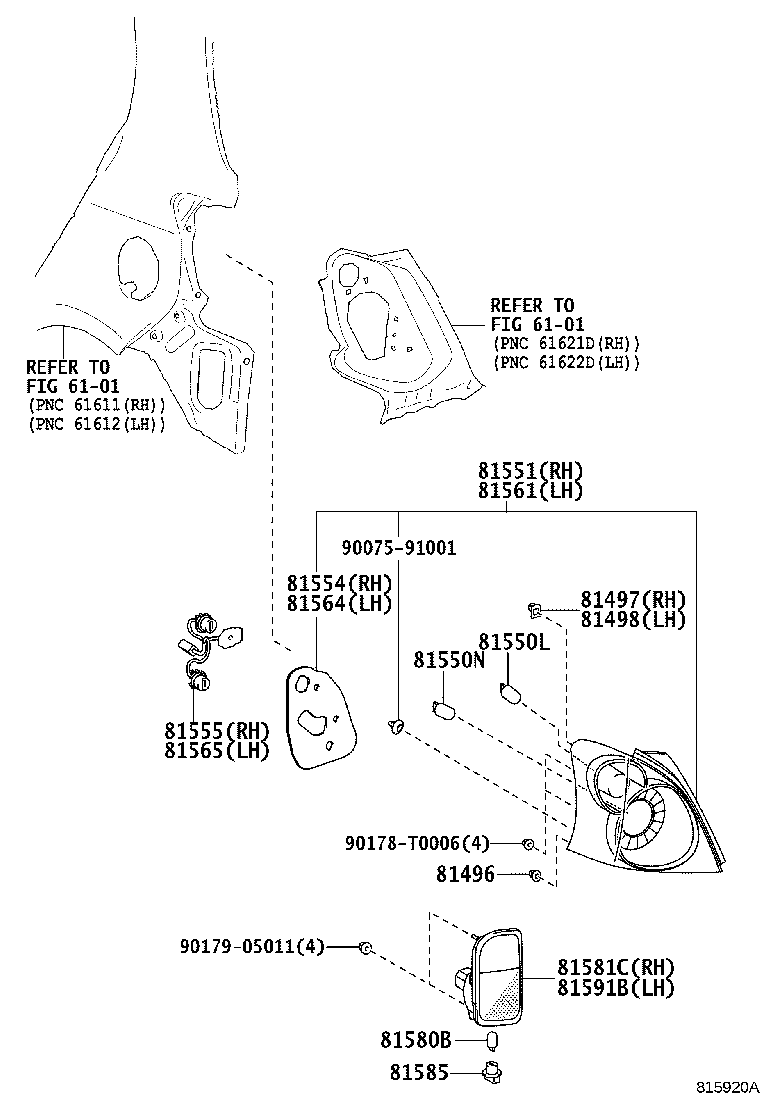

Figure 813516G 813516G 2006-01 → 2008-12 Figure 813516G 813516G 2006-01 → 2009-01 Figure 813516G 813516G 2006-11 → 2009-10 Figure 814943C 814943C 2009-03 → 2012-02 Figure 815214A 815214A 2009-10 → 2012-04 Figure 815214A 815214A 2009-10 → — Figure 815799A 815799A 2012-02 → — Figure 815855A 815855A 2012-02 → 2013-07 Figure 815920A 815920A 2012-04 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81550F Bulb, Taillamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81550U Bulb, Stop Lamp
81551 Lens, Rear Combination Lamp, RH
81551D Lens & Body, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561D Lens & Body, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
