Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 13 illustrations

Illustrations

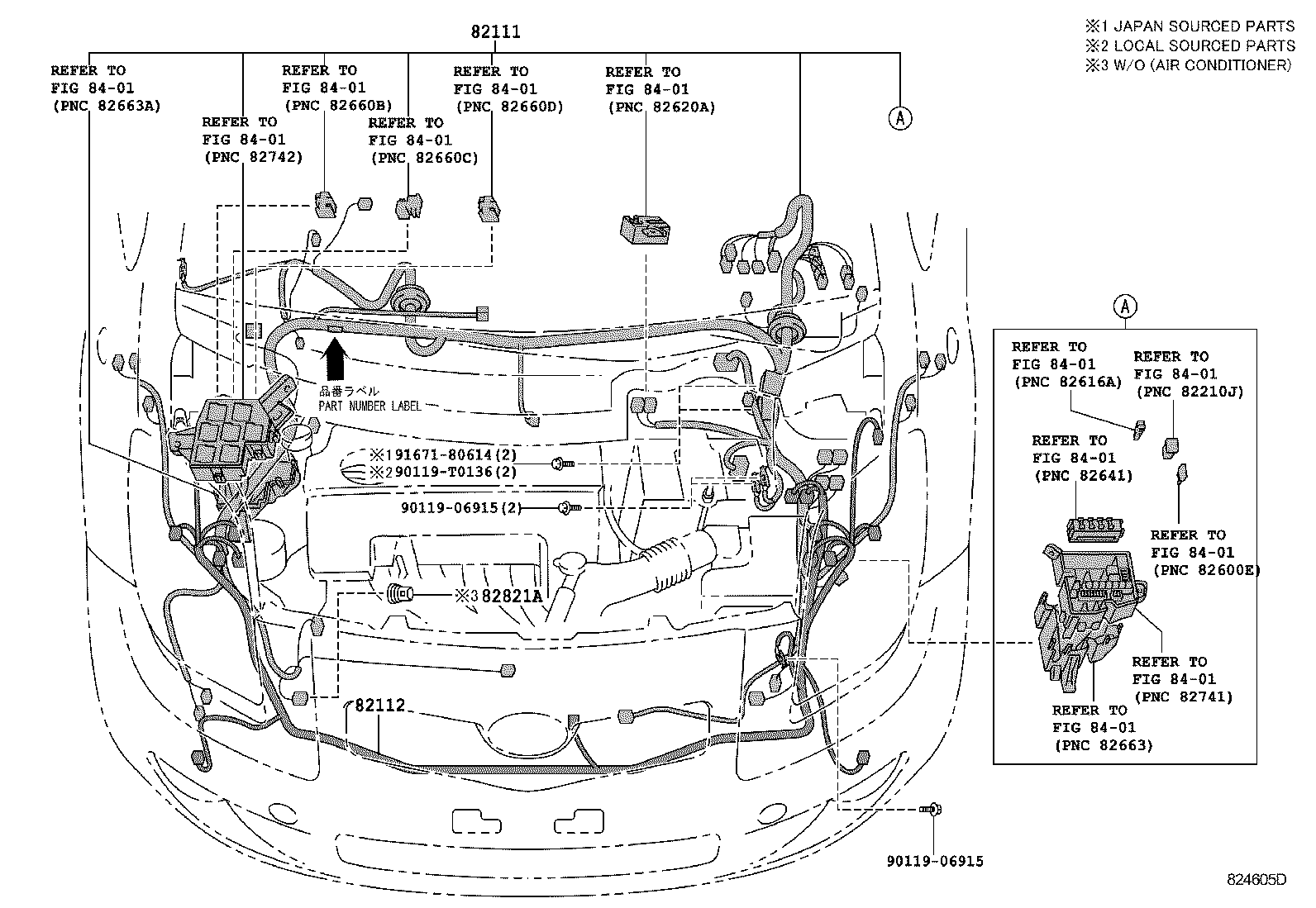

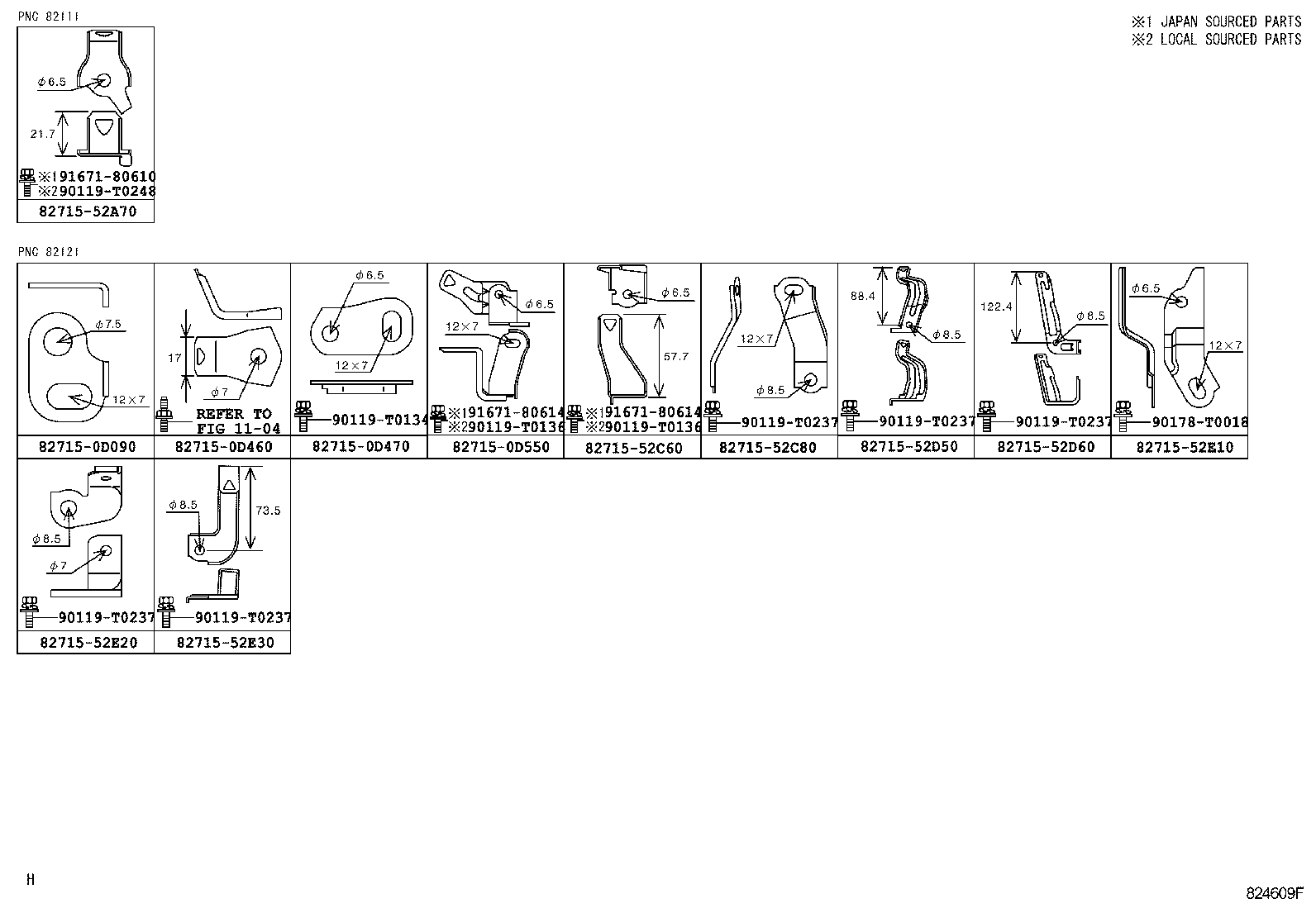

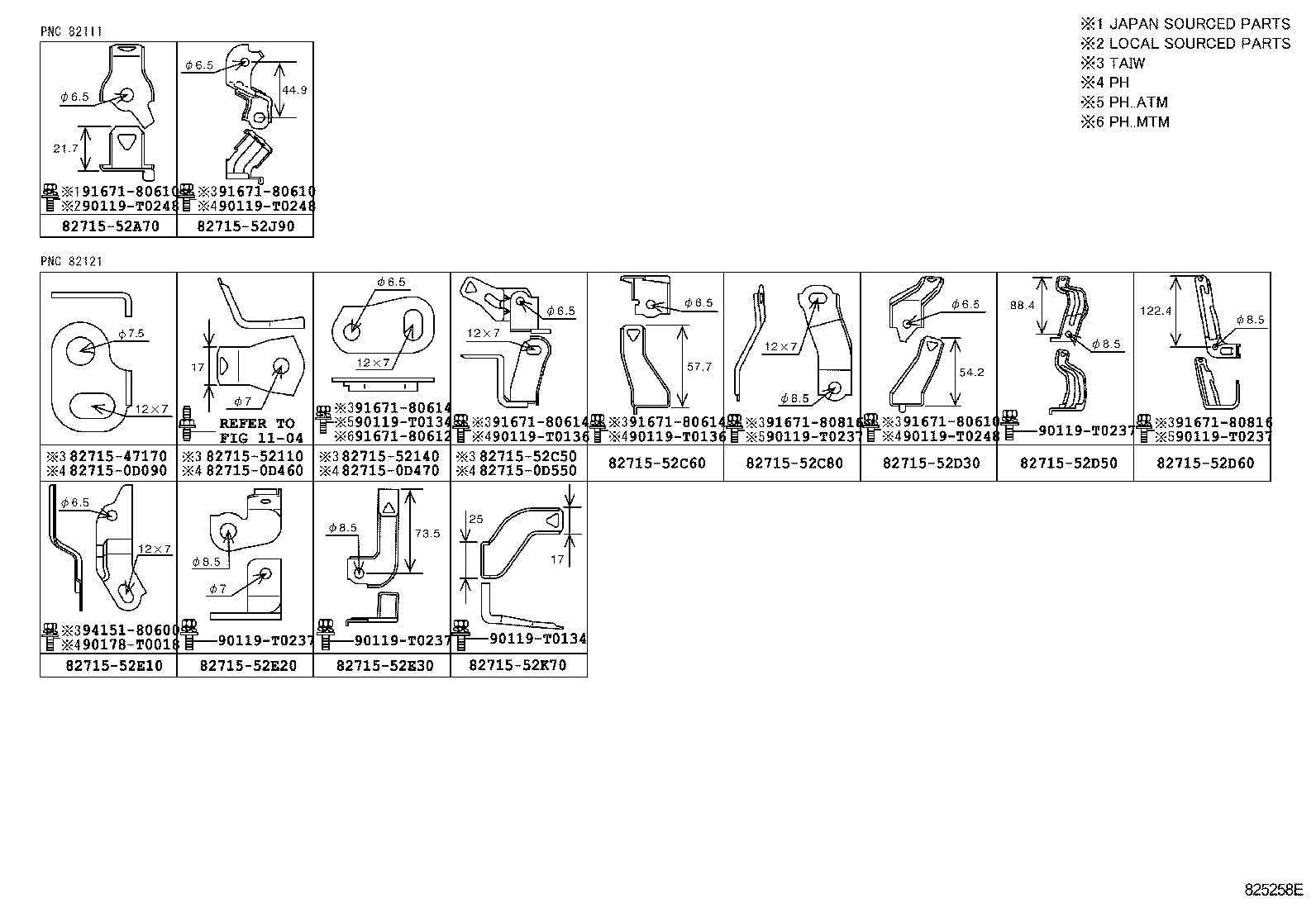

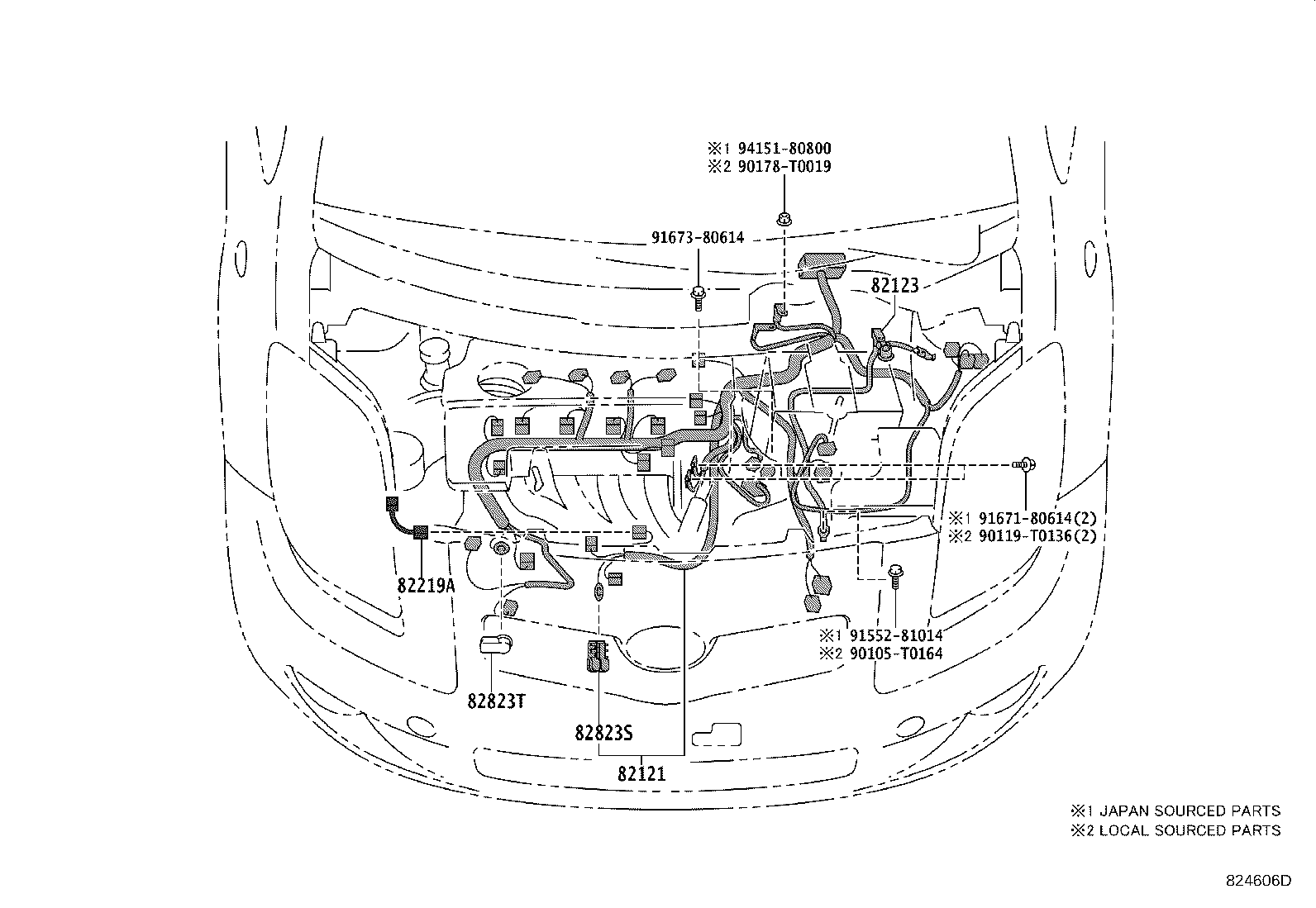

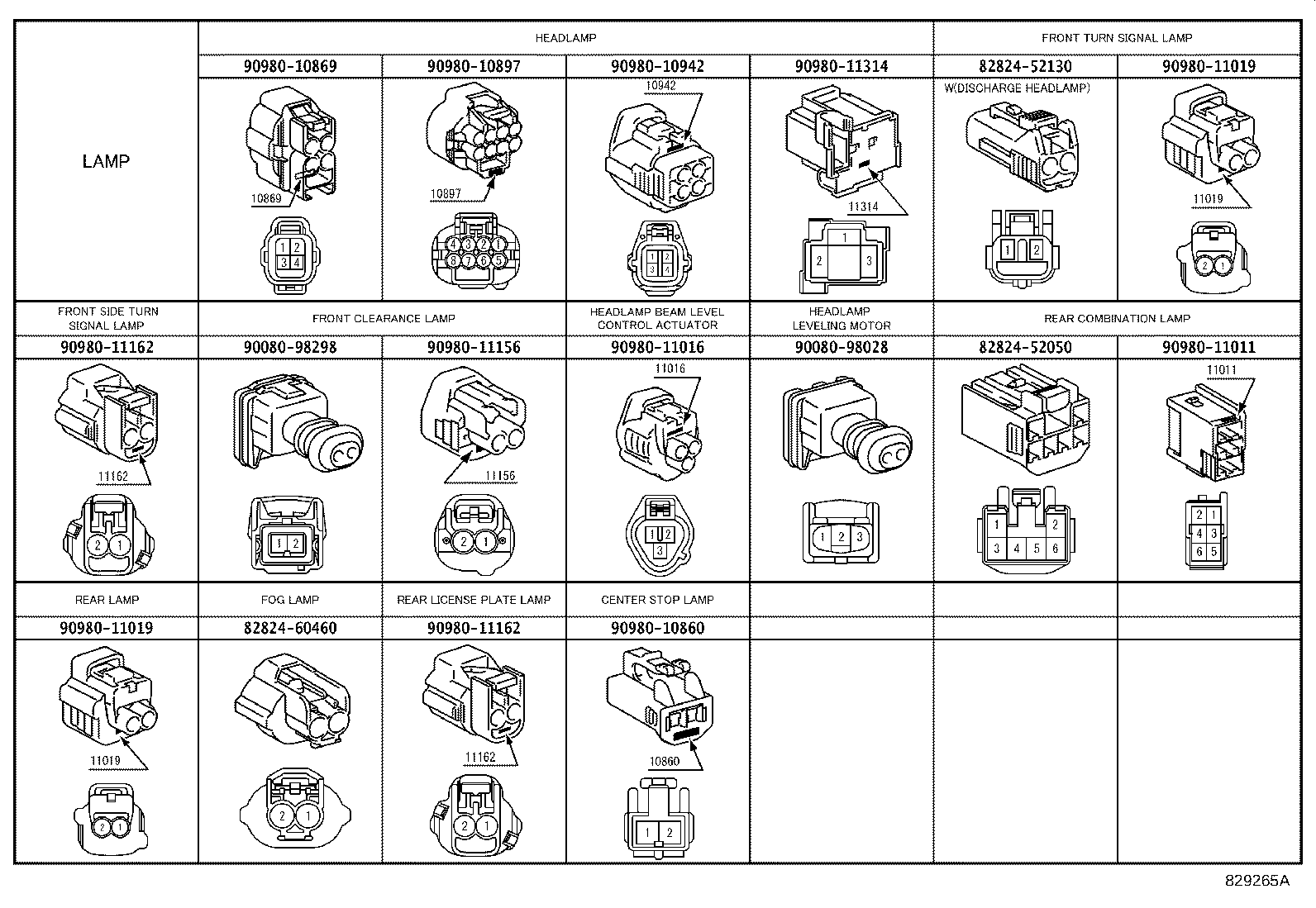

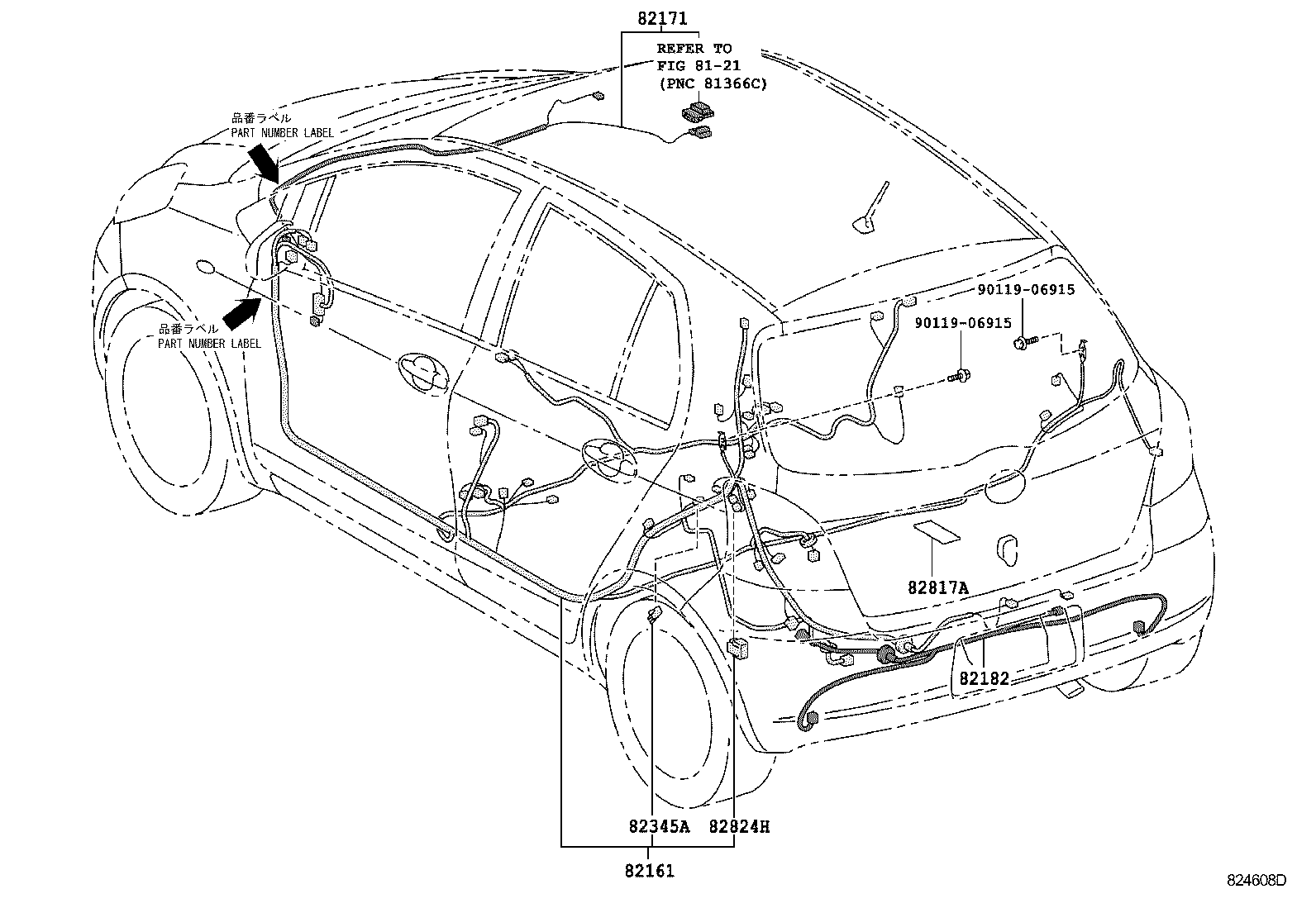

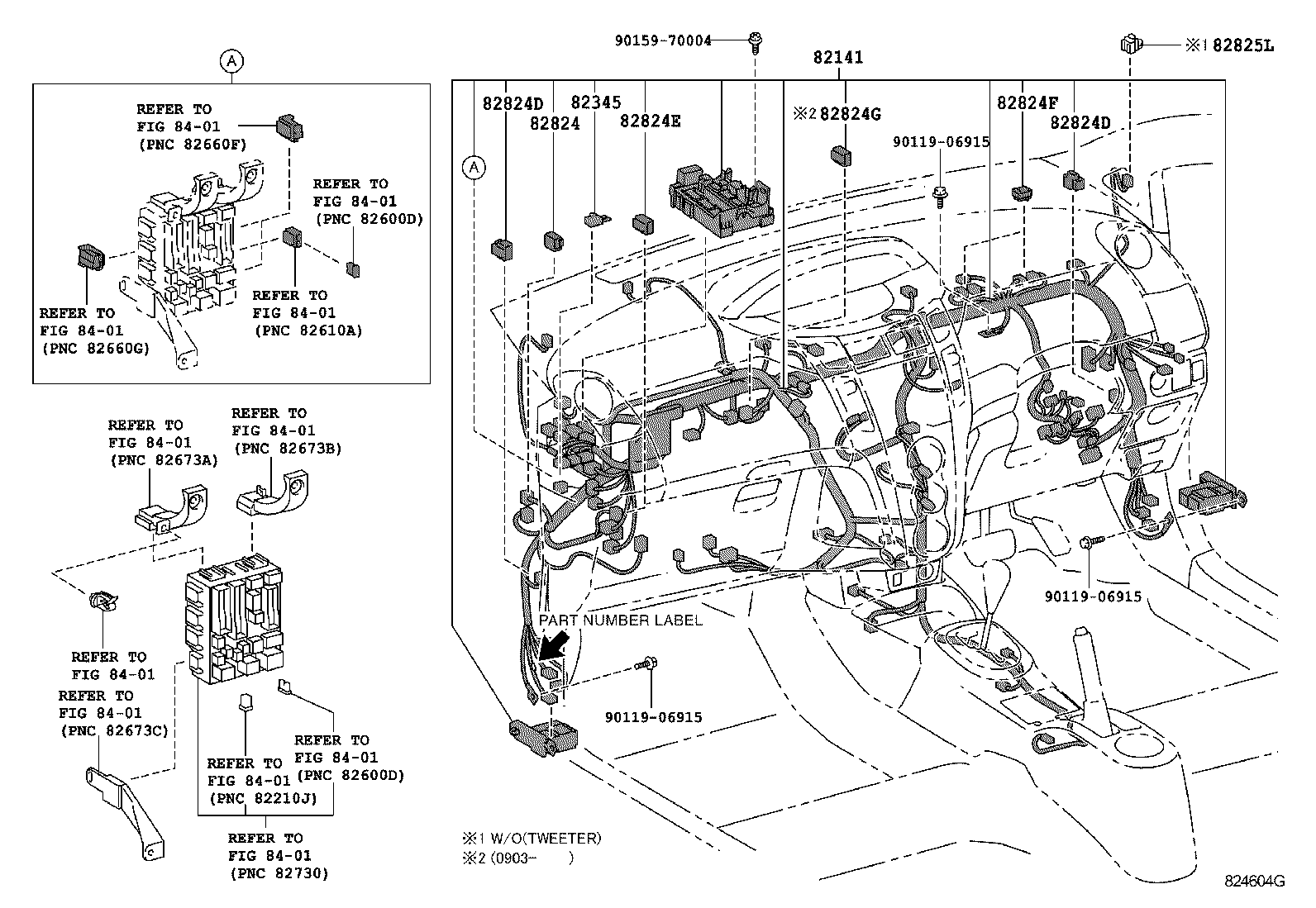

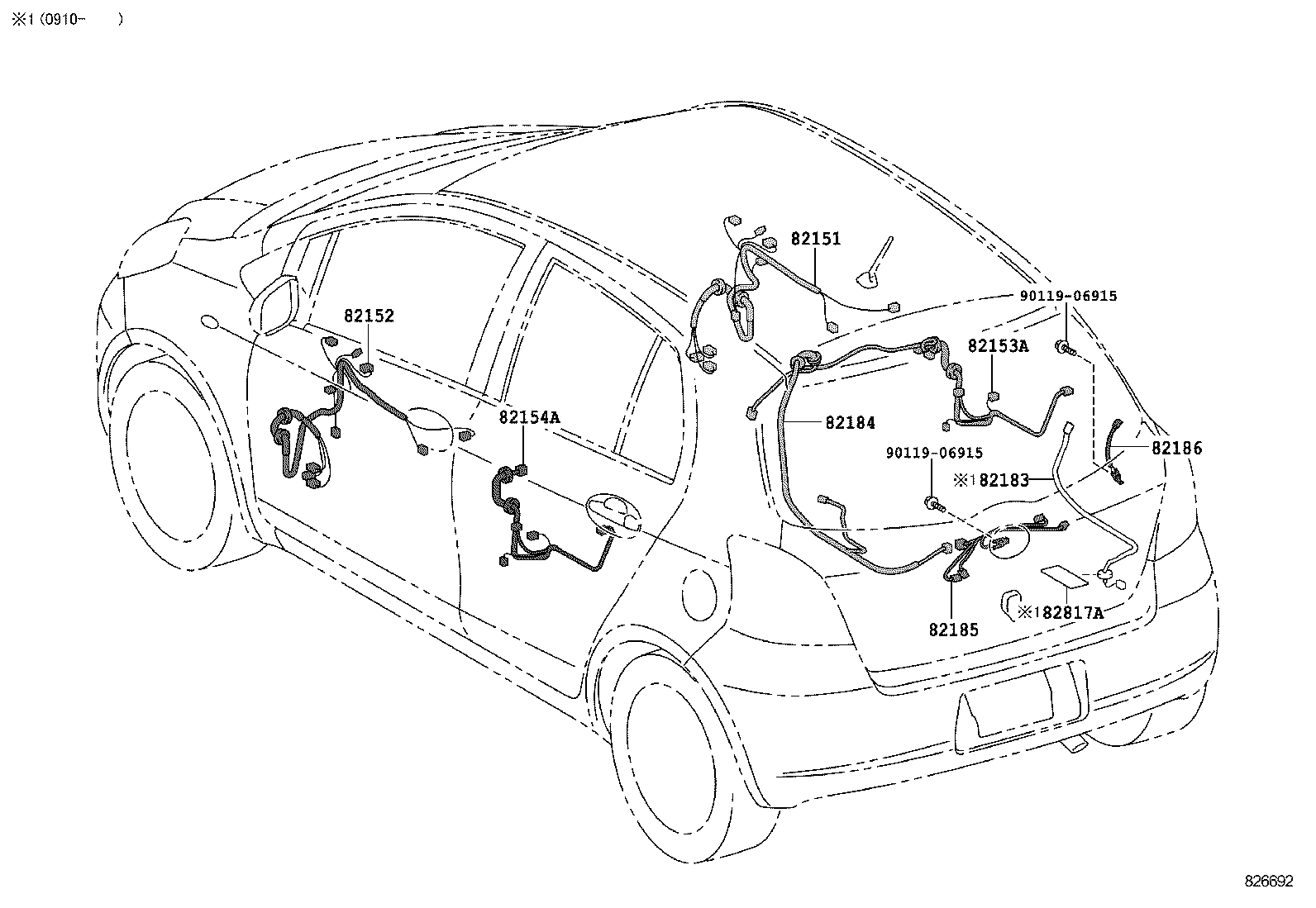

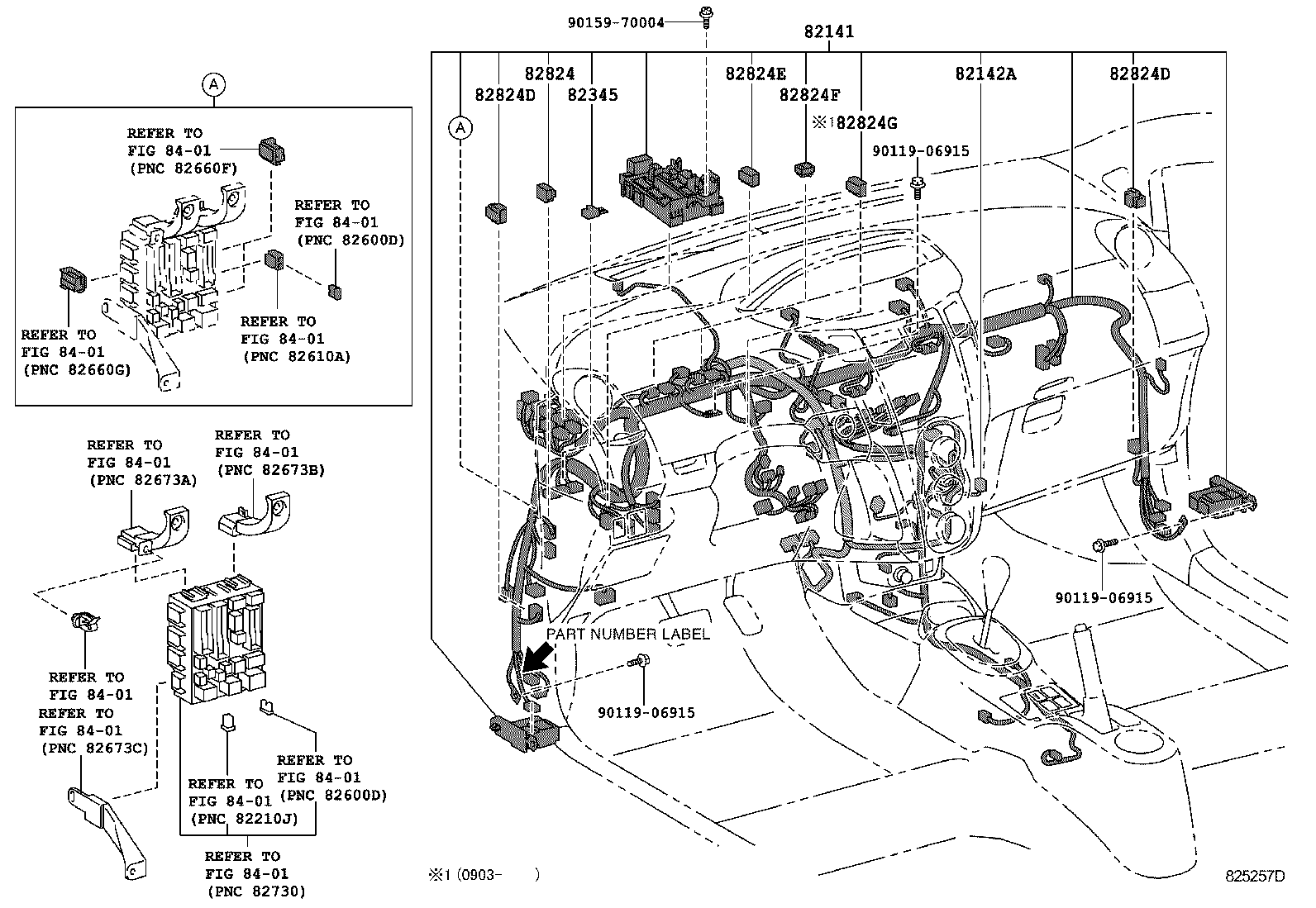

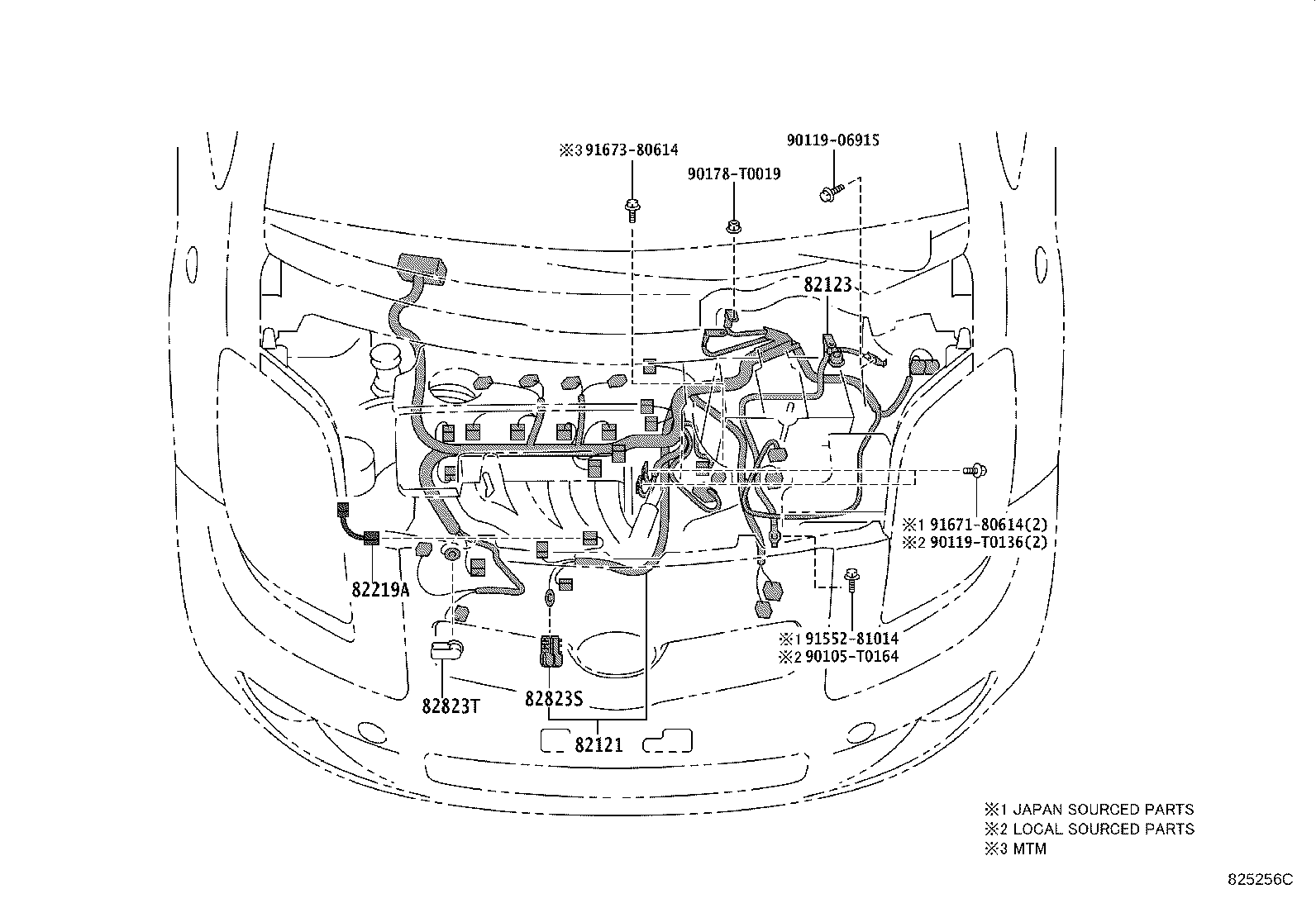

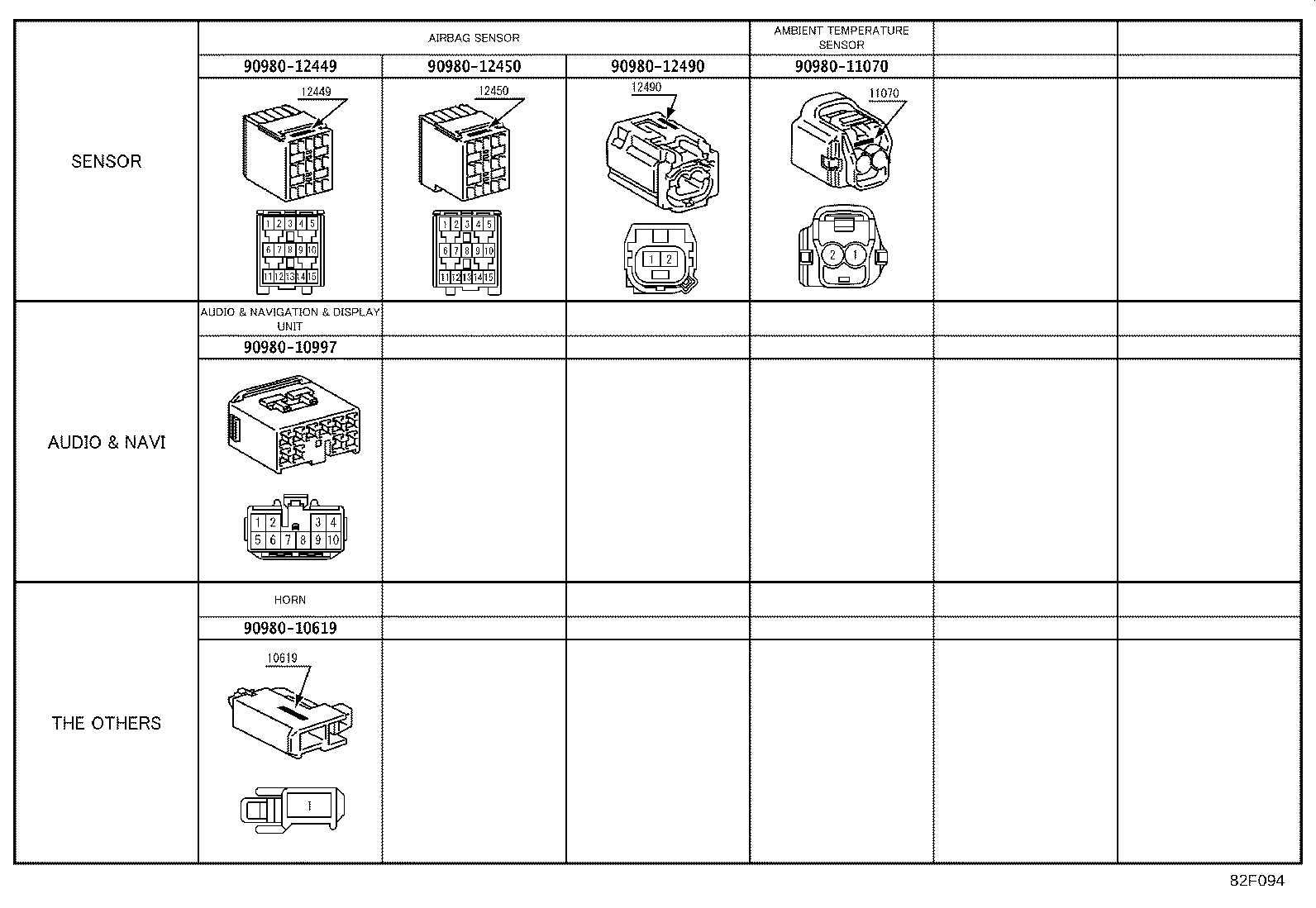

Figure 825255 825255 2006-11 → — Figure 824605D 824605D 2006-01 → — Figure 825256C 825256C 2006-11 → — Figure 824606D 824606D 2006-01 → — Figure 825257D 825257D 2006-11 → — Figure 824604G 824604G 2006-01 → — Figure 826692 826692 2006-01 → — Figure 824608D 824608D 2006-01 → — Figure 825258E 825258E 2006-01 → — Figure 824609F 824609F 2006-01 → — Figure 825264 825264 2006-11 → — Figure 829265A 829265A 2006-01 → — Figure 82F094 82F094 2006-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001G Cable, Bond, NO.4
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82345 Diode
82345A Diode
82817A Protector, Wiring Harness, NO.2
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82825L Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
