Toyota Yaris (ASIA)
2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General
Supported model
Data version 2015-01
Anti-theft Device

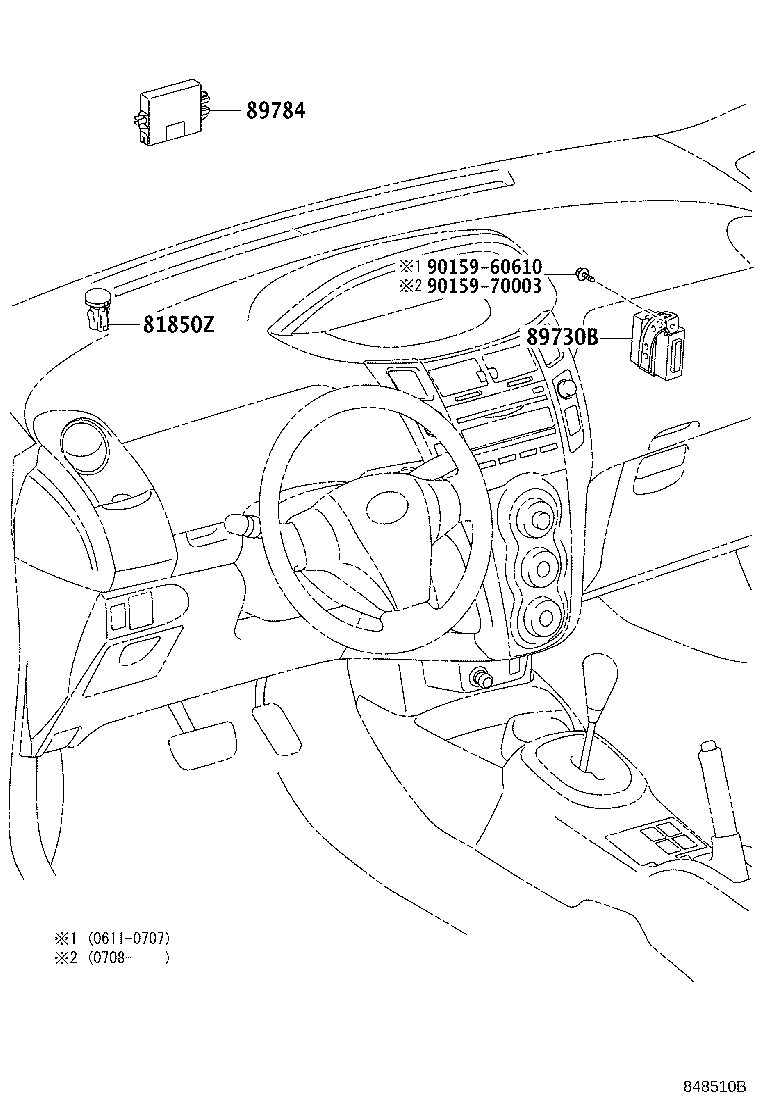

5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81850Z | Lamp Assy, Theft Warning Indicator |
| 89730B | Computer Assy, Theft Warning |
| 89780 | Computer Assy, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89784 | Computer, Immobilizer Code |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
