Toyota Yaris (ASIA)
2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General
Supported model
Data version 2015-01

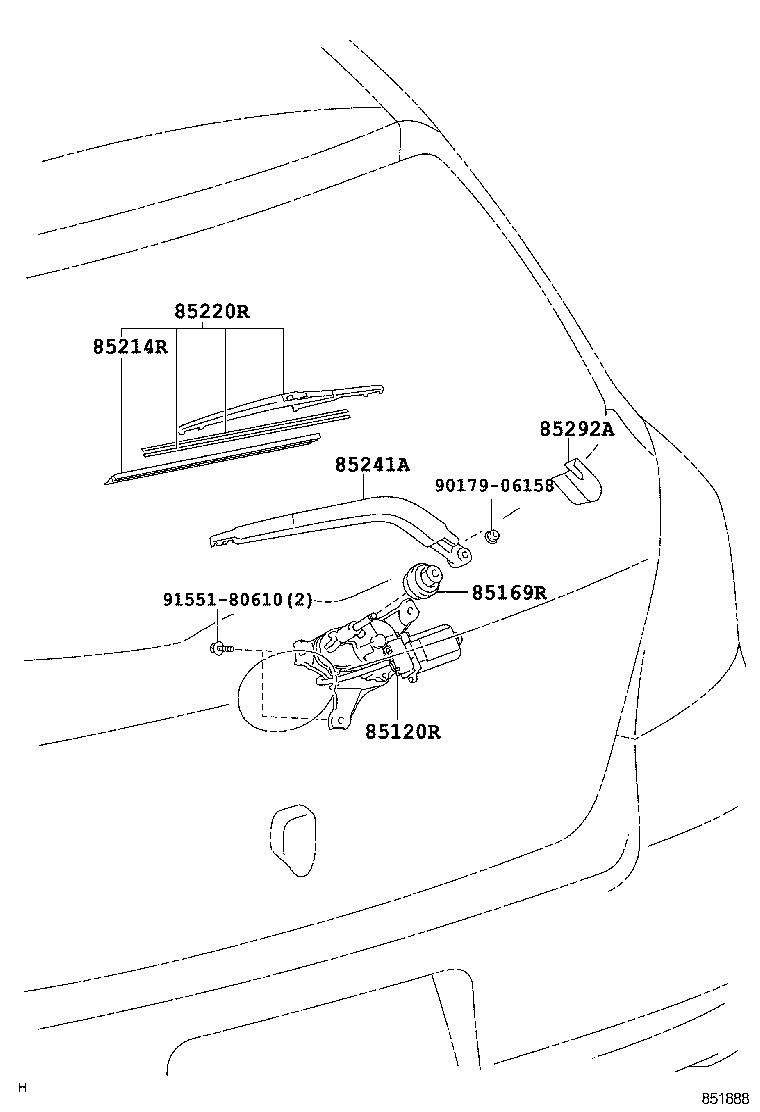

Rear Wiper
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85120R | Motor And Bracket Assy, Rear Wiper |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85241A | Arm, Rear Wiper |
| 85292A | Cap, Rear Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
