Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 5 illustrations

Illustrations

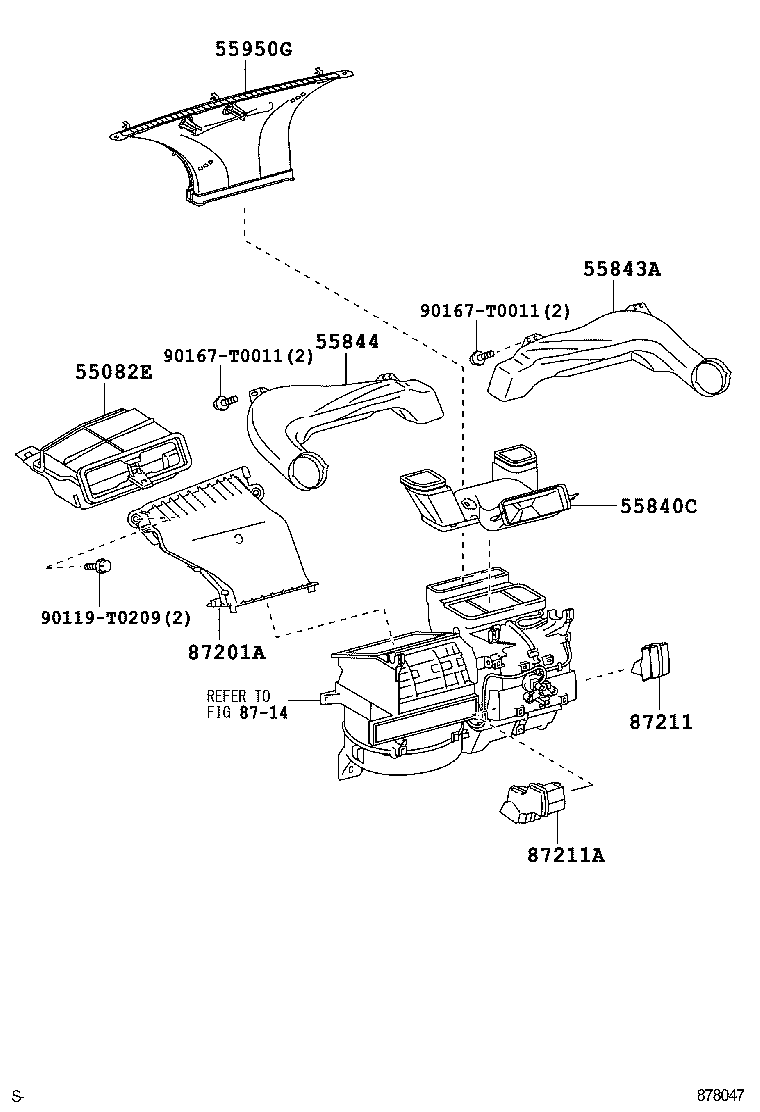

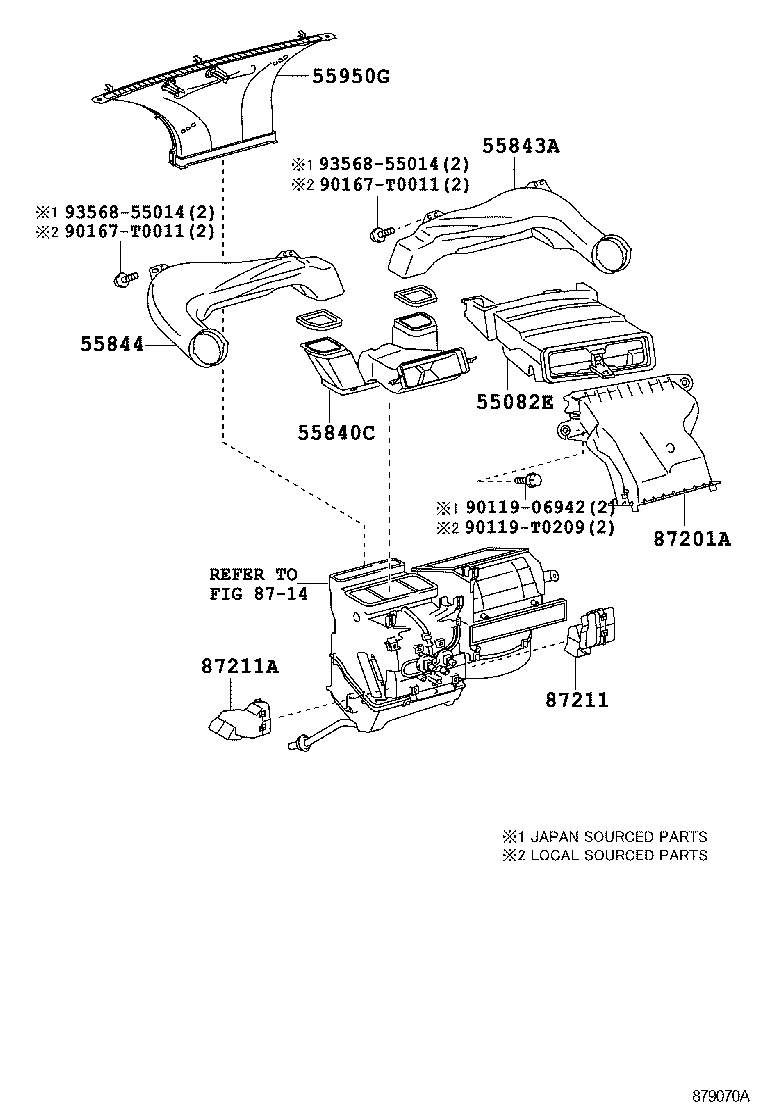

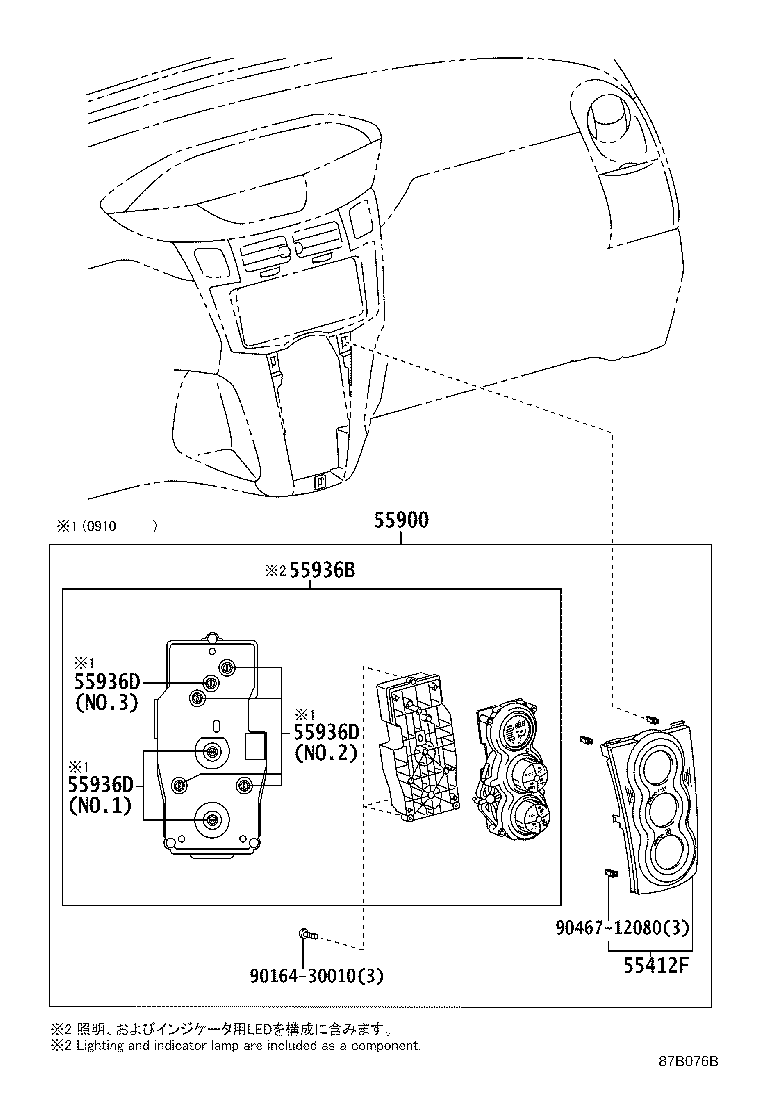

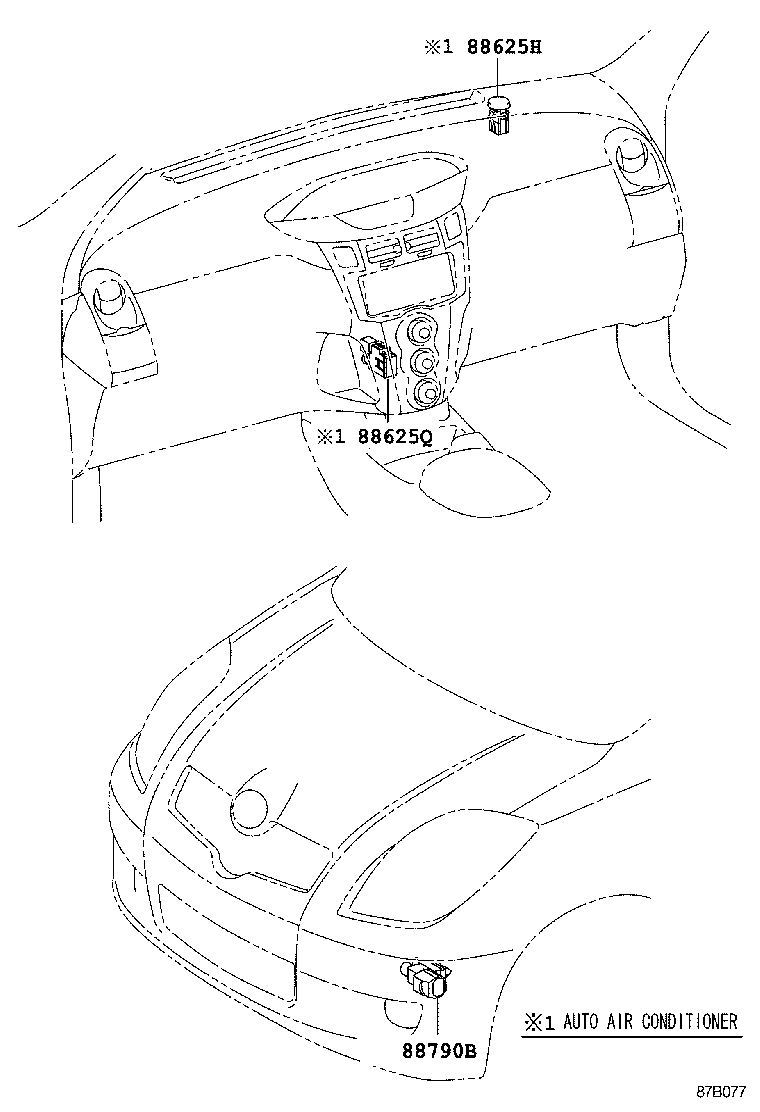

Figure 878046C 878046C 2006-01 → — Figure 87B076B 87B076B 2009-10 → — Figure 879070A 879070A 2006-11 → — Figure 878047 878047 2006-01 → — Figure 87B077 87B077 2006-11 → —

Part groups

PNCDescription
55082E Duct Sub-assy, Cowl TO Register, NO.2
55412F Panel, Instrument Cluster Finish, Center
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55936B Switch, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55950G Nozzle Assy, Defroster
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
