Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

5 part groups · 7 illustrations

Illustrations

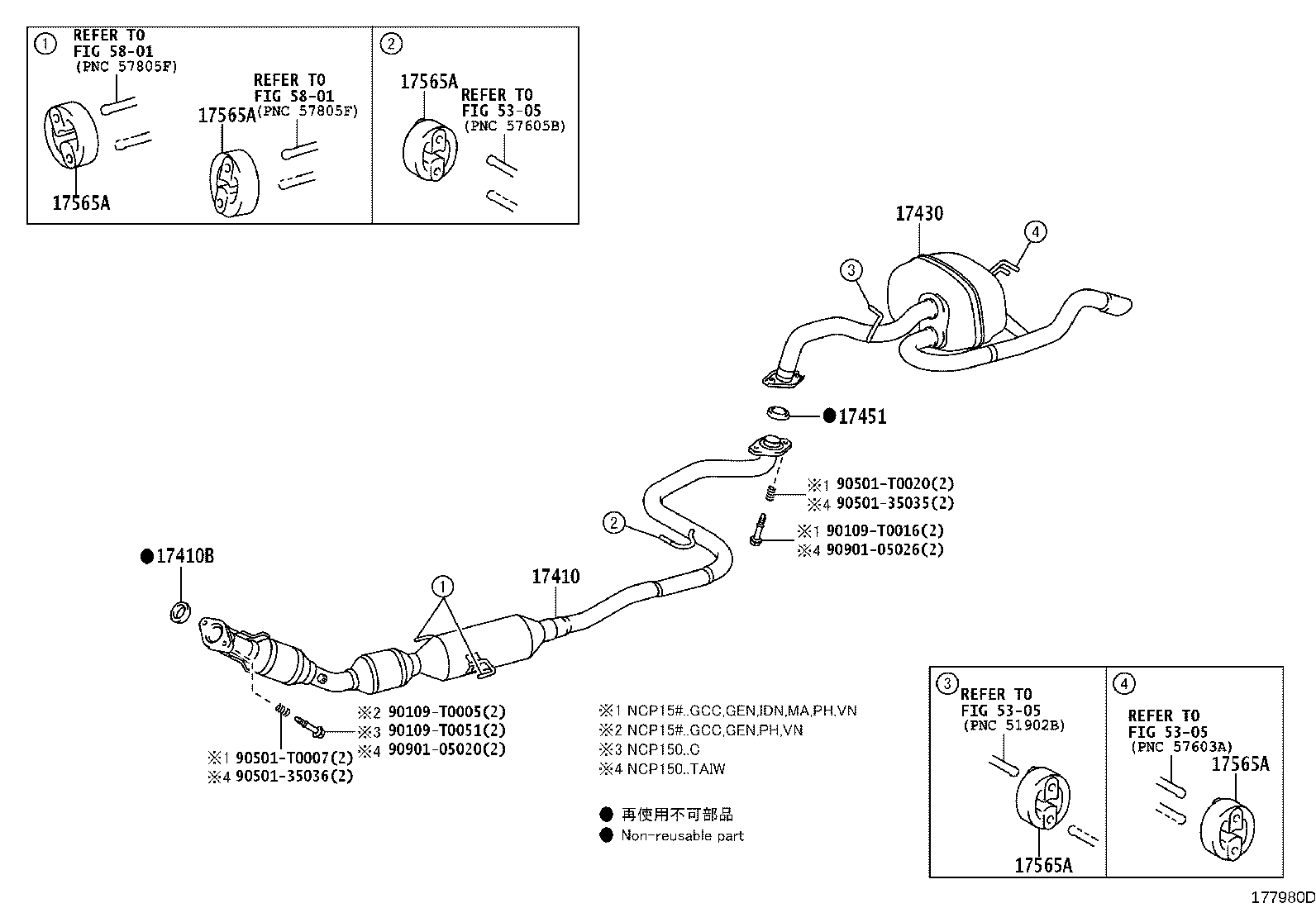

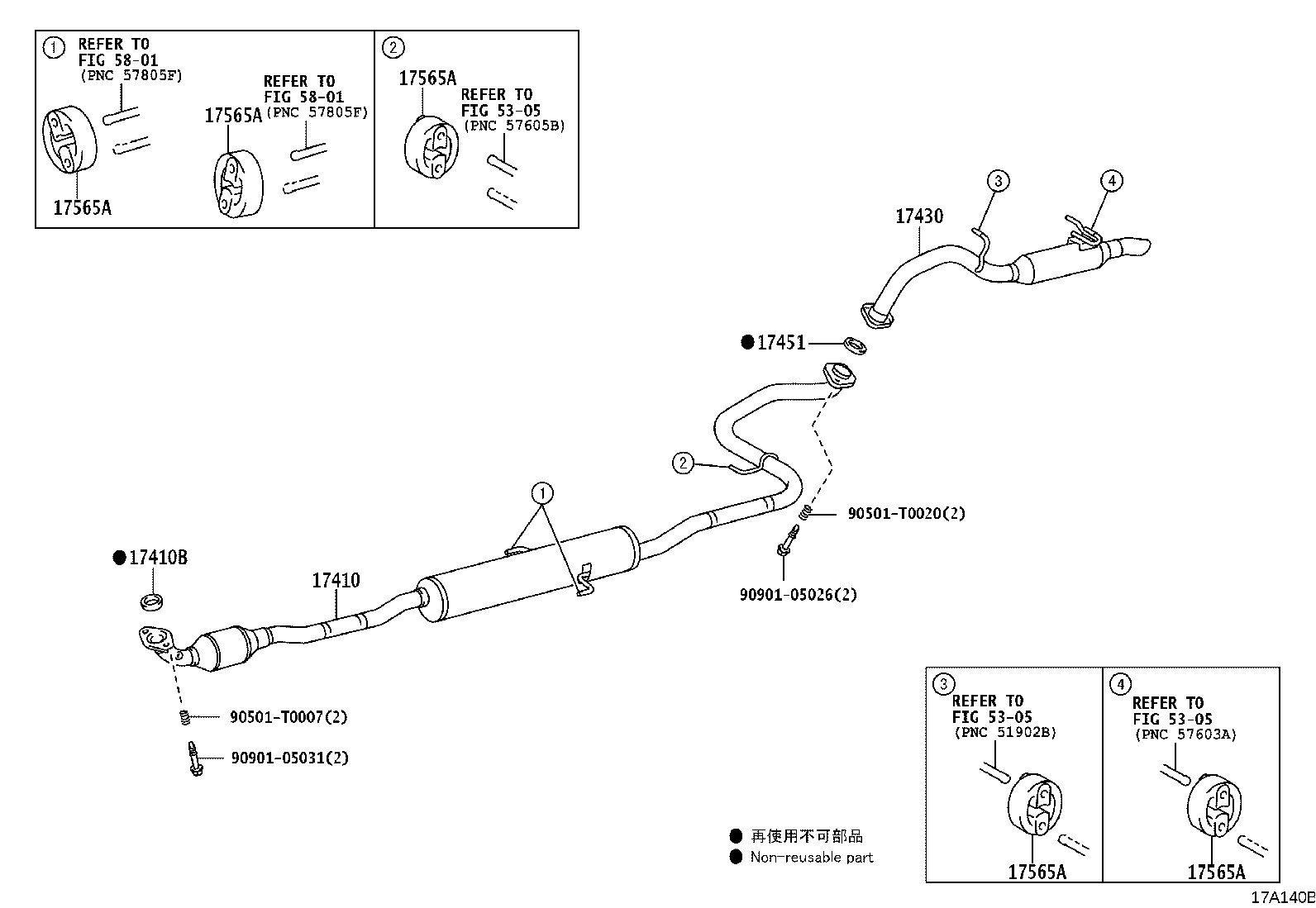

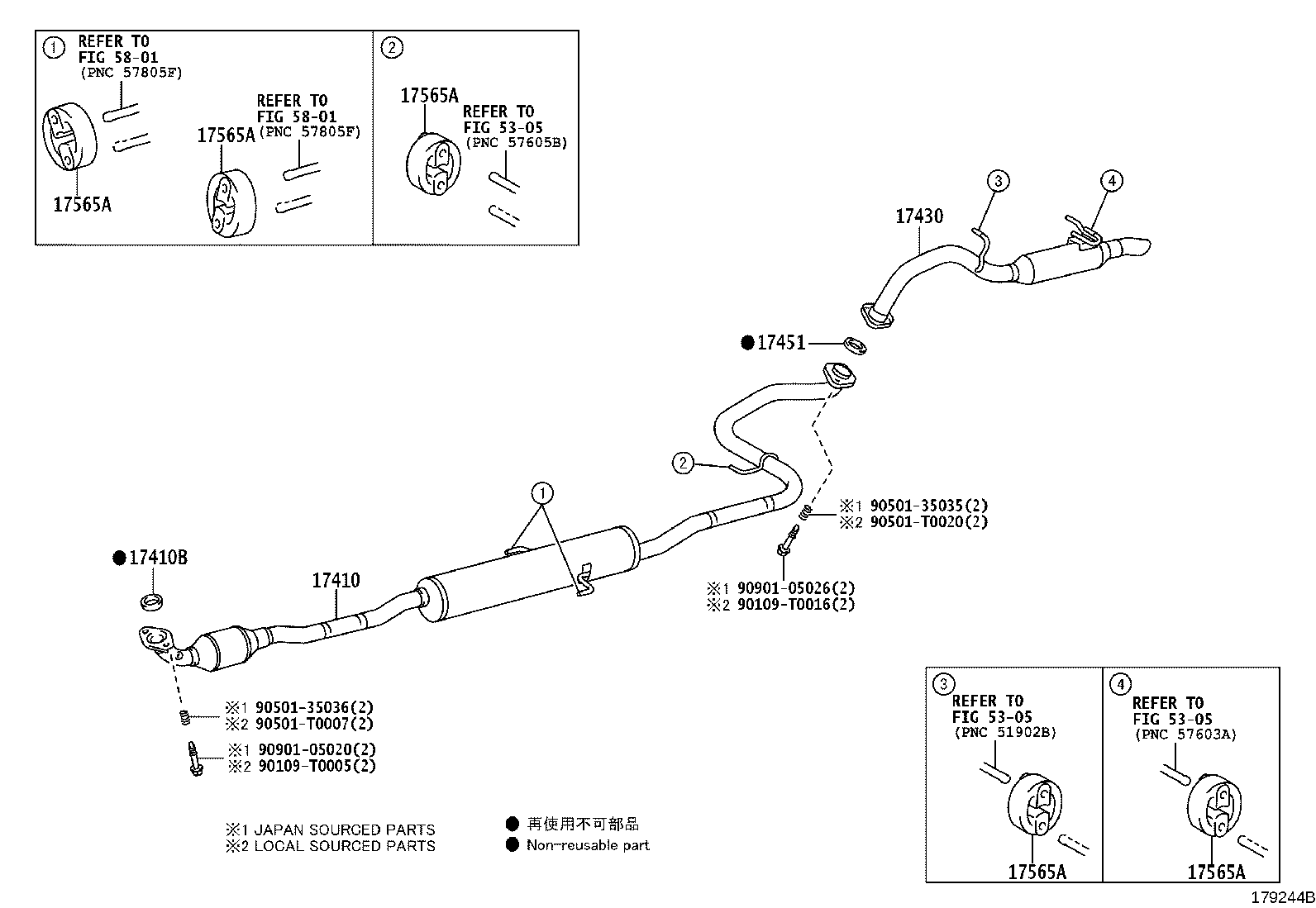

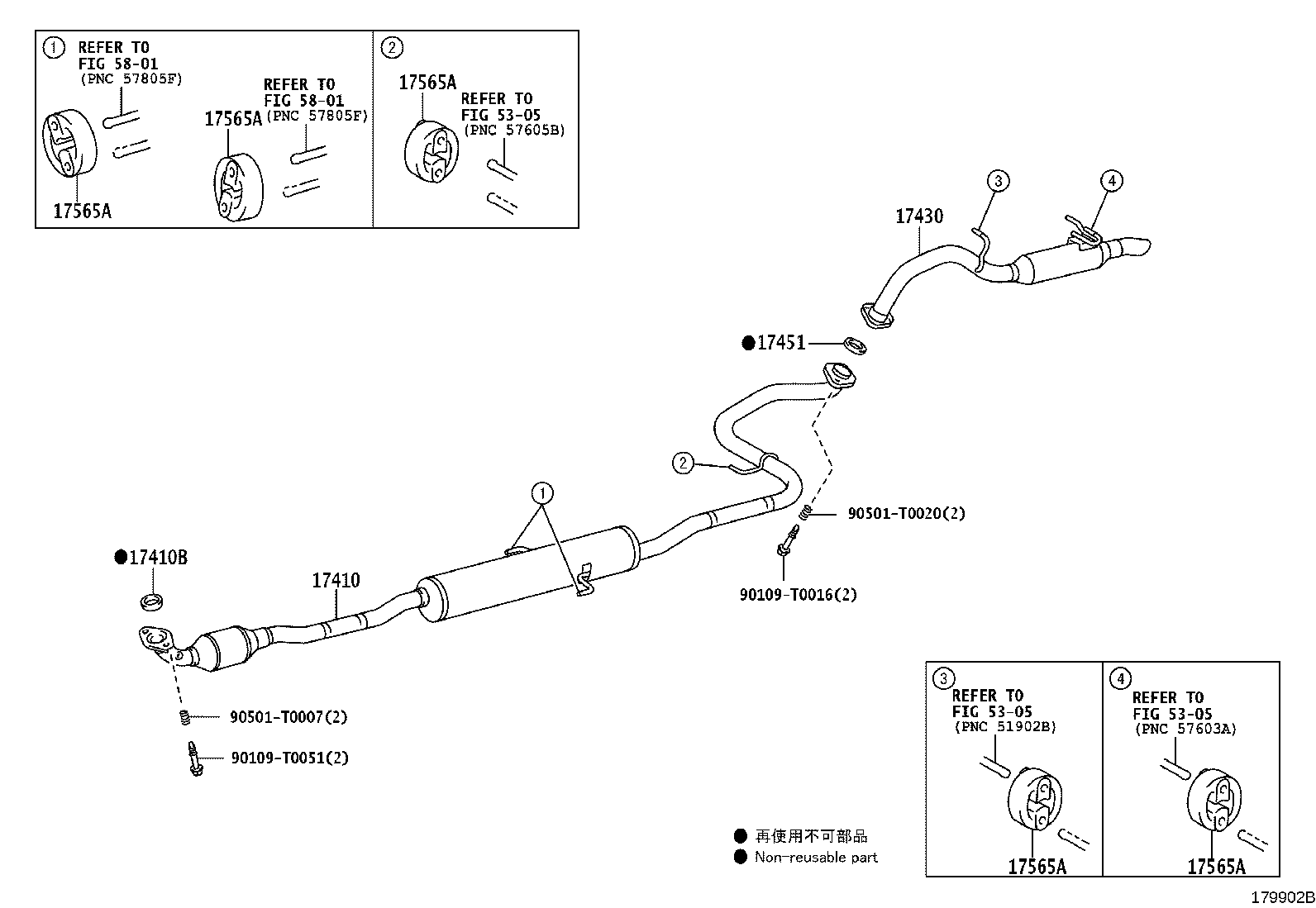

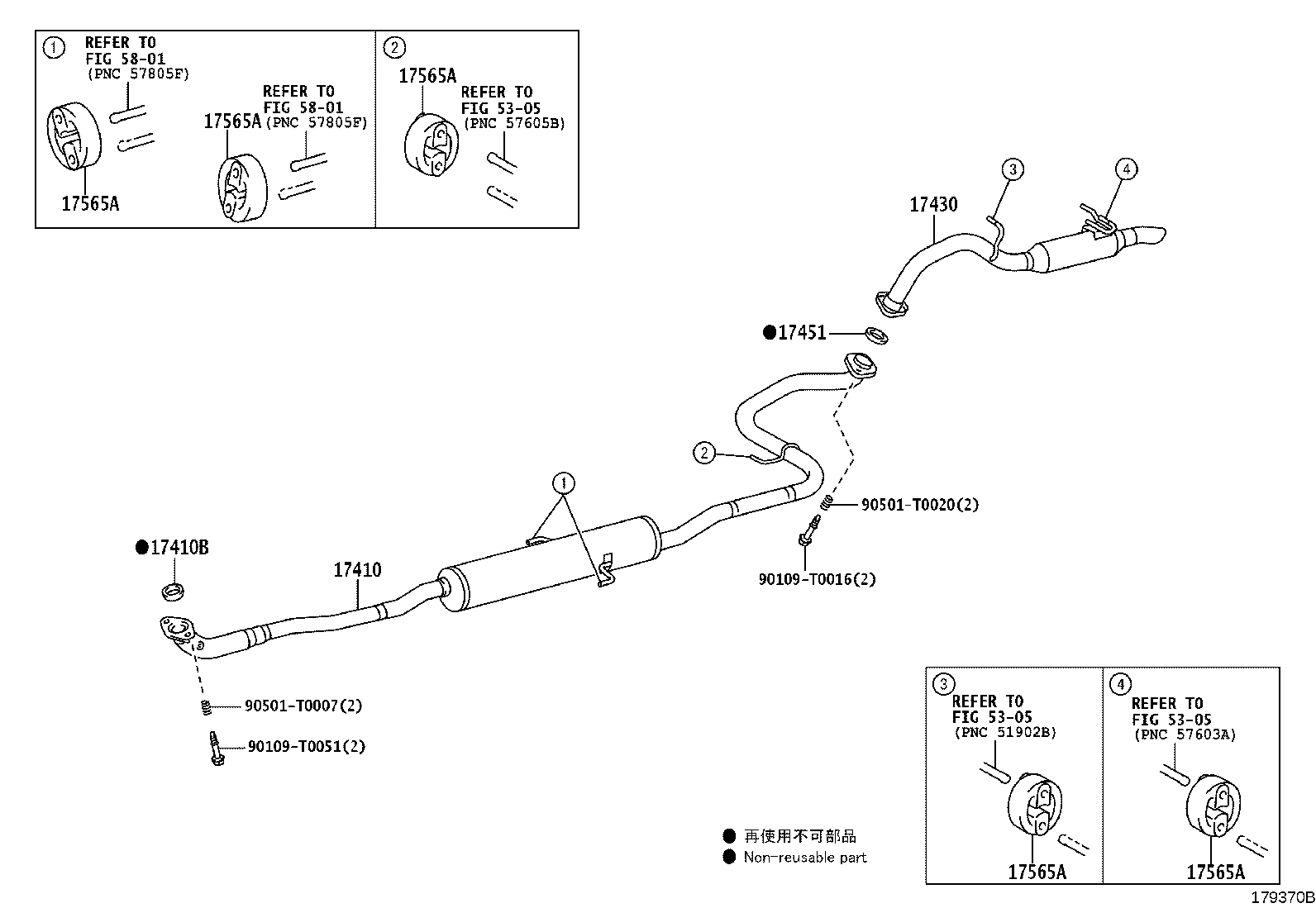

Figure 177979C 177979C 2013-10 → 2017-09 Figure 177980D 177980D 2014-03 → — Figure 179244B 179244B 2016-05 → — Figure 179244B 179244B 2017-09 → — Figure 179370B 179370B 2016-10 → 2018-02 Figure 179902B 179902B 2018-02 → — Figure 17A140B 17A140B 2018-06 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
