Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

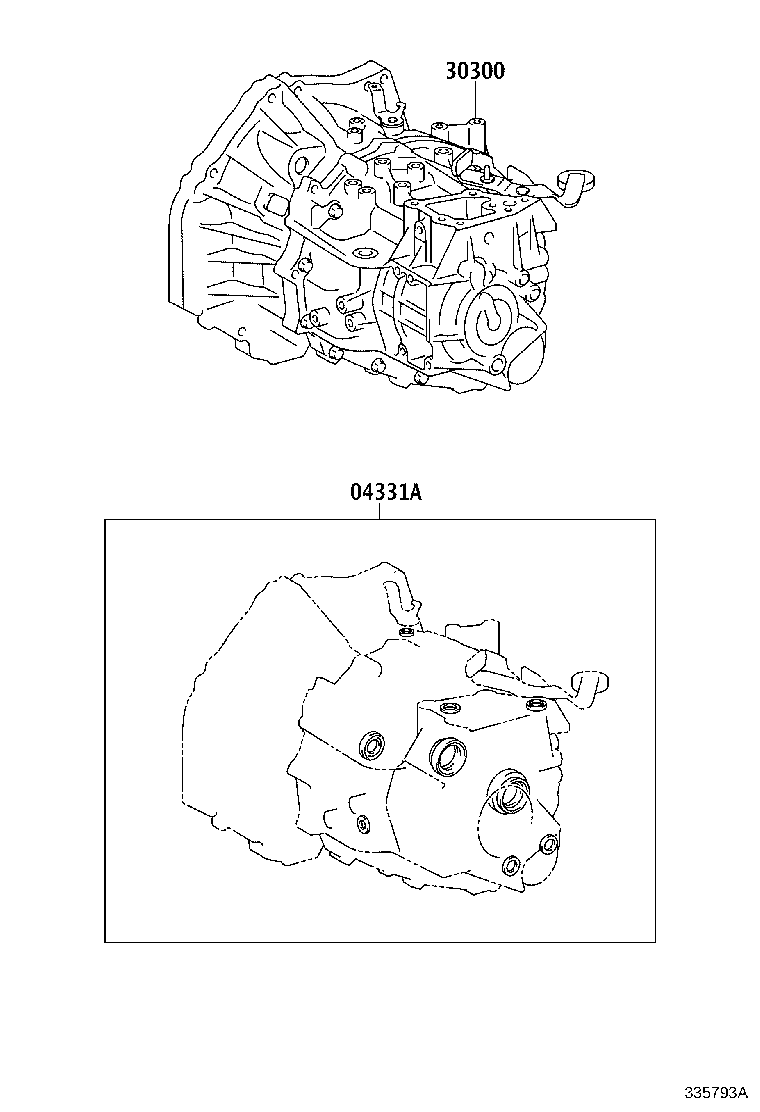

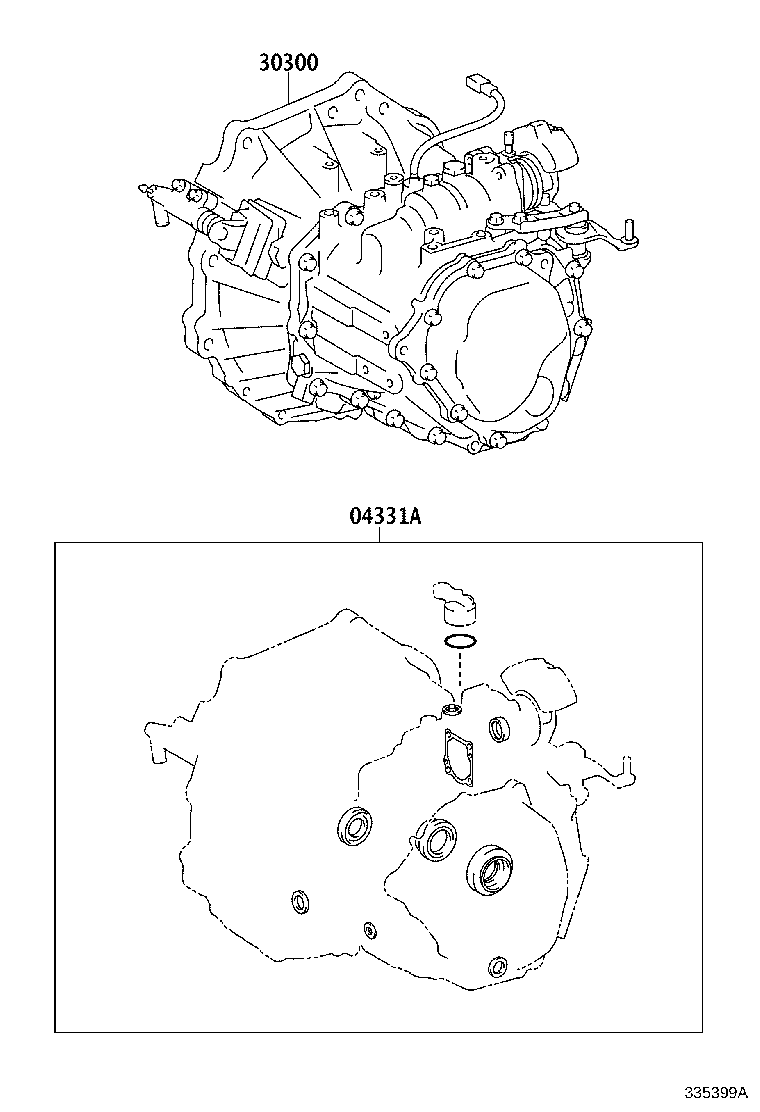

Figure 334708 334708 2014-03 → — Figure 335399A 335399A 2016-07 → — Figure 335793A 335793A 2018-06 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
