Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 13 illustrations

Illustrations

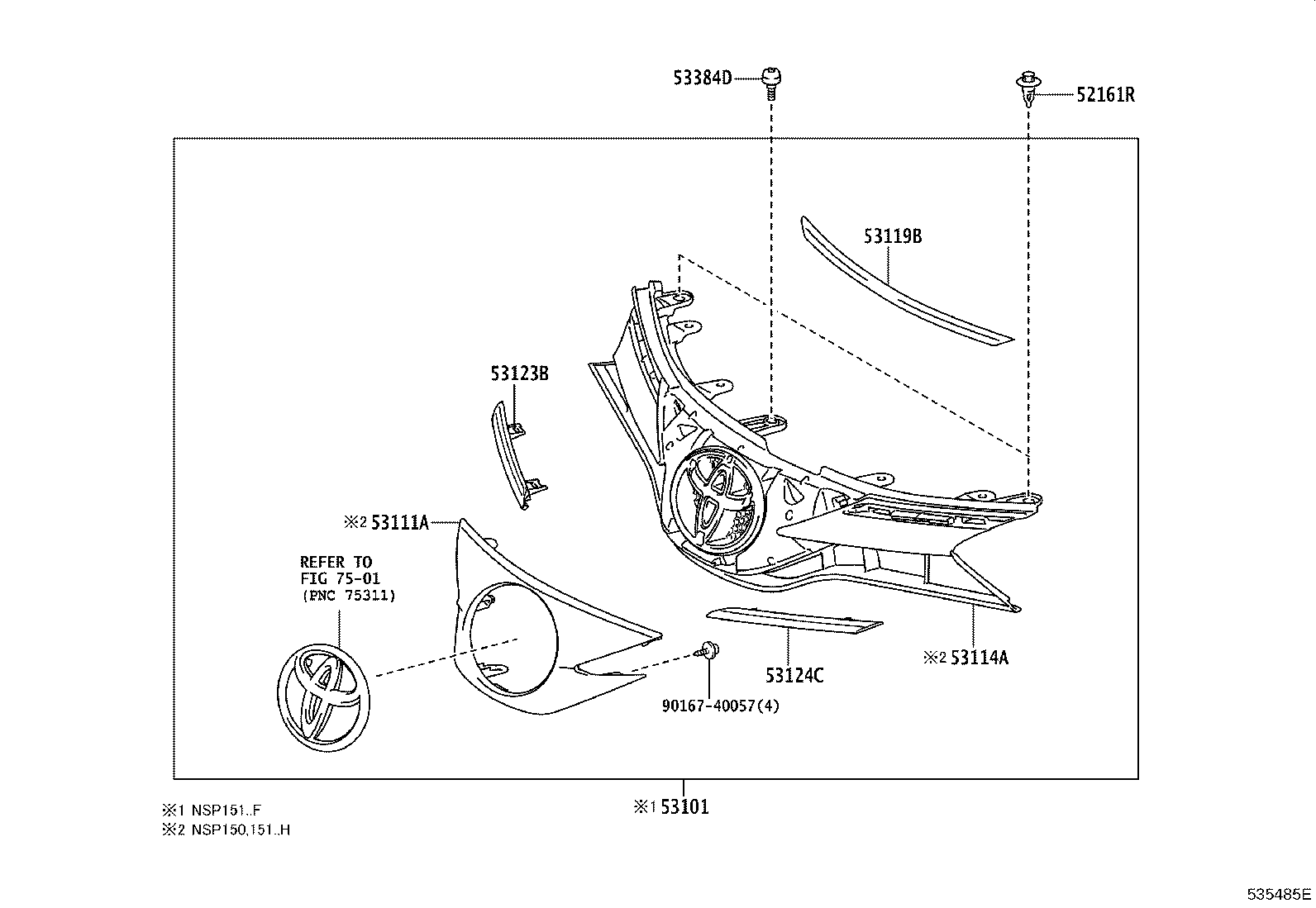

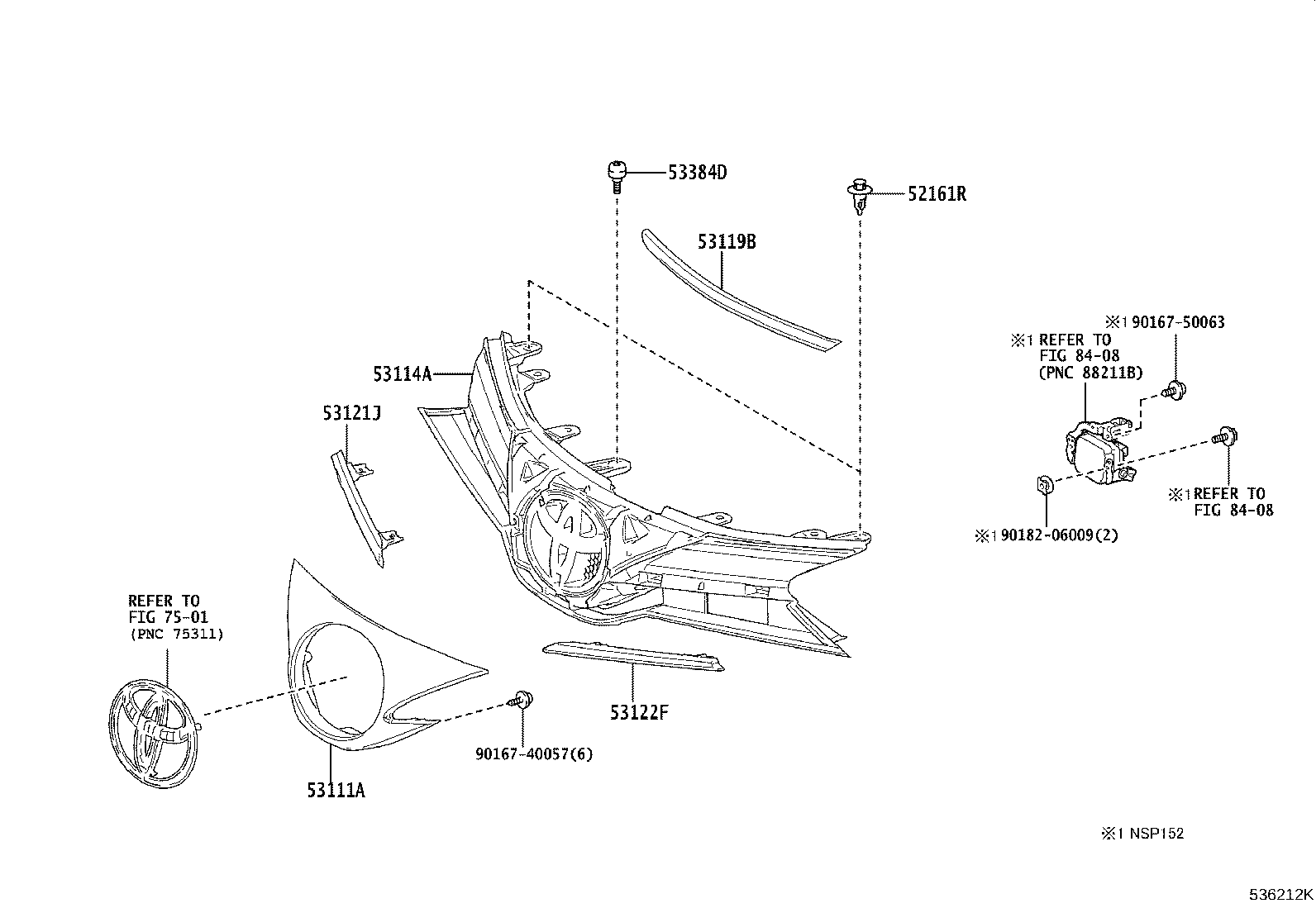

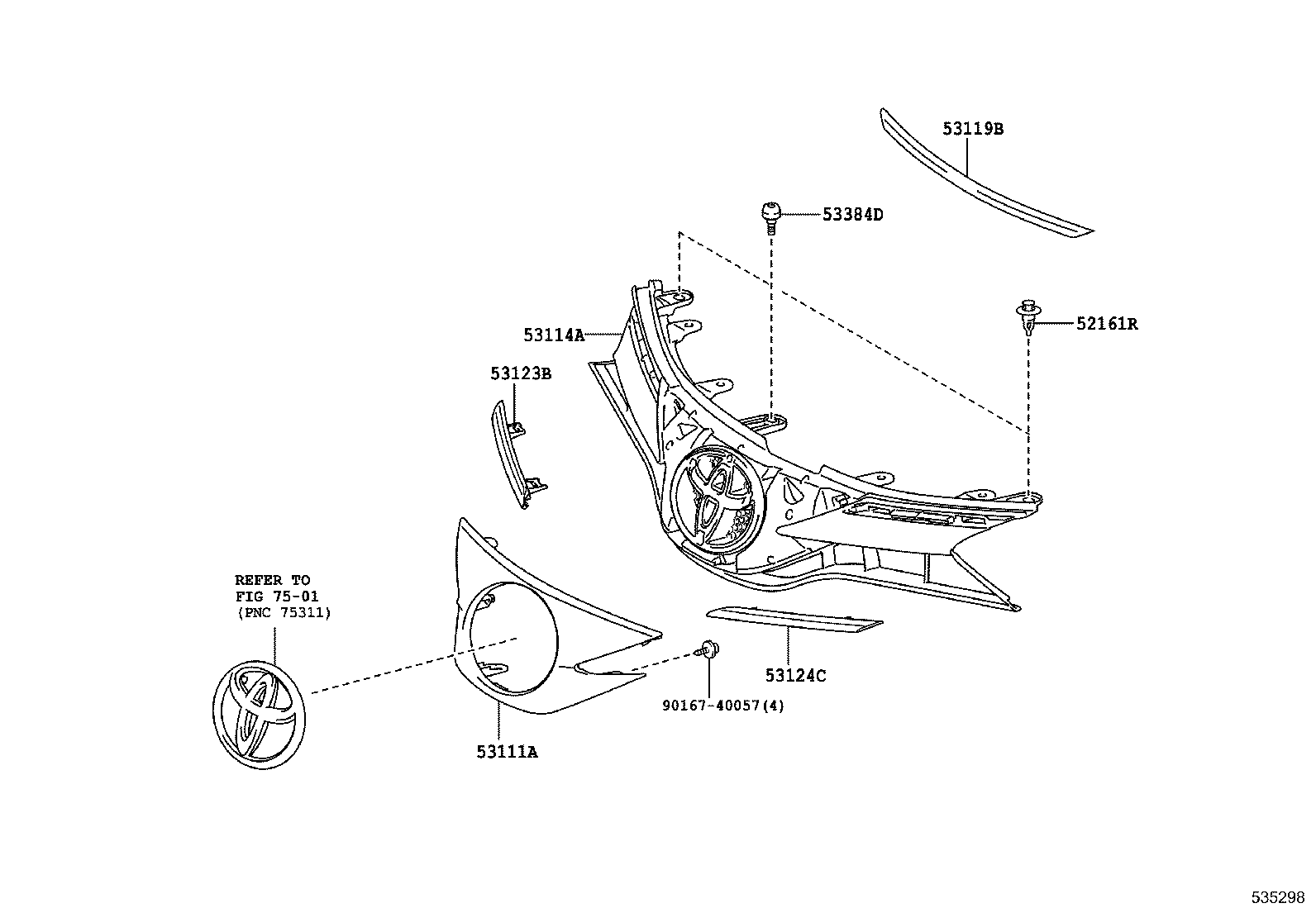

Figure 533968A 533968A 2013-10 → 2017-09 Figure 533968A 533968A 2013-10 → 2017-10 Figure 533968A 533968A 2013-10 → 2018-02 Figure 533968A 533968A 2013-10 → — Figure 533968A 533968A 2016-10 → 2018-02 Figure 535298 535298 2017-09 → — Figure 535298 535298 2017-10 → — Figure 535298 535298 2018-02 → — Figure 535298 535298 2018-06 → — Figure 535298 535298 2019-04 → — Figure 535298 535298 2019-11 → — Figure 535485E 535485E 2018-04 → — Figure 536212K 536212K 2020-09 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111A Grille, Radiator, Outside
53114A Grille, Radiator, Inner
53119B Protector, Radiator Grille
53121J Moulding, Radiator Grille, NO.1
53122F Moulding, Radiator Grille, NO.2
53123B Moulding, Radiator Grille Side, RH
53124C Moulding, Radiator Grille, Upper LH
53384D Cushion, Hood, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
