Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

29 part groups · 2 illustrations

Illustrations

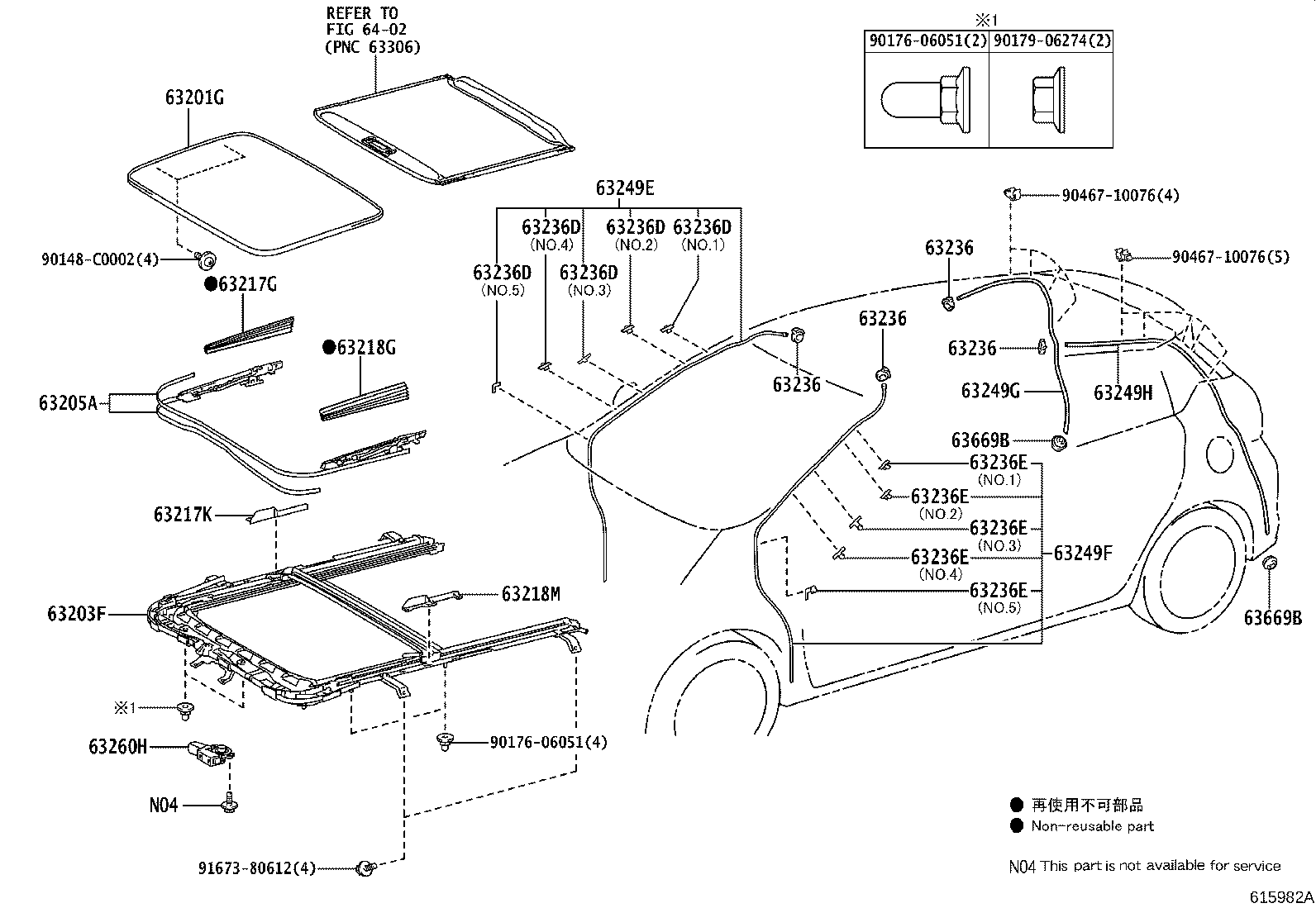

Figure 614608A 614608A 2013-10 → — Figure 615982A 615982A 2018-06 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63104D Reinforcement Sub-assy, Roof Panel, NO.2
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63141H Reinforcement, Roof Panel, Center
63143A Reinforcement, Roof Panel
63144A Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63146C Reinforcement Sub-assy, Roof Panel, NO.6
63147F Bracket, Roof Panel Reinforcement, RH
63148E Bracket, Roof Panel Reinforcement, LH
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63217K Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63218M Garnish, Sliding Roof Side, LH
63236 Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D Clamp, Sliding Roof Drain Hose
63236E Clamp, Sliding Roof Drain Hose
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63249G Hose, Sliding Roof Drain
63249H Hose, Sliding Roof Drain
63260H Gear Assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
