Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 7 illustrations

Illustrations

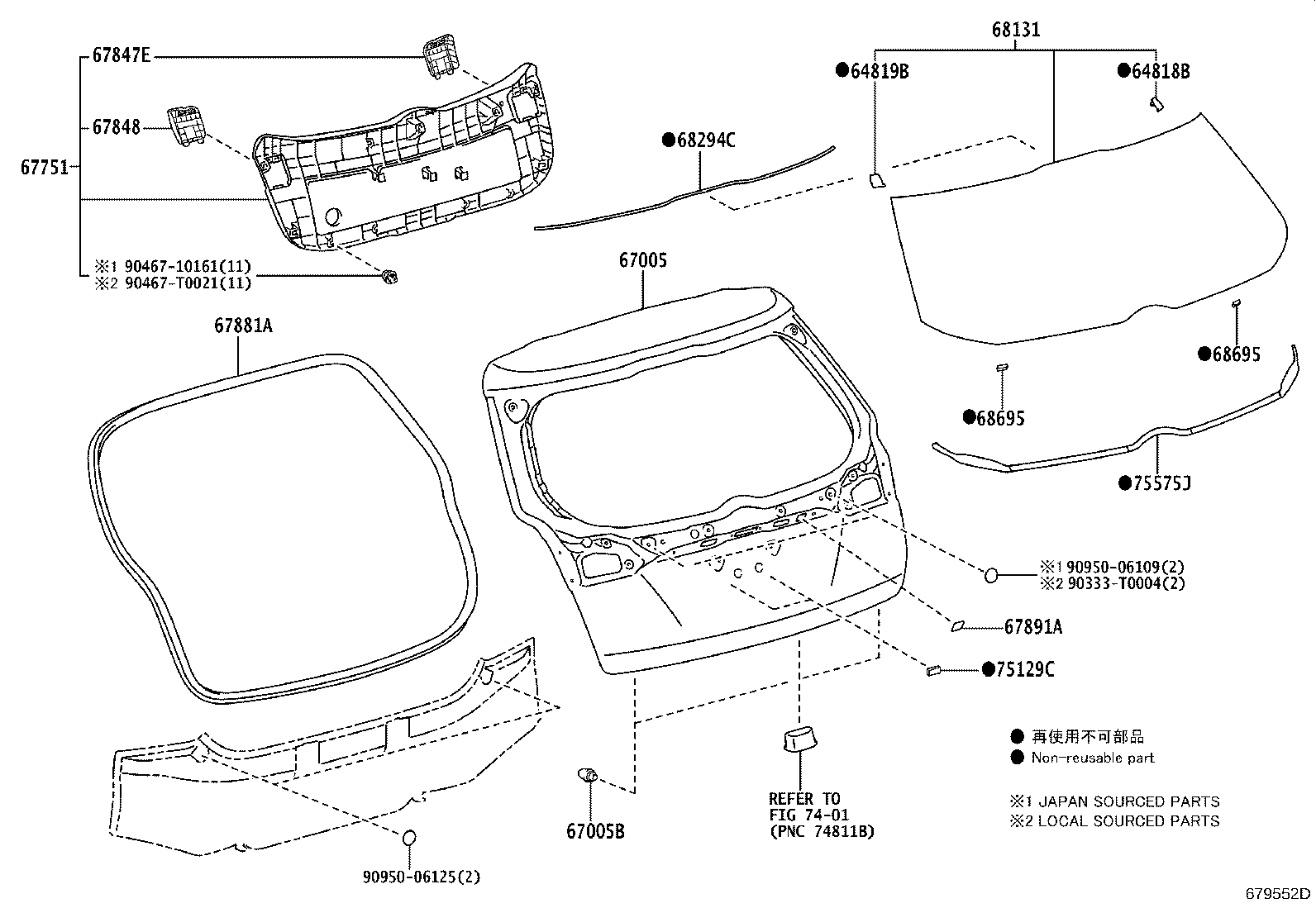

Figure 677808H 677808H 2013-10 → 2017-09 Figure 677808H 677808H 2013-10 → 2017-10 Figure 677808H 677808H 2017-10 → 2018-02 Figure 679552D 679552D 2017-09 → — Figure 679552D 679552D 2017-10 → — Figure 679552D 679552D 2018-02 → — Figure 679552D 679552D 2019-11 → —

Part groups

PNCDescription
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67754G Spacer, Back Door Trim
67847E Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67891A Seal, Back Door
68131 Glass, Back Door
68294C Dam, Back Door Glass Adhesive, NO.1
68294D Dam, Back Door Glass Adhesive, NO.2
68695 Pad, Back Door Window Frame
75129C Cushion, Rear Licence Plate
75575J Moulding, Back Window, Outside Lower RH
81952D Cover, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
