Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

14 part groups · 7 illustrations

Illustrations

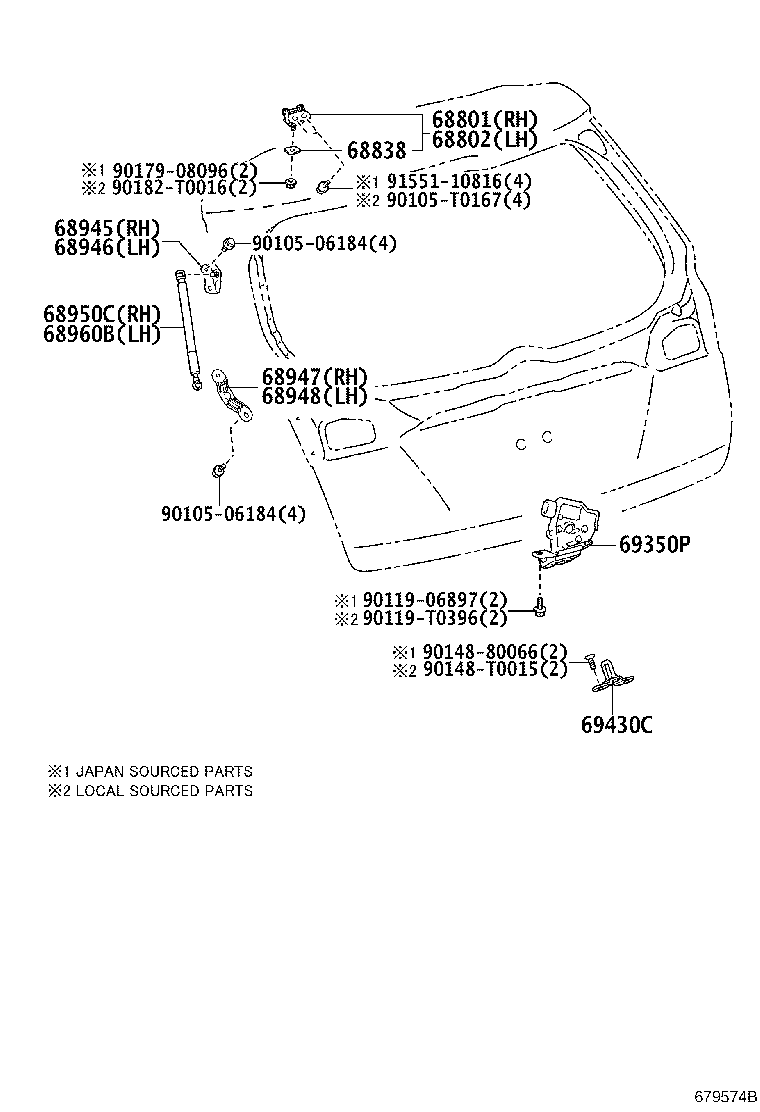

Figure 677810F 677810F 2013-10 → 2017-09 Figure 677810F 677810F 2013-10 → 2017-10 Figure 677810F 677810F 2017-10 → 2018-02 Figure 679574B 679574B 2017-09 → — Figure 679574B 679574B 2017-10 → — Figure 679574B 679574B 2018-02 → — Figure 679574B 679574B 2019-11 → —

Part groups

PNCDescription
68801 Hinge Sub-assy, Back Door, Upper RH
68802 Hinge Sub-assy, Back Door, Upper LH
68838 Pad, Back Door Hinge, NO.1
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960B Stay Assy, Back Door, LH
69023 Handle Sub-assy, Back Door Outside
69219 Seal, Back Door Outside Handle
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69430C Striker Assy, Back Door Lock
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
