Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

19 part groups · 11 illustrations

Illustrations

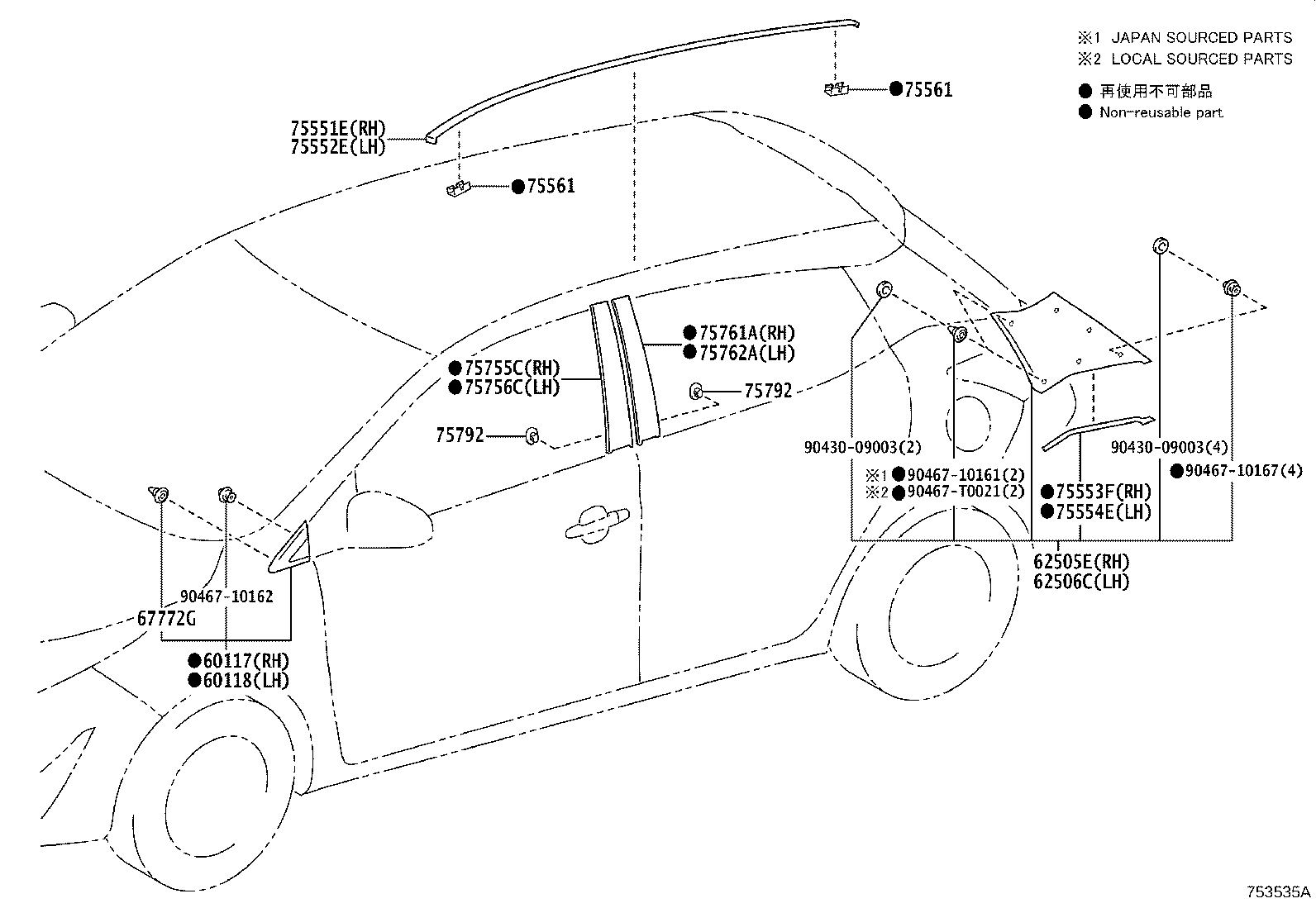

Figure 752847D 752847D 2013-10 → 2017-08 Figure 752847D 752847D 2014-03 → — Figure 752847D 752847D 2016-05 → — Figure 752847D 752847D 2016-10 → 2018-02 Figure 753535A 753535A 2017-09 → — Figure 753535A 753535A 2017-10 → — Figure 753535A 753535A 2018-02 → — Figure 753535A 753535A 2018-04 → — Figure 753535A 753535A 2018-06 → — Figure 753535A 753535A 2019-04 → — Figure 753535A 753535A 2019-11 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
62505E Cover Sub-assy, Quarter Pillar, RH
62506C Cover Sub-assy, Quarter Pillar, LH
67772G Cap, Front Pillar Cover
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75553F Moulding, Quarter Garnish, RH
75554E Moulding, Quarter Garnish, LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75731B Moulding, Front Door, Outside RH
75732B Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
75792 Clip, Door Window Frame Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
