Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 11 illustrations

Illustrations

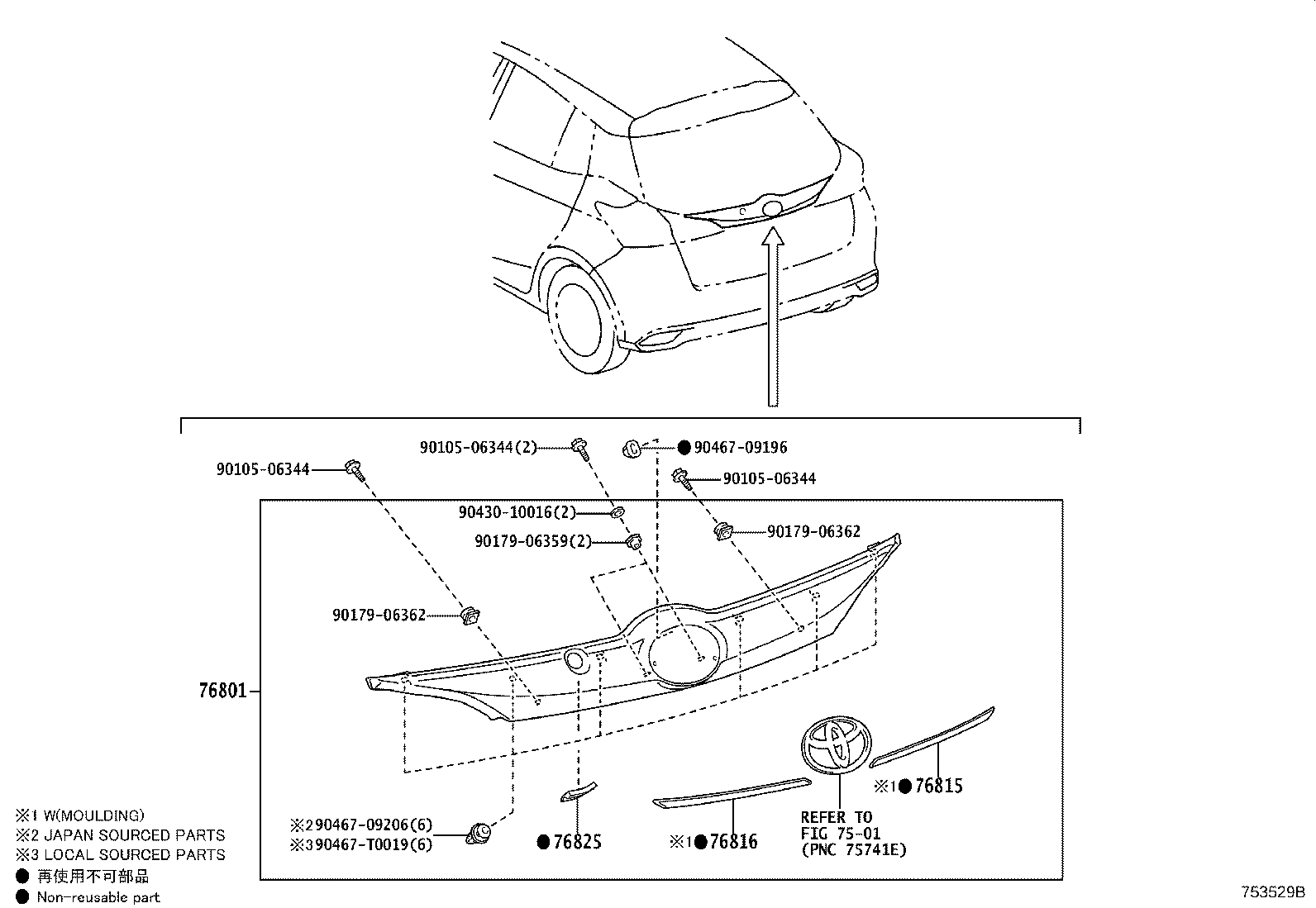

Figure 752849D 752849D 2013-10 → 2017-08 Figure 752849D 752849D 2014-03 → — Figure 752849D 752849D 2016-05 → — Figure 752849D 752849D 2016-10 → 2018-02 Figure 753529B 753529B 2017-09 → — Figure 753529B 753529B 2017-10 → — Figure 753529B 753529B 2018-02 → — Figure 753529B 753529B 2018-04 → — Figure 753529B 753529B 2018-06 → — Figure 753529B 753529B 2019-04 → — Figure 753529B 753529B 2019-11 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76811 Garnish, Back Door, Outside
76815 Moulding, Back Door Outside Garnish, Lower RH
76816 Moulding, Back Door Outside Garnish, Lower LH
76817 Clip, Back Door Outside Garnish
76818 Pad, Back Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
