Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

18 part groups · 9 illustrations

Illustrations

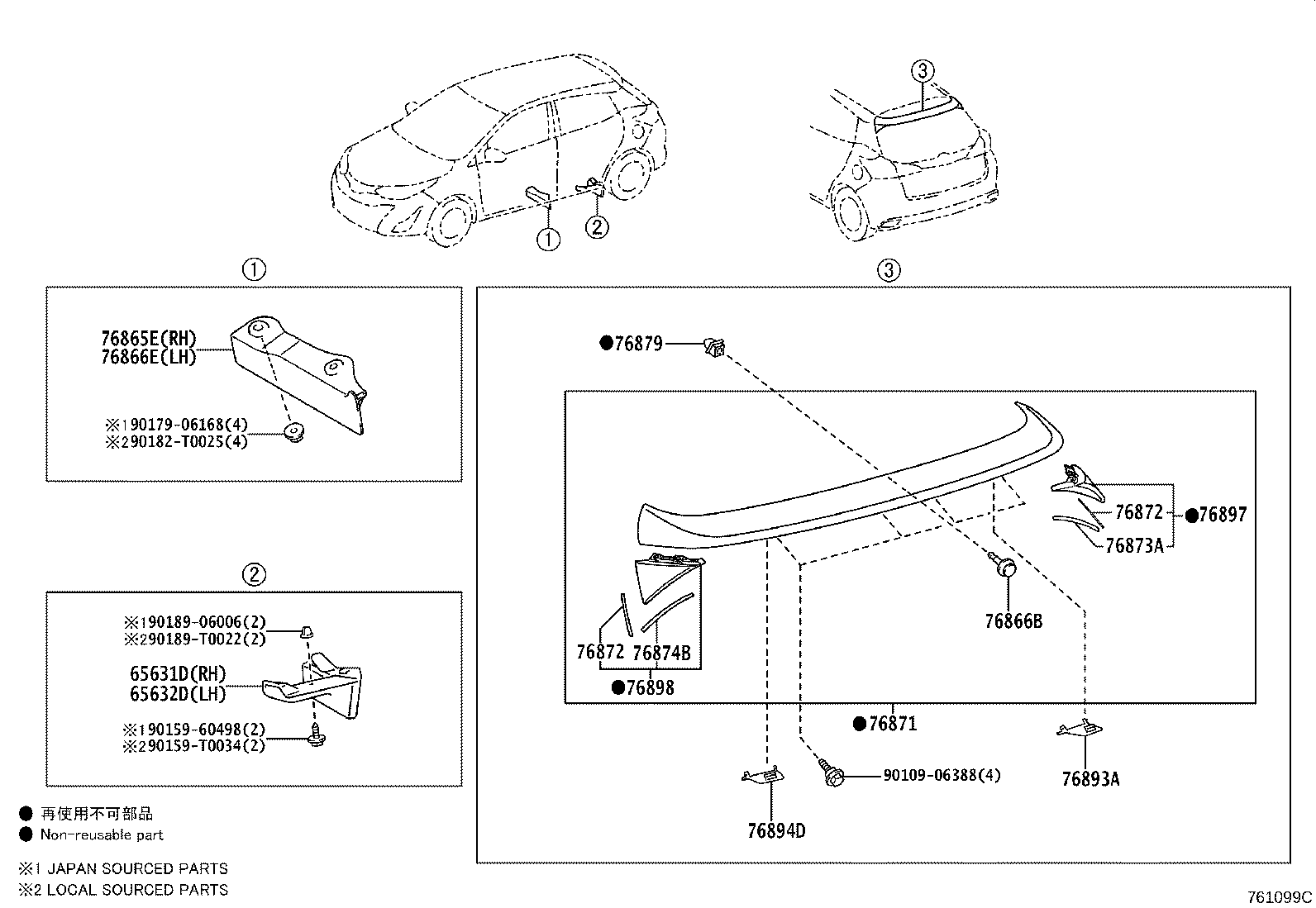

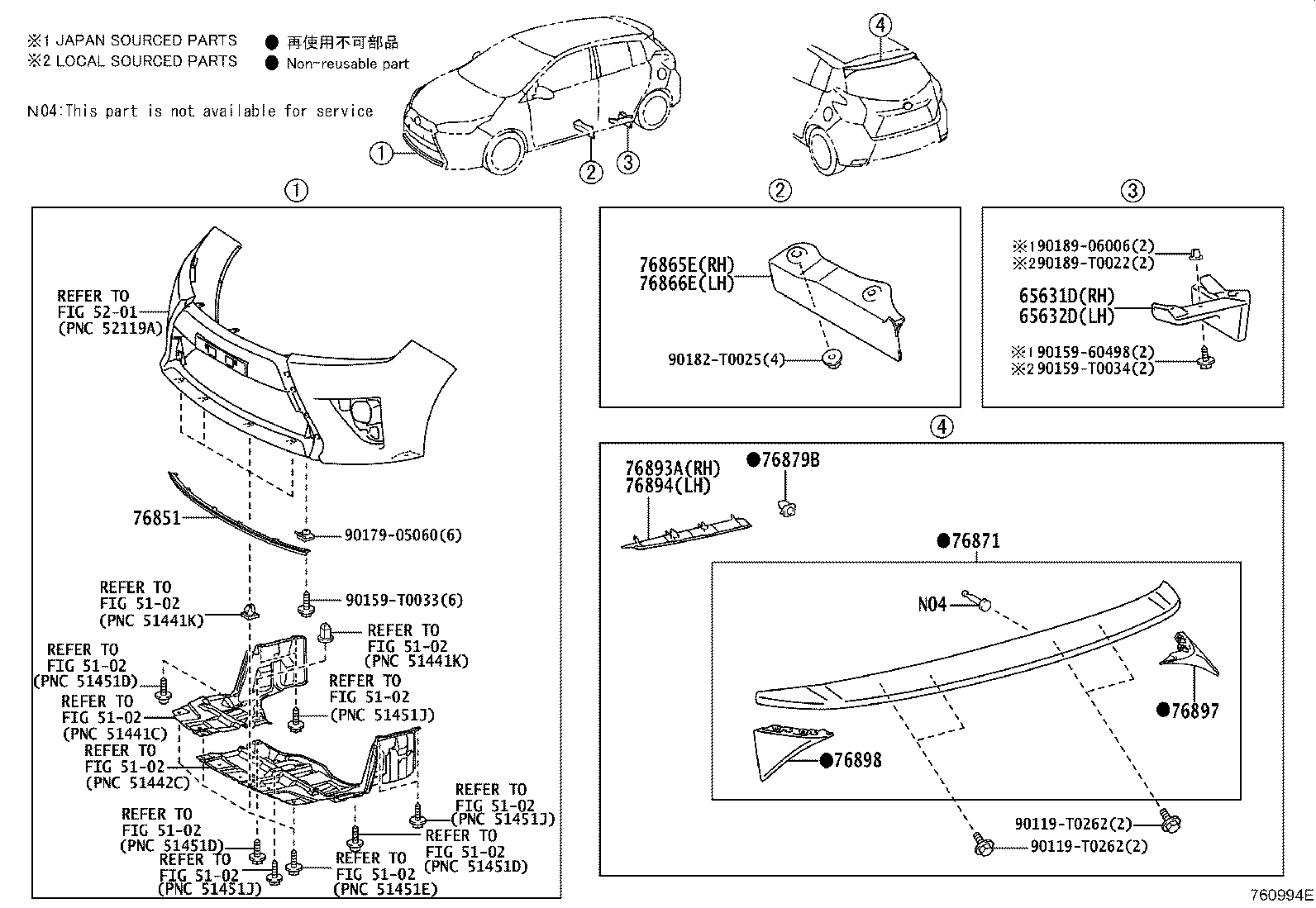

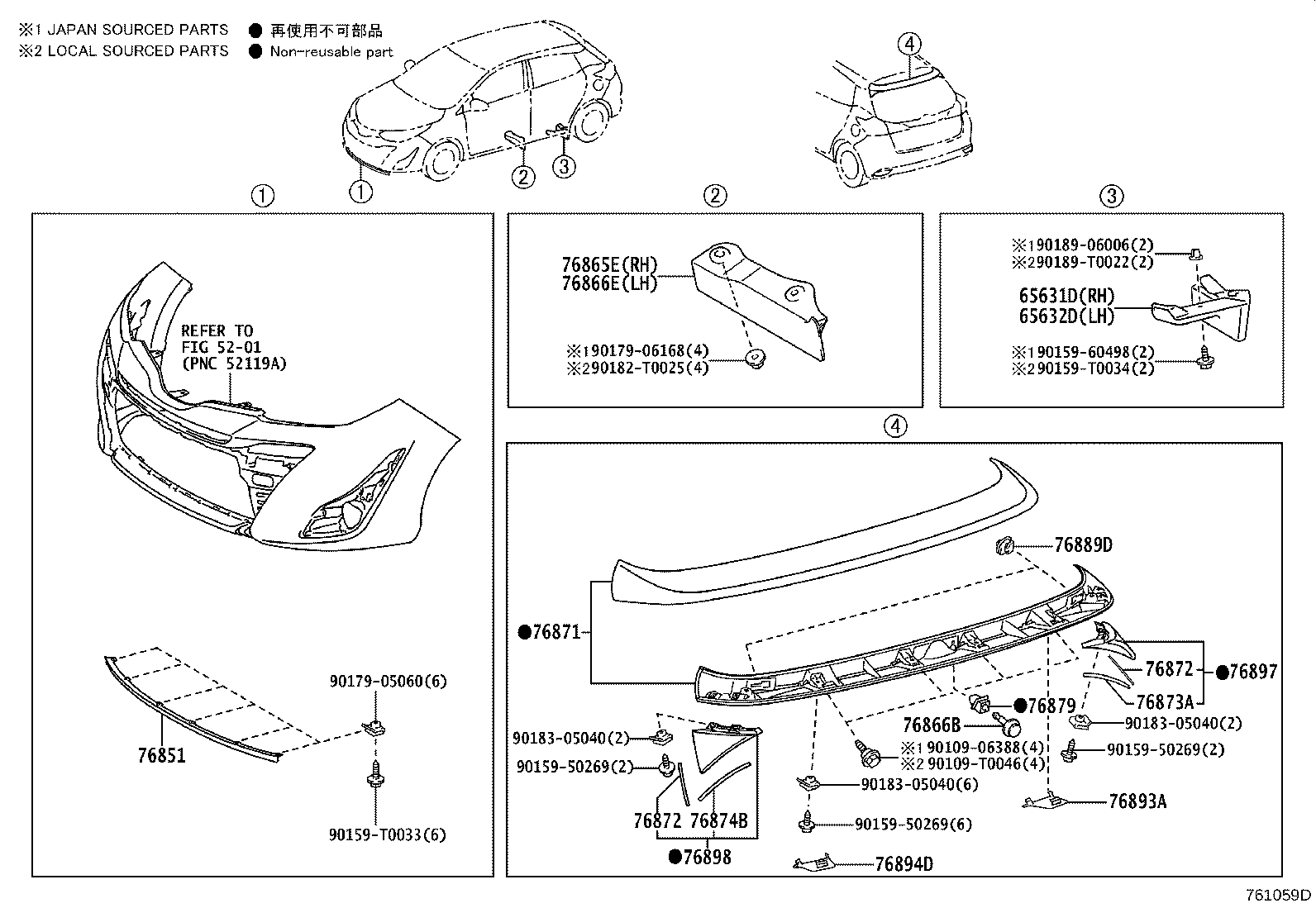

Figure 760868H 760868H 2013-10 → 2015-07 Figure 760994E 760994E 2015-07 → 2017-09 Figure 760994E 760994E 2015-07 → 2017-10 Figure 760994E 760994E 2017-10 → — Figure 761059D 761059D 2017-09 → — Figure 761059D 761059D 2017-10 → — Figure 761059D 761059D 2019-04 → — Figure 761059D 761059D 2019-11 → — Figure 761099C 761099C 2018-06 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76851 Cover, Front Spoiler
76865E Protector, Rocker Panel Moulding, NO.5
76866B Retainer, Rear Spoiler, NO.2
76866E Protector, Rocker Panel Moulding, NO.6
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76879 Clip, Rear Spoiler, NO.1
76879B Clip, Rear Spoiler, NO.2
76889D Clip, Rear Spoiler, NO.2
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76894D Cover, Rear Spoiler, LH
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
