Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

22 part groups · 15 illustrations

Illustrations

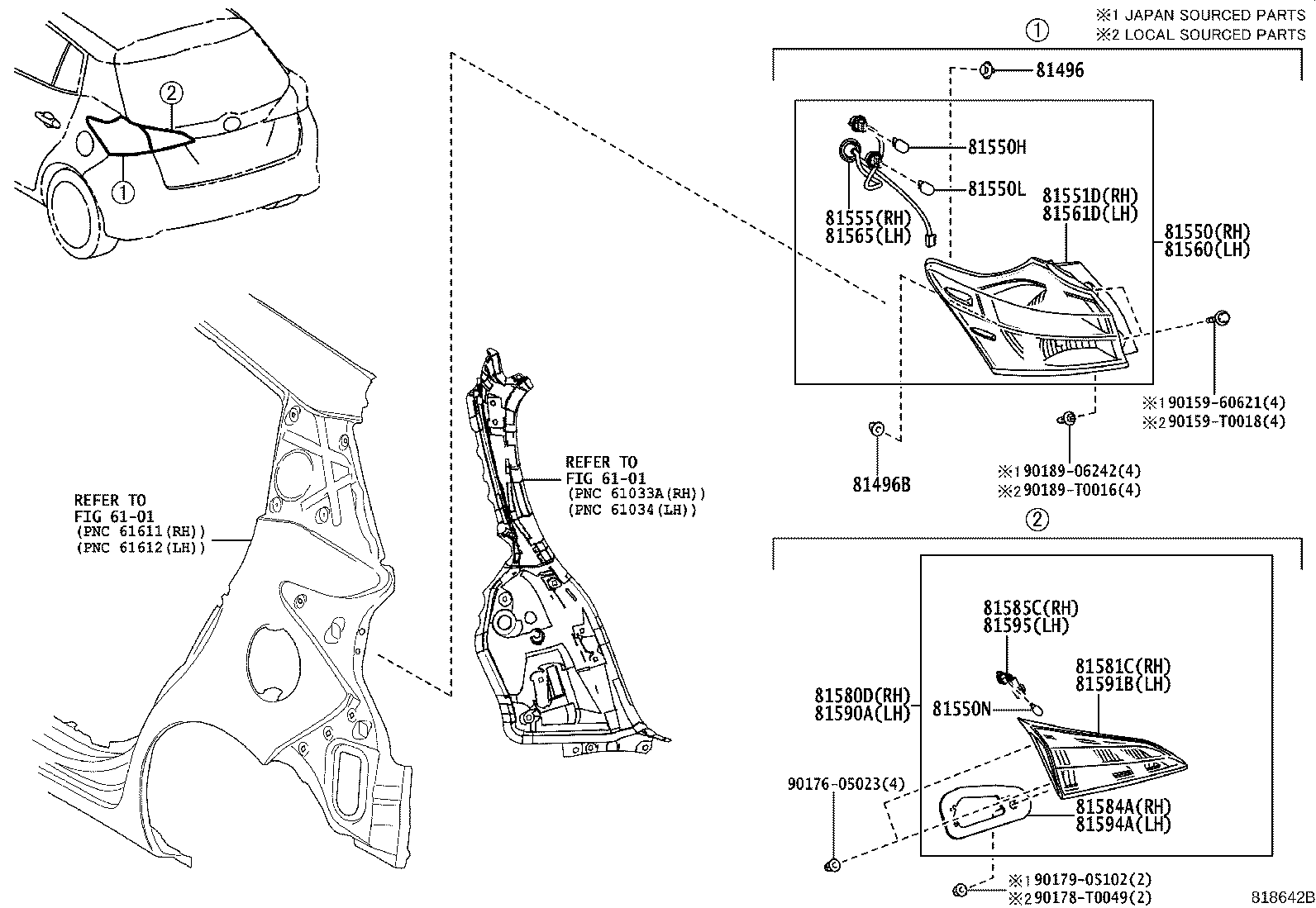

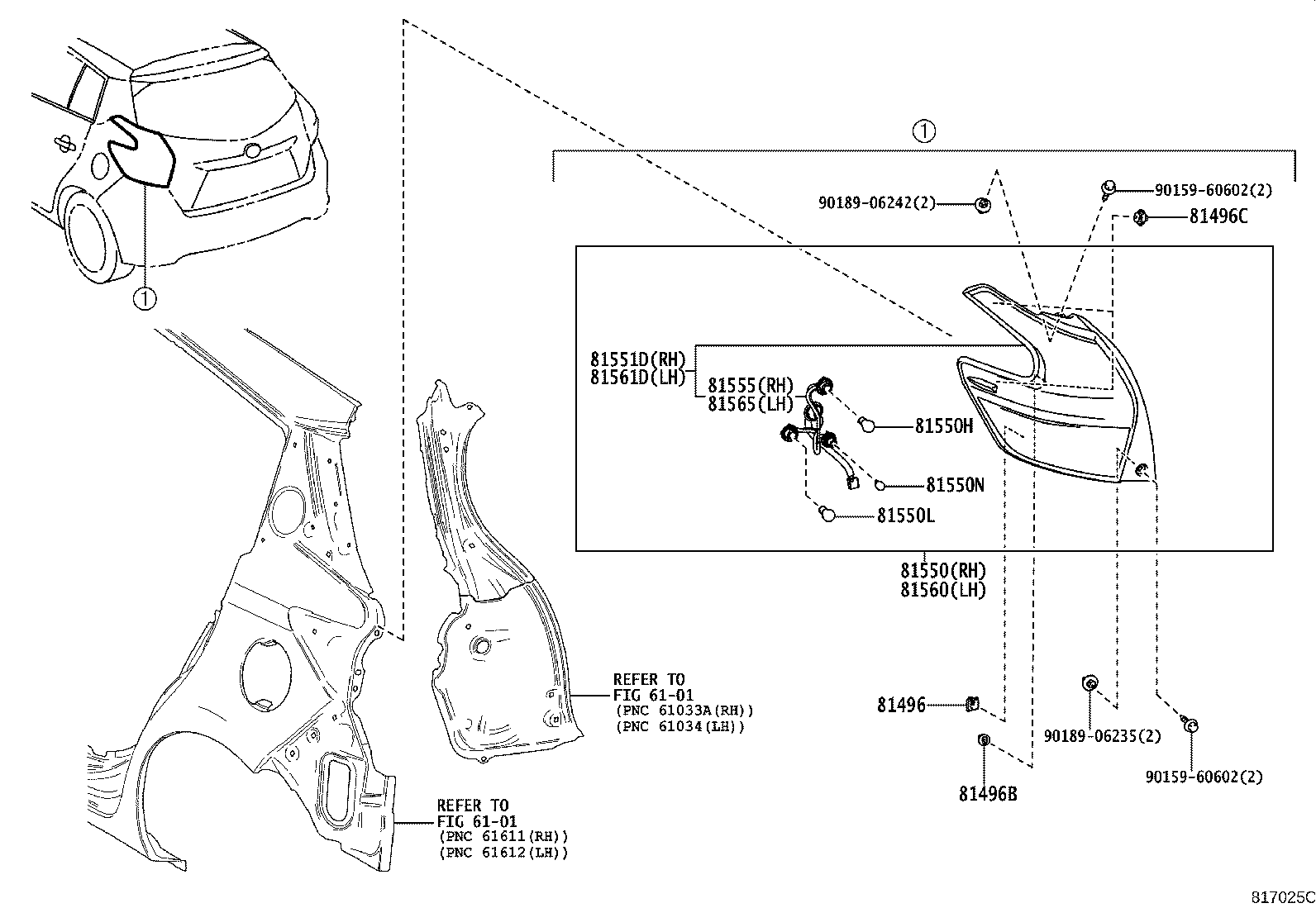

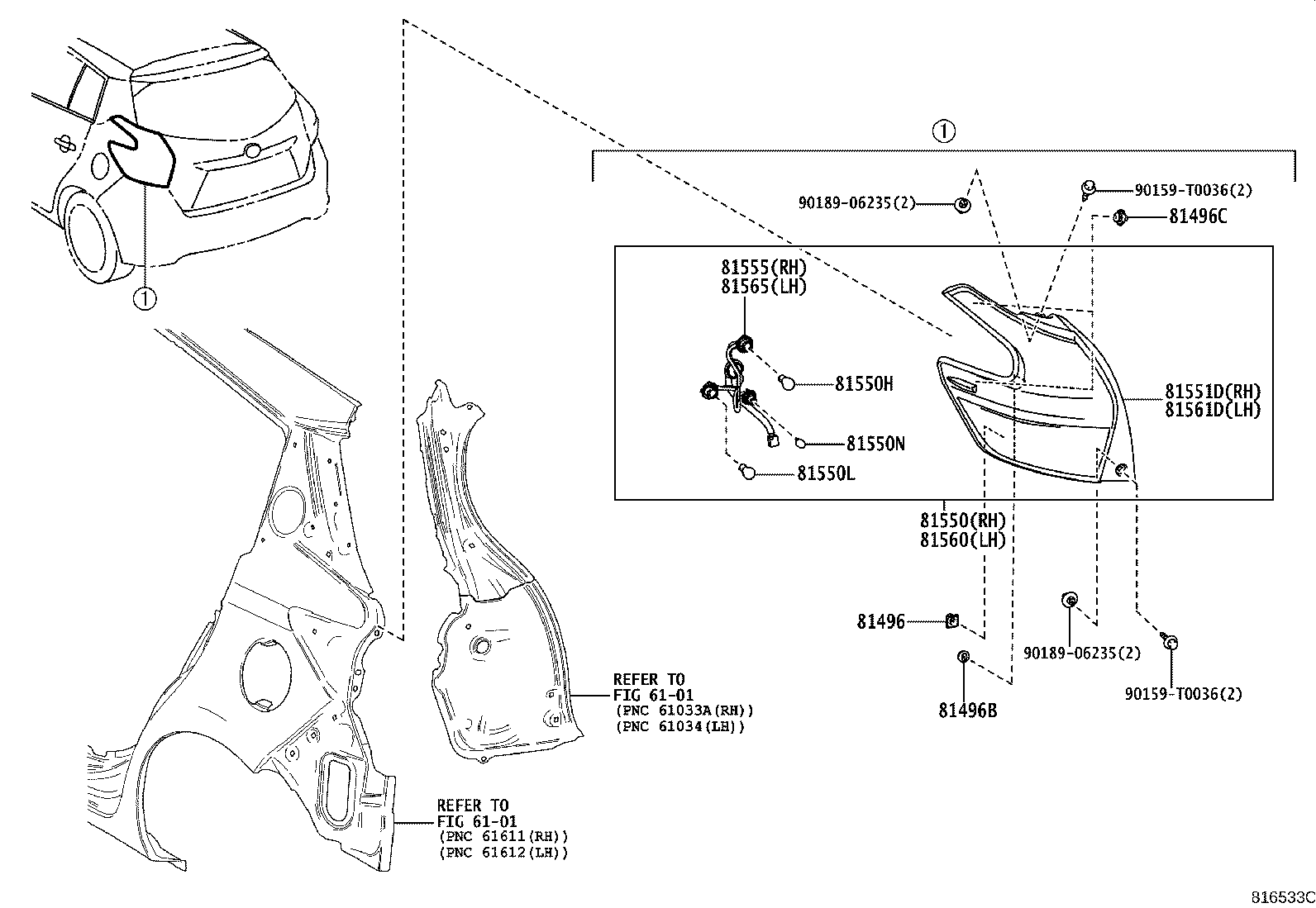

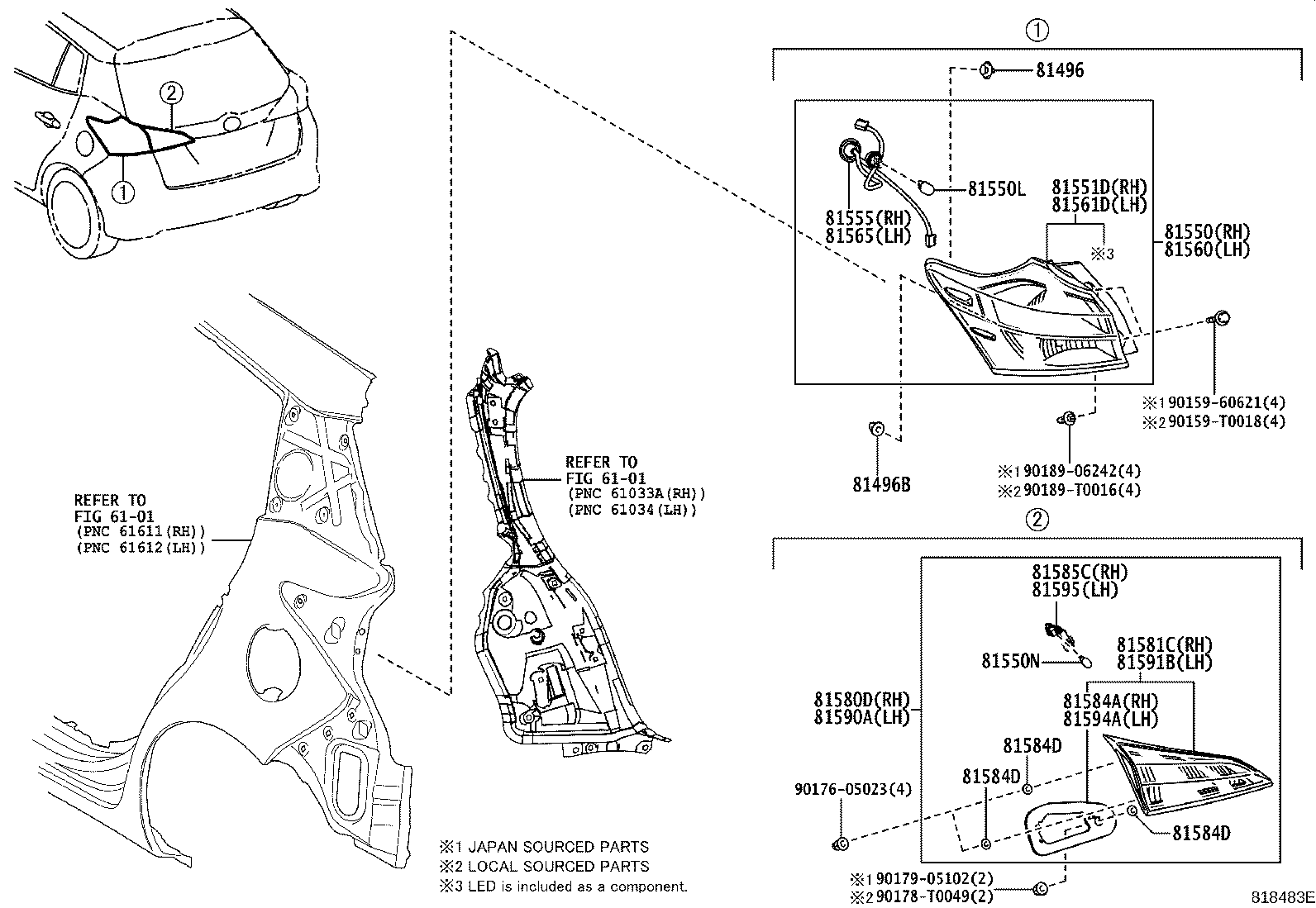

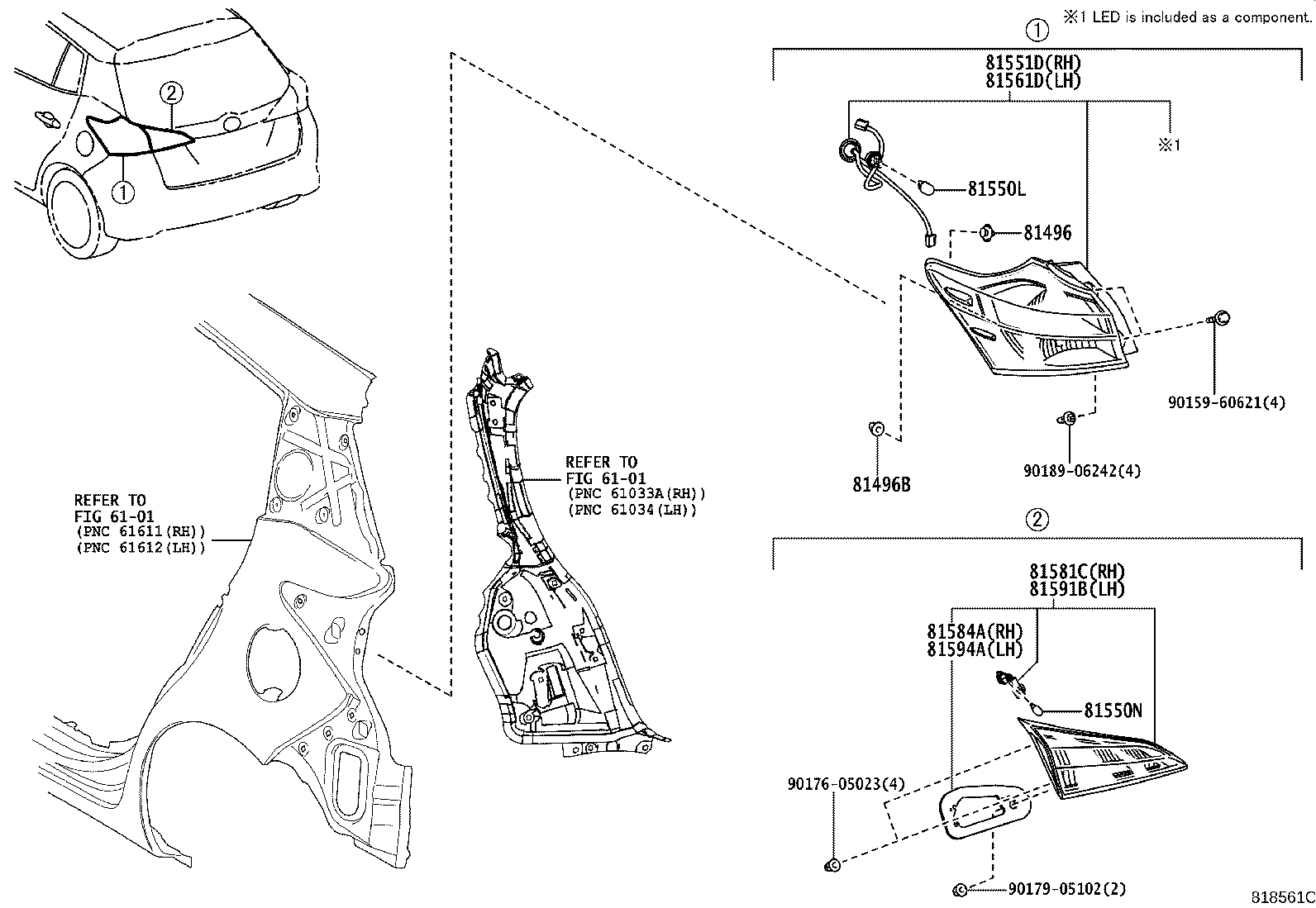

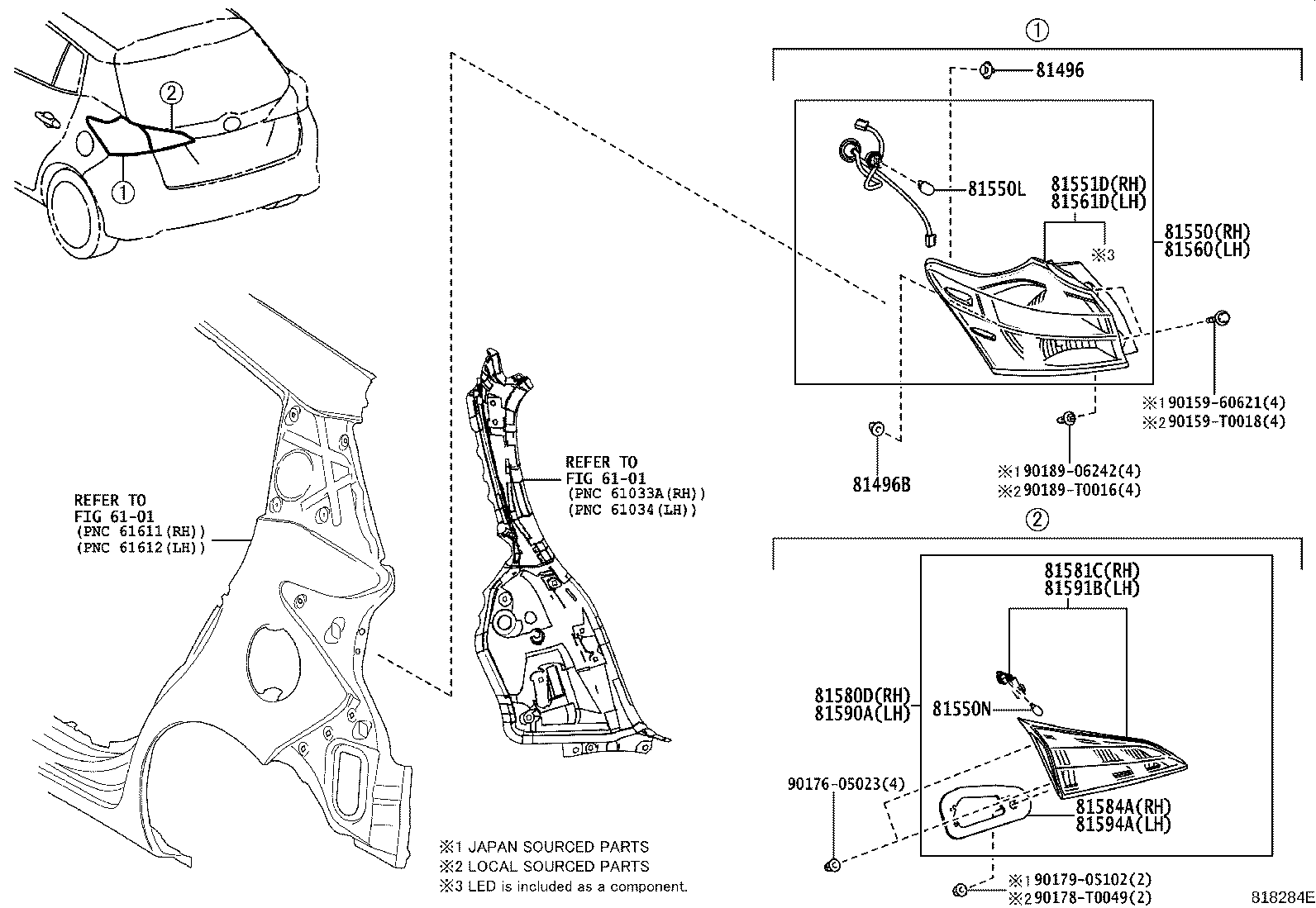

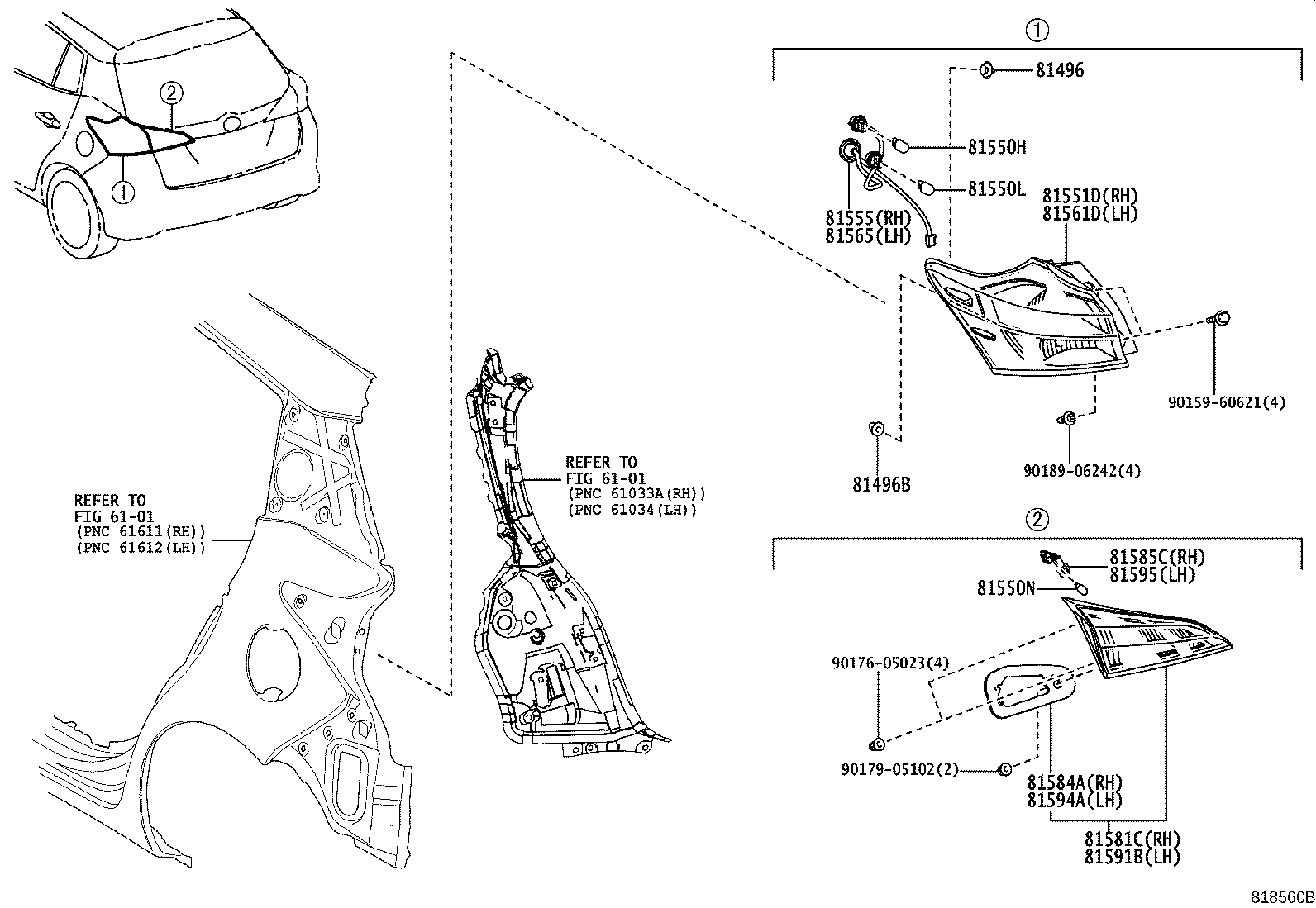

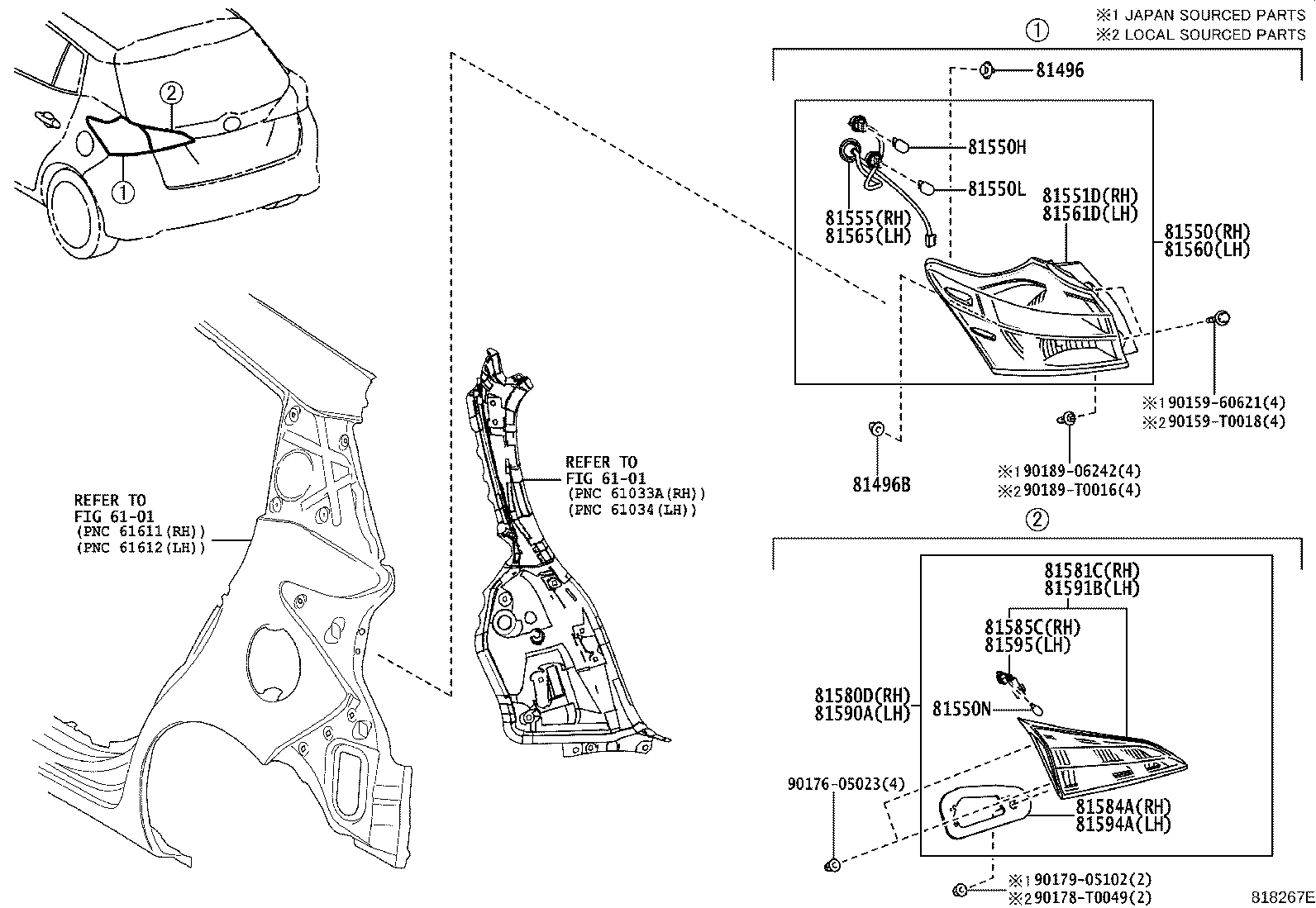

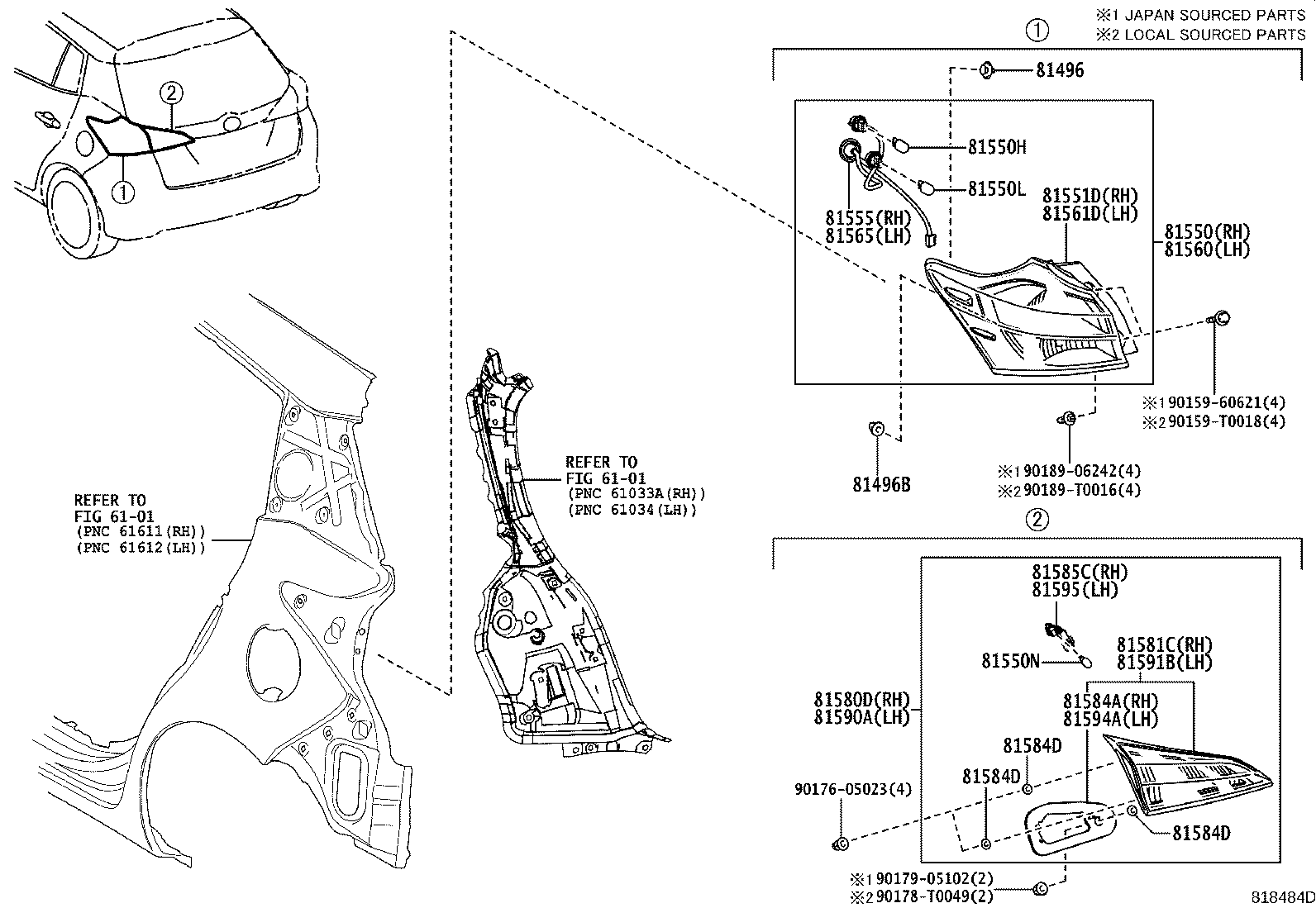

Figure 816534E 816534E 2013-10 → 2017-08 Figure 816533C 816533C 2013-10 → 2017-08 Figure 816533C 816533C 2014-03 → 2016-09 Figure 816533C 816533C 2016-07 → 2017-10 Figure 816533C 816533C 2016-10 → 2018-02 Figure 817025C 817025C 2014-09 → 2018-02 Figure 818267E 818267E 2017-09 → — Figure 818267E 818267E 2017-10 → — Figure 818484D 818484D 2018-02 → — Figure 818642B 818642B 2018-04 → — Figure 818560B 818560B 2018-06 → — Figure 818284E 818284E 2017-09 → — Figure 818284E 818284E 2017-10 → — Figure 818483E 818483E 2018-02 → — Figure 818561C 818561C 2018-06 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81496C Guide, Rear Combination Lamp, NO.2
81536A Led, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81584A Gasket, Rear Lamp RH
81584D Gasket, Rear Lamp
81585C Socket & Wire, Rear Lamp, RH
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81595 Socket & Wire, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
