Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 6 illustrations

Illustrations

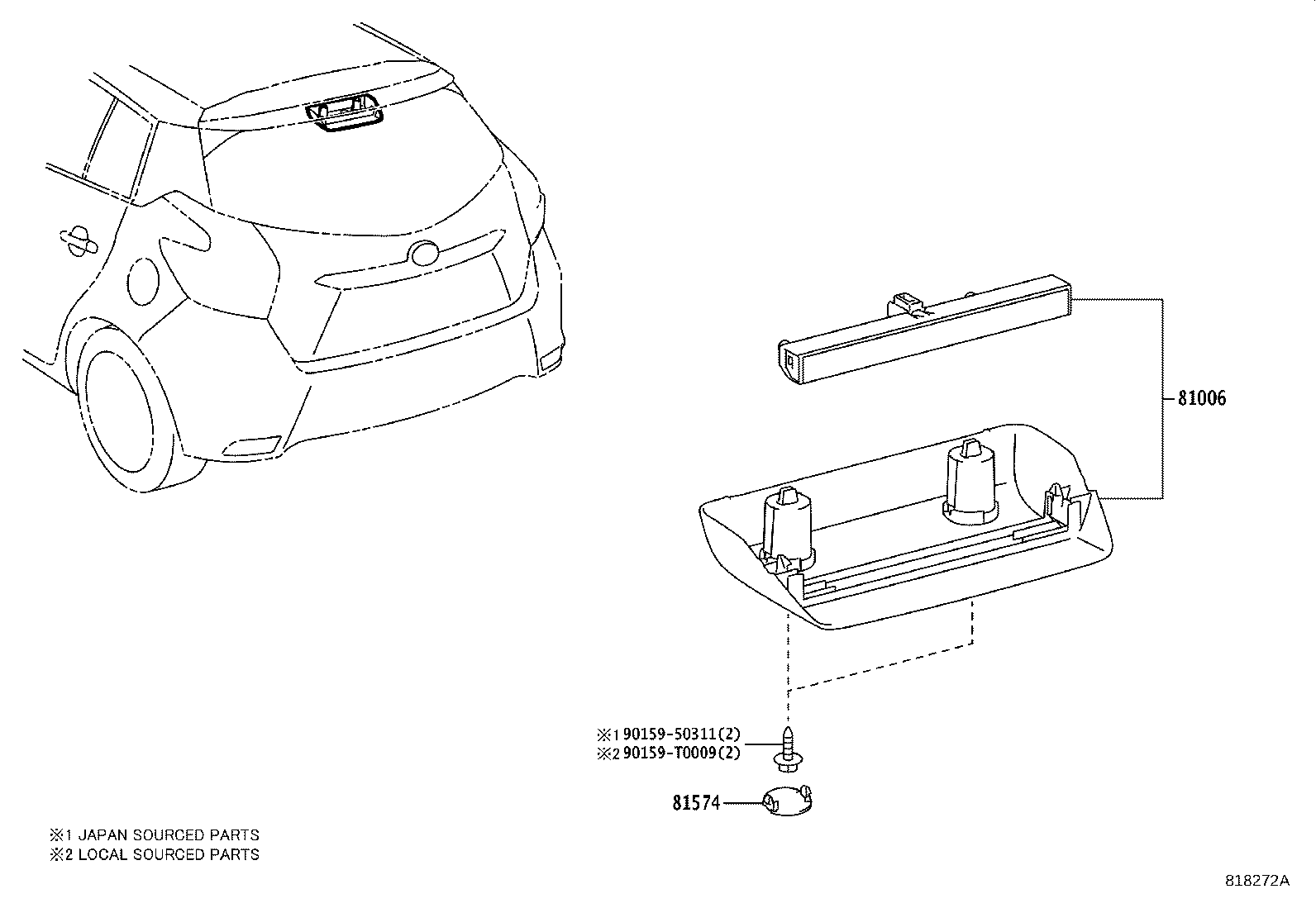

Figure 816516C 816516C 2013-10 → 2017-09 Figure 816516C 816516C 2013-10 → 2017-10 Figure 816516C 816516C 2013-10 → — Figure 816516C 816516C 2013-10 → — Figure 818272A 818272A 2017-09 → — Figure 818272A 818272A 2017-10 → —

Part groups

PNCDescription
81006 Lamp Set, Stop Center
81570 Lamp Assy, Center Stop
81574 Cover, Center Stop Lamp
81977 Cover, Center Stop Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
