Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

2 part groups · 8 illustrations

Illustrations

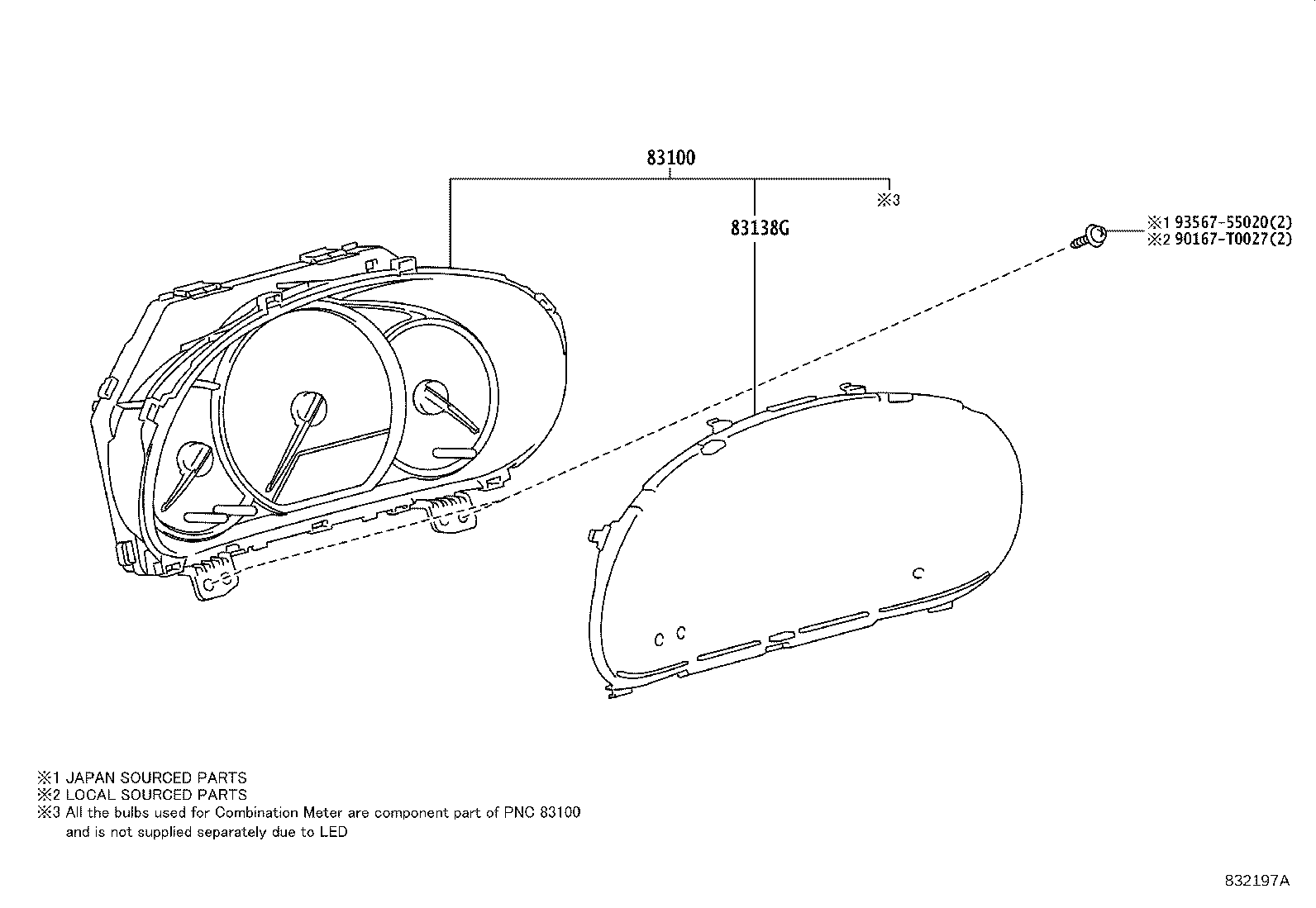

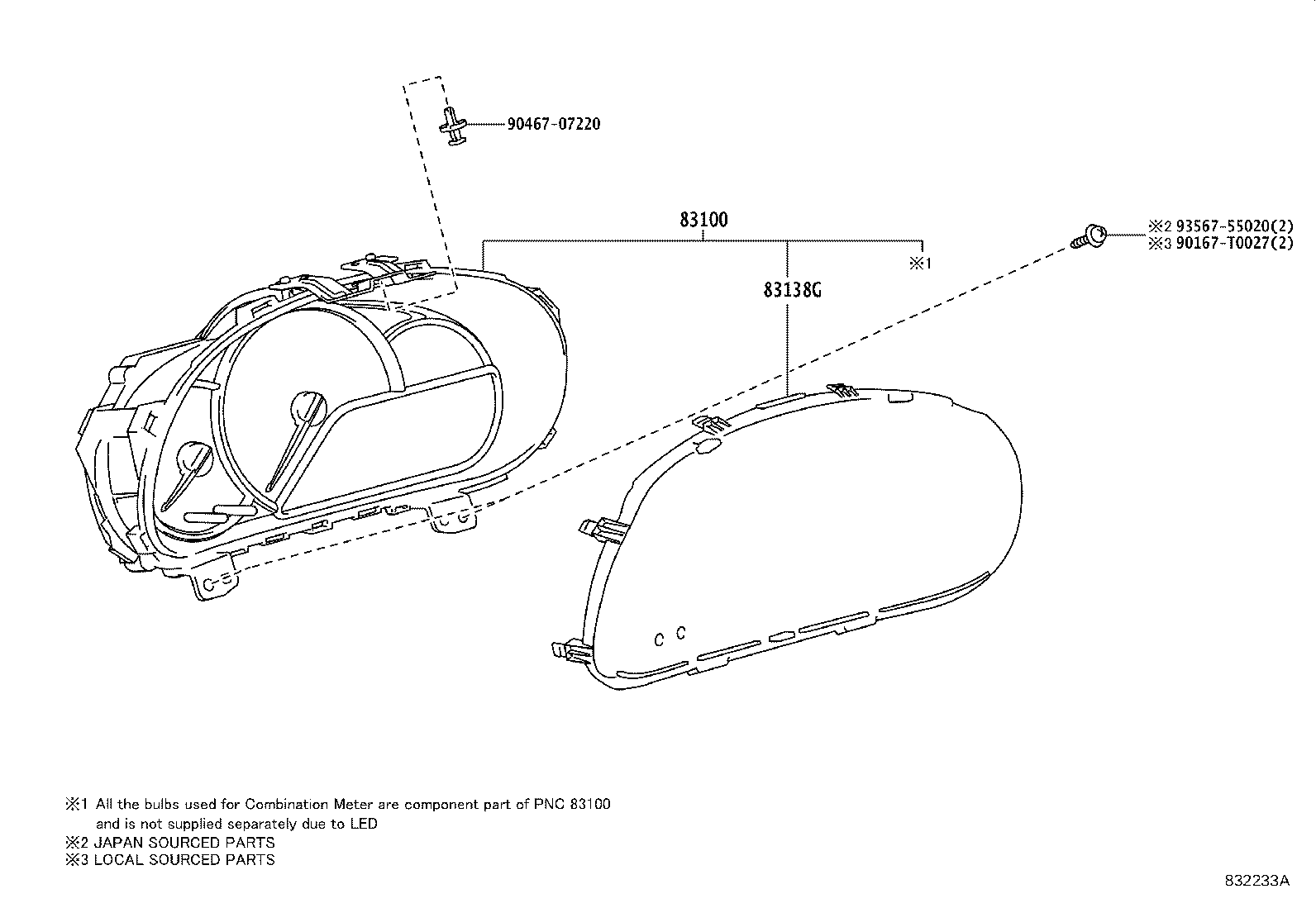

Figure 831797B 831797B 2013-10 → 2017-09 Figure 831797B 831797B 2013-10 → — Figure 831797B 831797B 2016-07 → 2017-10 Figure 831797B 831797B 2016-10 → 2018-02 Figure 832197A 832197A 2017-09 → — Figure 832197A 832197A 2017-10 → — Figure 832197A 832197A 2018-02 → — Figure 832233A 832233A 2018-06 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
