Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

116 part groups · 46 illustrations

Illustrations

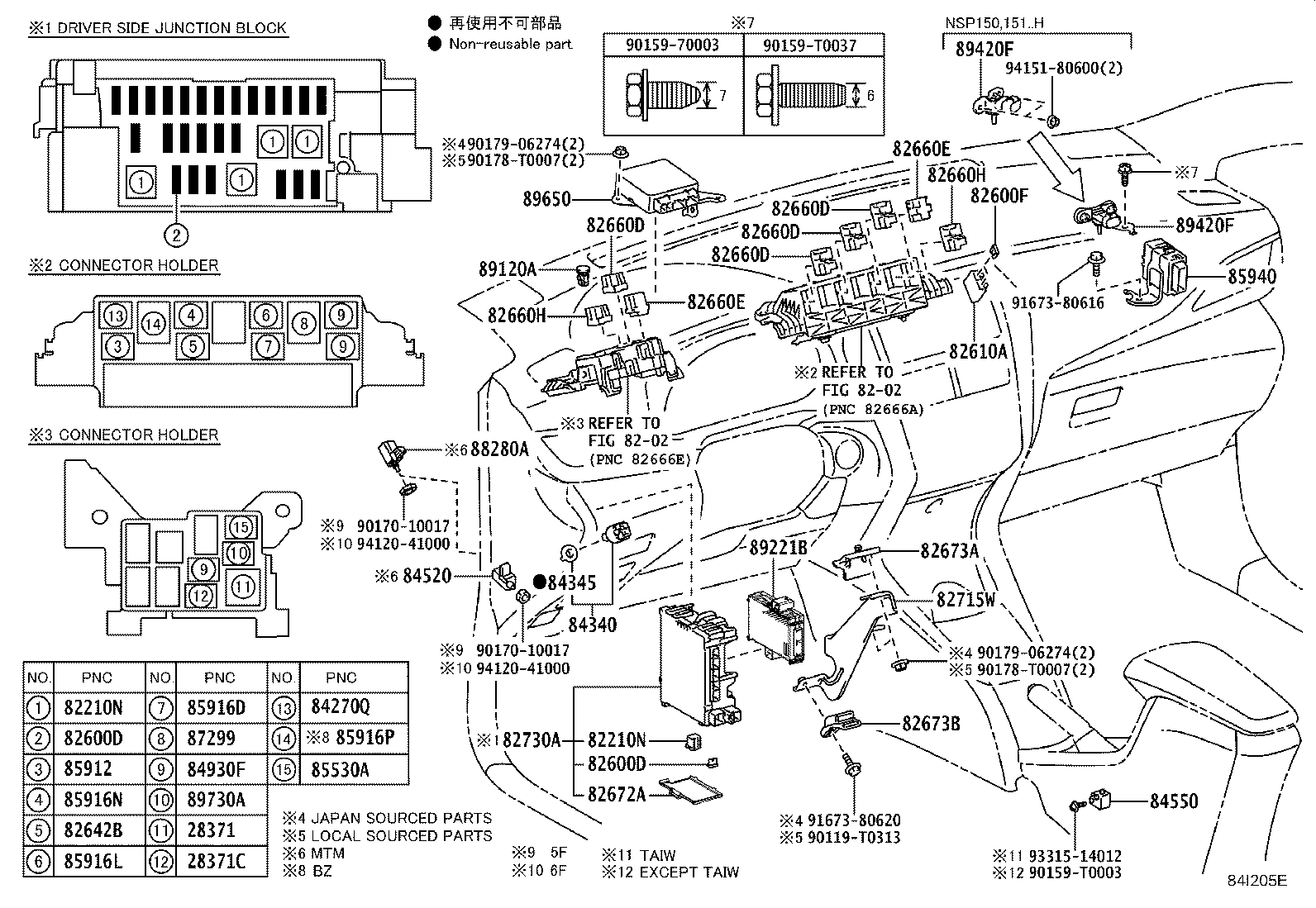

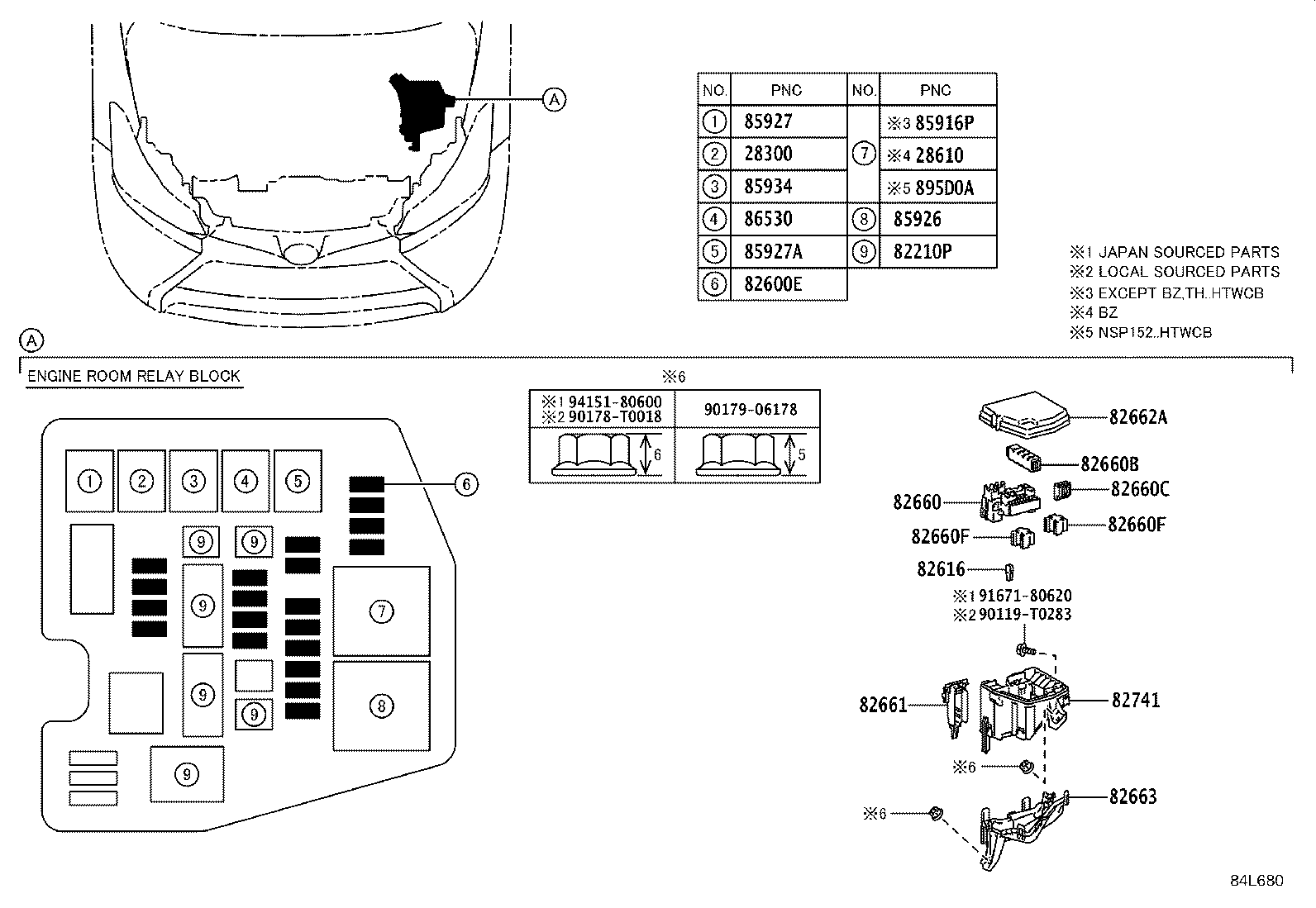

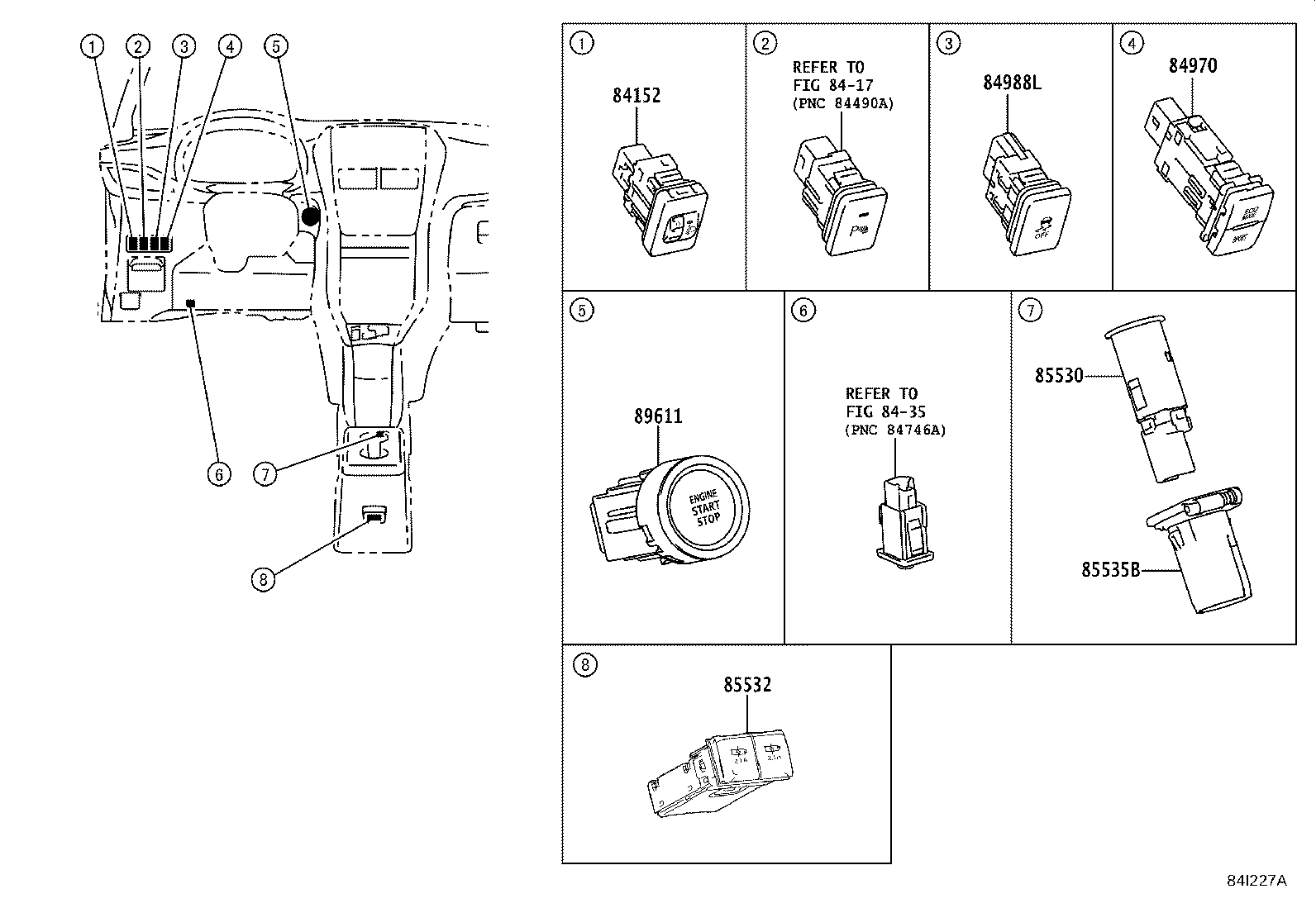

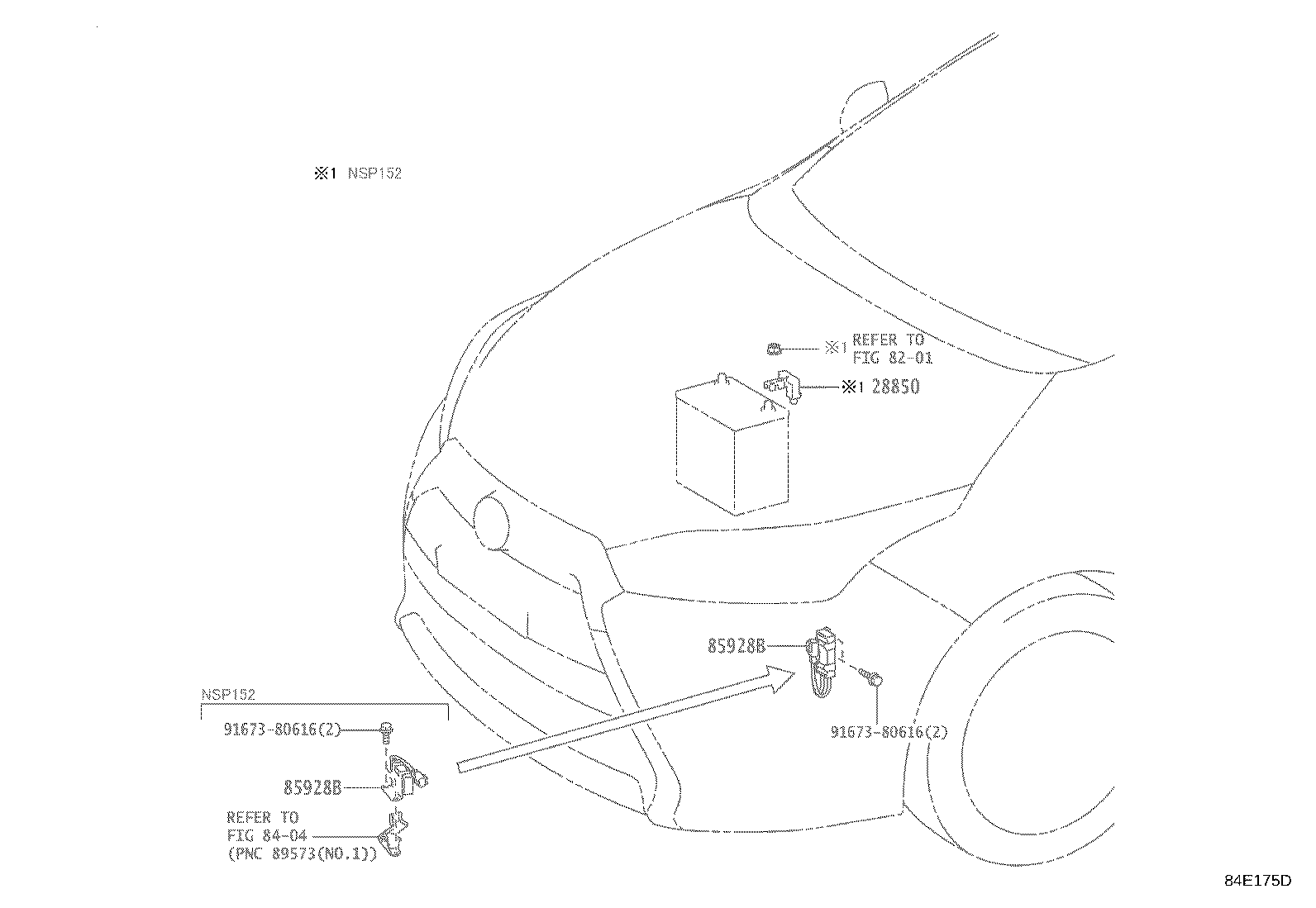

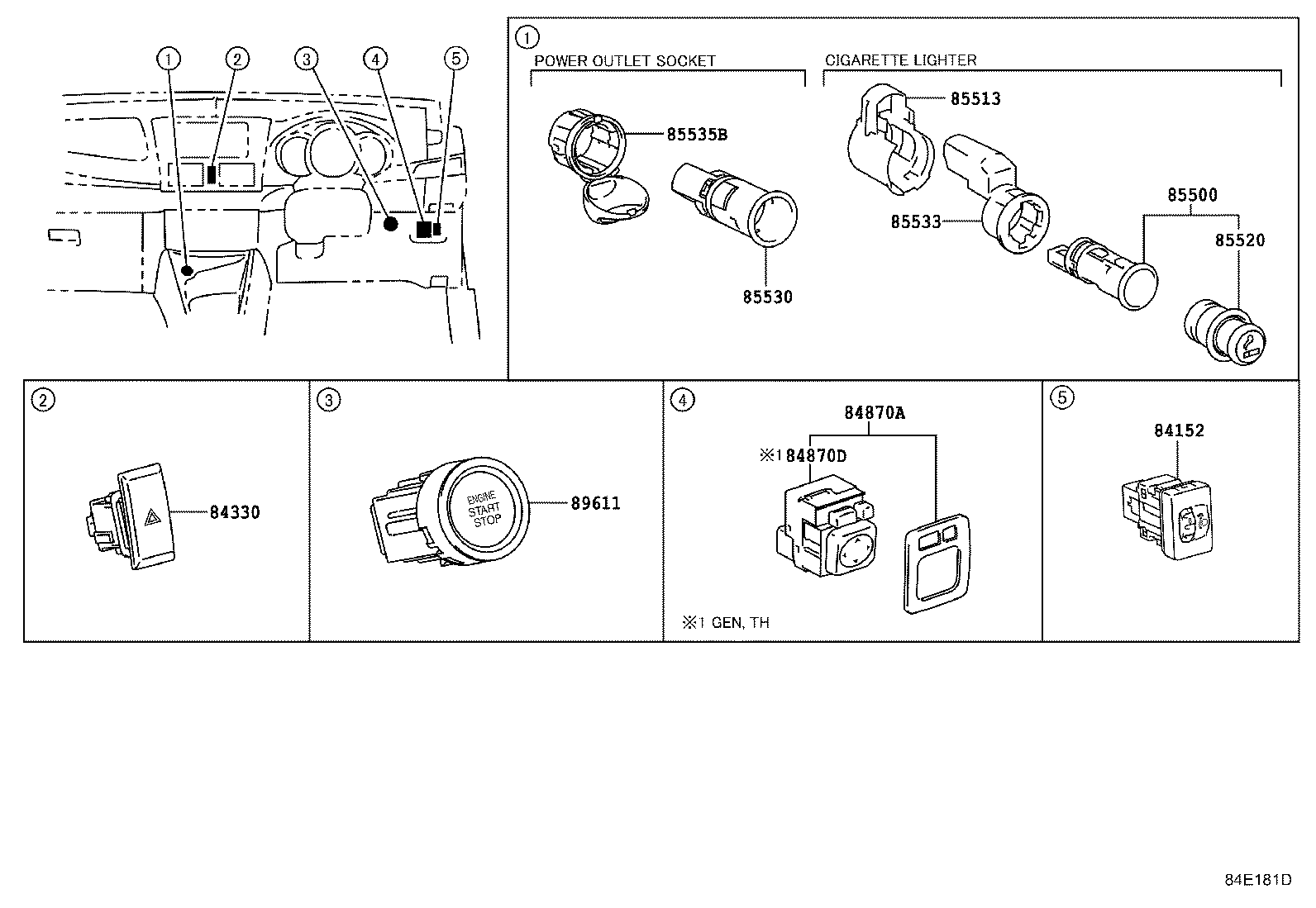

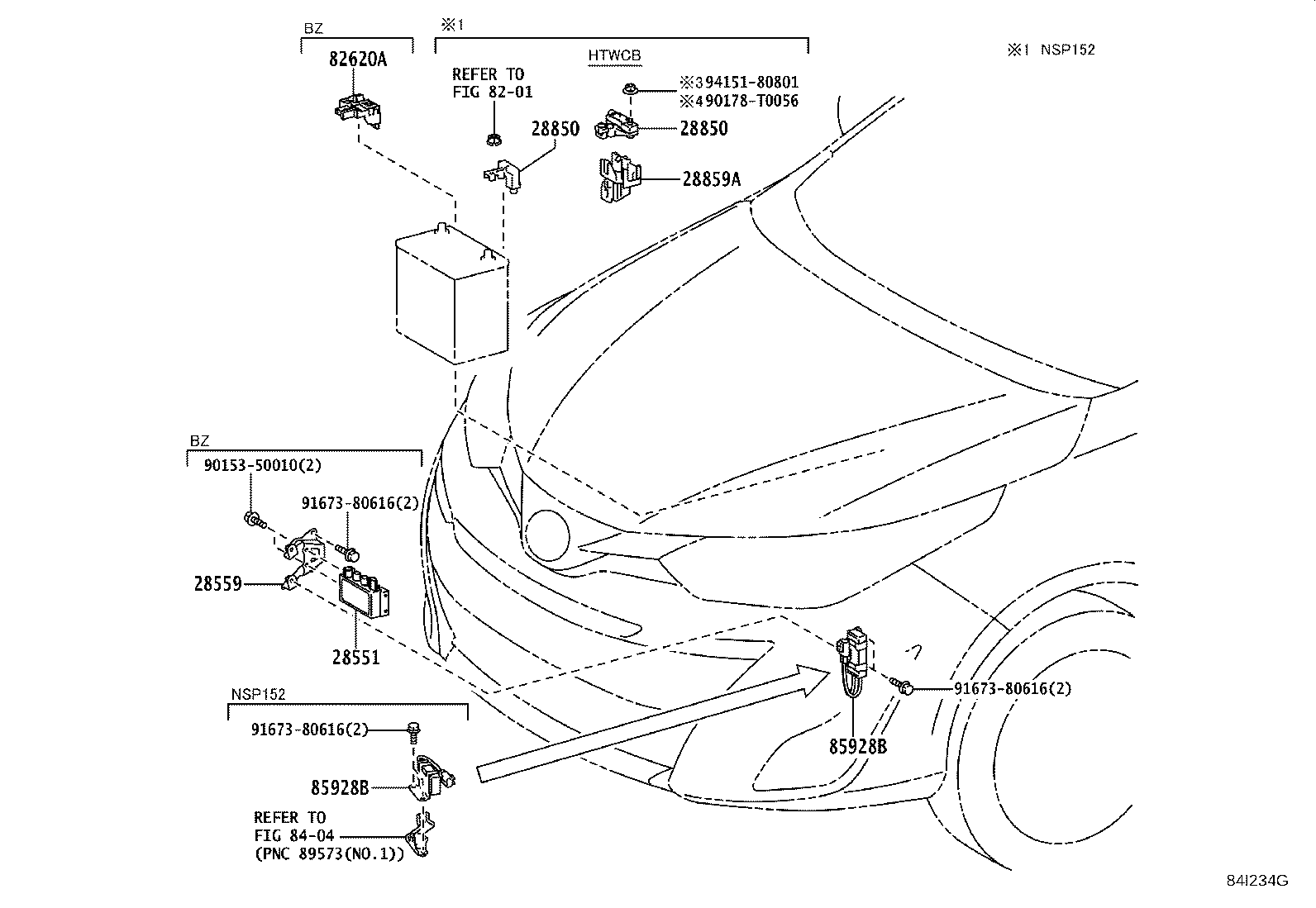

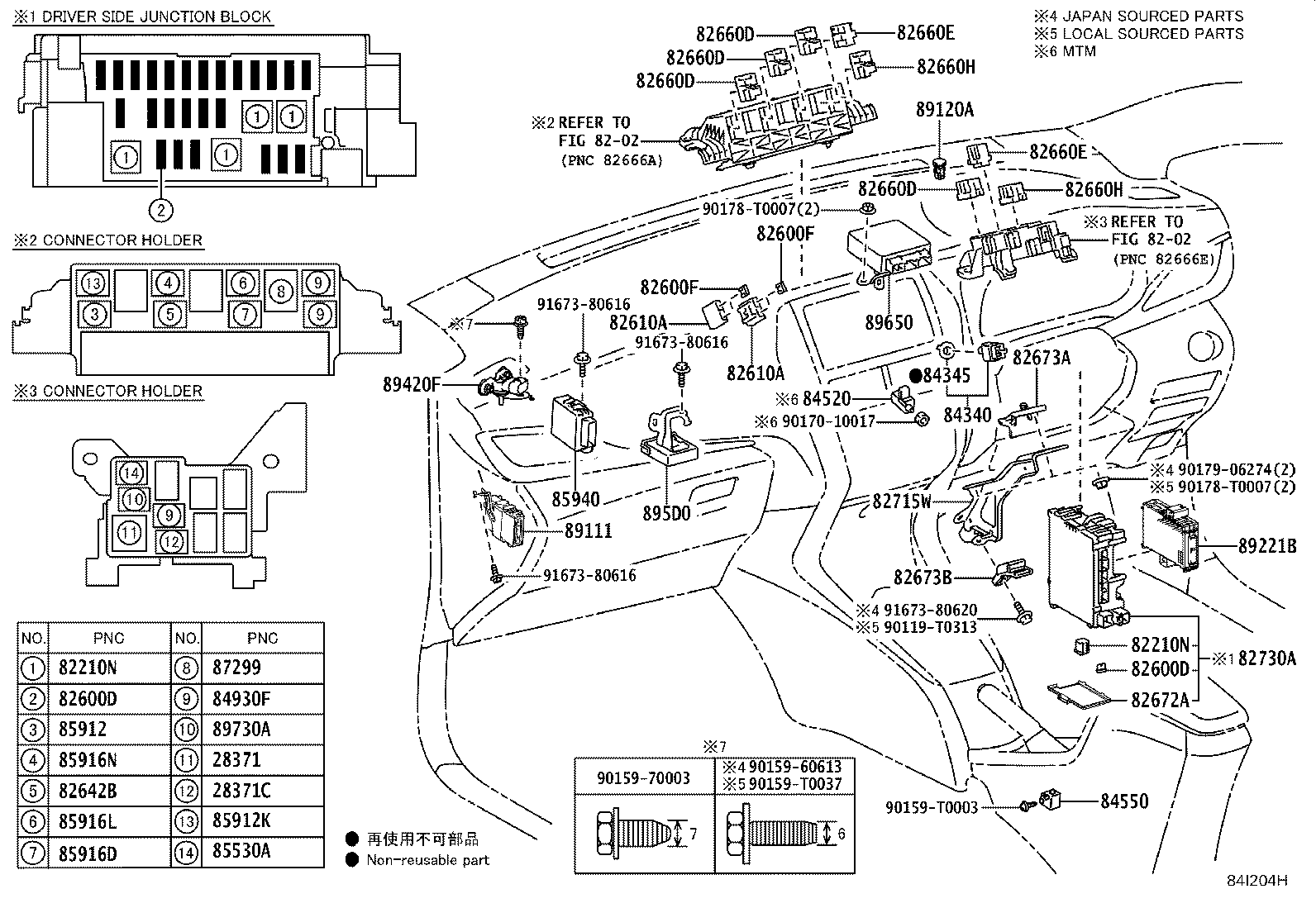

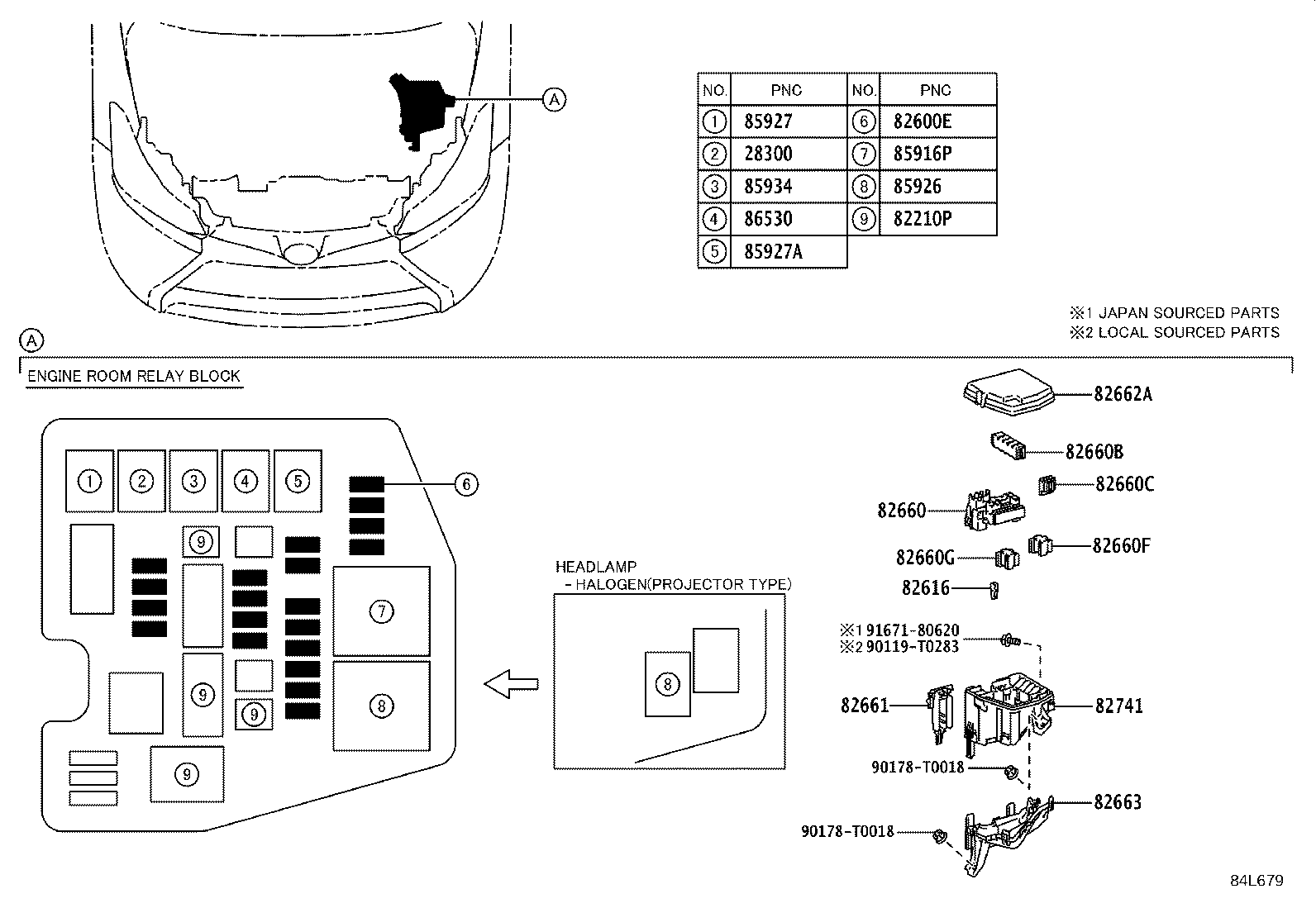

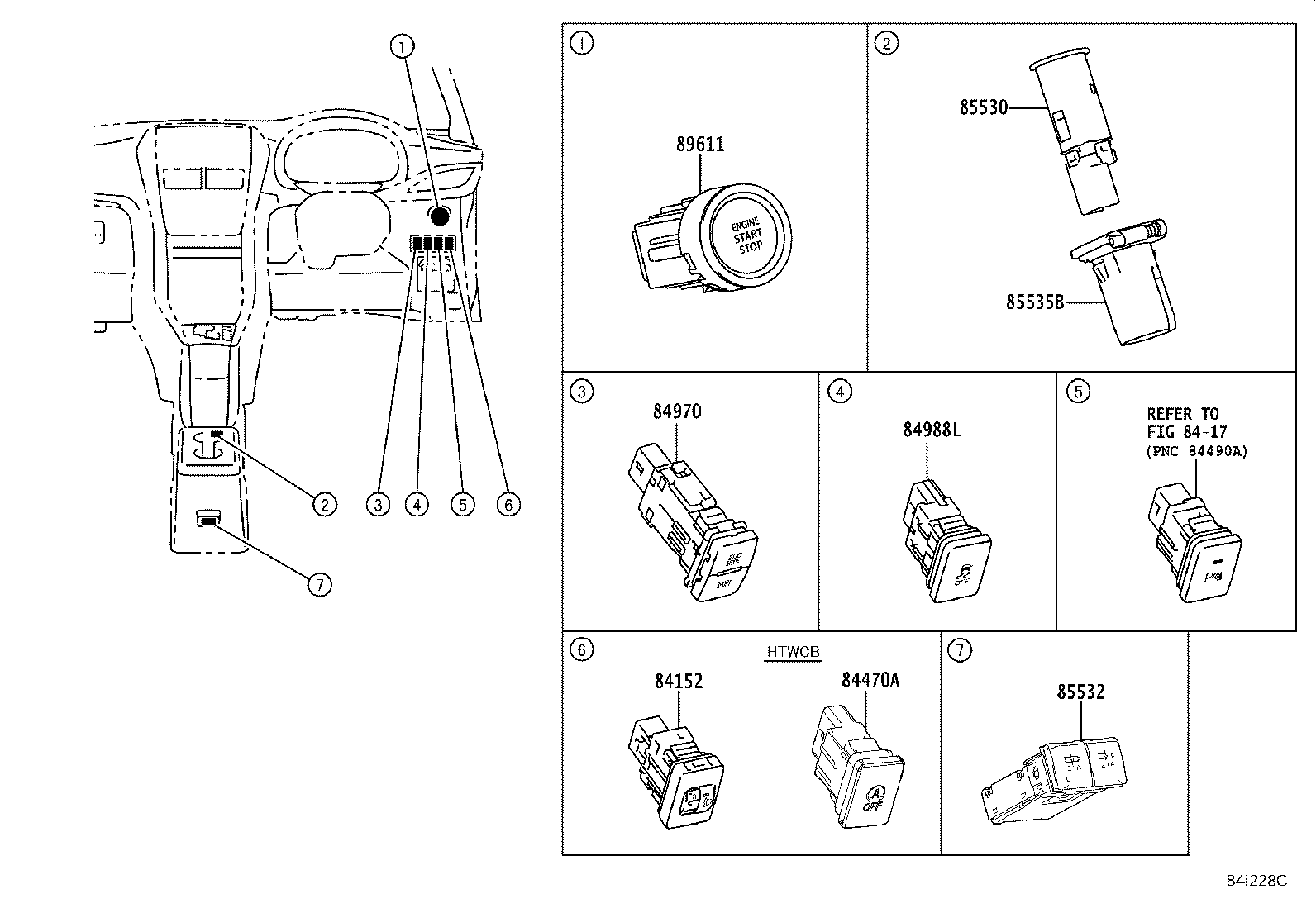

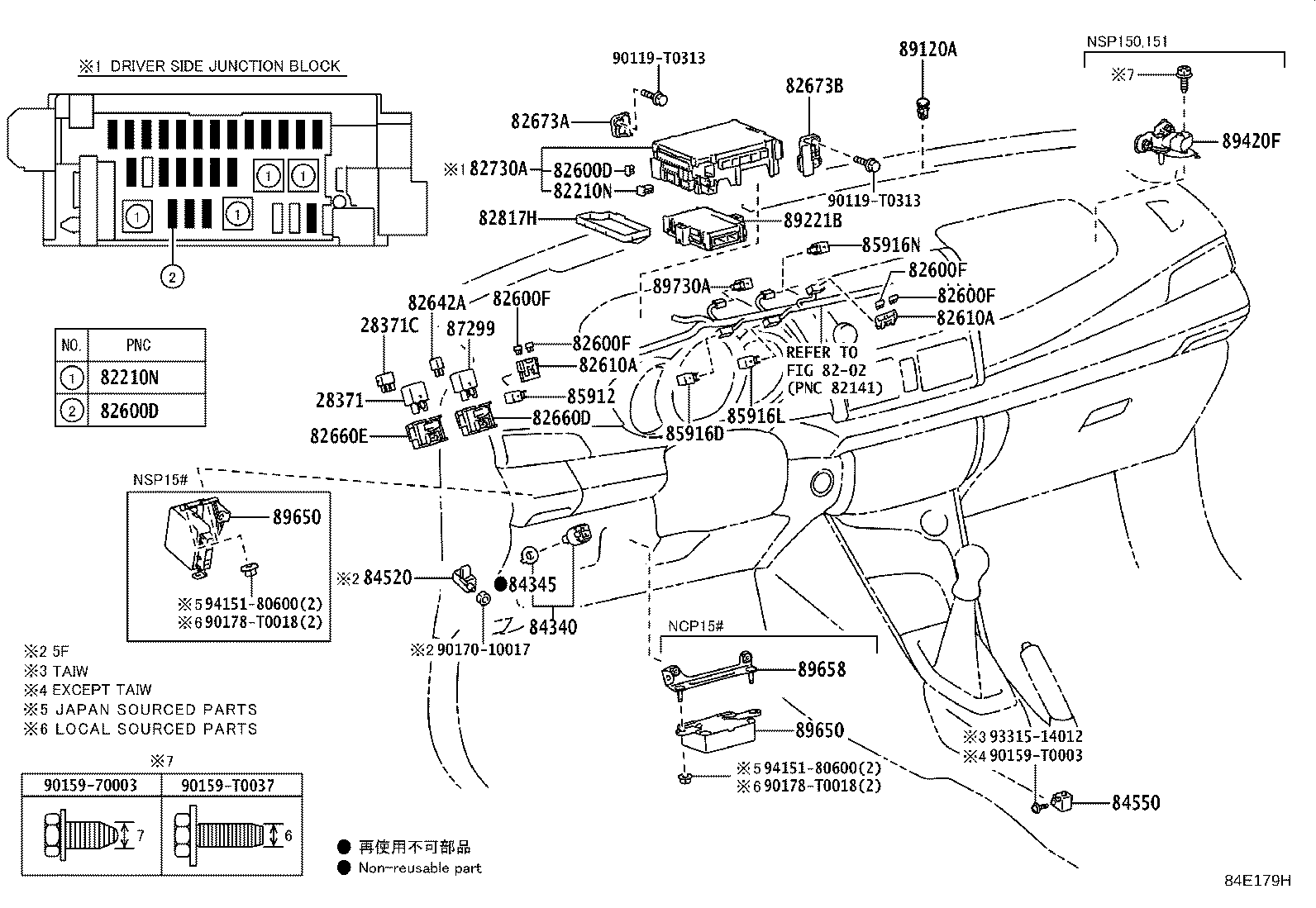

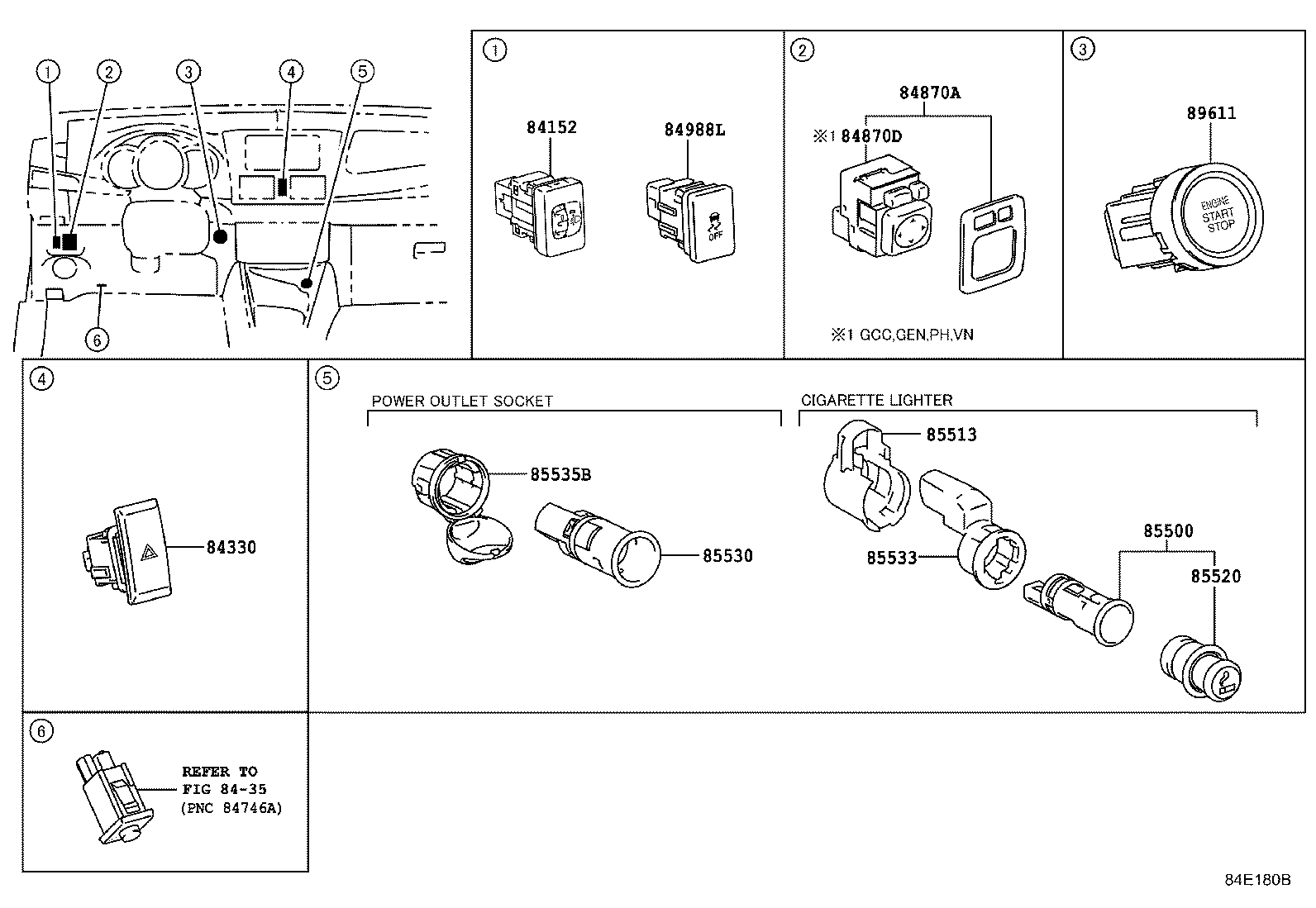

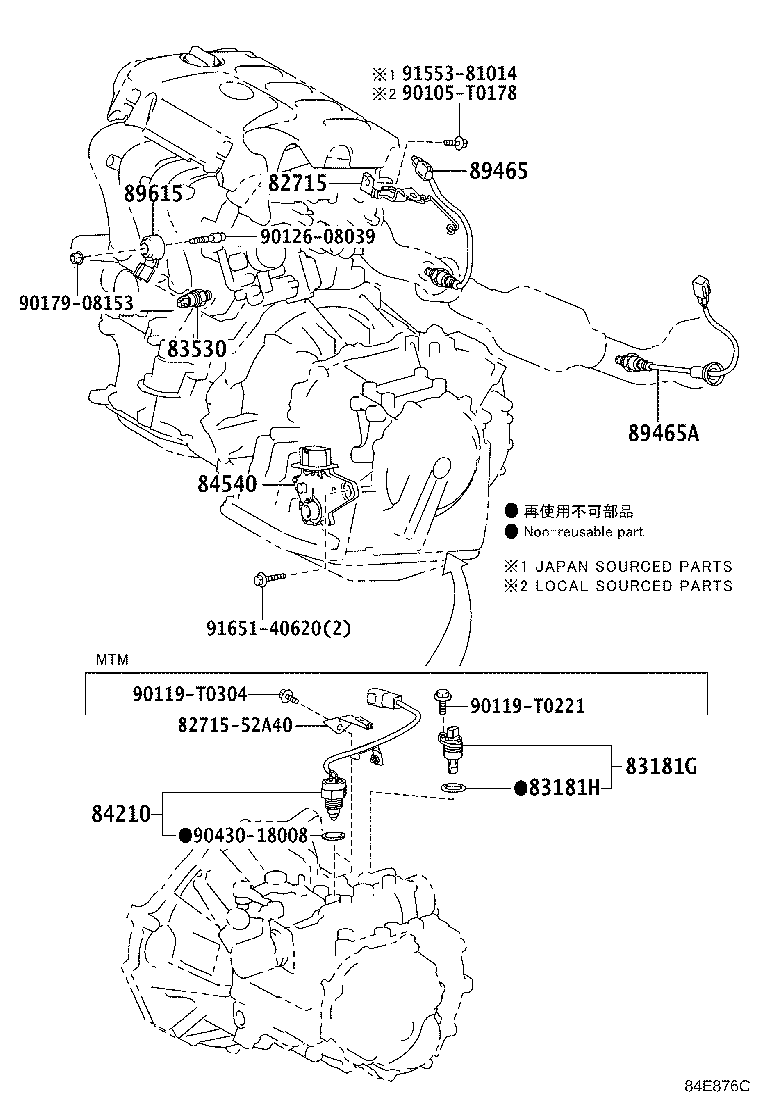

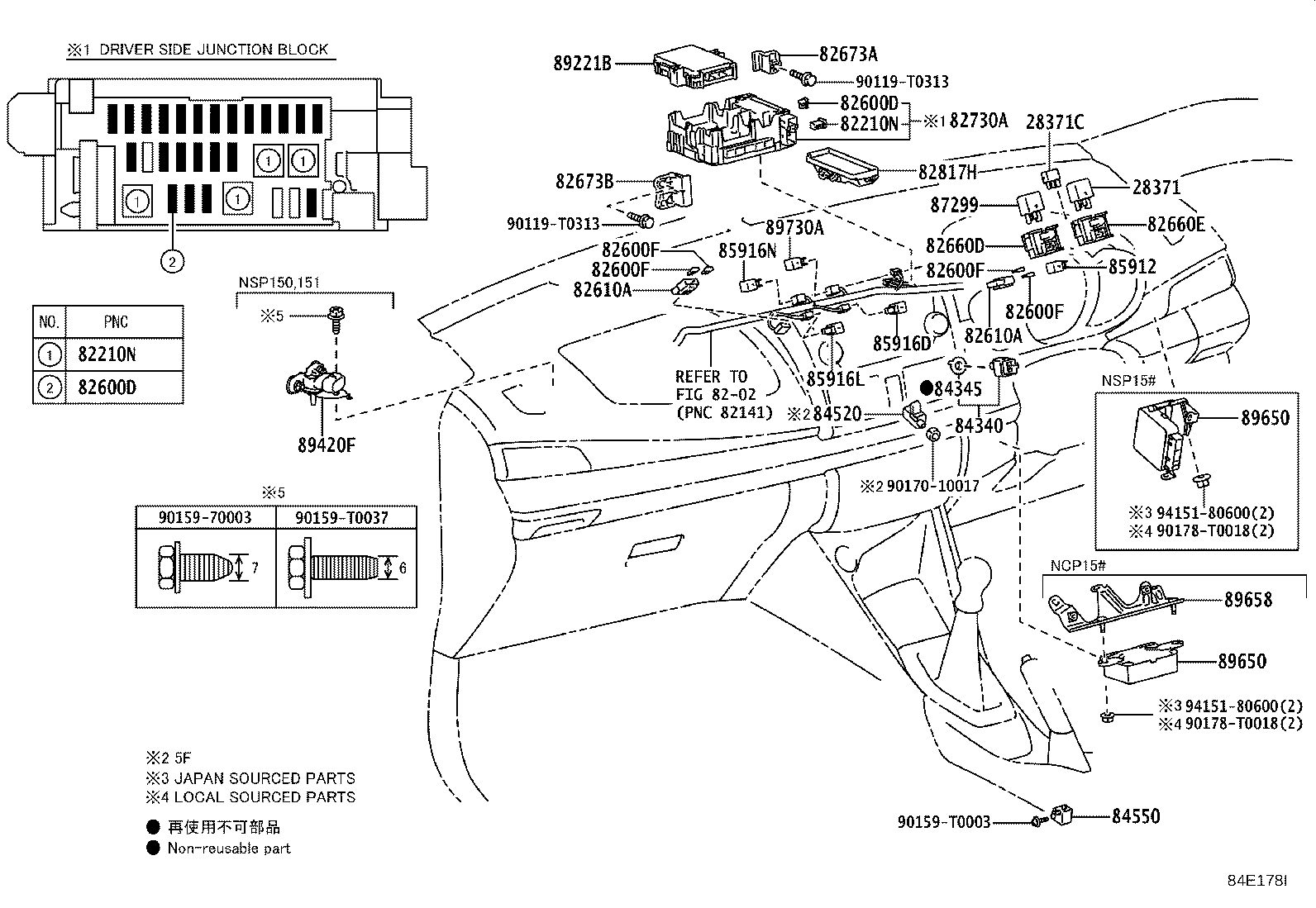

Figure 84E171G 84E171G 2013-10 → — Figure 84E876C 84E876C 2014-03 → — Figure 84E175D 84E175D 2013-10 → 2017-08 Figure 84E175D 84E175D 2016-05 → 2018-02 Figure 84E175D 84E175D 2016-10 → 2018-02 Figure 84I234G 84I234G 2017-09 → — Figure 84I234G 84I234G 2017-10 → — Figure 84I234G 84I234G 2018-02 → — Figure 84L679 84L679 2013-10 → 2017-08 Figure 84L679 84L679 2016-05 → 2018-02 Figure 84L679 84L679 2016-10 → 2018-02 Figure 84L680 84L680 2017-09 → — Figure 84L680 84L680 2017-10 → — Figure 84L680 84L680 2018-02 → — Figure 84E178I 84E178I 2013-10 → 2017-08 Figure 84E178I 84E178I 2016-10 → 2018-02 Figure 84E179H 84E179H 2014-03 → 2017-08 Figure 84E179H 84E179H 2016-05 → 2018-02 Figure 84I204H 84I204H 2017-09 → — Figure 84I204H 84I204H 2017-10 → — Figure 84I204H 84I204H 2018-02 → — Figure 84I205E 84I205E 2017-10 → — Figure 84I205E 84I205E 2018-04 → — Figure 84E181D 84E181D 2013-10 → 2017-08 Figure 84E181D 84E181D 2016-10 → 2018-02 Figure 84E180B 84E180B 2014-03 → 2017-08 Figure 84E180B 84E180B 2016-05 → 2018-02 Figure 84I228C 84I228C 2017-09 → 2020-09 Figure 84I228C 84I228C 2017-10 → 2020-09 Figure 84I228C 84I228C 2018-02 → — Figure 84I228C 84I228C 2020-09 → — Figure 84I227A 84I227A 2017-10 → — Figure 84I227A 84I227A 2018-04 → — Figure 84M733 84M733 2020-09 → — Figure 84E173D 84E173D 2013-10 → 2017-08 Figure 84E173D 84E173D 2016-05 → 2018-02 Figure 84E173D 84E173D 2016-10 → 2018-02 Figure 84I226D 84I226D 2017-09 → — Figure 84I226D 84I226D 2017-10 → — Figure 84I226D 84I226D 2018-02 → — Figure 84E177C 84E177C 2013-10 → 2017-08 Figure 84E177C 84E177C 2016-05 → 2018-02 Figure 84E177C 84E177C 2016-10 → 2018-02 Figure 84I231A 84I231A 2017-09 → — Figure 84I231A 84I231A 2017-10 → — Figure 84I231A 84I231A 2018-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
28859A Holder, Battery Current Sensor
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82642A Relay, Running Light
82642B Relay, Day Time Running Light, NO.1
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82817H Protector, Wiring Harness
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84930F Relay, Door Lock Contorol
84970 Switch Assy, Combination
84978B Switch, Lane-keeping Assist Main
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85532 Socket, Usb Charger
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85912 Relay, Defogger
85912K Relay, Vvt
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
8598A Battery, Door Control
86530 Relay Assy, Horn
87299 Relay, Heater
88280A Switch Assy, Clutch
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221B Computer, Body
89245B Sensor, Steering
89420F Sensor Assy, Vacuum
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
8946A Bracket, Exhaust Sensor Clamp
89530C Computer Assy, Transmission Control
895D0 Computer Assy, Electric Vacuum Pump
895D0A Relay, Electric Vacuum Pump
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89658 Bracket, Power Steering Computer
89730A Relay(FOR SECURITY WARNING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
