Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 11 illustrations

Illustrations

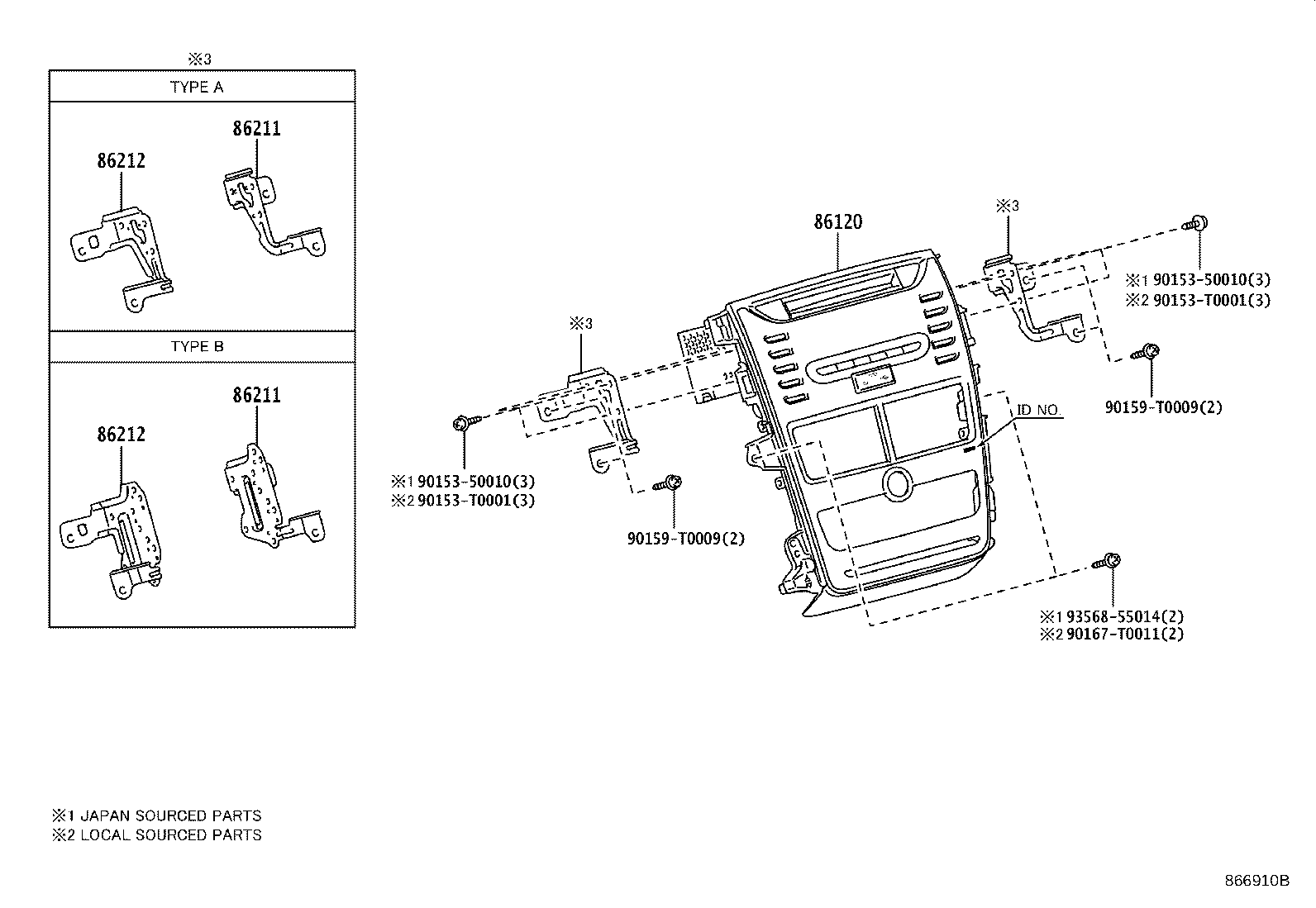

Figure 866914 866914 2013-10 → 2017-08 Figure 866914 866914 2014-03 → 2016-09 Figure 866914 866914 2016-05 → 2018-02 Figure 866914 866914 2016-07 → 2017-08 Figure 866914 866914 2016-10 → 2018-02 Figure 866910B 866910B 2017-09 → — Figure 866910B 866910B 2017-10 → — Figure 866910B 866910B 2018-02 → — Figure 866910B 866910B 2018-04 → — Figure 866910B 866910B 2019-11 → — Figure 865383B 865383B 2013-10 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86250 Microphone Assy, Amplifier
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
