Toyota Yaris

2013-10 → present · chassis NCP15#,NSP15# · catalogue 113320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 36 illustrations

Illustrations

Figure 87D577E 87D577E 2013-10 → 2017-08 Figure 87D577E 87D577E 2016-10 → 2018-02 Figure 87D558F 87D558F 2014-03 → 2017-08 Figure 87D558F 87D558F 2016-05 → — Figure 87G455A 87G455A 2017-09 → — Figure 87G455A 87G455A 2017-10 → — Figure 87G455A 87G455A 2018-02 → — Figure 87G510A 87G510A 2017-10 → — Figure 87G510A 87G510A 2018-04 → — Figure 87G510A 87G510A 2018-06 → — Figure 87G456B 87G456B 2017-10 → — Figure 87H162 87H162 2017-09 → — Figure 87H162 87H162 2017-10 → — Figure 87H162 87H162 2018-02 → — Figure 87H162 87H162 2018-04 → — Figure 87H162 87H162 2018-06 → — Figure 87D560A 87D560A 2013-10 → 2017-08 Figure 87D560A 87D560A 2016-10 → 2018-02 Figure 87D559A 87D559A 2014-03 → 2017-08 Figure 87E065 87E065 2014-09 → — Figure 87G457A 87G457A 2017-09 → — Figure 87G457A 87G457A 2017-10 → — Figure 87G457A 87G457A 2018-02 → — Figure 87G458B 87G458B 2017-10 → — Figure 87G458B 87G458B 2018-04 → — Figure 87G458B 87G458B 2018-06 → — Figure 87D564 87D564 2013-10 → 2017-08 Figure 87D564 87D564 2016-10 → 2018-02 Figure 87D561A 87D561A 2014-03 → 2017-08 Figure 87D561A 87D561A 2016-05 → — Figure 87G459B 87G459B 2017-09 → — Figure 87G459B 87G459B 2017-10 → — Figure 87G459B 87G459B 2018-02 → — Figure 87G460B 87G460B 2017-10 → — Figure 87G460B 87G460B 2018-04 → — Figure 87G460B 87G460B 2018-06 → —

Part groups

PNCDescription

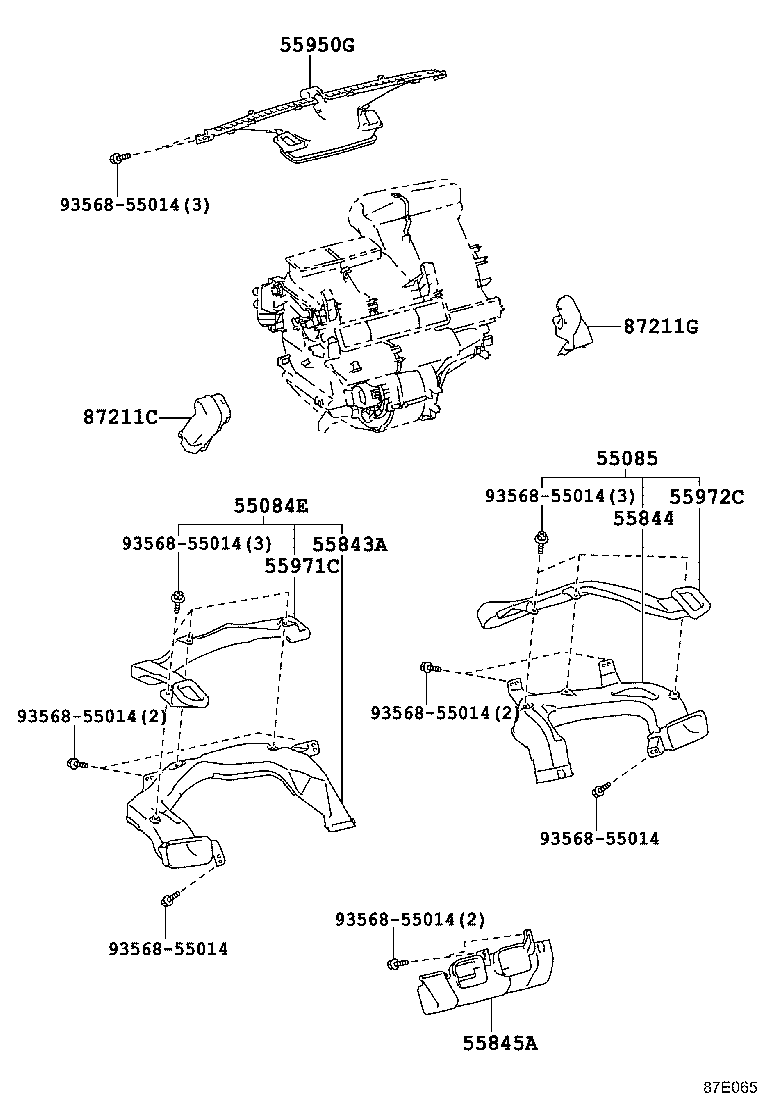

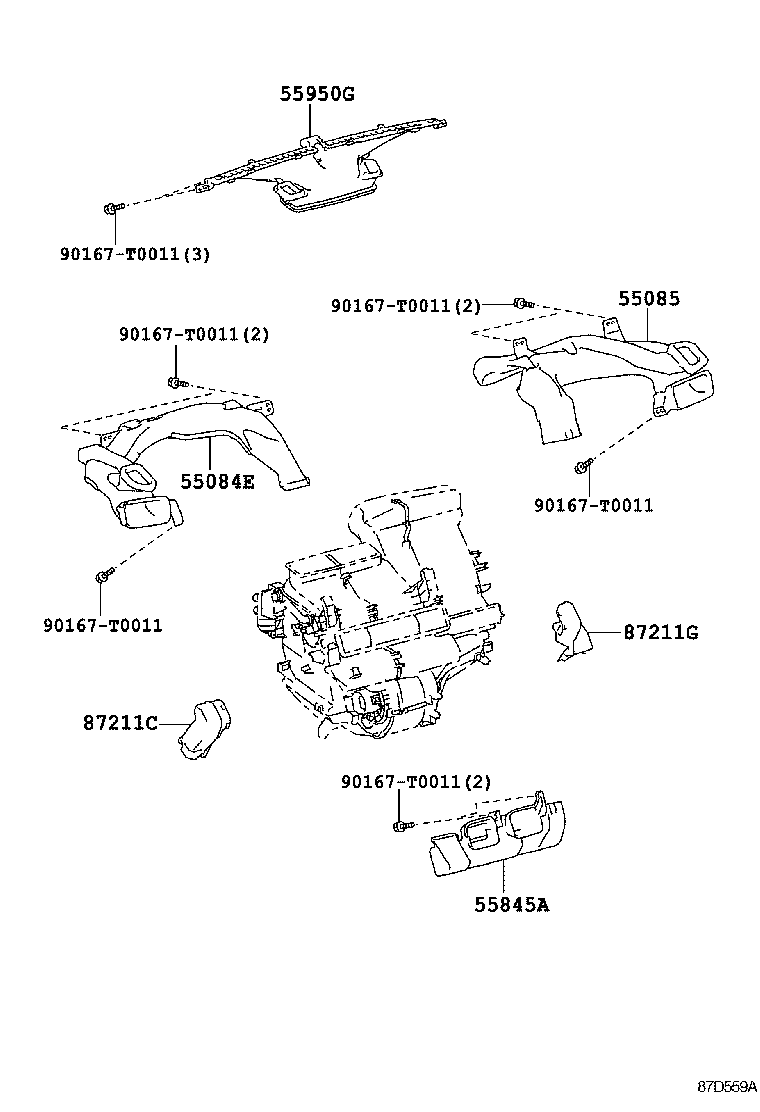

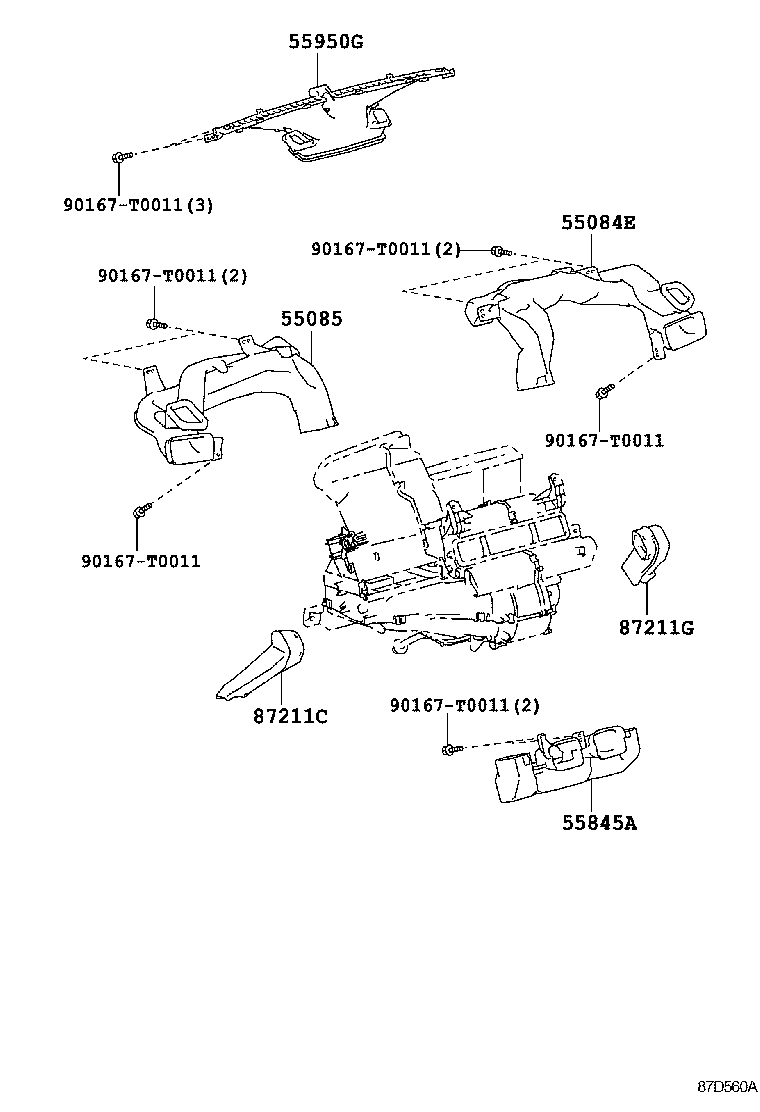

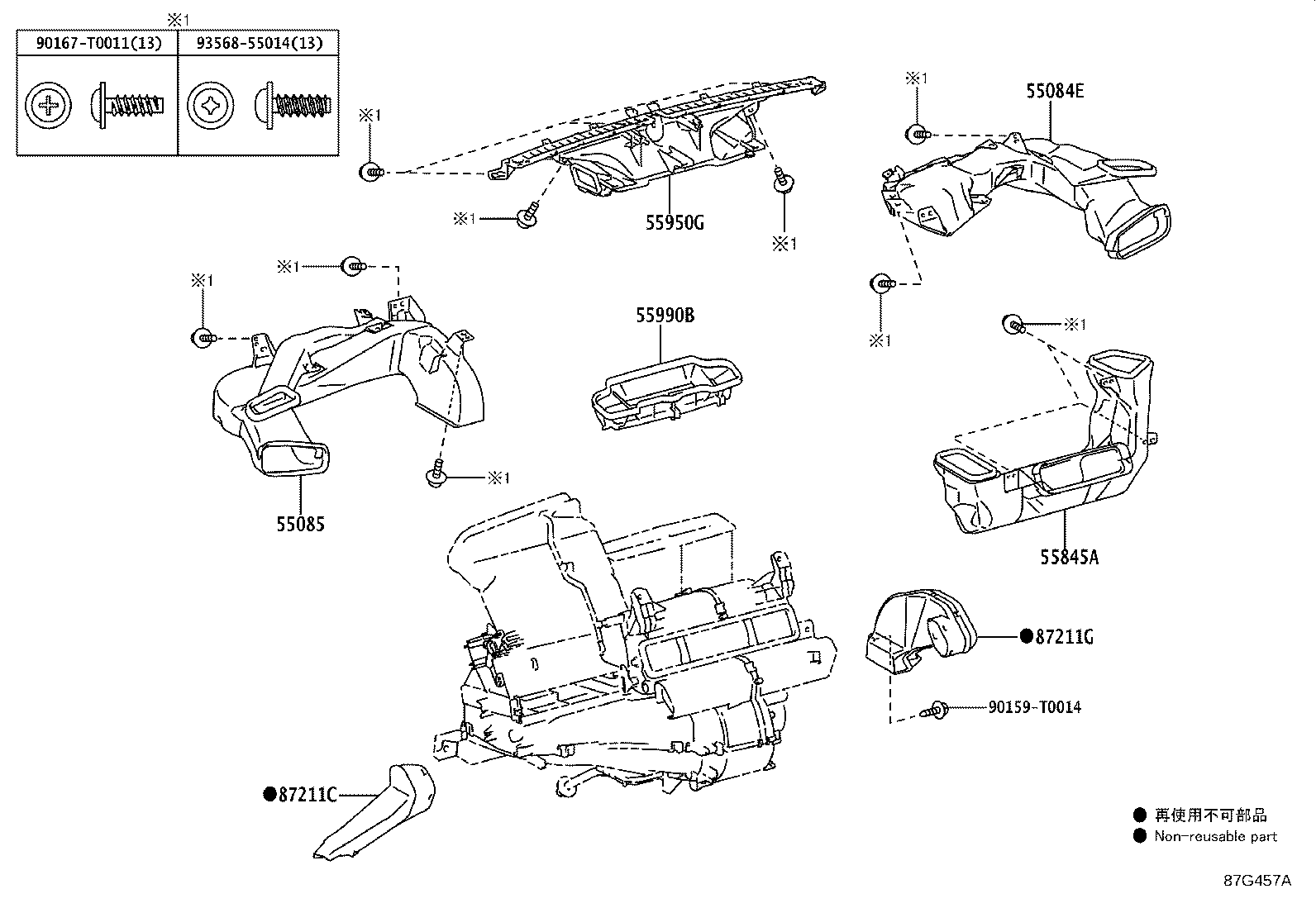

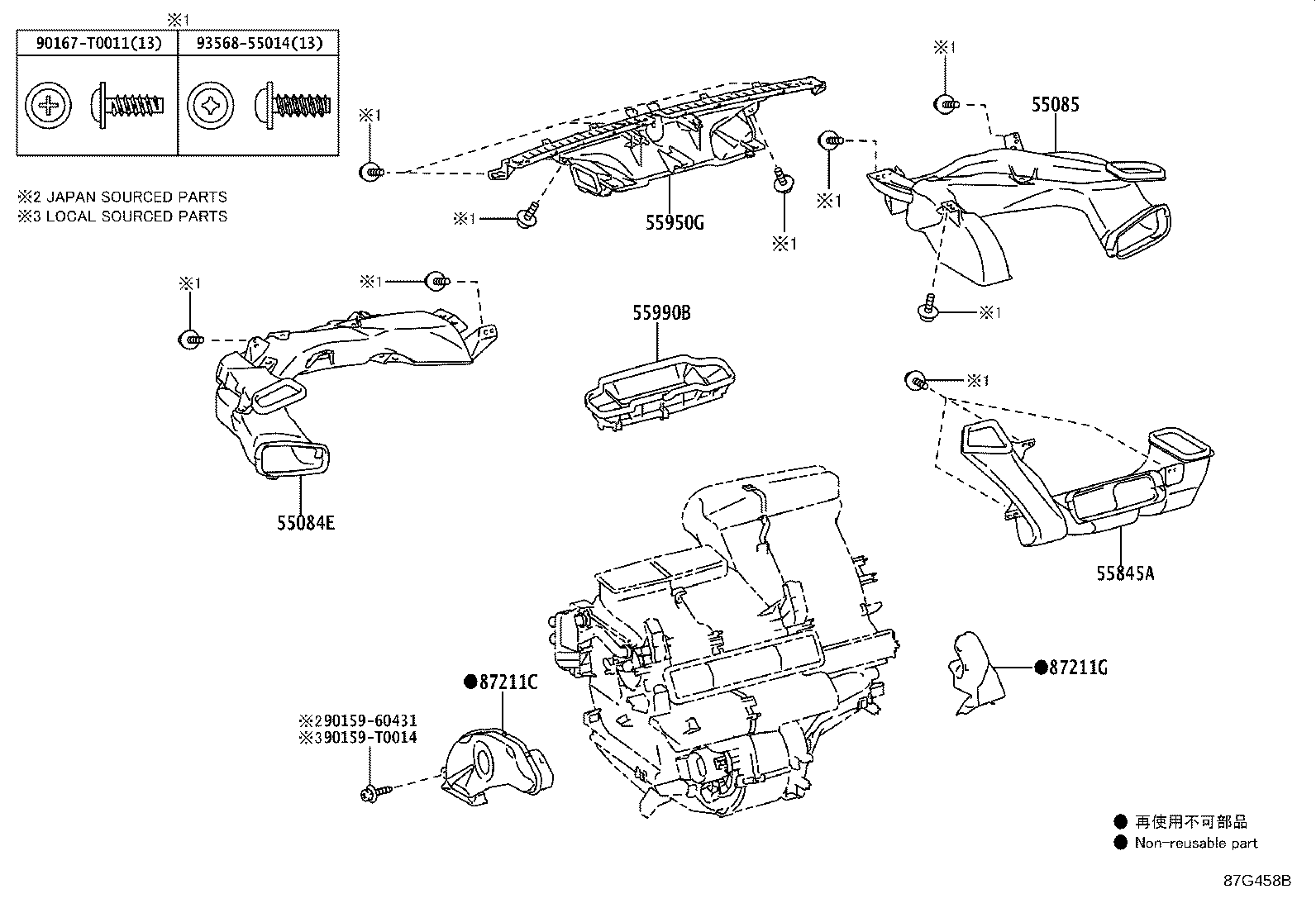

55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3

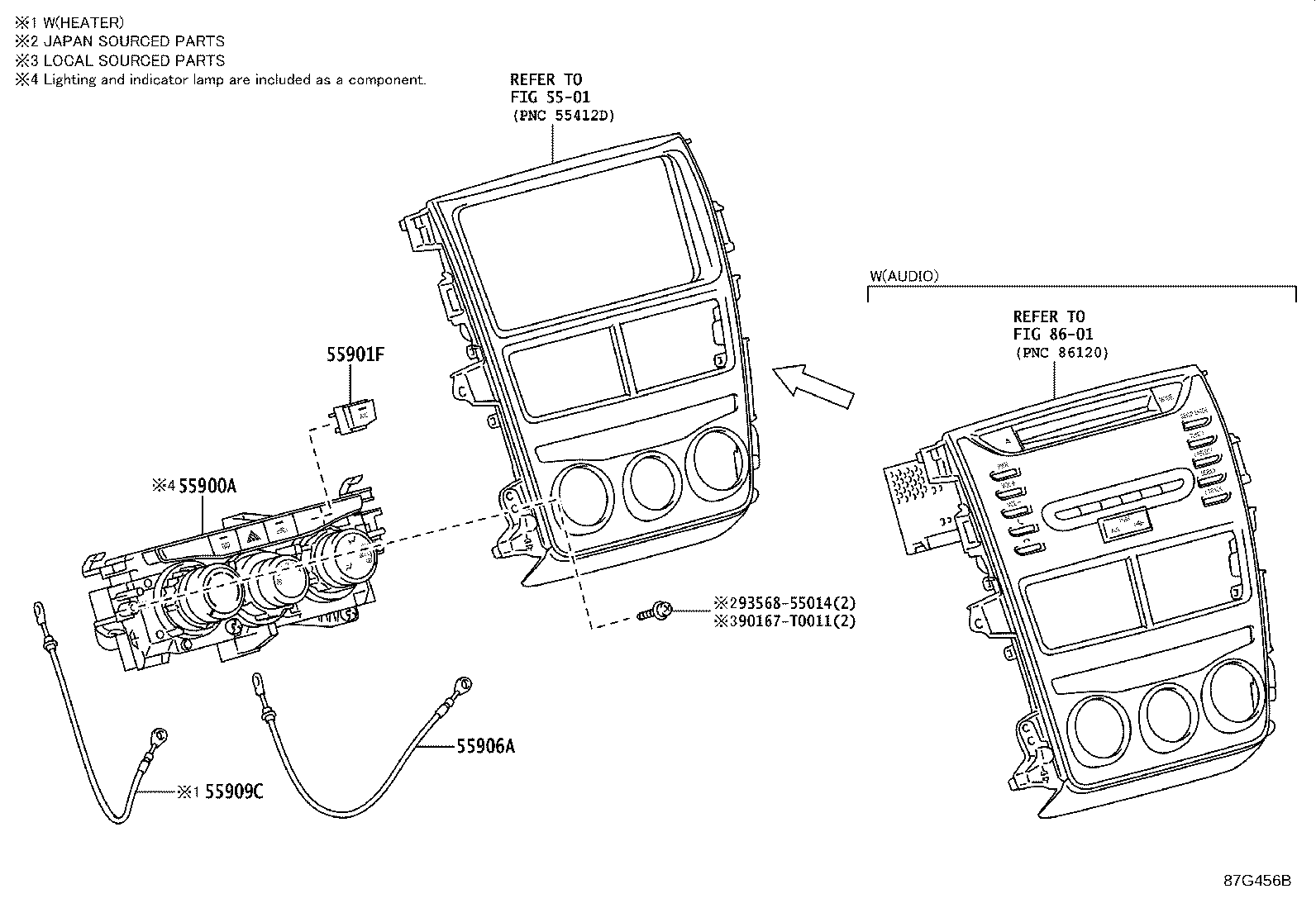

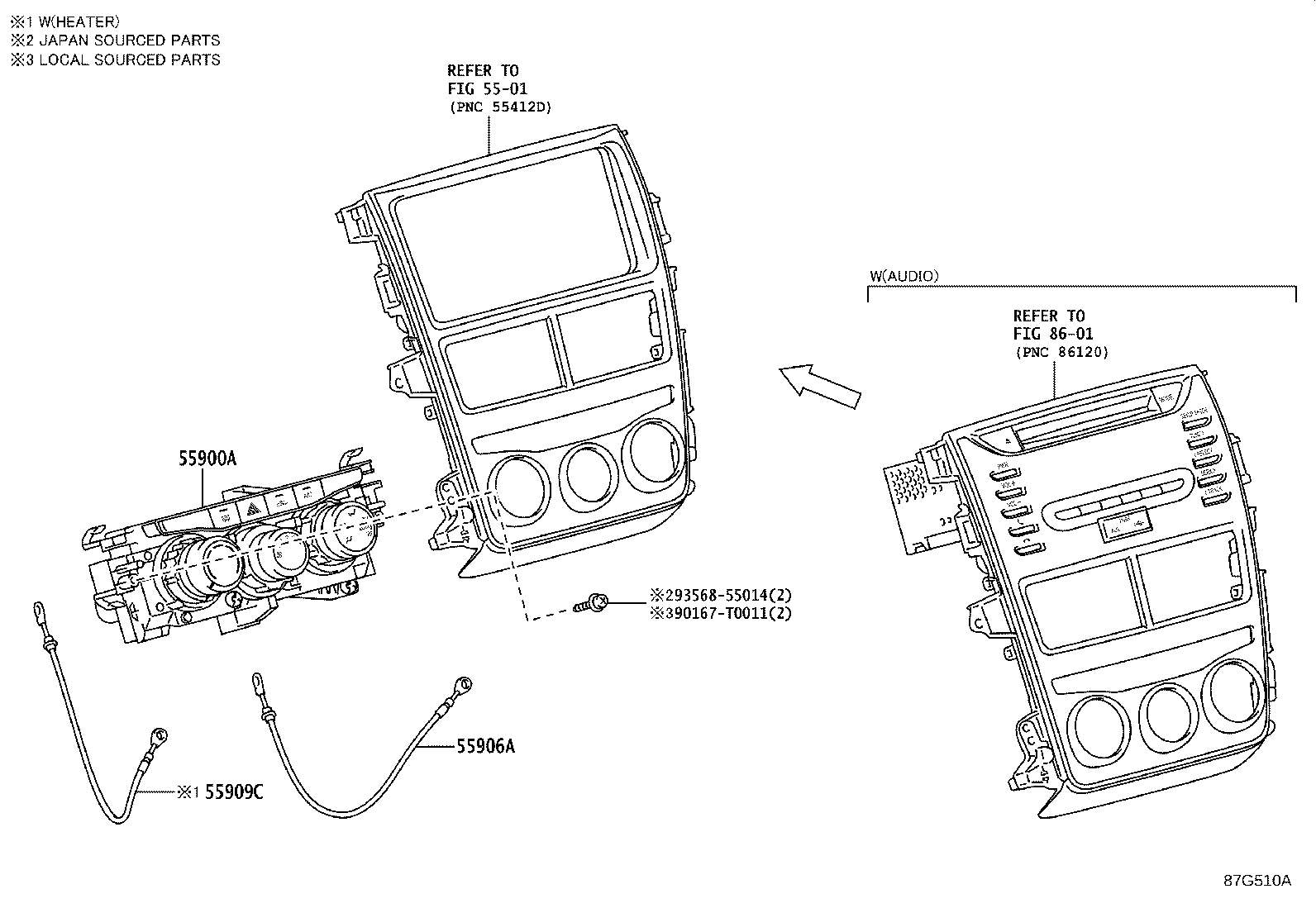

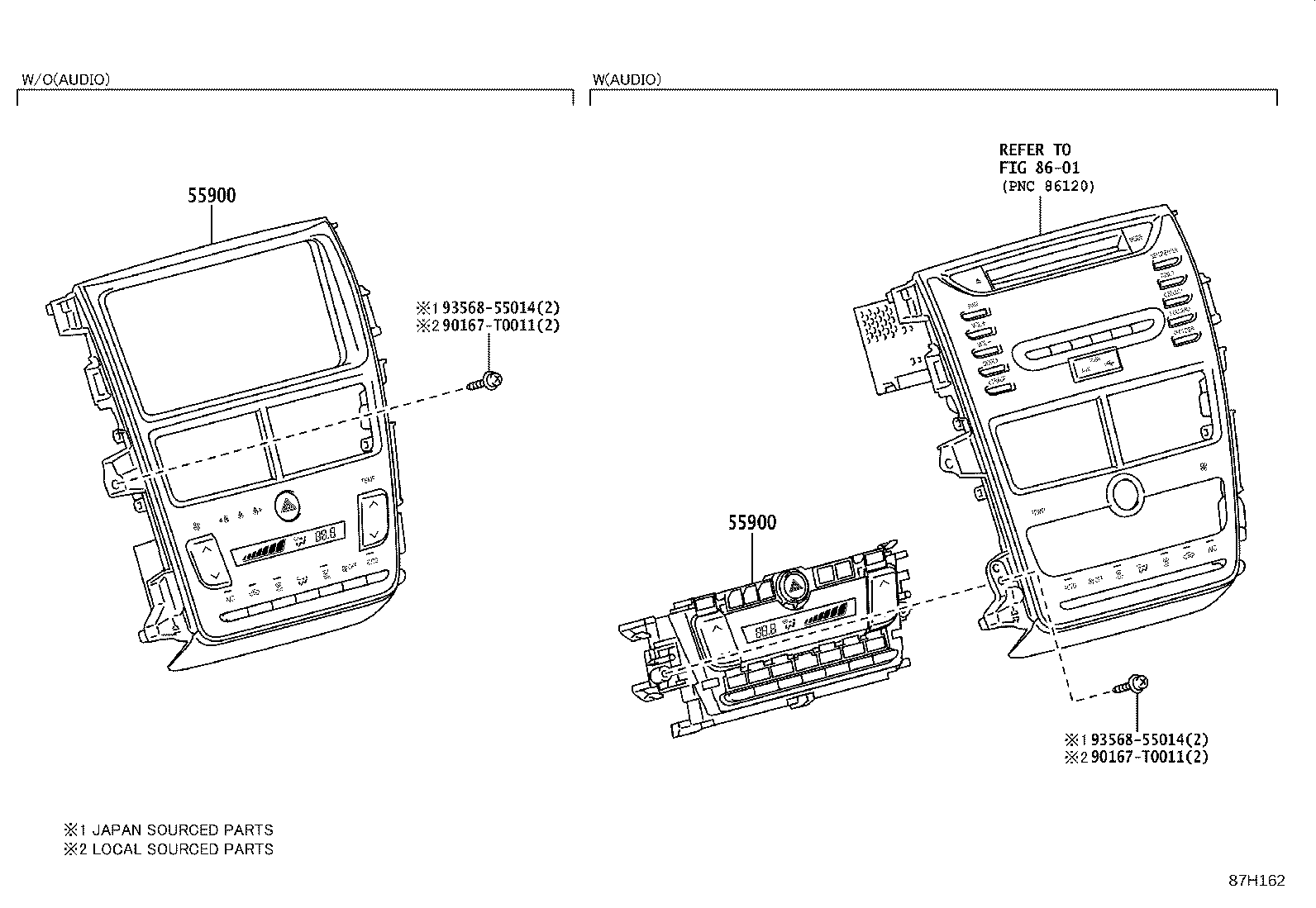

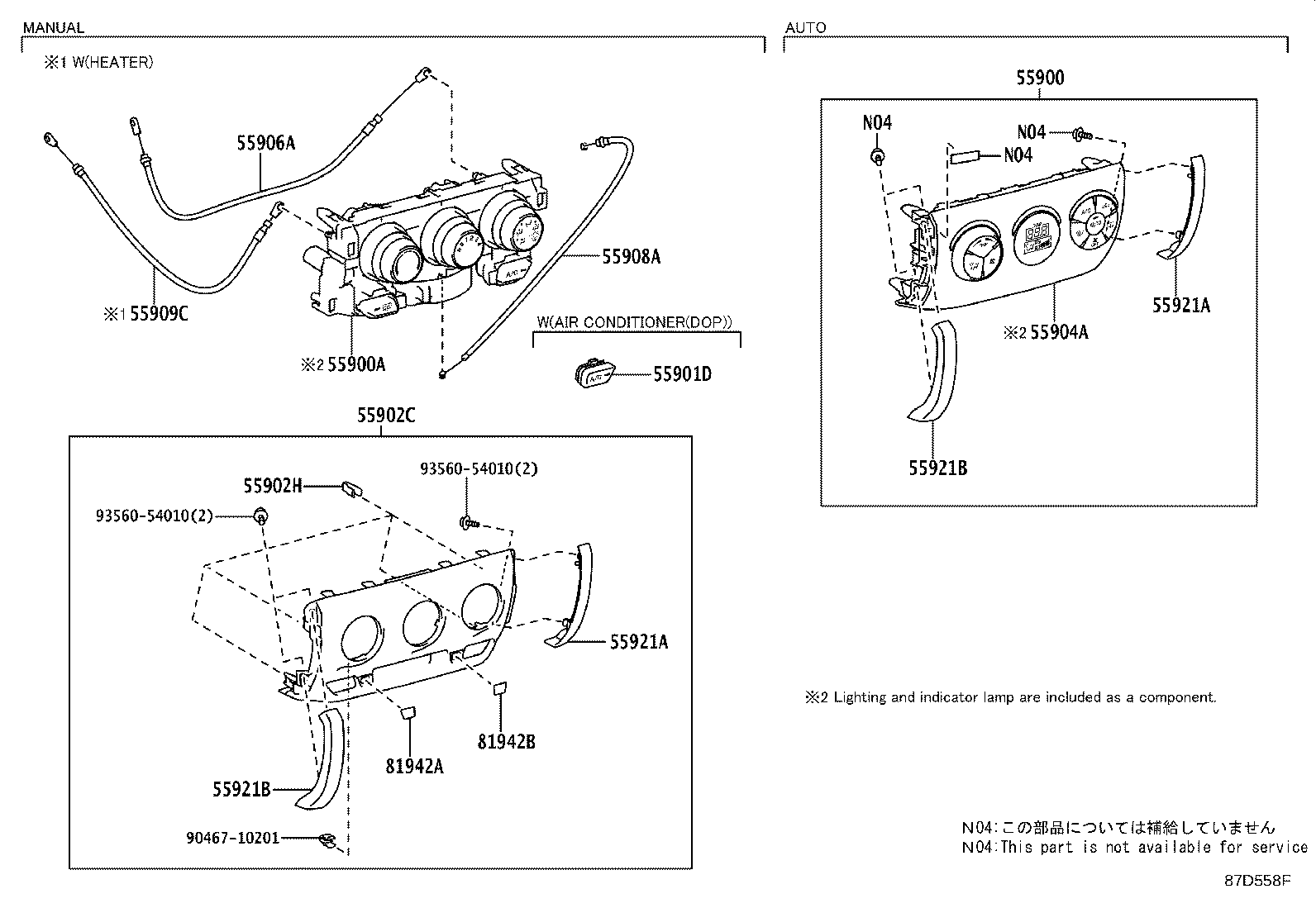

55900 Control Assy, Air Conditioner

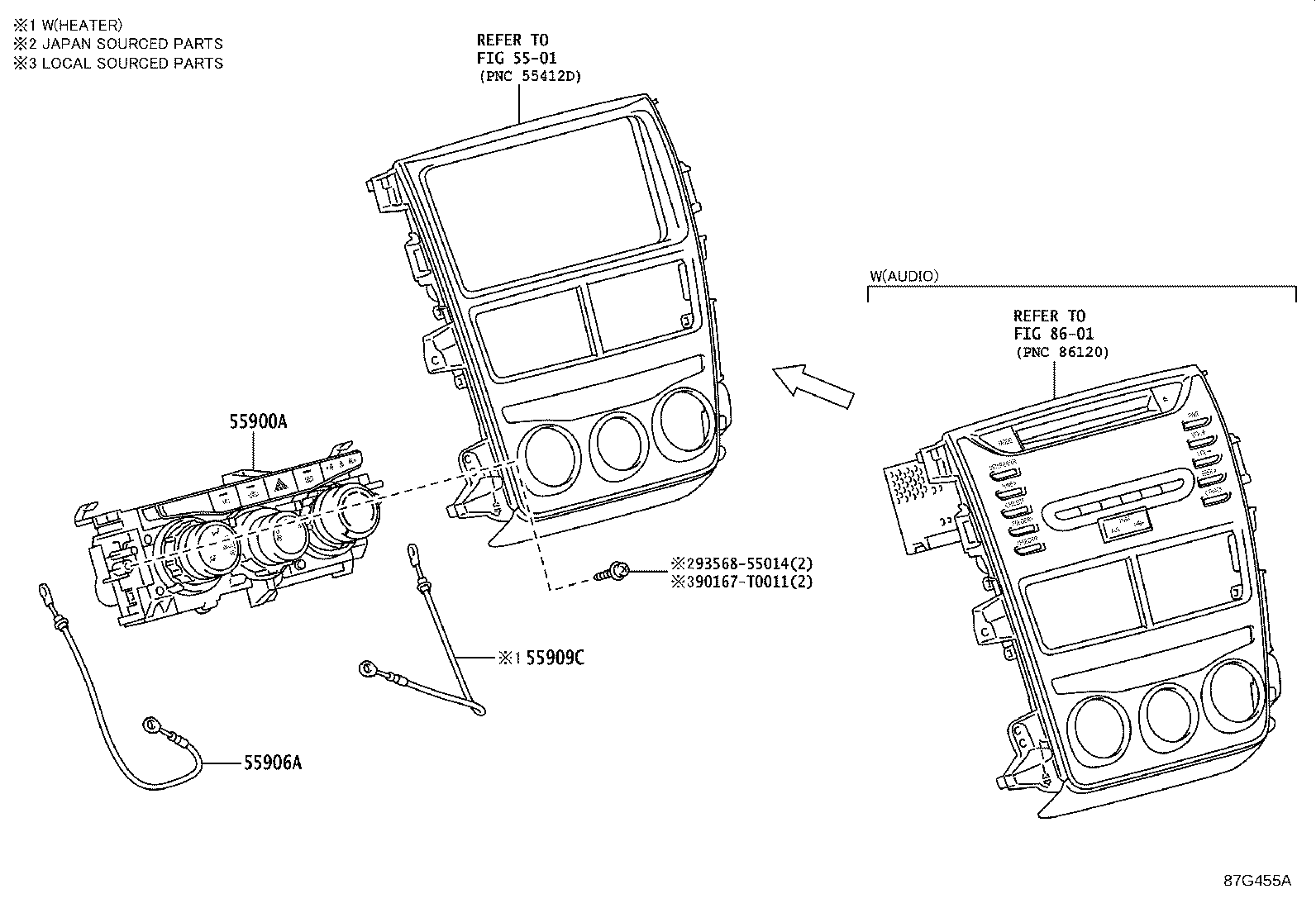

55900A Control & Accessory Assy, Heater
55901D Control Sub-assy, Heater, NO.1
55901F Knob, Air Conditioner Switch
55902C Panel Sub-assy, Air Conditioner
55902H Clip(FOR AIR CONDITIONER PANEL)
55904A Housing Sub-assy, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909C Cable Sub-assy, Airmix Damper Control
55921A Retainer, Heater Control
55921B Retainer, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
87211C Duct, Air, NO.4
87211G Duct, Air, NO.5

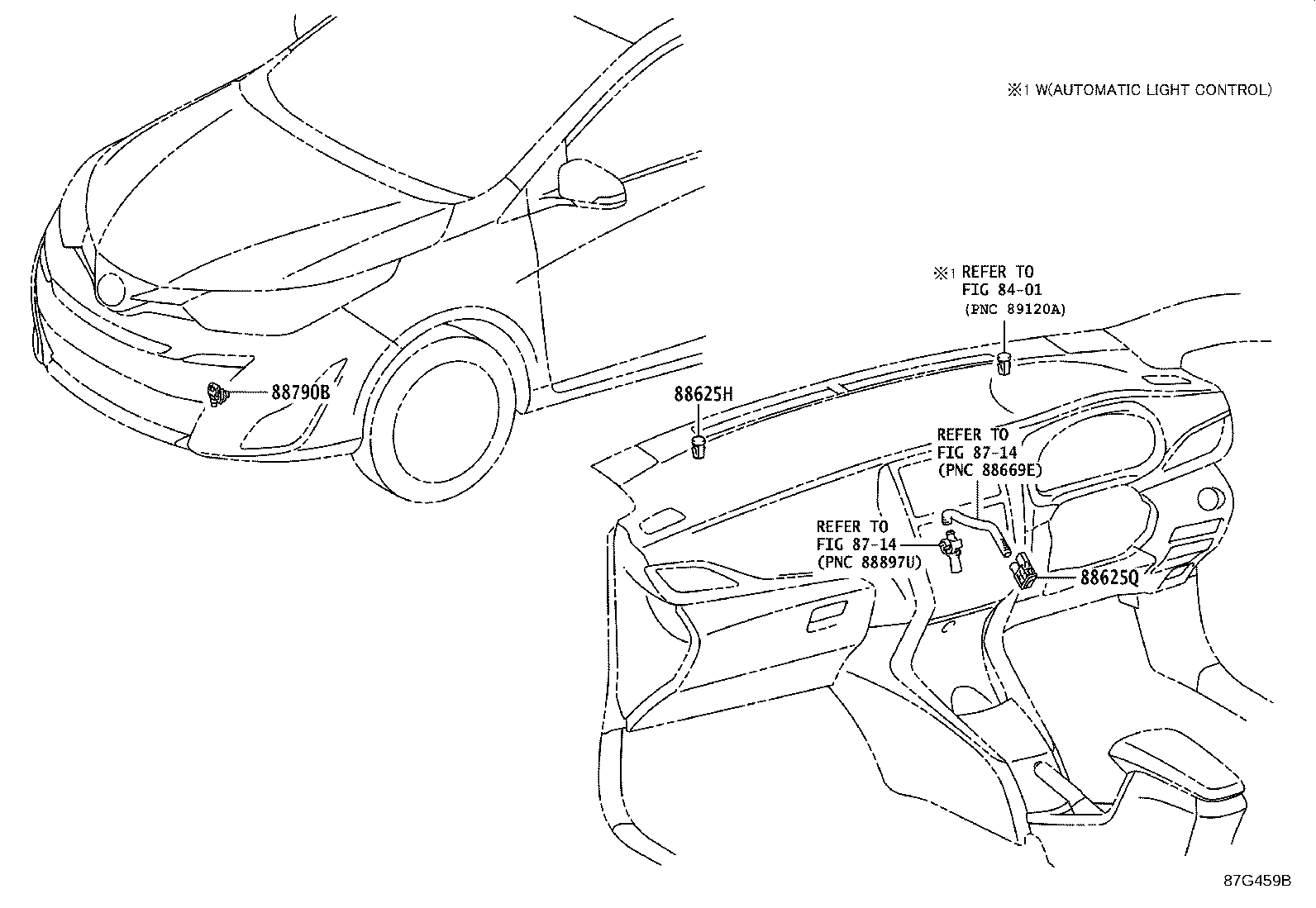

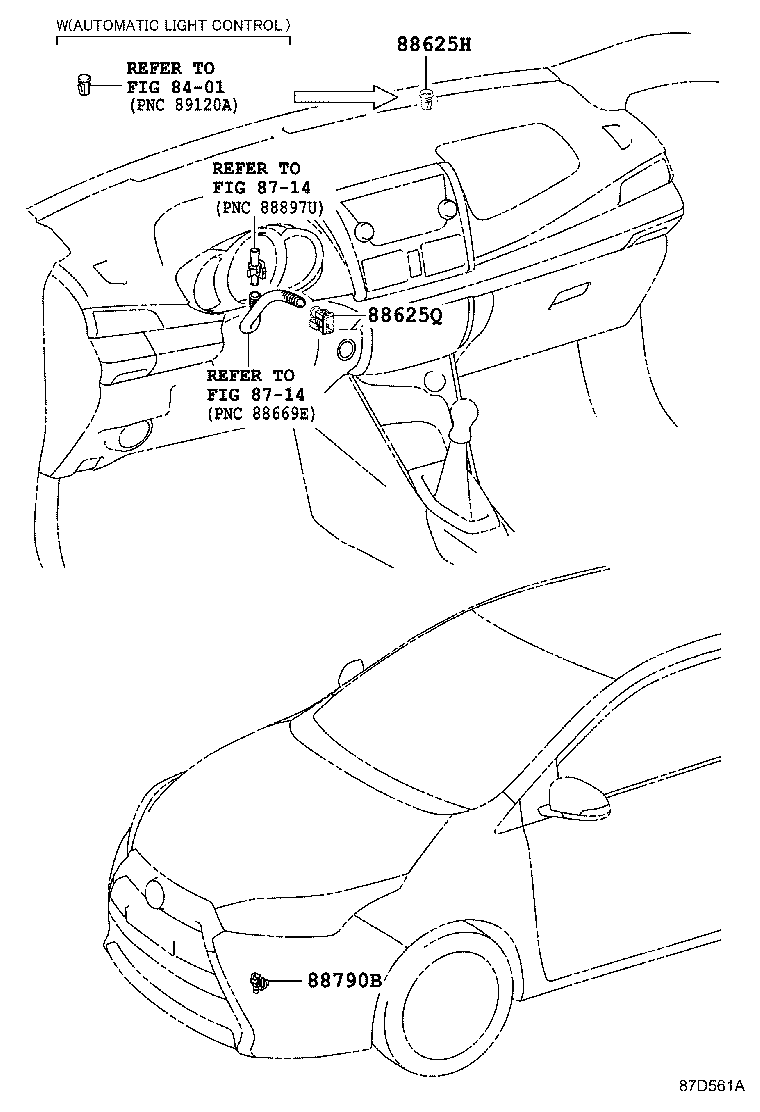

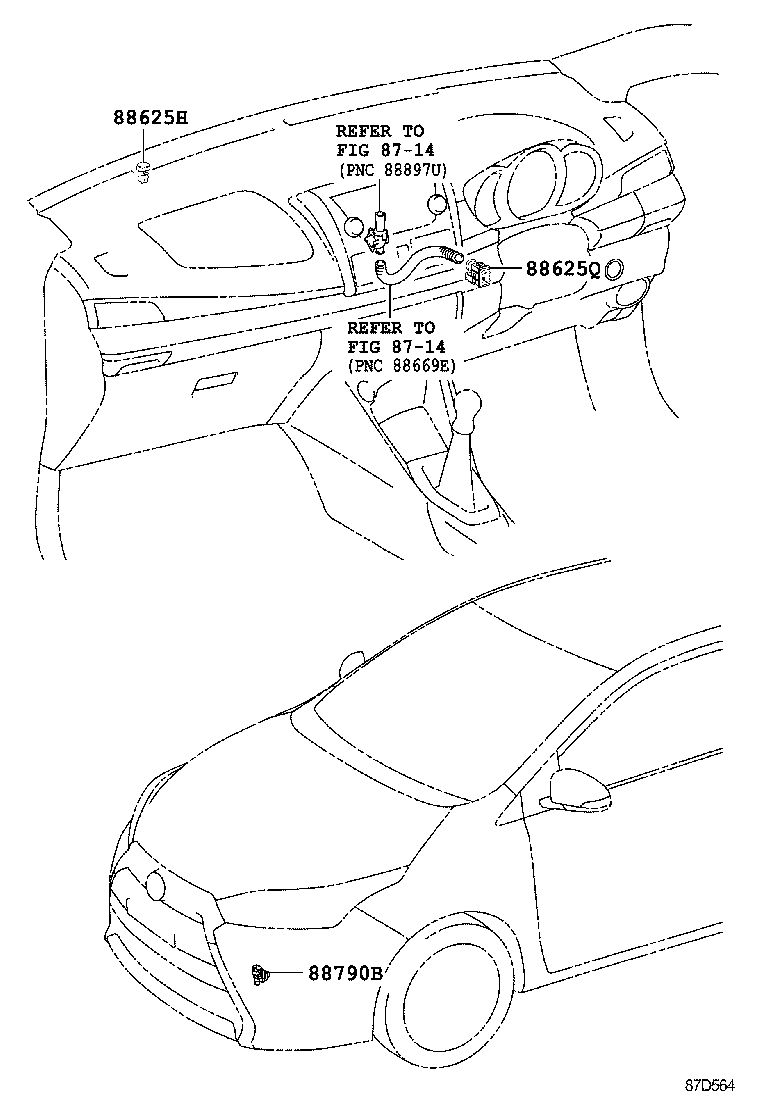

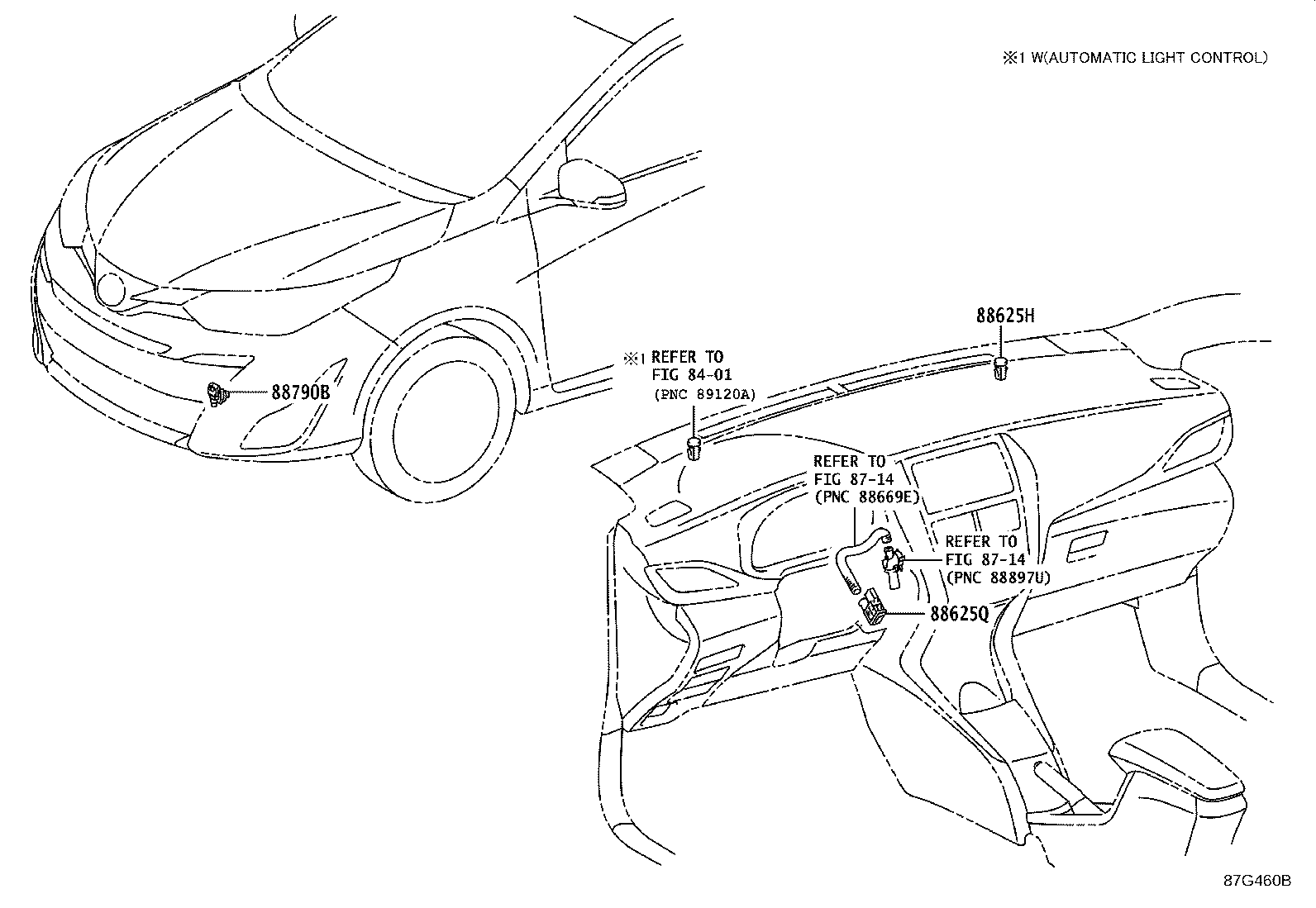

88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
