Heating & Air Conditioning - Water Piping

4 part groups · 5 illustrations

Illustrations

Figure 87D562B

87D562B 2014-03 → —

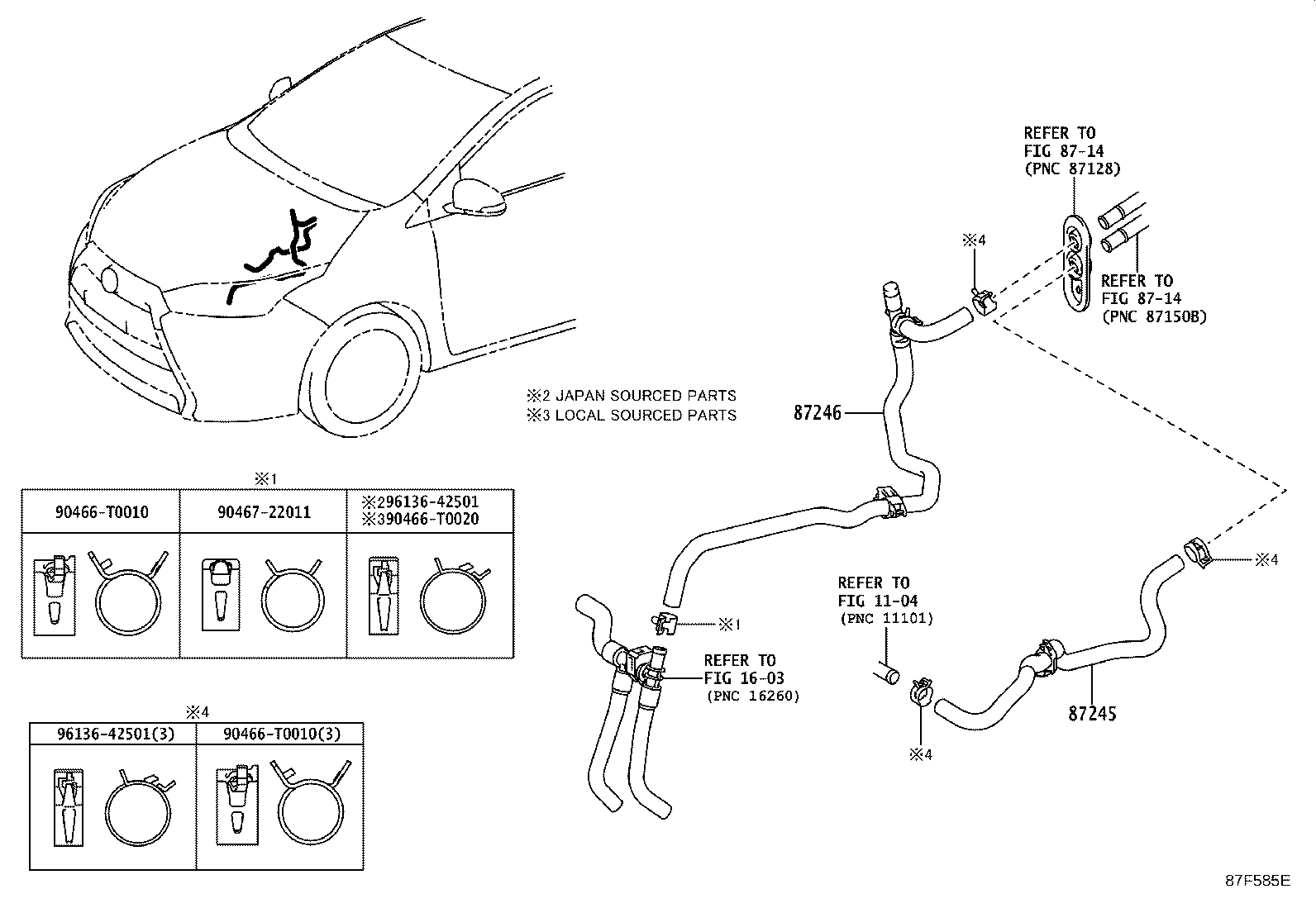

Figure 87F585E

87F585E 2016-05 → —

Figure 87F585E

87F585E 2018-04 → —

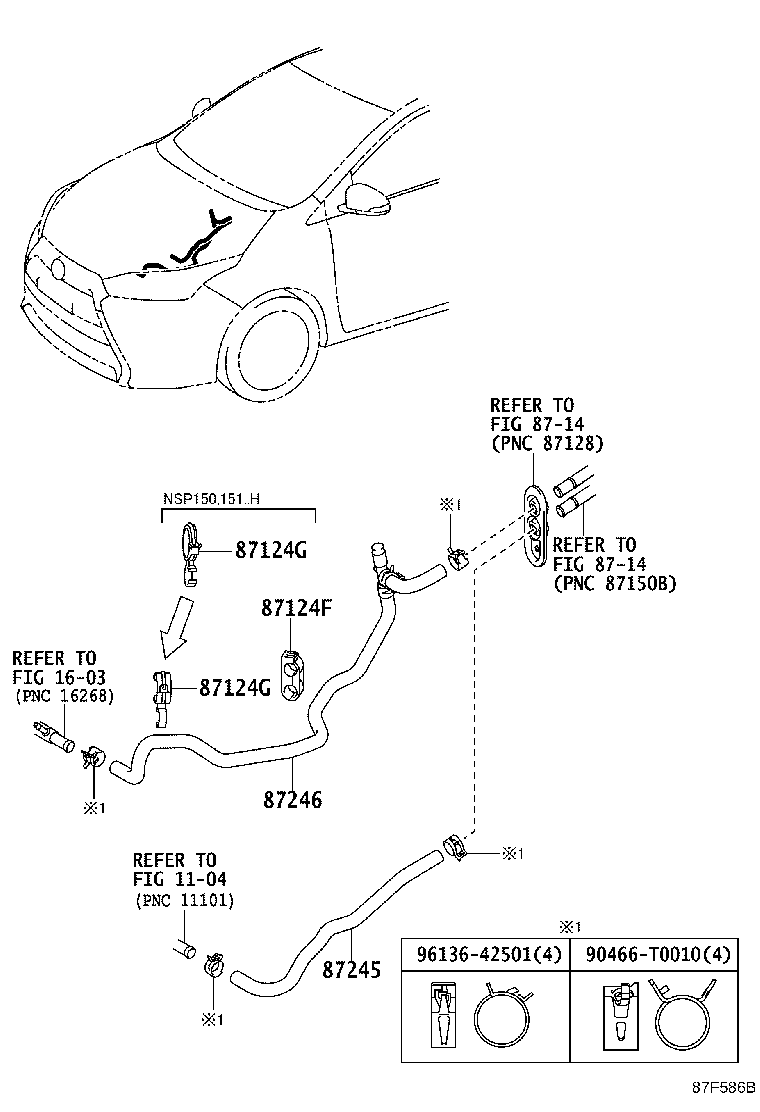

Figure 87F586B

87F586B 2016-07 → —

Figure 87F586B

87F586B 2018-06 → —

Part groups

PNC	Description
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
