Toyota Ractis

2009-10 → 2010-08 · chassis SCP100 · catalogue 114320 · General

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

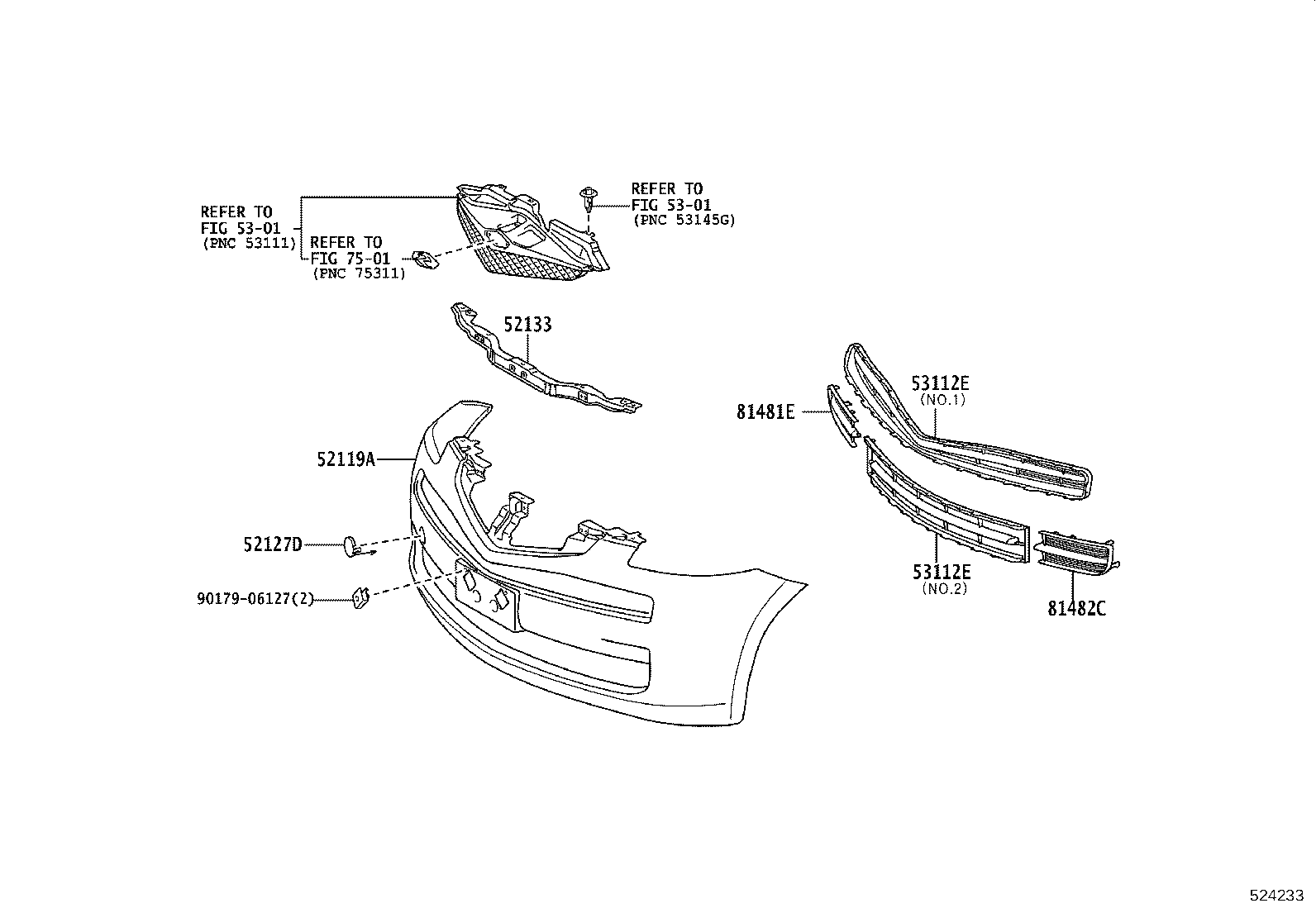

Figure 522190D 522190D 2009-10 → — Figure 524233 524233 2009-10 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52133 Reinforcement, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53165A Bracket, Front Bumper Stone Deflector, NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
