Toyota Ractis

2009-10 → 2010-08 · chassis SCP100 · catalogue 114320 · General

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

14 part groups · 2 illustrations

Illustrations

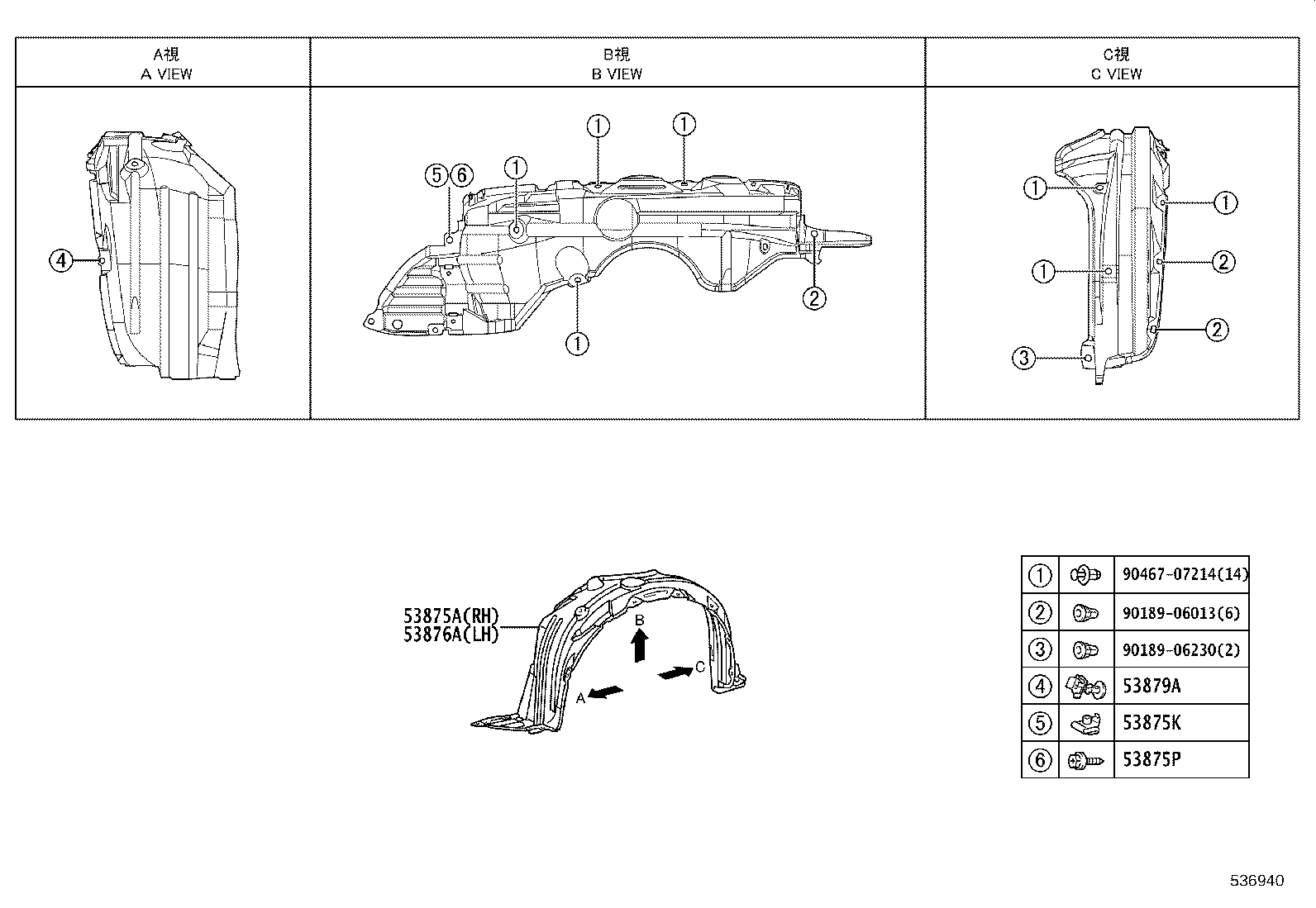

Figure 536939 536939 2009-10 → — Figure 536940 536940 2009-10 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53868C Seal, Front Fender TO Cowl Side, NO.2 RH
53869A Seal, Front Fender TO Cowl Side, NO.2 LH
53875A Liner, Front Fender, RH
53875K Grommet, Screw
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
