Toyota Ractis

2009-10 → 2010-08 · chassis SCP100 · catalogue 114320 · General

Supported model Data version 2011-01

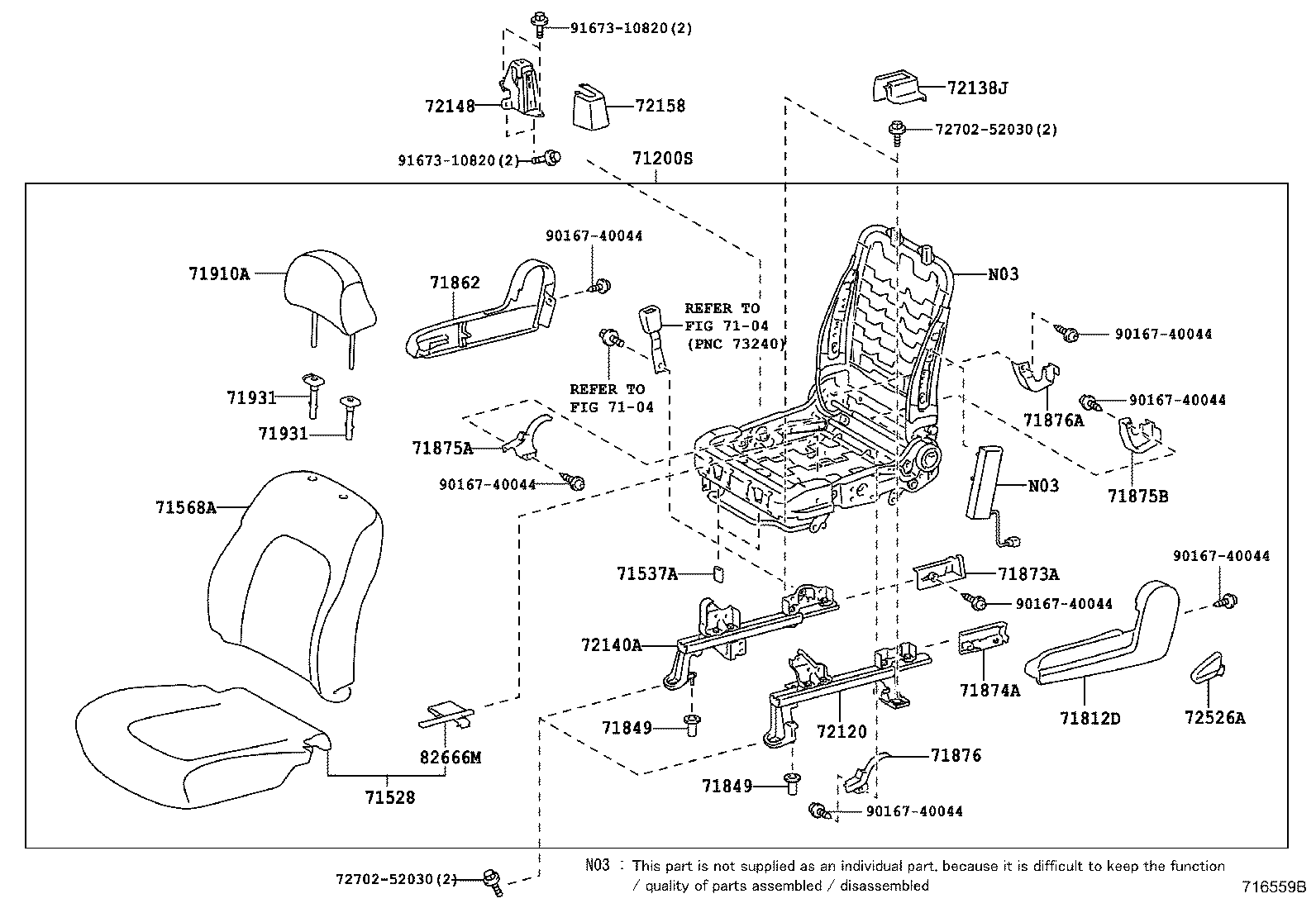

Front Seat & Seat Track

39 part groups · 2 illustrations

PNC	Description
71100S	Seat Assy, Front RH
71200S	Seat Assy, Front LH
71518B	Pad, Front Seat Cushion W/Cover, RH
71528	Pad, Front Seat Cushion W/Cover, LH
71537A	Protector, Front Seat Cushion
71558B	Pad, Front Seatback W/Cover, RH
71568A	Pad, Front Seatback W/Cover, LH
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72130A	Track Assy, Front Seat, Inner RH
72137J	Cover, Front Seat Track, RH Rear Outer
72138J	Cover, Front Seat Track, LH Rear Outer
72140A	Track Assy, Front Seat,Inner LH
72147	Bracket, Front Inner Seat Track, Lower Rear RH
72148	Bracket, Front Inner Seat Track, Lower Rear LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72462	Cover, Vertical Adjuster RH
72477	Spacer, Vertical Adjuster
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
82666M	Holder, Connector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
