Toyota Ractis

2009-10 → 2010-08 · chassis SCP100 · catalogue 114320 · General

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 4 illustrations

Illustrations

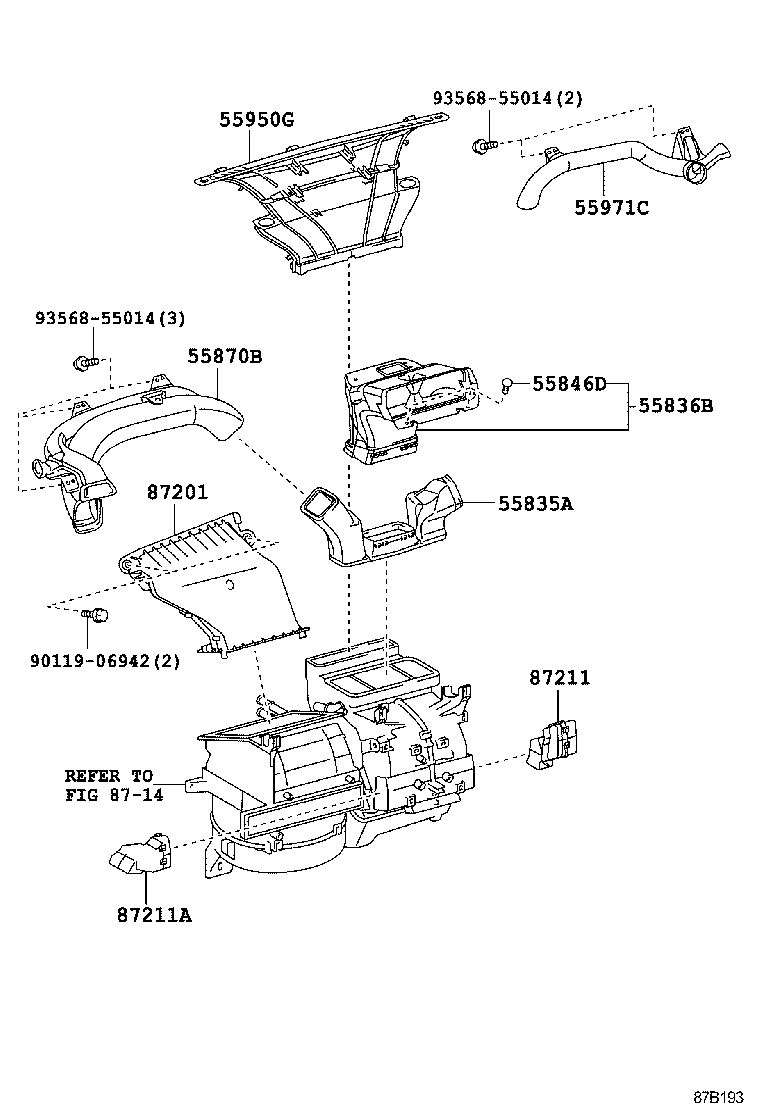

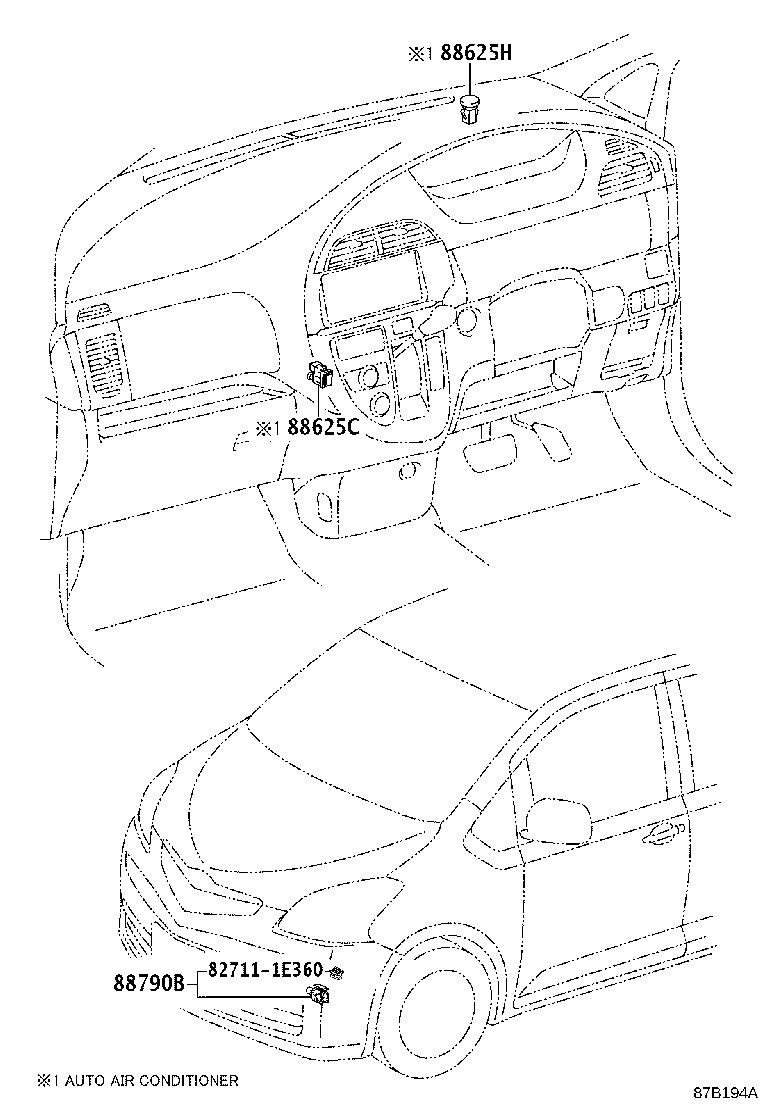

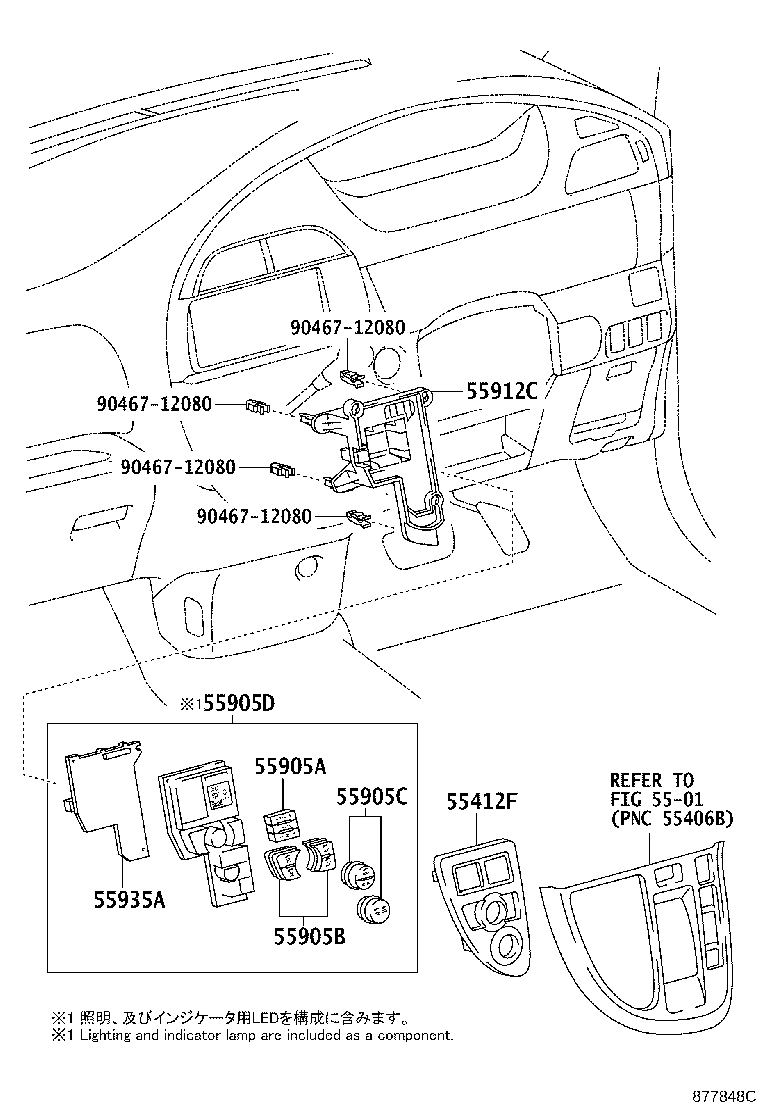

Figure 87F490A 87F490A 2009-10 → — Figure 877848C 877848C 2009-10 → — Figure 87B193 87B193 2009-10 → — Figure 87B194A 87B194A 2009-10 → —

Part groups

PNCDescription
55412F Panel, Instrument Cluster Finish, Center
55835A Duct, Heater TO Register, Center
55836B Duct, Heater TO Resister, Center, NO.2
55846D Clip, Heater TO Register Duct
55870B Duct Assy, Heater TO Register
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55911A Base, Heater Control
55912C Housing, Heater Control
55935A Circuit, Center Cluster Module
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
78185C Clamp, Accelerator Control Cable, NO.2
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
