Toyota Ractis

2010-11 → 2016-07 · chassis NCP120 · catalogue 114330 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

4 part groups · 2 illustrations

Illustrations

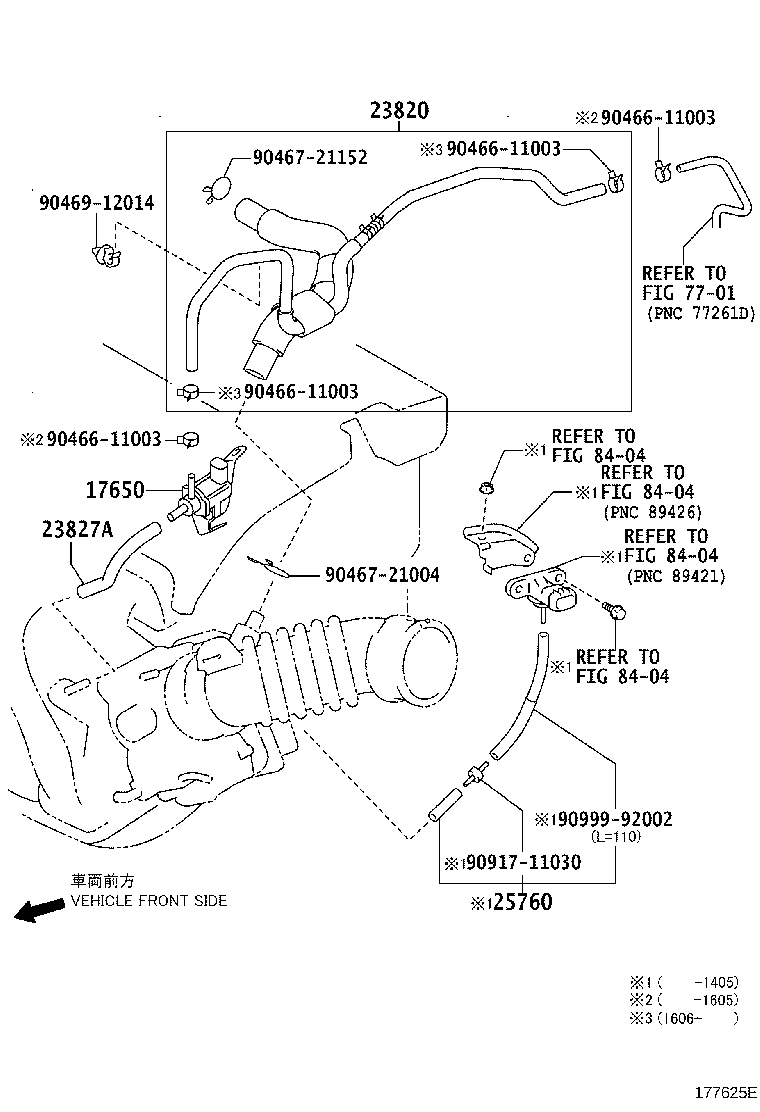

Figure 179391A 179391A 2010-11 → 2012-08 Figure 177625E 177625E 2012-08 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23820 Hose Assy, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
25760 Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
