Toyota Ractis

2010-11 → 2016-07 · chassis NCP120 · catalogue 114330 · General

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

11 part groups · 3 illustrations

Illustrations

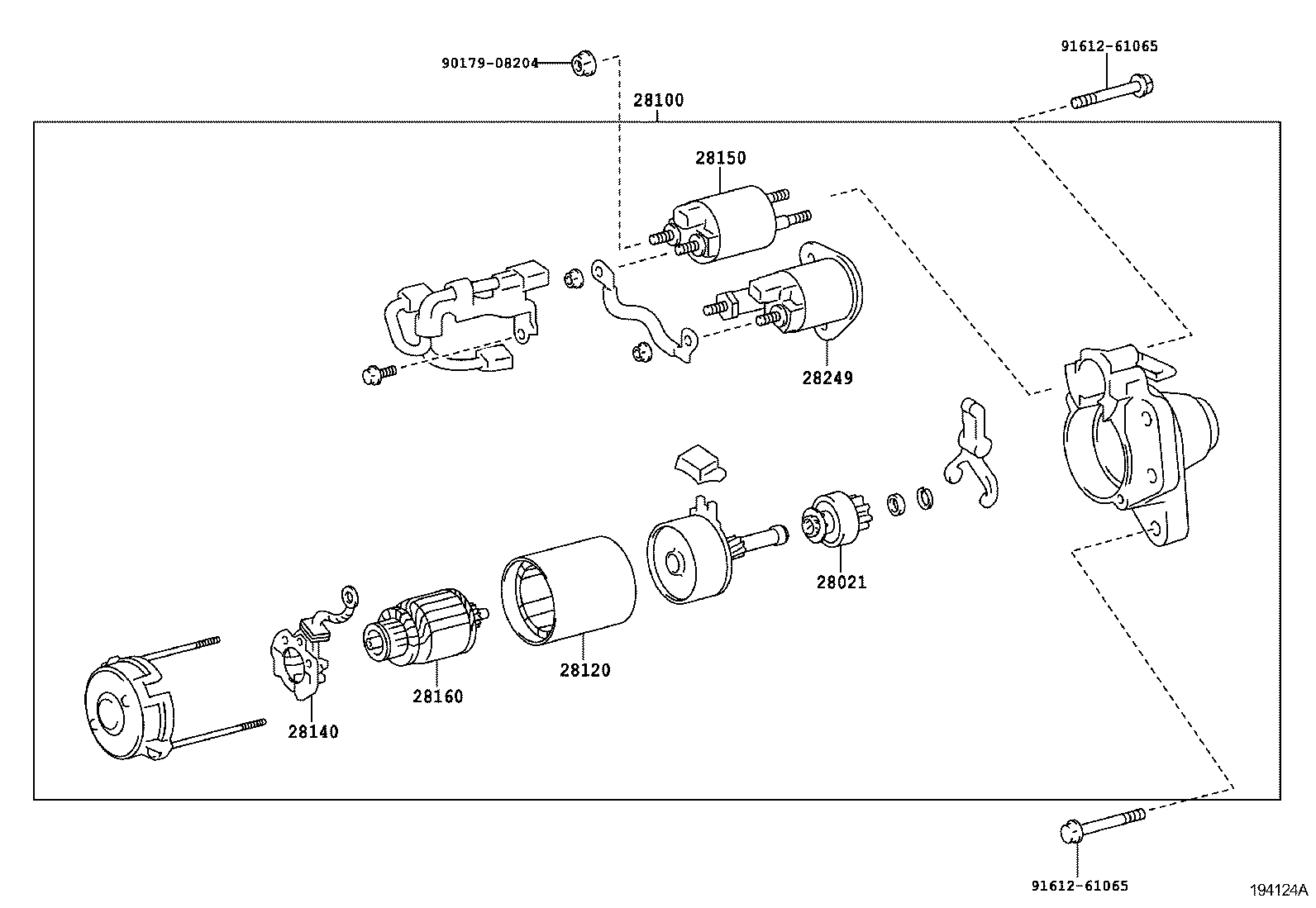

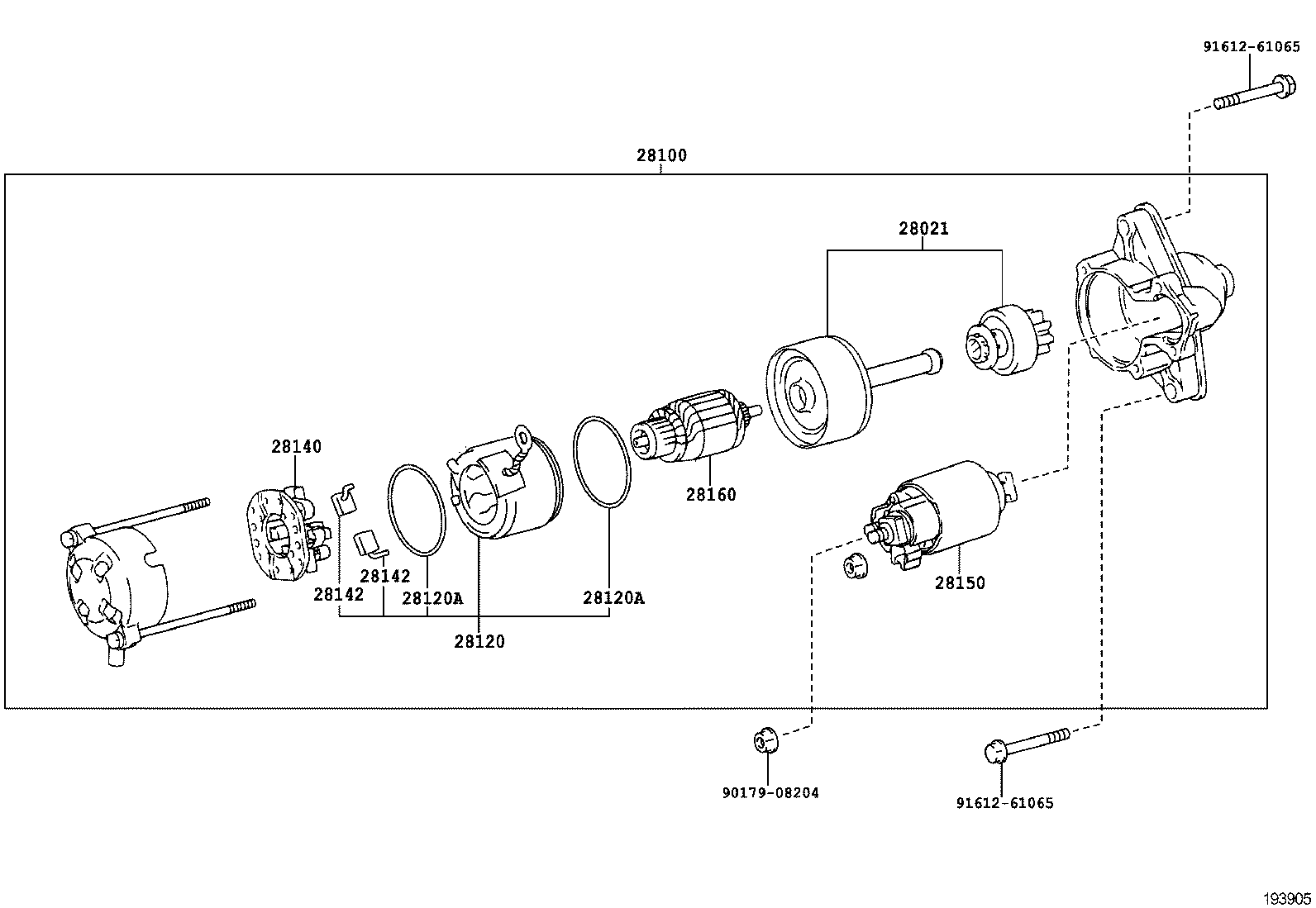

Figure 193510A 193510A 2010-11 → 2012-08 Figure 193905 193905 2012-08 → 2013-05 Figure 194124A 194124A 2013-05 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28226 Starter Kit, Battery Terminal
28226B Starter Kit, Repair Service
28249 Relay, Starter Inrush Current Reduction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
