Toyota Ractis
2010-11 → 2016-07 · chassis NCP120 · catalogue 114330 · General
Supported model
Data version 2017-01

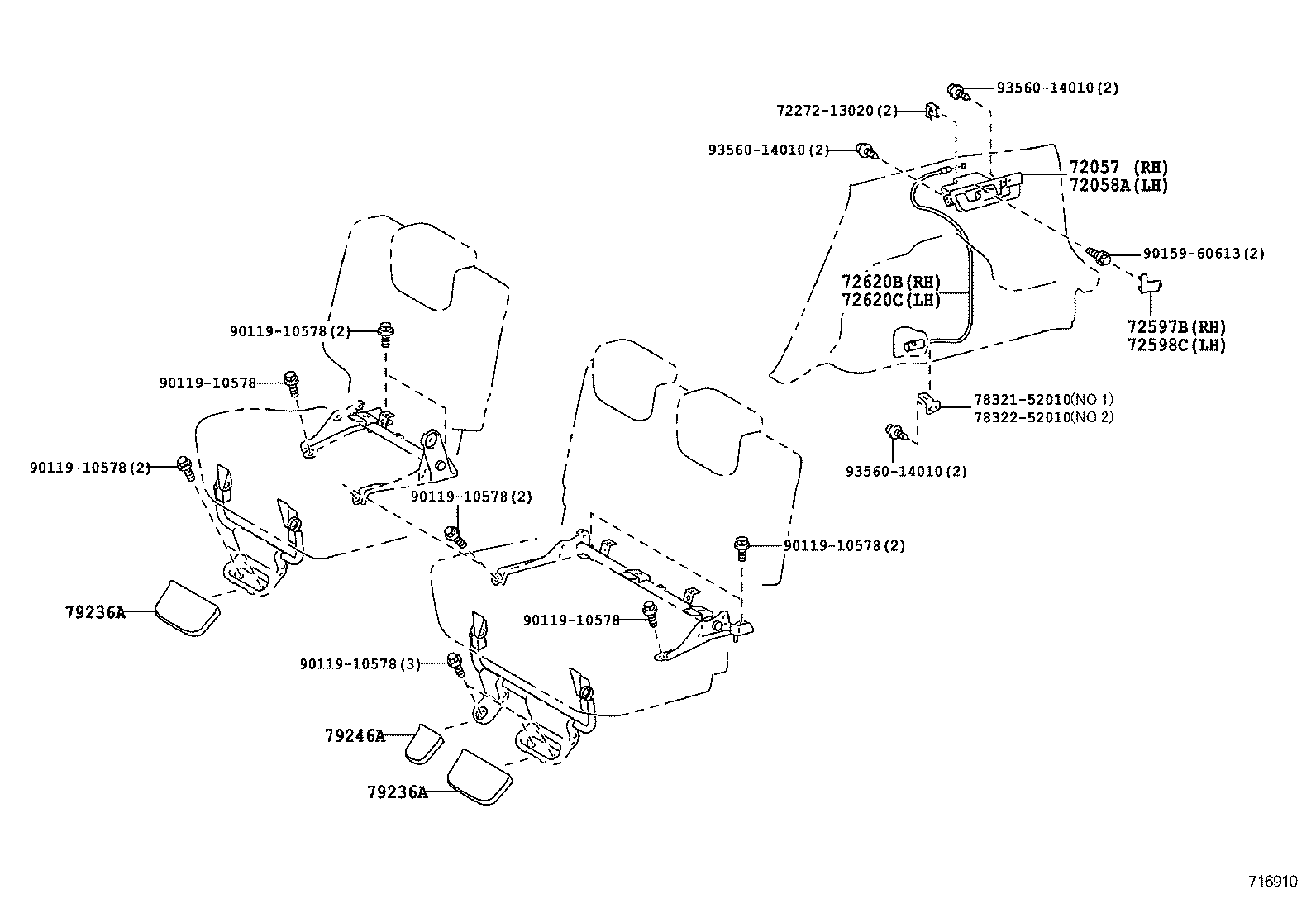

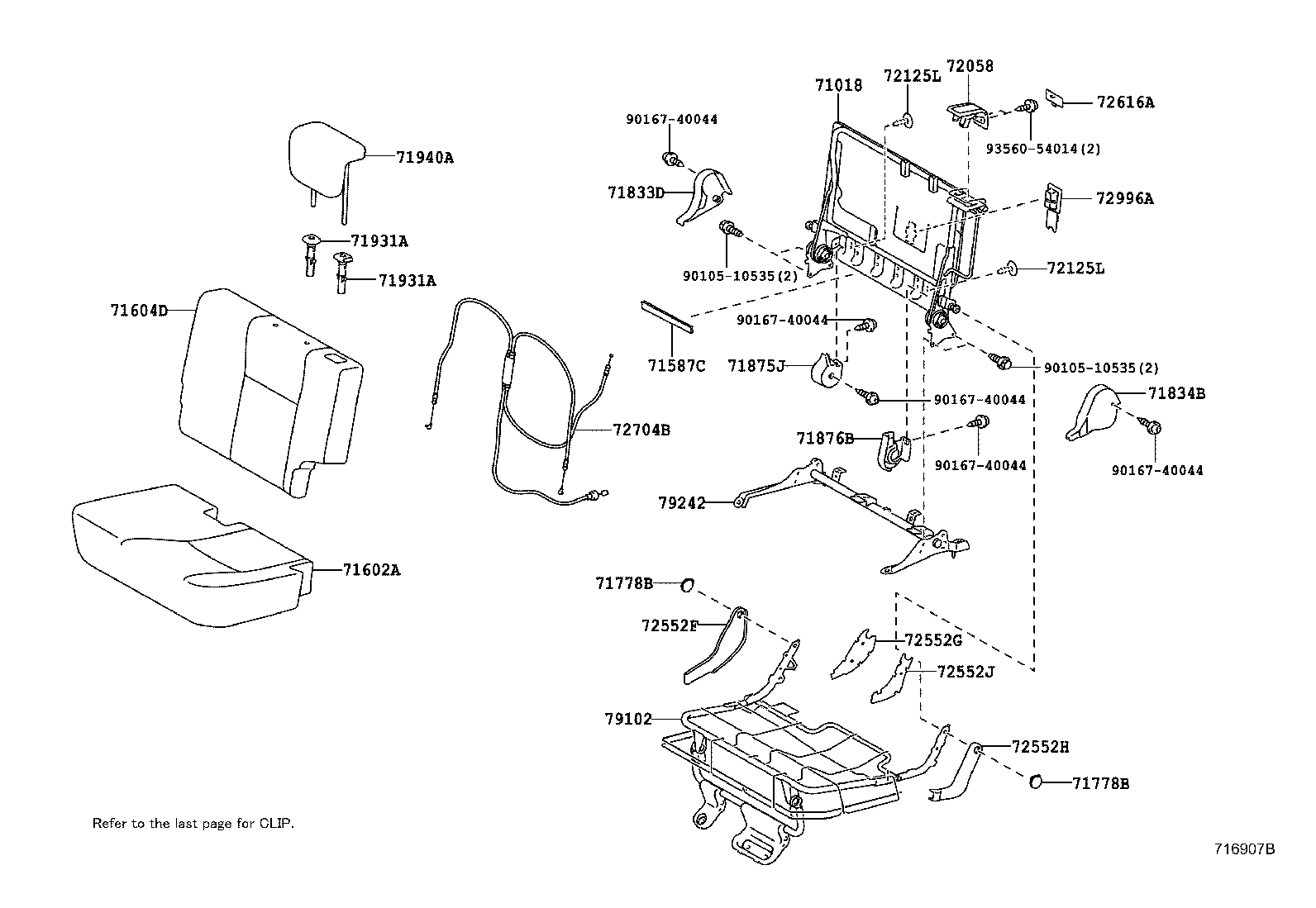

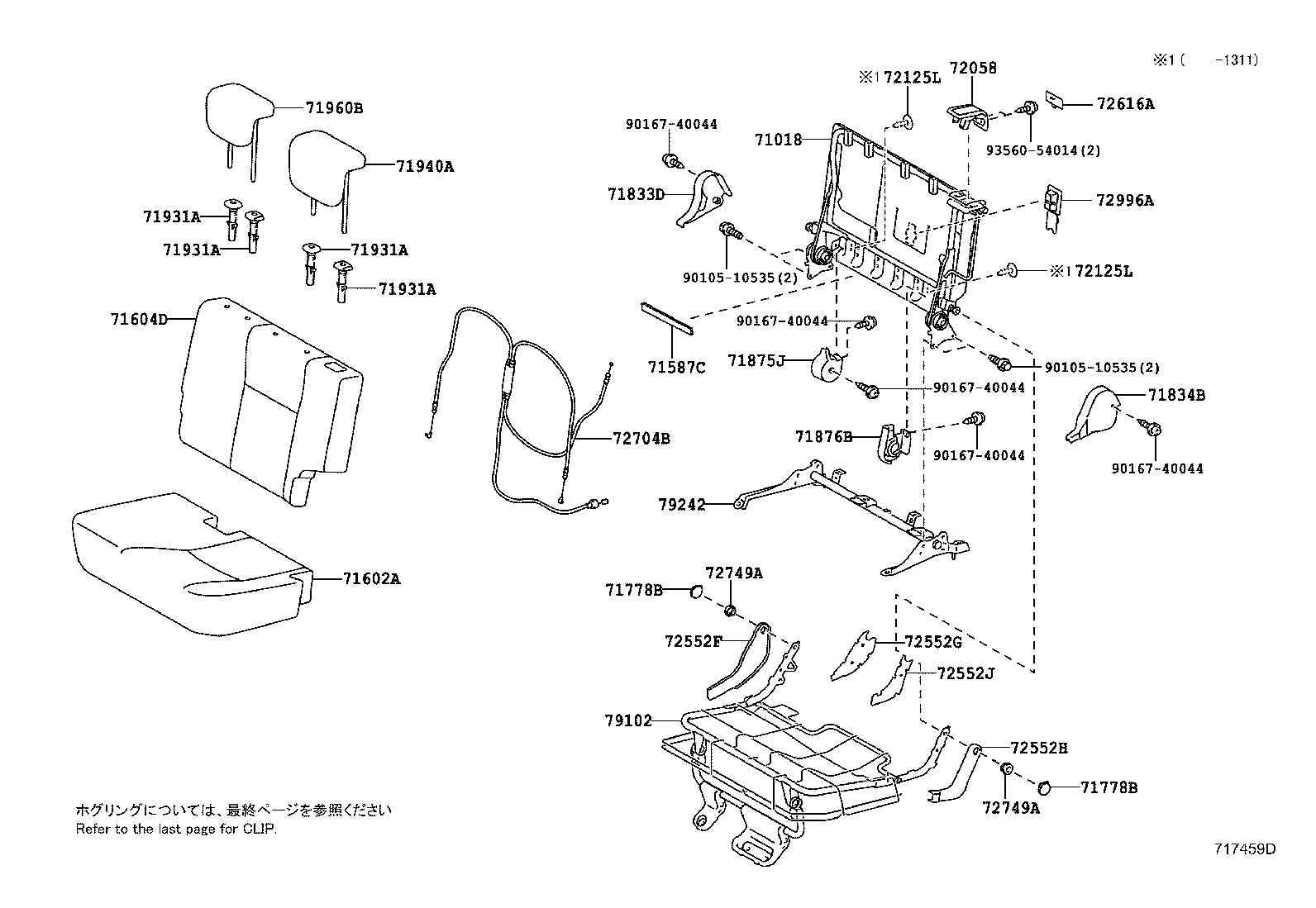

Rear Seat & Seat Track
48 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71587C | Protector, Rear Seatback Edge NO.2 |
| 71601C | Pad Sub-assy, Rear Seat Cushion W/Cover, RH |
| 71602A | Pad Sub-assy, Rear Seat Cushion W/Cover, LH |
| 71603D | Pad Sub-assy, Rear Seatback W/Cover, RH |
| 71604D | Pad Sub-assy, Rear Seatback W/Cover, LH |
| 71778B | Cover, Rear Seat Side Hinge Male, RH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833D | Cover Rear Seat Reclining, RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875J | Cover, Reclining Adjuster Inside, RH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72057 | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058 | Lever Sub-assy, Rear Seat Lock Control |
| 72058A | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72125L | Retainer, Rear Seatback Pad |
| 72551F | Cover, Reclining Link, RH NO.1 |
| 72551G | Cover, Reclining Link, RH NO.2 |
| 72551H | Cover, Reclining Link, RH NO.3 |
| 72551J | Cover, Reclining Link, RH NO.4 |
| 72552F | Cover, Reclining Link, LH NO.1 |
| 72552G | Cover, Reclining Link, LH NO.2 |
| 72552H | Cover, Reclining Link, LH NO.3 |
| 72552J | Cover, Reclining Link, LH NO.4 |
| 72597B | Bezel, Reclining Remote Control Lever, NO.1 |
| 72598C | Bezel, Reclining Remote Control, LH |
| 72615A | Cover, Rear Seatback Lock Striker, RH |
| 72616A | Cover, Rear Seatback Lock Striker, LH |
| 72620B | Cable Assy, Rear NO.1 Seat Lock |
| 72620C | Cable Assy, Rear NO.1 Seat Lock |
| 72704A | Cable, Rear Seat Reclining Control |
| 72704B | Cable, Rear Seat Reclining Control, NO.2 |
| 72749A | Spacer, Rear Seat Reclining |
| 72996A | Cover, Rear Seatback |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78950 | Band Assy, Fold Seat Stopper, NO.1 |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79232 | Leg, Rear NO.2 Seat, RH |
| 79236A | Cover, NO.2 Seat Leg |
| 79242 | Leg, Rear NO.2 Seat, LH |
| 79246A | Cover, NO.2 Seat Leg, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
