Toyota Ractis
2010-11 → 2016-07 · chassis NCP120 · catalogue 114330 · General
Supported model
Data version 2017-01

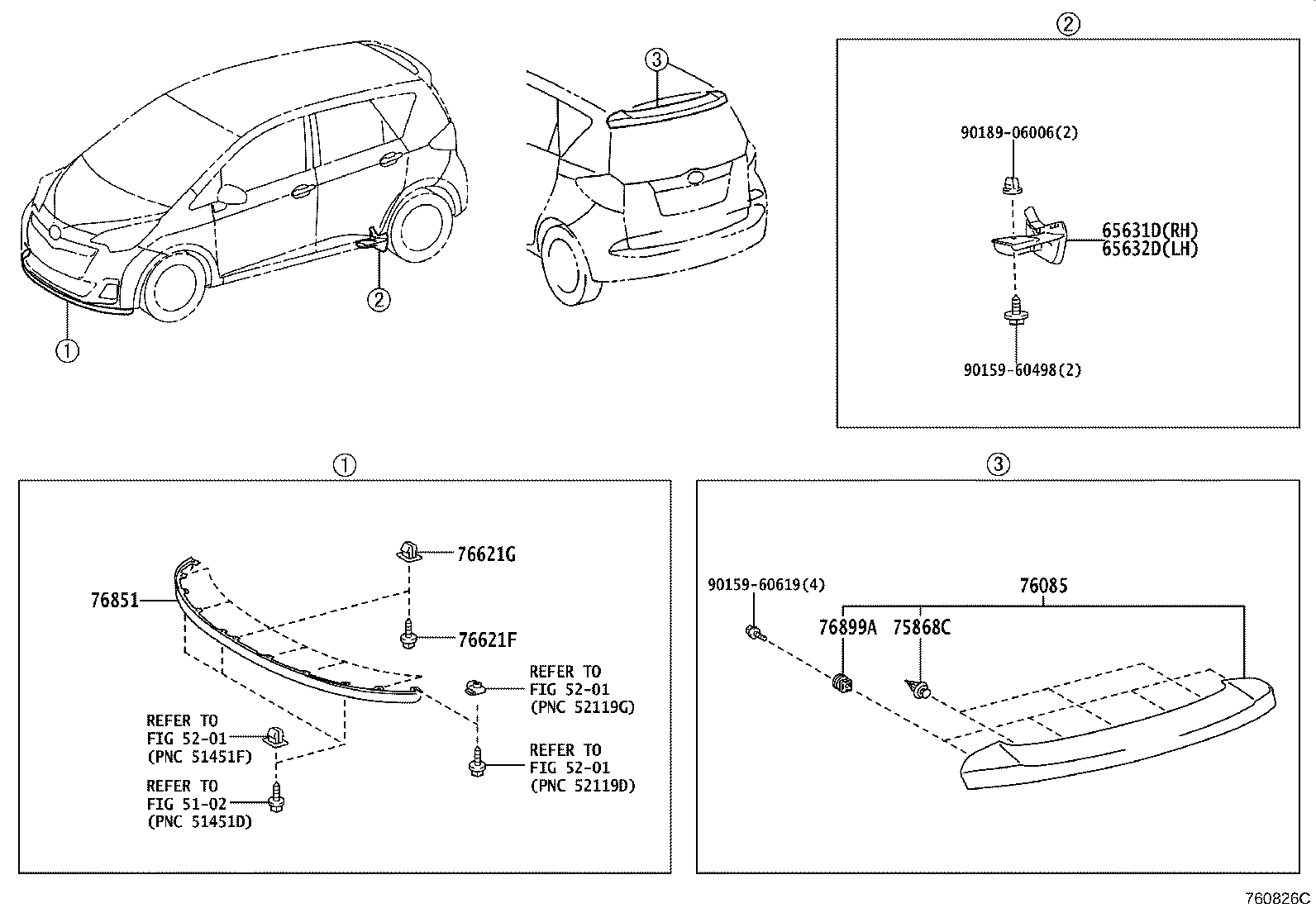

Mudguard & Spoiler
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75868C | Clip, Rear Spoiler, NO.2 |
| 76085 | Spoiler Sub-assy, Rear |
| 76621F | Screw, NO.1 |
| 76621G | Grommet, NO.1 |
| 76851 | Cover, Front Spoiler |
| 76899A | Nut, Rear Spoiler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
