Toyota Toyota XA
2003-08 → 2006-12 · chassis NCP61 · catalogue 117310 · General
Supported model
Data version 2007-07

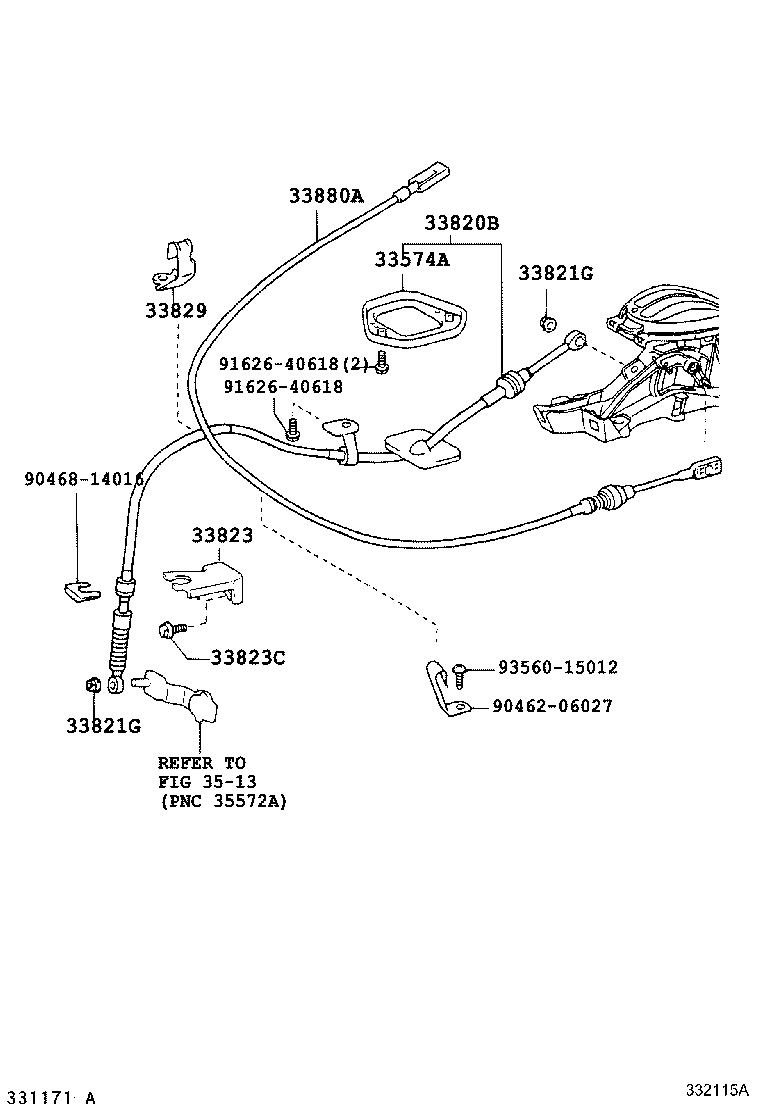

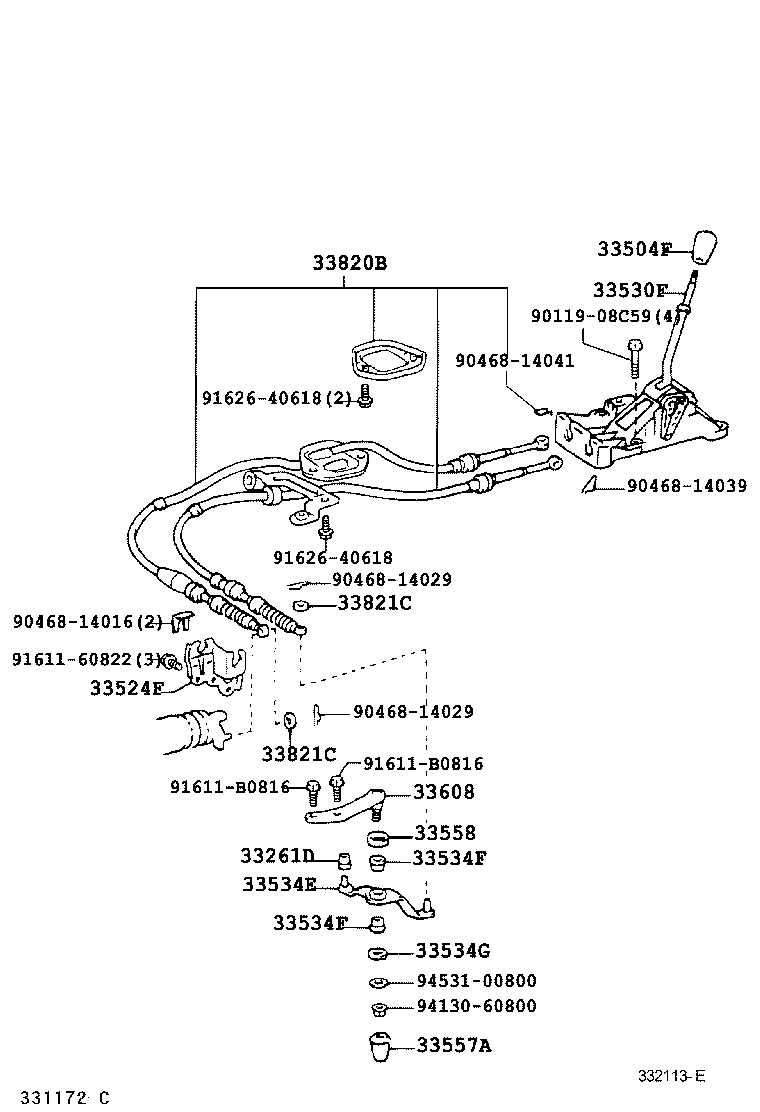

Shift Lever & Retainer
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33261D | Bush (FOR SHIFT & SELECT LEVER) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33574A | Retainer, Shift Cable Grommet, NO.1 |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33820B | Cable Assy, Transmission Control |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33829 | Support, Transmission Control Cable |
| 33877 | Label, Shift Lock Information, NO.1 |
| 33880A | Cable Assy, Parking Lock (FOR FLOOR SHIFT) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
