Toyota Toyota XA
2003-08 → 2006-12 · chassis NCP61 · catalogue 117310 · General
Supported model
Data version 2007-07

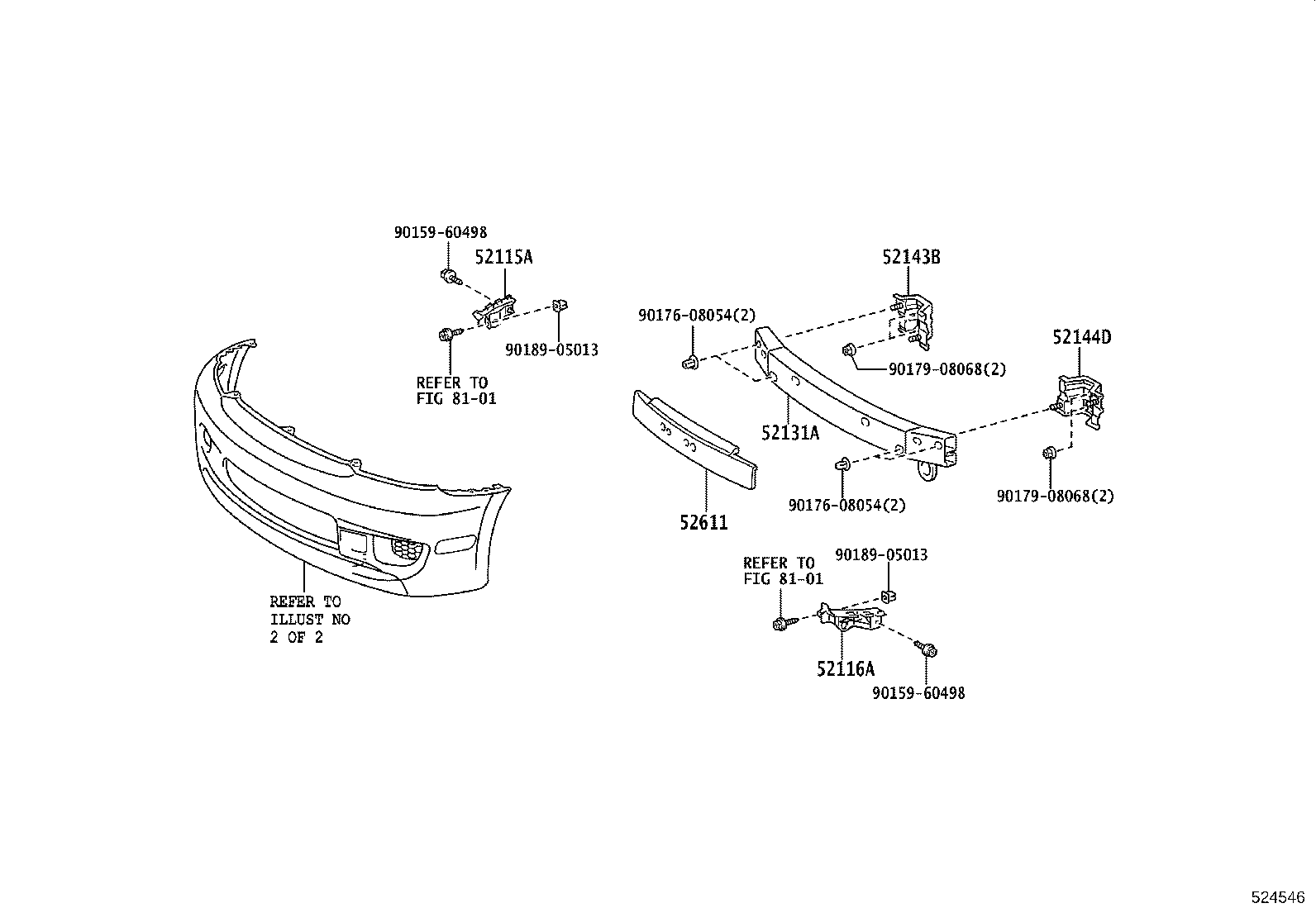

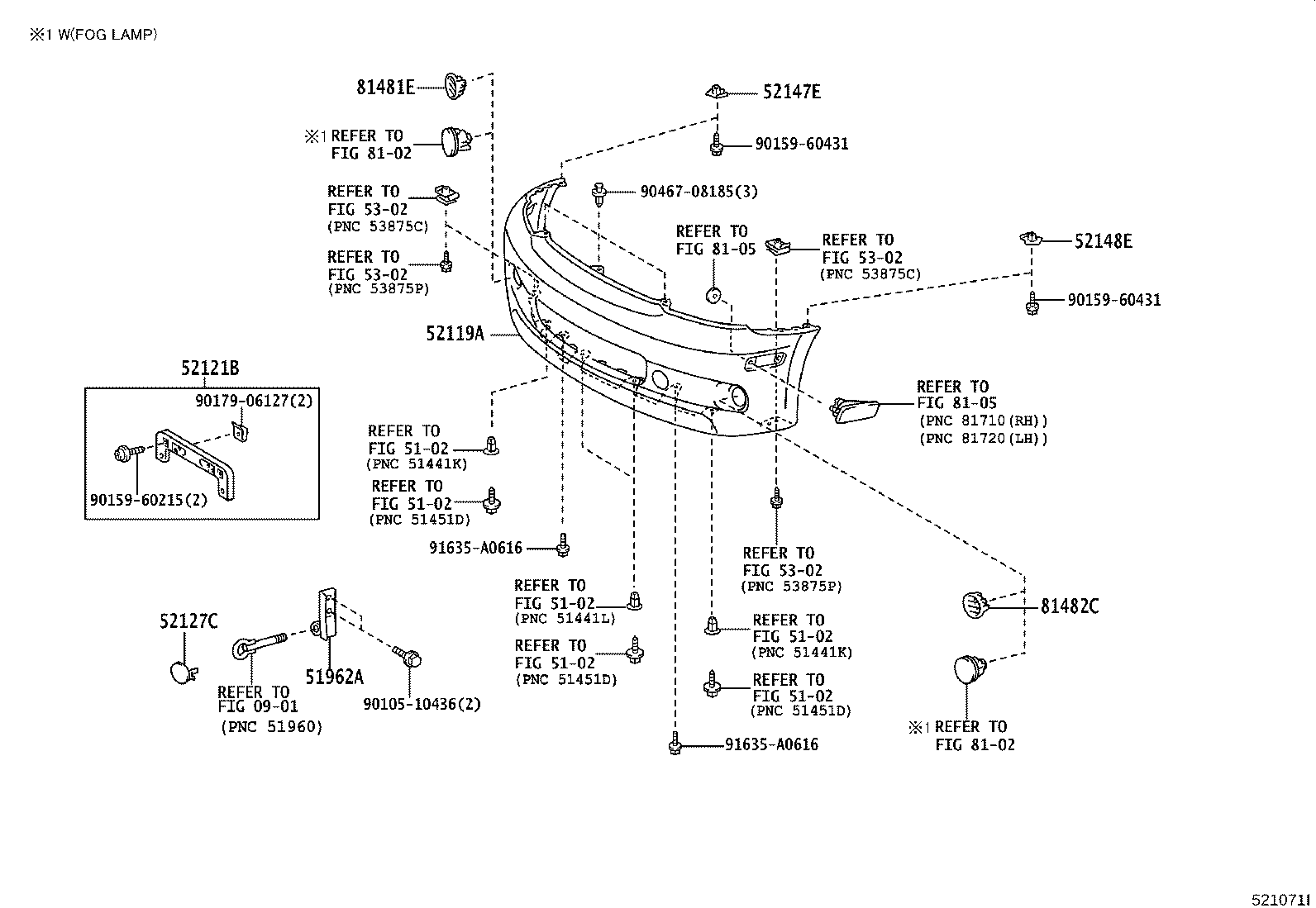

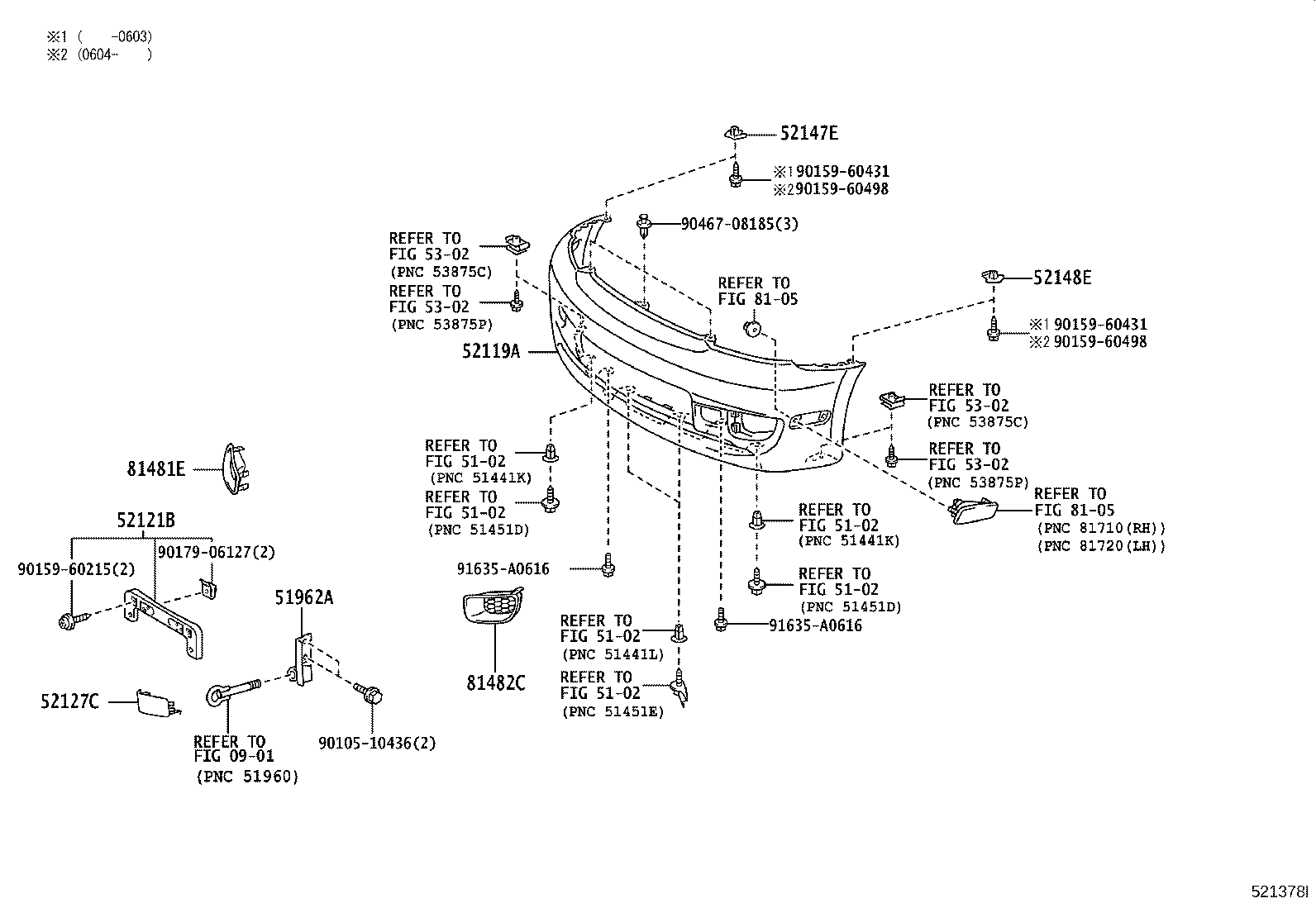

Front Bumper & Bumper Stay
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51962A | Hook, Front LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52121B | Bracket, Front Licence Plate Mounting |
| 52127C | Cover, Front Bumper Hole |
| 52131A | Reinforcement, Front Bumper |
| 52143B | Bracket, Front Bumper Side |
| 52144D | Bracket, Front Bumper Side, LH |
| 52147E | Bracket, Front Bumper Mounting, RH |
| 52148E | Bracket, Front Bumper Mounting, LH |
| 52611 | Absorber, Front Bumper Energy |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
