Toyota Toyota XA

2003-08 → 2006-12 · chassis NCP61 · catalogue 117310 · General

Supported model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

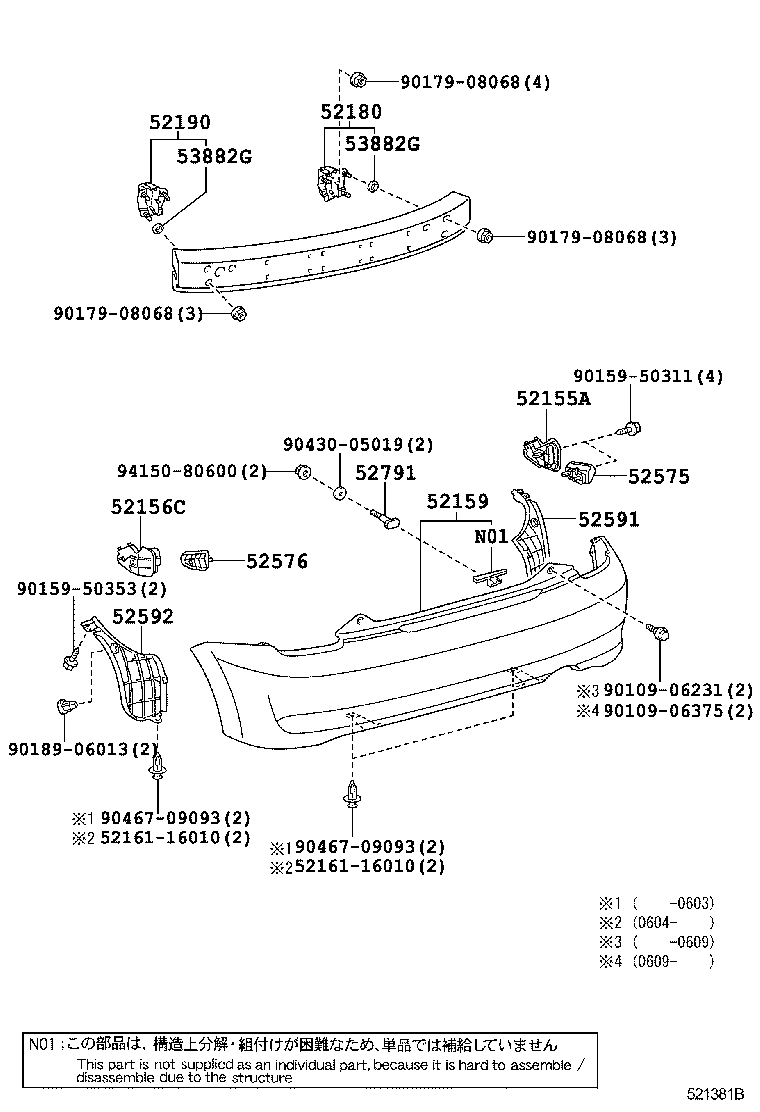

Figure 521005C 521005C 2003-08 → 2005-07 Figure 521381B 521381B 2005-07 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52163A Plate, Rear Bumper, RH
52180 Bracket Assy, Rear Bumper Side Mounting, RH
52184A Arm, Rear Bumper, Inner LH
52190 Bracket Assy, Rear Bumper Side Mounting, LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
53882G Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
