Toyota Toyota XA

2003-08 → 2006-12 · chassis NCP61 · catalogue 117310 · General

Supported model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

19 part groups · 2 illustrations

Illustrations

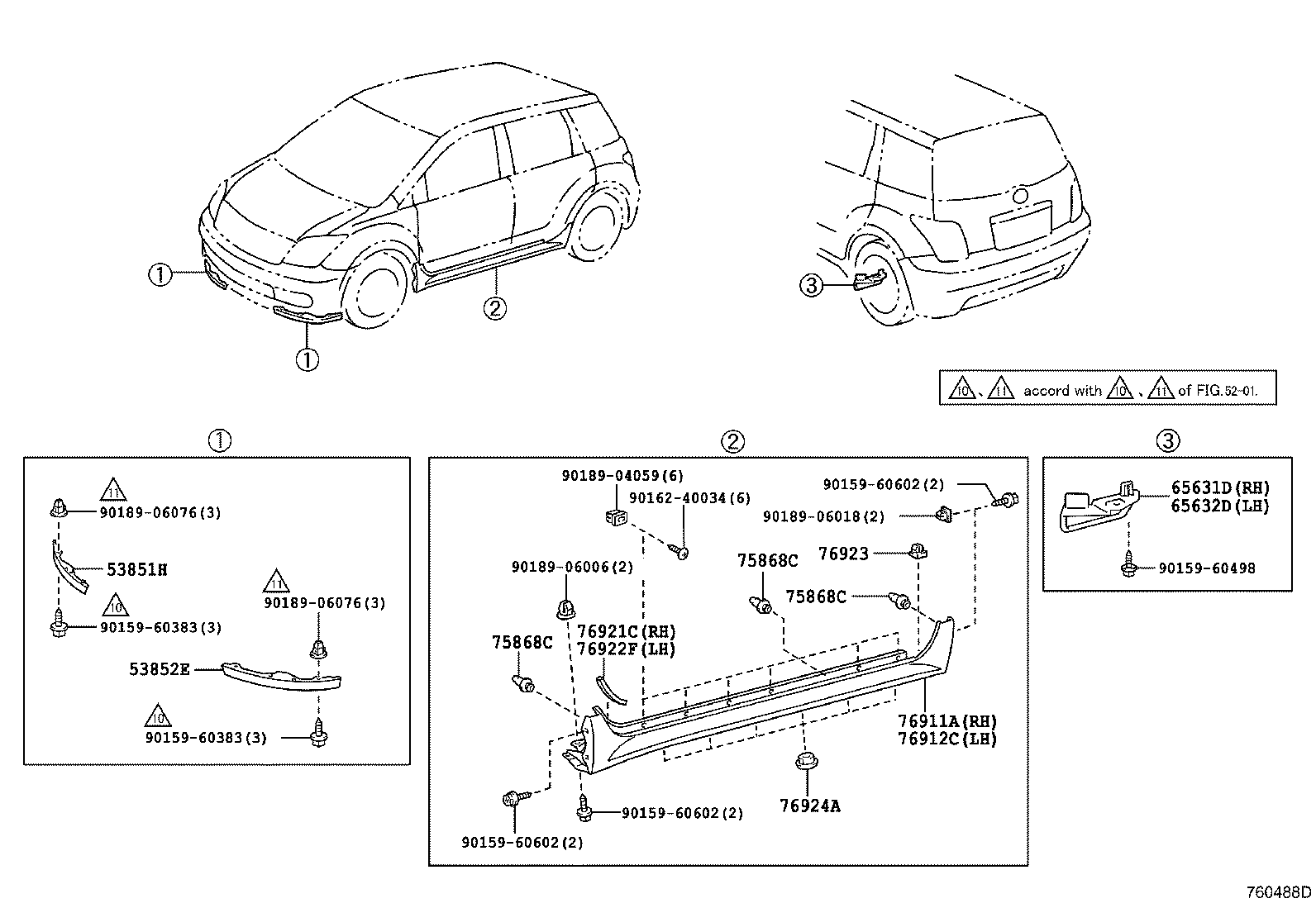

Figure 760317E 760317E 2003-08 → 2005-07 Figure 760488D 760488D 2005-07 → —

Part groups

PNCDescription
53851H Pad, Front Spoiler, RH
53852E Pad, Front Spoiler, LH
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75867B Clip, Rocker Panel Moulding
75868C Clip, Rear Spoiler, NO.2
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76911A Mudguard, Fender Panel, RH
76911B Mudguard, Side, RH
76912C Mudguard, Fender Panel, LH
76912D Mudguard, Side, LH
76921C Protector, Side Mudguard, RH
76922F Protector, Side Mudguard, LH
76923 Retainer, Side Mudguard
76924 Retainer, Side Mudguard, NO.2
76924A Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
