Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

18 part groups · 2 illustrations

Illustrations

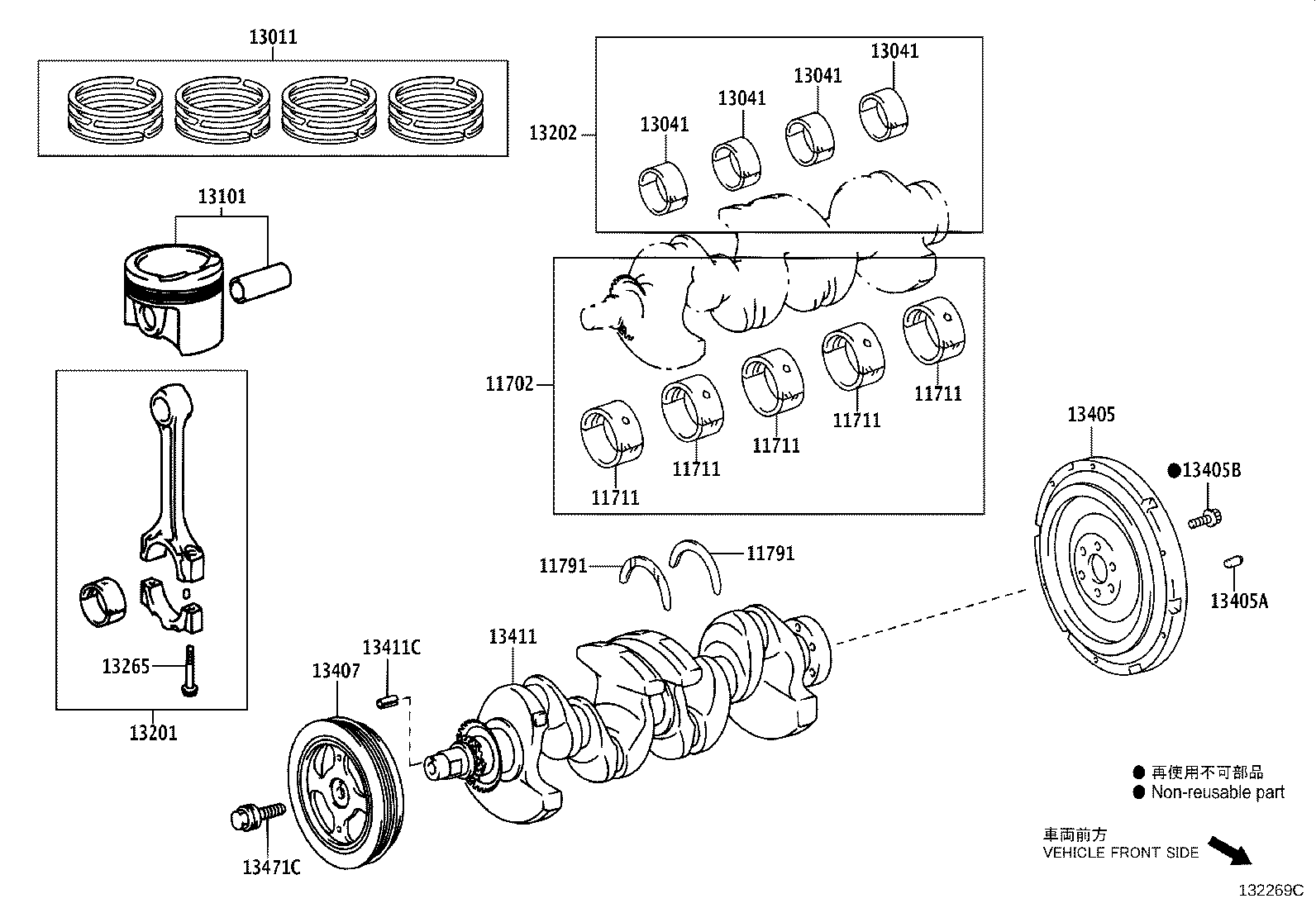

Figure 132268C 132268C 2015-06 → — Figure 132269C 132269C 2015-07 → —

Part groups

PNCDescription
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13201 Rod Sub-assy, Connecting
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13407 Damper Sub-assy, Crankshaft
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13471 Pulley, Crankshaft
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521 Gear OR Sprocket, Crankshaft Timing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
