Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

14 part groups · 2 illustrations

Illustrations

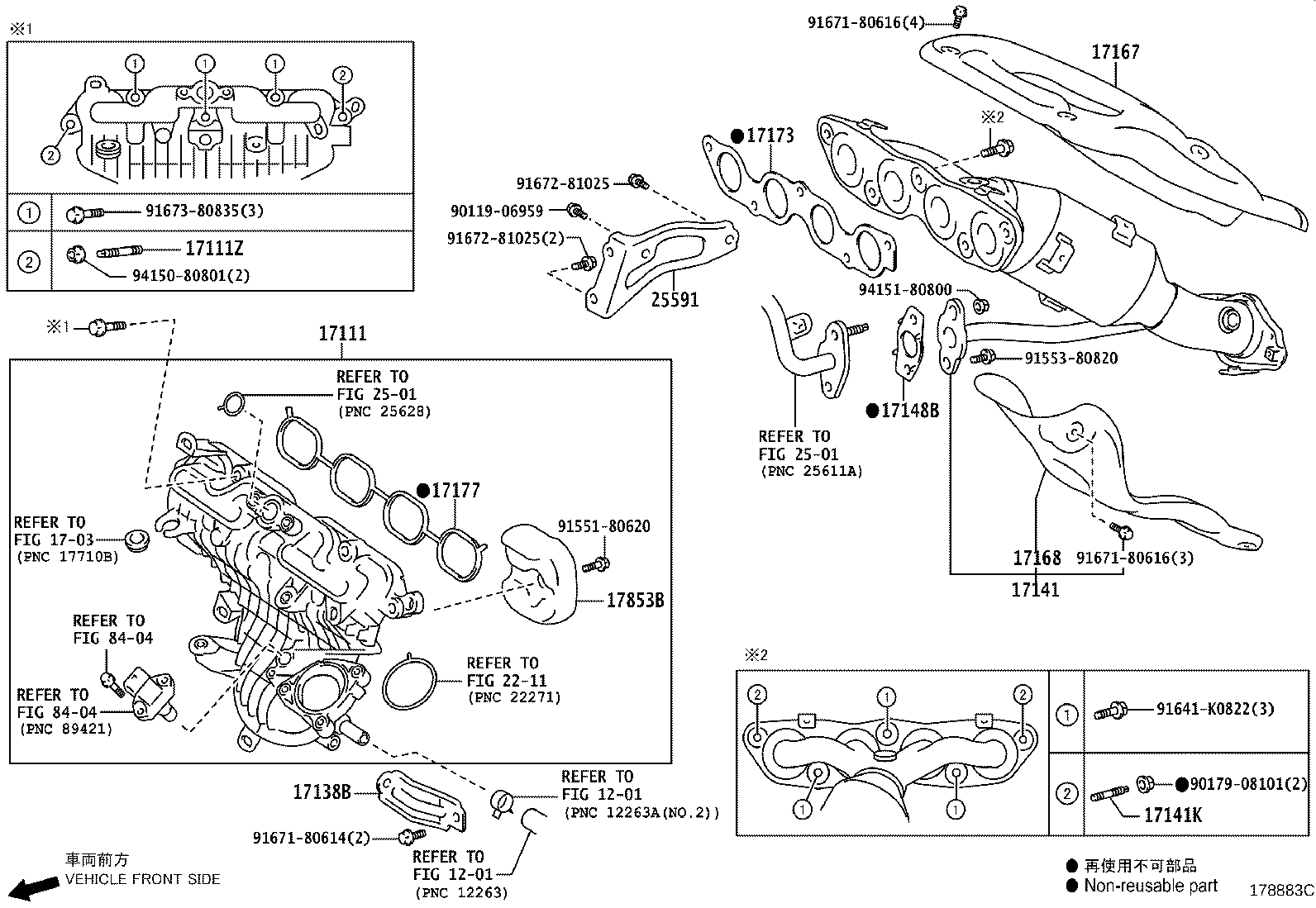

Figure 178882C 178882C 2015-06 → — Figure 178883C 178883C 2015-07 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17148B Gasket, Egr Inlet
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17853B Insulator, Intake Manifold
25051 Converter Sub-assy, Exhaust Manifold
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
