Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

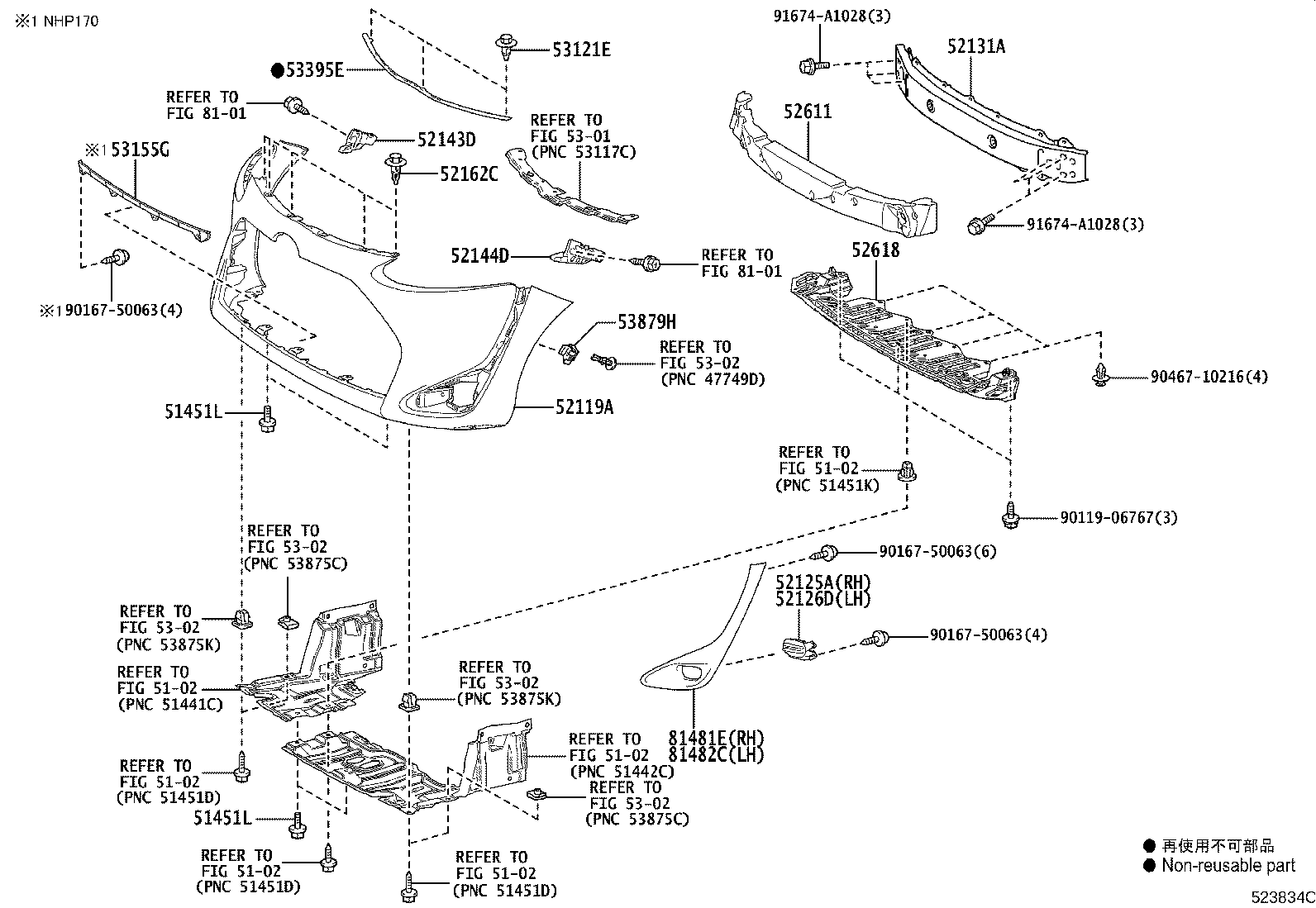

Figure 523305I 523305I 2015-06 → 2018-09 Figure 523834C 523834C 2018-09 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52131A Reinforcement, Front Bumper
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
52162C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53121E Clip(FOR FRONT BUMPER), NO.1
53155G Seal, Radiator Grille
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
