Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 2 illustrations

Illustrations

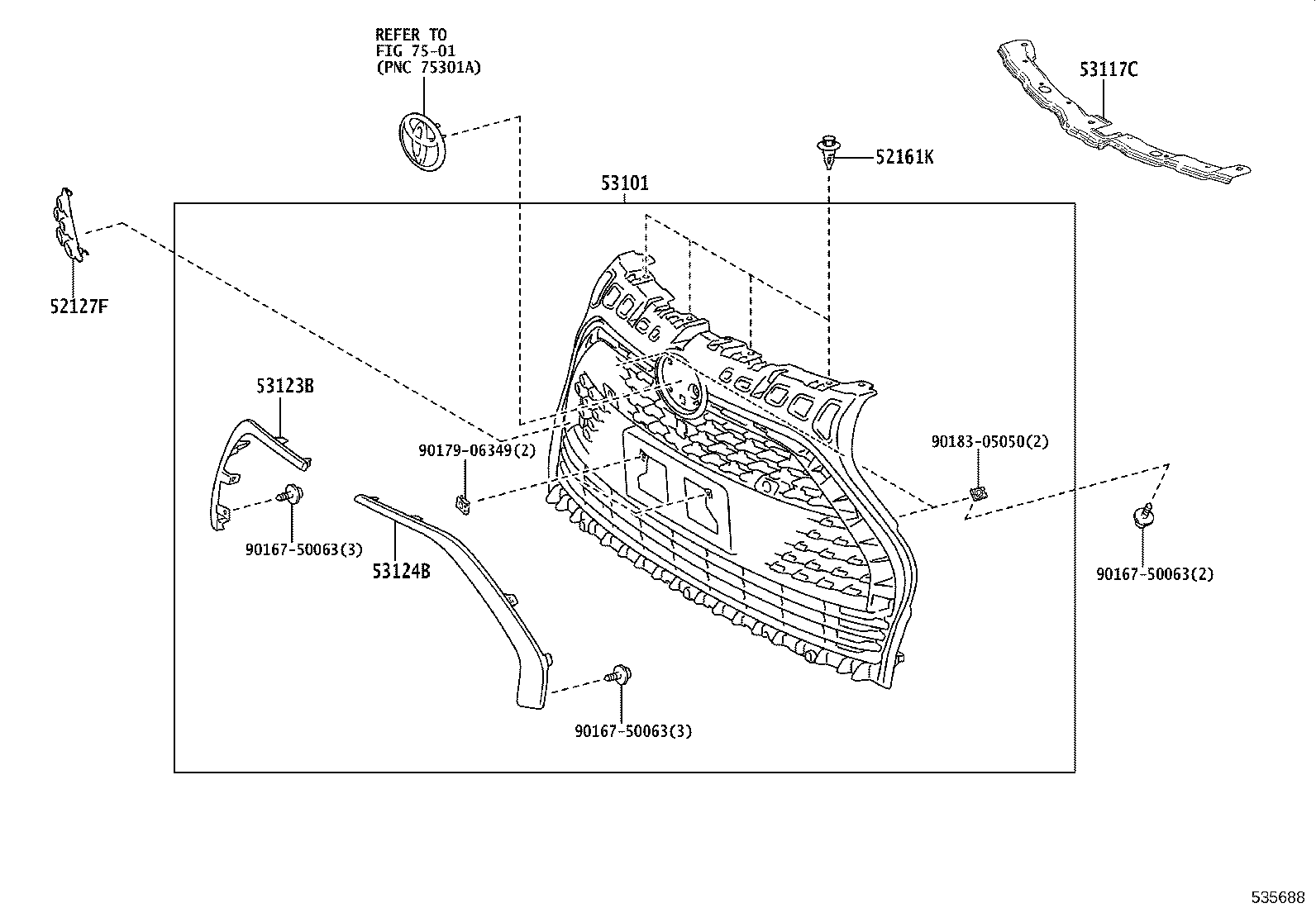

Figure 534532D 534532D 2015-06 → 2018-09 Figure 535688 535688 2018-09 → —

Part groups

PNCDescription
52127F Cover, Front Bumper Hole
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53117C Retainer, Radiator Grille, NO.1
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
