Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 2 illustrations

Illustrations

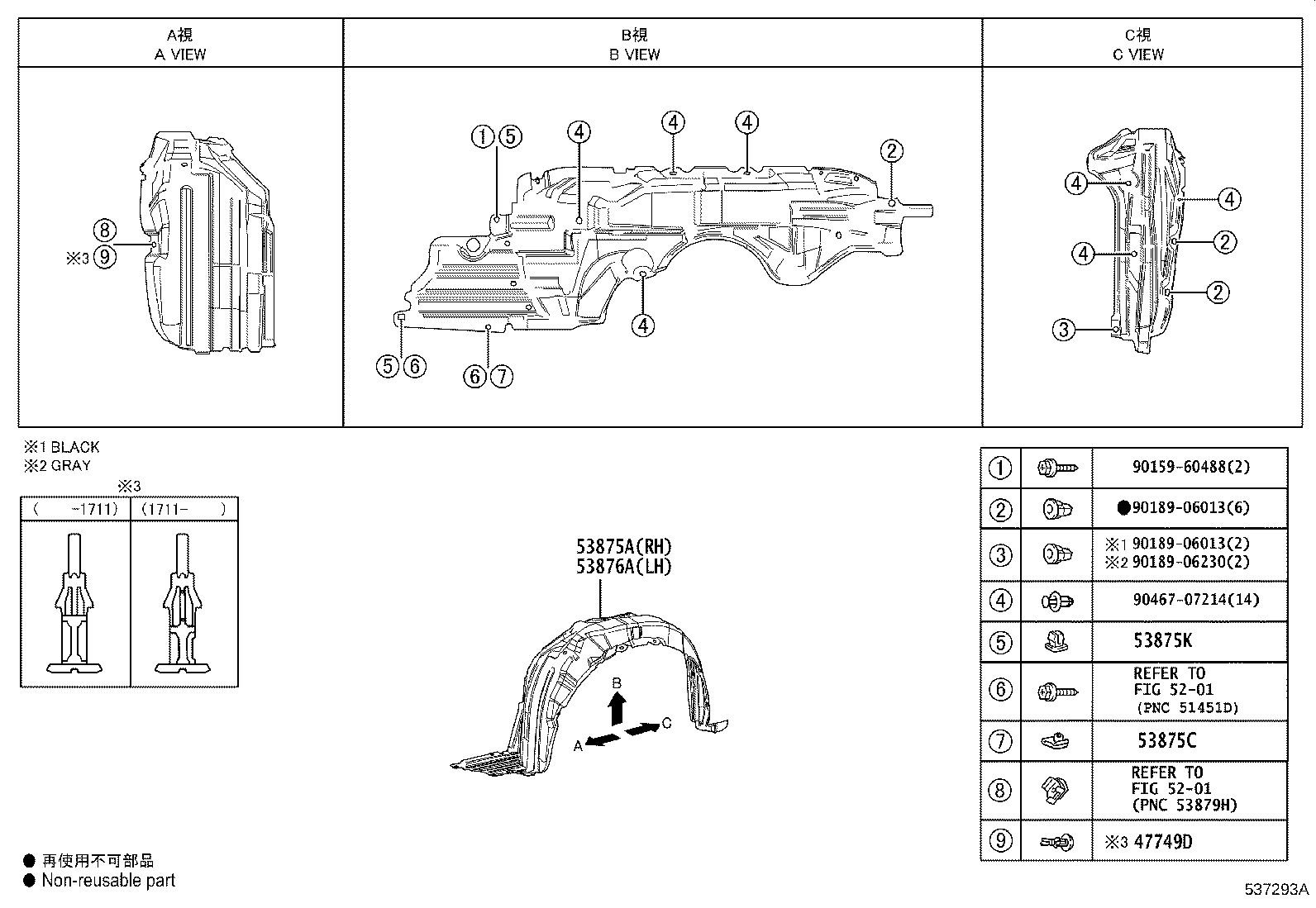

Figure 537292A 537292A 2015-06 → — Figure 537293A 537293A 2015-06 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
