Toyota Sienta (JPP)
2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General
Supported model
Data version 2023-09

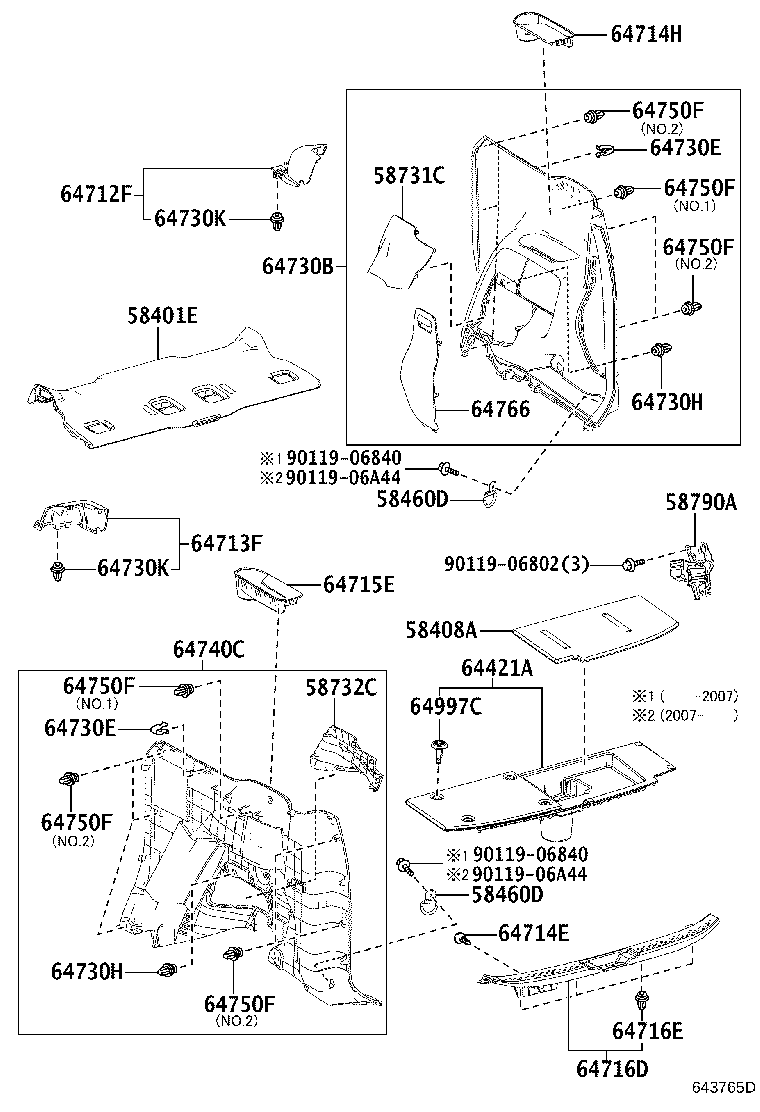

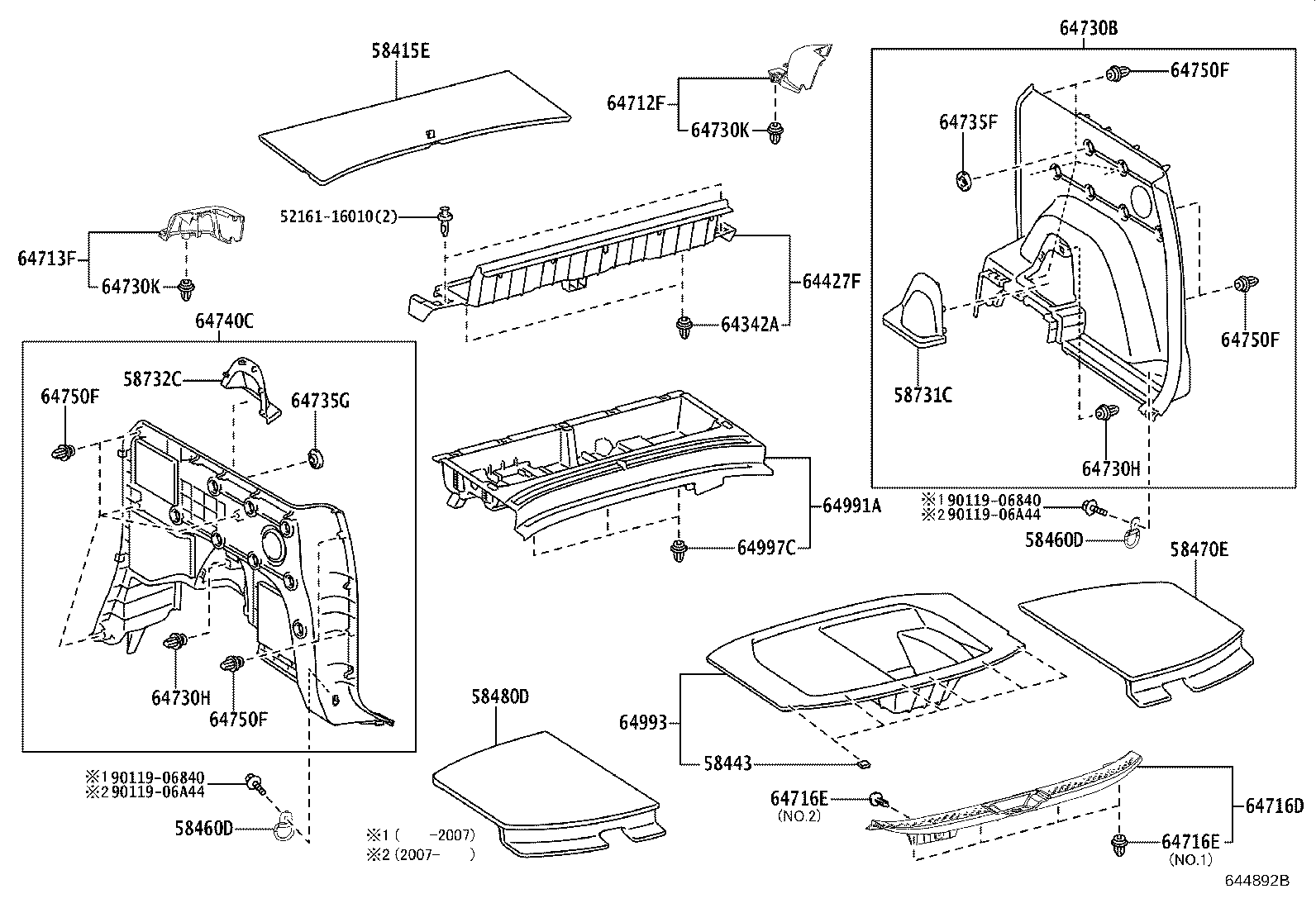

Deck Board & Deck Trim Cover
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401E | Board Sub-assy, Deck |
| 58408A | Board Sub-assy, Deck, NO.2 |
| 58415E | Board, Rear Floor, NO.1 |
| 58443 | Cushion, Deck Board, NO.1 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58470E | Board Assy, Rear Floor, NO.1 |
| 58480D | Board Assy, Rear Floor, NO.2 |
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 58790A | Carrier Assy, Jack |
| 64342A | Clip |
| 64421A | Tray, Luggage Compartment |
| 64427F | Cover, Luggage Compartment Trim Box |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64714H | Cover, Deck Side Trim, NO.1 |
| 64715E | Cover, Deck Side Trim, NO.2 |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64735F | Cover, Deck Trim Side Service Hole, RH |
| 64735G | Cover, Deck Trim Side Service Hole, LH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64766 | Cover Sub-assy, Quarter Trim Jack |
| 64991A | Box, Deck Floor, FR |
| 64993 | Box, Deck Floor, Rear |
| 64997C | Clip(FOR DECK FLOOR BOX) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
