Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

7 part groups · 2 illustrations

Illustrations

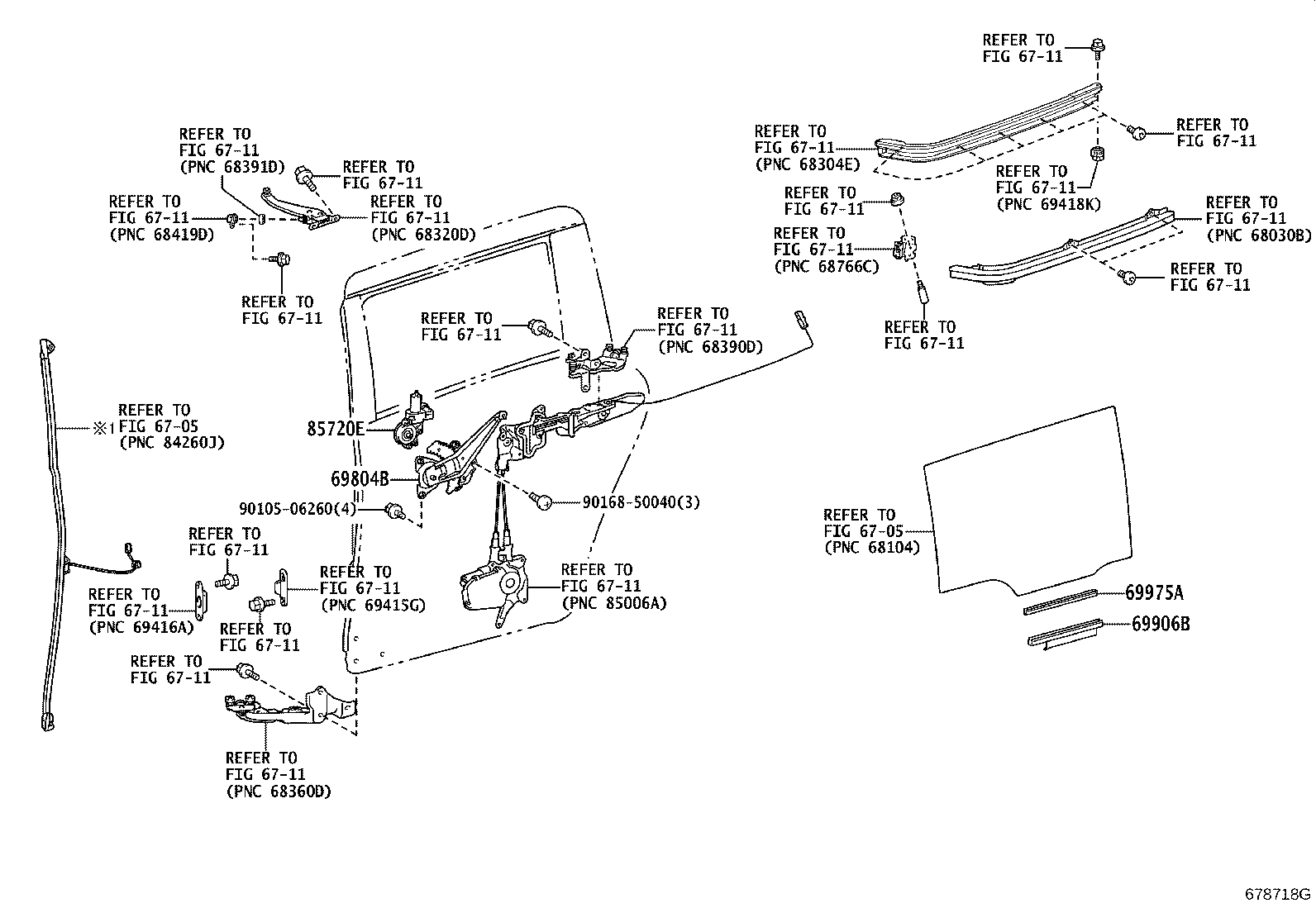

Figure 678683I 678683I 2015-06 → — Figure 678718G 678718G 2015-08 → —

Part groups

PNCDescription
69803B Regulator Sub-assy, Slide Door Window, RH
69804B Regulator Sub-assy, Slide Door Window, LH
69905B Channel Sub-assy, Rear Door Glass, RH
69906B Channel Sub-assy, Rear Door Glass, LH
69975A Filler, Rear Door Glass Channel
85710F Motor Assy, Power Window Regulator, RH
85720E Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
