Toyota Sienta (JPP)
2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General
Supported model
Data version 2023-09

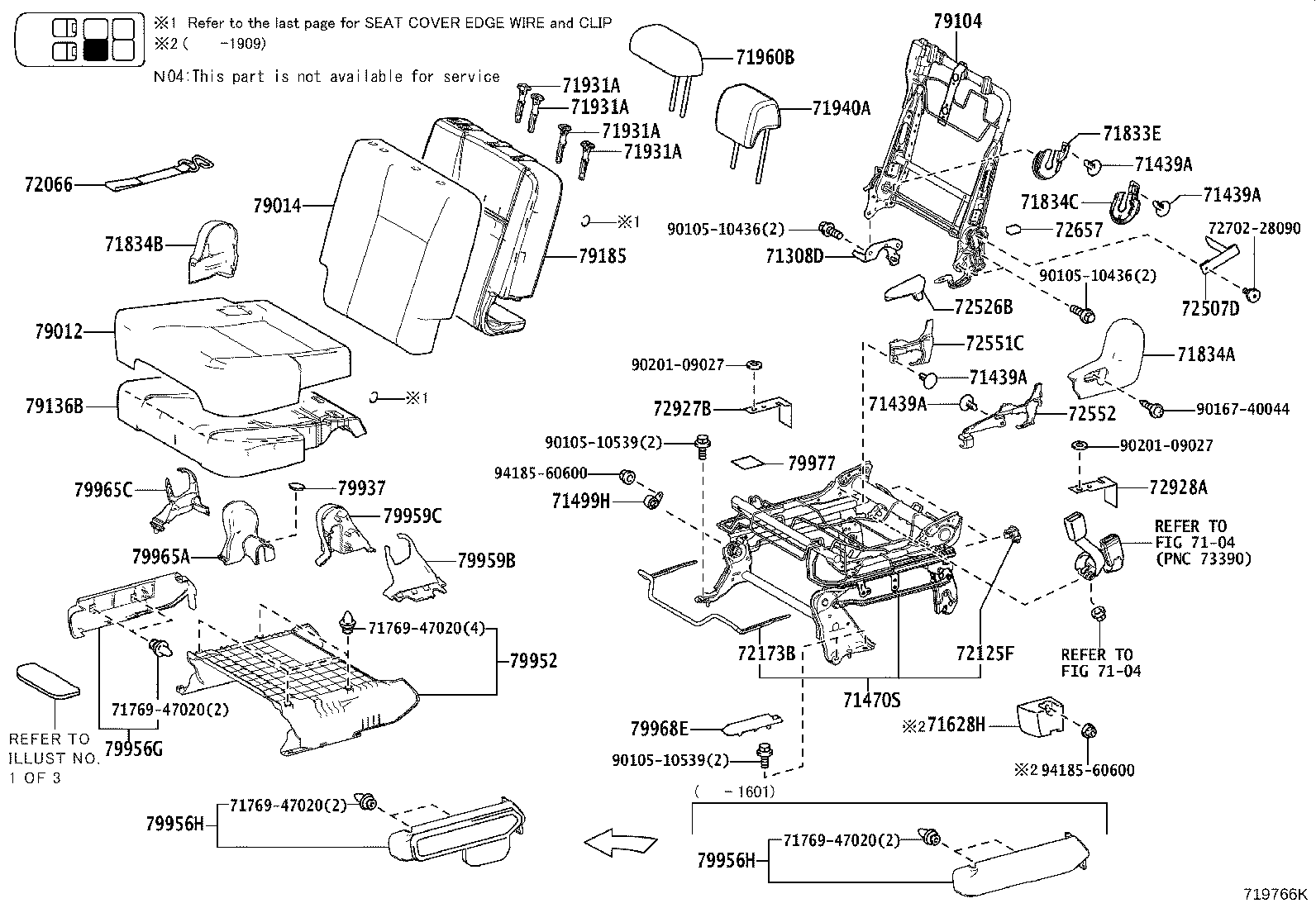

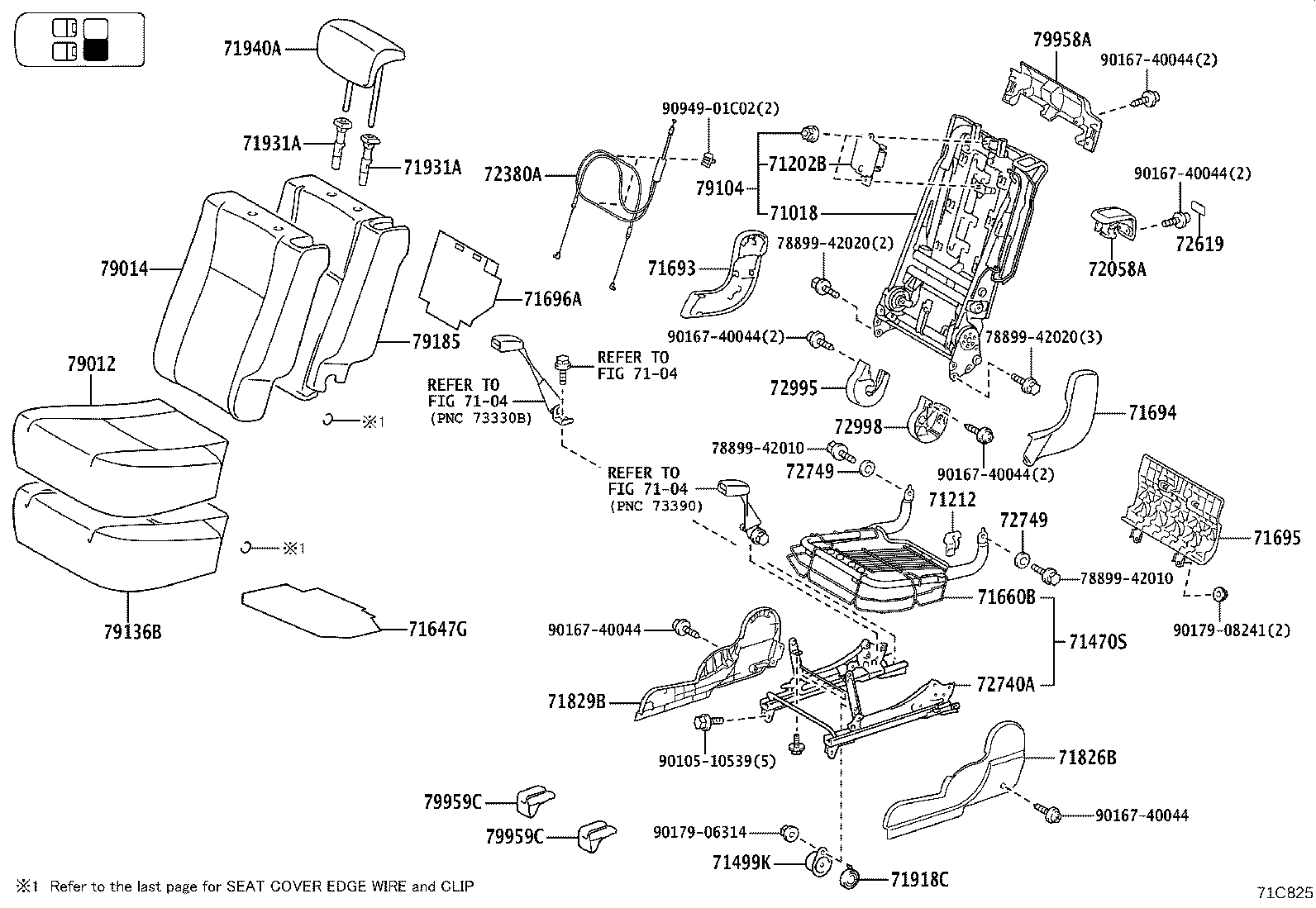

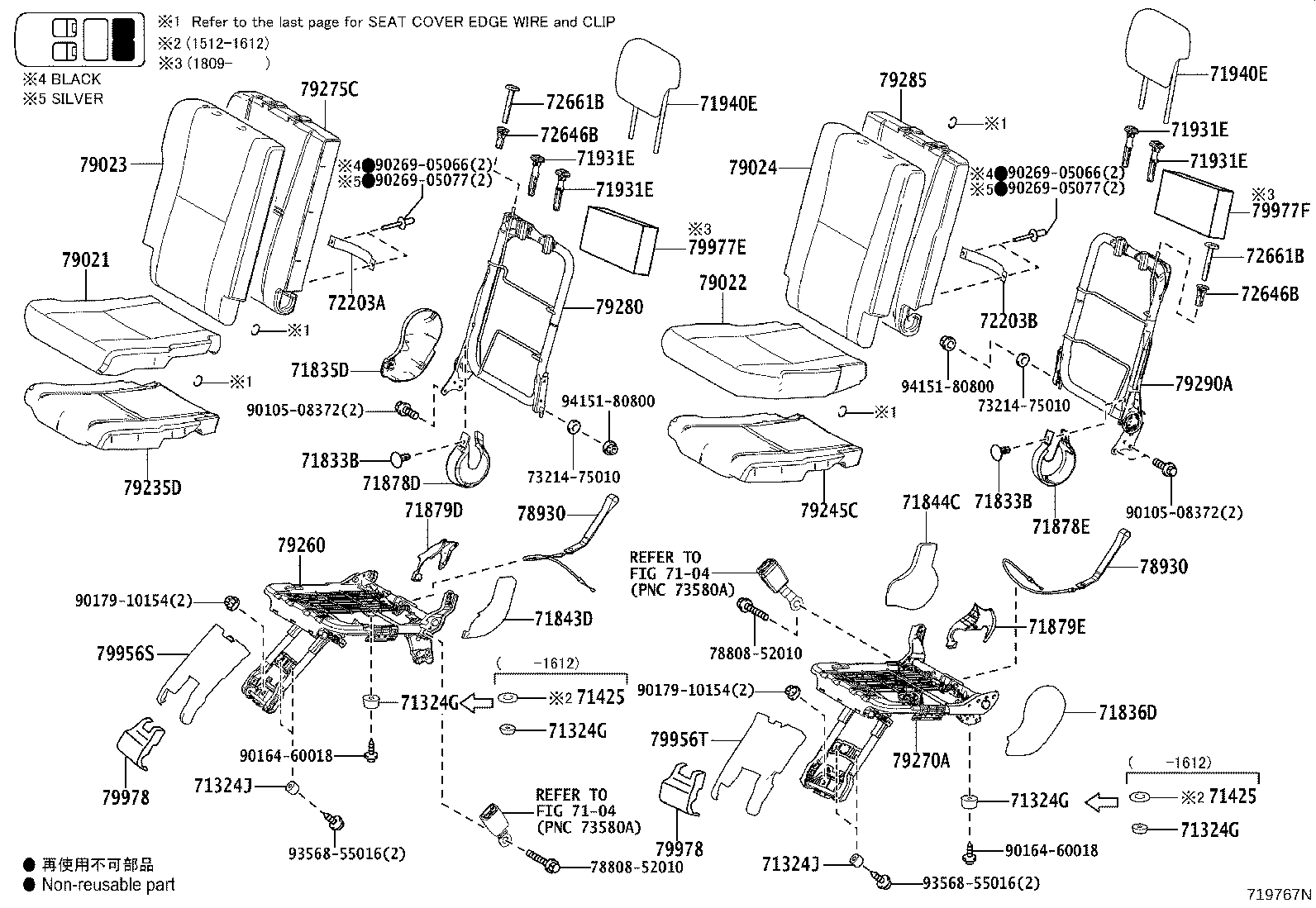

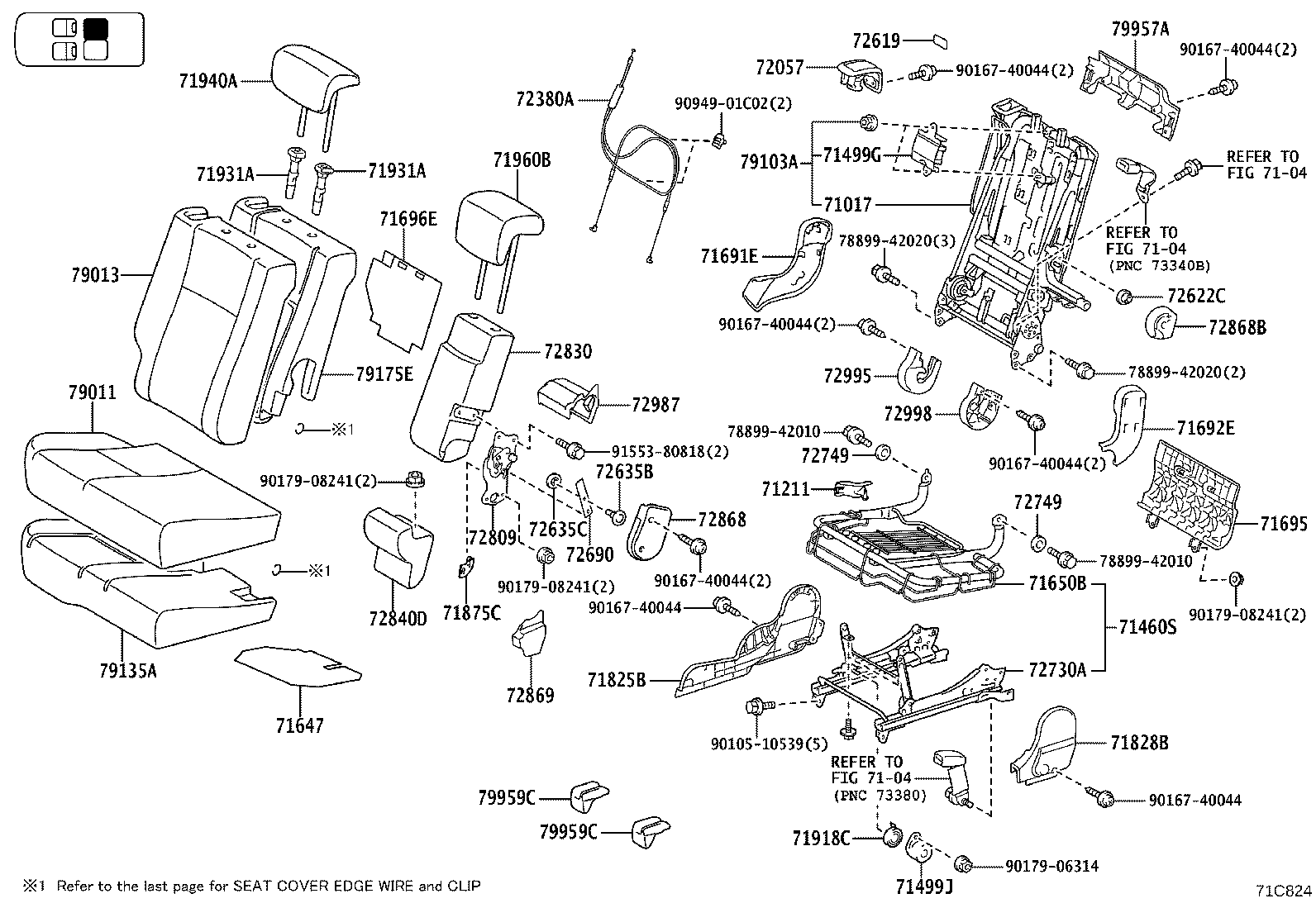

Rear Seat & Seat Track
148 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71202B | Panel, Rear Seatback |
| 71211 | Panel, Rear Seat Cushion, RH |
| 71212 | Panel, Rear Seat Cushion, LH |
| 71307D | Bracket Sub-assy, Rear Seat Cushion Support, RH |
| 71308D | Bracket Sub-assy, Rear Seat Cushion Support, LH |
| 71324G | Cushion, Rear NO.2 Seat |
| 71324J | Cushion, Rear Seat |
| 71425 | Patch, Rear Seat Leg |
| 71439A | Clip |
| 71460S | Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE) |
| 71470S | Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71499C | Damper, Rear Seat Cushion Spring |
| 71499G | Damper, Rear Seatback Spring, RH |
| 71499H | Damper, Rear Seatback Spring, LH |
| 71499J | Damper, Rear Seat Cushion Spring, RH |
| 71499K | Damper, Rear Seat Cushion Spring, LH |
| 71628G | Spacer, Rear Seat Cushion, RH |
| 71628H | Spacer, Rear Seat Cushion, LH |
| 71647 | Protector, Rear Seat Cushion Edge |
| 71647G | Protector, Rear Seat Cushion Edge |
| 71650B | Spring Assy, Rear Seat Cushion, RH |
| 71660B | Spring Assy, Rear Seat Cushion, LH |
| 71691E | Cover, Rear Seat Cushion Hinge, NO.1 |
| 71692E | Cover, Rear Seat Cushion Hinge, NO.2 |
| 71693 | Cover, Rear Seat Cushion Hinge, Lower RH |
| 71694 | Cover, Rear Seat Cushion Hinge, Lower LH |
| 71695 | Protector, Rear Seatback |
| 71696A | Protector, Rear Seat, NO.2 LH |
| 71696E | Protector, Rear Seat, NO.2 RH |
| 71825B | Moulding, Rear Seat Cushion, RH |
| 71826B | Moulding, Rear Seat Cushion, LH |
| 71828B | Moulding, Rear Seat Cushion, Rear RH |
| 71829B | Moulding, Rear Seat Cushion, Rear LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833B | Clip (FOR REAR SEAT RECLINING COVER) |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71833E | Cover, Rear Seat Reclining, NO.3 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71834C | Cover, Rear Seat Reclining, NO.3 LH |
| 71835D | Cover, Rear Seat Reclining, Lower RH |
| 71836D | Cover, Rear Seat Reclining, Lower LH |
| 71843D | Cover, Rear Seat Reclining, NO.2 RH |
| 71844C | Cover, Rear Seat Reclining, NO.2 LH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71878D | Cover, Rear Seat Reclining, Inner RH |
| 71878E | Cover, Rear Seat Reclining, Inner RH |
| 71879D | Cover, Rear Seat Reclining, Inner LH |
| 71879E | Cover, Rear Seat Reclining, Inner LH |
| 71918C | Spring, Center Seat Cushion Catch |
| 71931A | Support, Rear Seat Headrest |
| 71931E | Support Assy, Rear NO.3 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71940E | Headrest Assy, NO.2 Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72057 | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058A | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72065 | Belt Sub-assy, Rear Seat Hook, RH |
| 72066 | Belt Sub-assy, Rear Seat Hook, LH |
| 72125E | Cover, Seat Track, Upper Rear RH |
| 72125F | Cover, Seat Track, Upper Rear LH |
| 72173A | Handle, Rear Seat Track Adjusting, RH |
| 72173B | Handle, Rear Seat Track Adjusting, LH |
| 72203A | Handle Sub-assy, Rear Seat Track, RH |
| 72203B | Handle Sub-assy, Rear Seat Track, LH |
| 72380A | Cable Assy, Seat Adjuster Control, NO.2 |
| 72507D | Handle Sub-assy, NO.2 Seat Reclining Release |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72551C | Cover, Reclining Hinge, NO.2 |
| 72551E | Cover, Reclining Hinge, RH |
| 72552 | Cover, Reclining Hinge, NO.2 |
| 72552E | Cover, Reclining Hinge, LH |
| 72619 | Cover, Rear Seatback Lock Striker |
| 72622C | Bush, Rear Seatback Protector Shaft |
| 72635B | Hook, Rear Seatback Lock(MALE) |
| 72635C | Hook, Rear Seatback Lock(FEMALE) |
| 72646B | Grommet, Rear Seatback Stop Button |
| 72657 | Silencer, Rear Seatback Lock Control Rod |
| 72661B | Lever, Rear Seatback Rod Control, Outer |
| 72690 | Lever Assy, Seat Cushion Lock Release |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72749 | Spacer, Rear Seat Reclining |
| 72809 | Lock Sub-assy, Center Armrest |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72840D | Armrest Assy, Rear Seat, LH |
| 72868 | Cover, Center Armrest Hinge, RH |
| 72868B | Cover, Center Armrest Hinge |
| 72869 | Cover, Center Armrest Hinge, LH |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72927B | Cover, Rear Seat Cushion Under |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 72928A | Cover, Rear Seat Cushion Under, NO.2 |
| 72987 | Cover, Rear Seat Center Armrest |
| 72995 | Cover, Rear Seat Cushion, RH |
| 72998 | Cover, Rear Seat Cushion, LH |
| 78930 | Cable Assy, Fold Seat Lock Control, NO.3 |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79103A | Frame Sub-assy, NO.1 Seatback, RH |
| 79104 | Frame Sub-assy, NO.1 Seatback, LH |
| 79135A | Pad, NO.1 Seat Cushion, RH |
| 79136B | Pad, NO.1 Seat Cushion, LH |
| 79175E | Pad, NO.1 Seatback, RH |
| 79185 | Pad, NO.1 Seatback, LH |
| 79235D | Pad, NO.2 Seat Cushion, RH |
| 79245C | Pad, NO.2 Seat Cushion, LH |
| 79260 | Spring Assy, NO.2 Seat Cushion |
| 79270A | Spring Assy, NO.2 Seat Cushion, LH |
| 79275C | Pad, NO.2 Seatback, RH |
| 79280 | Spring Assy, NO.2 Seatback |
| 79285 | Pad, NO.2 Seatback, LH |
| 79290A | Spring Assy, NO.2 Seatback, LH |
| 79937 | Cover, Rear Seat Leg, NO.2 |
| 79937A | Cover, Rear Seat Leg, NO.2 |
| 79951 | Cover, NO.1 Seat Cushion |
| 79952 | Cover, NO.2 Seat Cushion |
| 79956B | Cover, Rear Seat Leg Side, RH |
| 79956C | Cover, Rear Seat Leg Side, LH |
| 79956G | Cover, NO.3 Seat Leg Side, RH |
| 79956H | Cover, NO.3 Seat Leg Side, LH |
| 79956S | Cover, Rear Seat Leg Side |
| 79956T | Cover, Rear Seat Leg Side |
| 79957A | Cover, Rear Seat Rear Bracket, RH |
| 79958A | Cover, Rear Seat Rear Bracket, LH |
| 79959 | Cover, RR Seat Leg |
| 79959A | Cover, Rear Seat Leg, RH |
| 79959B | Cover, Rear Seat Leg, LH |
| 79959C | Cover, Rear Seat Leg |
| 79965 | Cover, Rear Seat Leg Side, NO.2 |
| 79965A | Cover, Rear Seat Leg Side, NO.2 |
| 79965B | Cover, Rear Seat Leg Side, NO.2 |
| 79965C | Cover, Rear Seat Leg Side, NO.2 |
| 79968D | Cover, Rear Seat Leg Side, NO.5, RH |
| 79968E | Cover, Rear Seat Leg Side, NO.5, LH |
| 79977 | Felt, Seatback |
| 79977E | Felt, Seatback, RH |
| 79977F | Felt, Seatback, LH |
| 79978 | Cover, Rear Seat Leg Garnish, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
