Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 4 illustrations

Illustrations

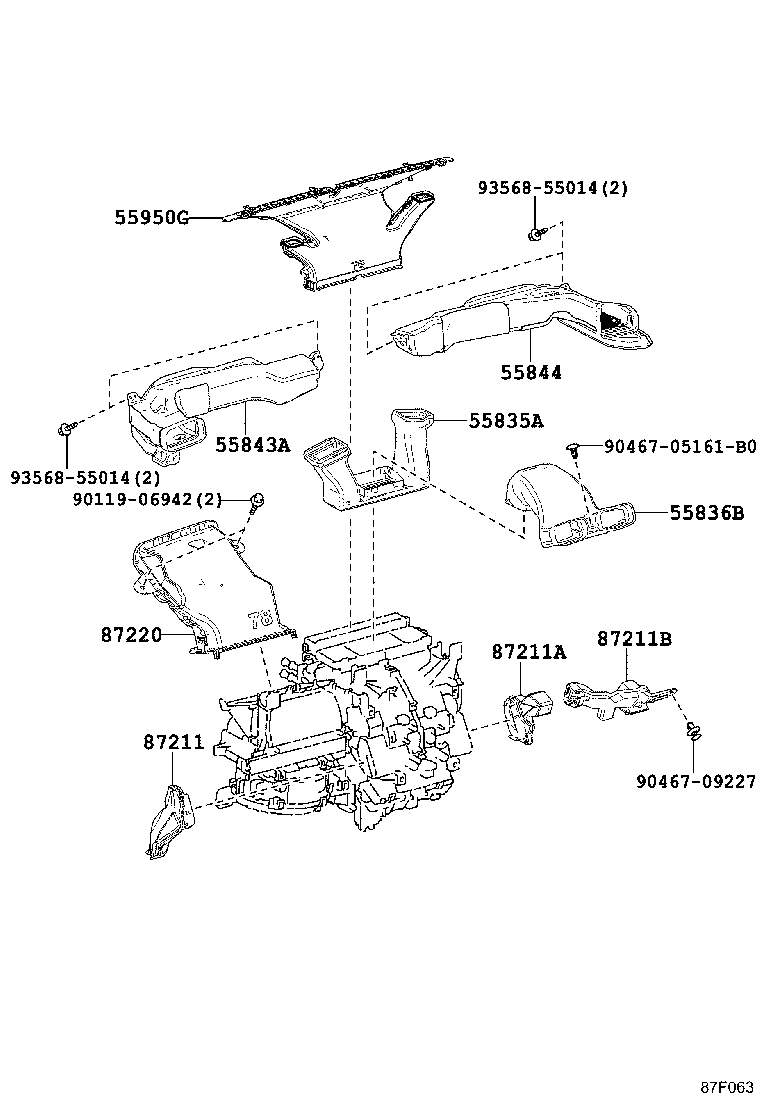

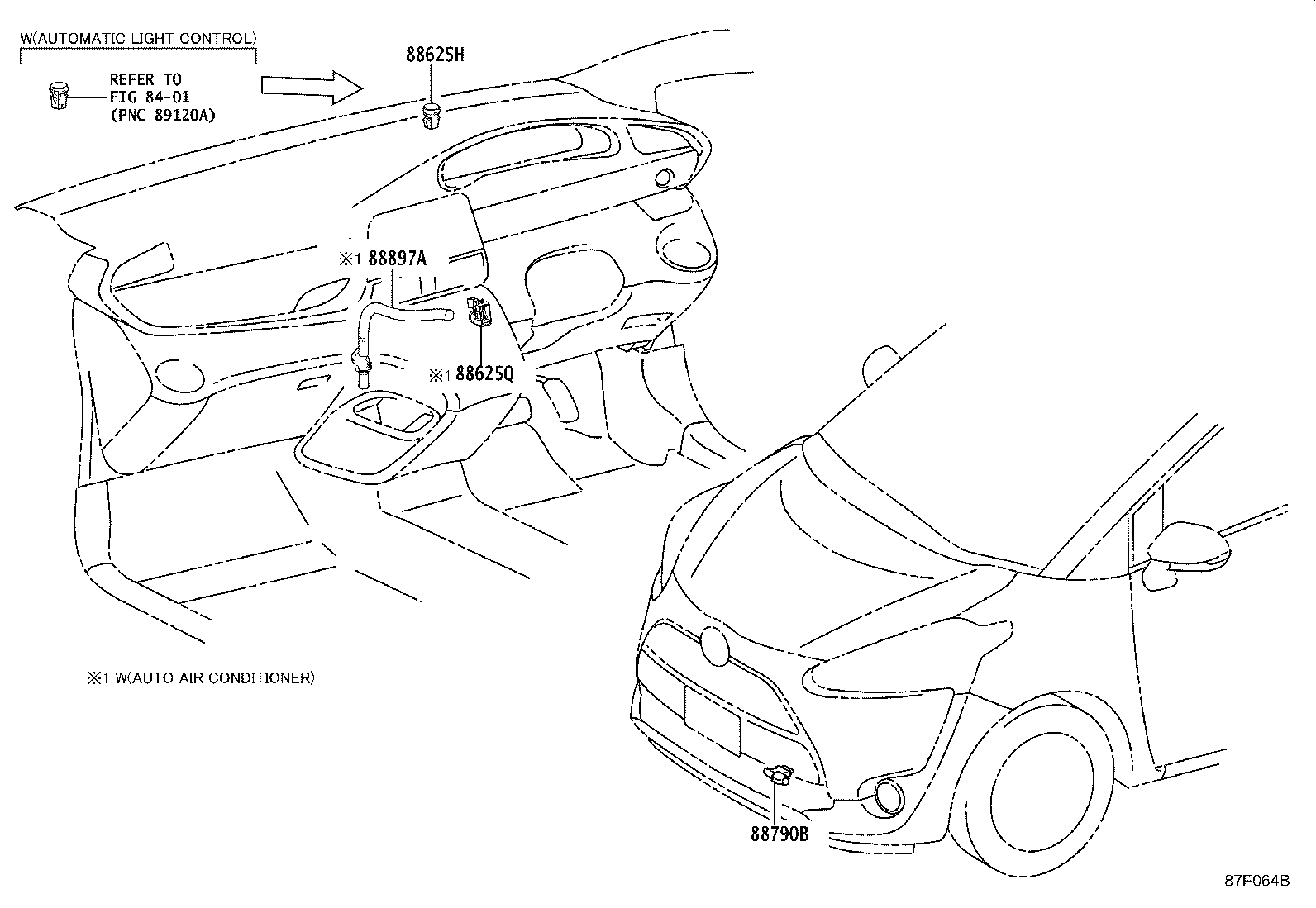

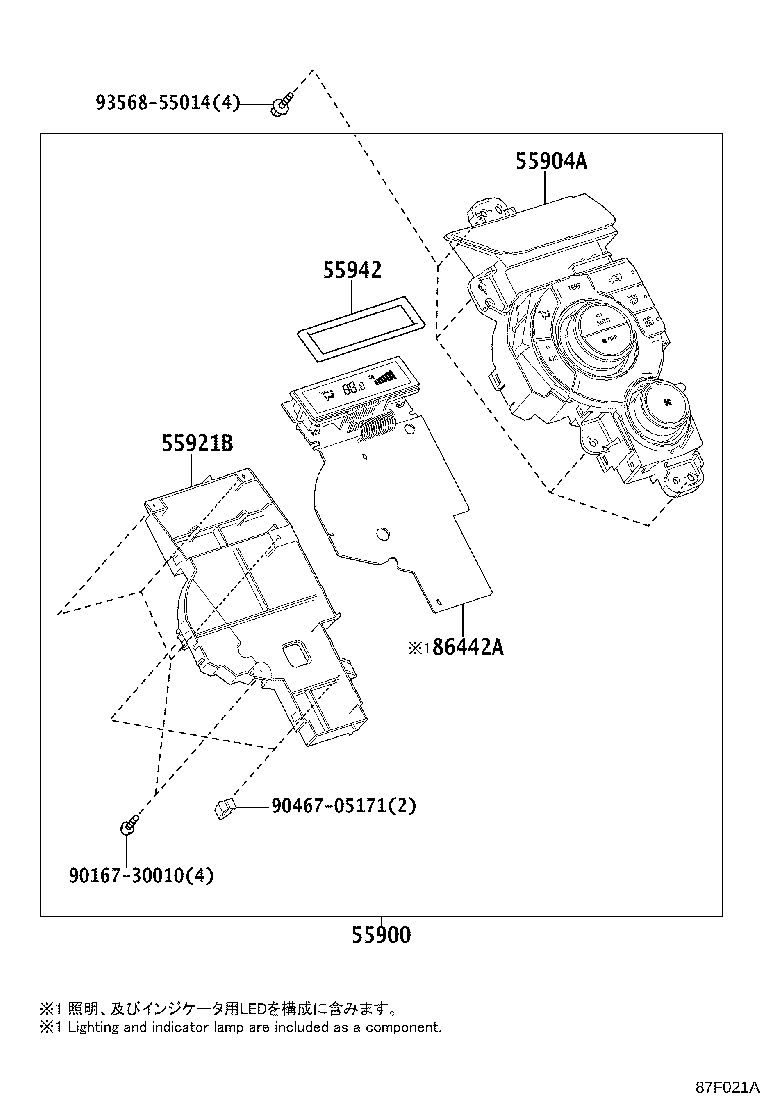

Figure 87E979A 87E979A 2015-06 → — Figure 87F021A 87F021A 2015-06 → — Figure 87F063 87F063 2015-06 → — Figure 87F064B 87F064B 2015-06 → —

Part groups

PNCDescription
55835A Duct, Heater TO Register, Center
55836B Duct, Heater TO Resister, Center, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901A Bulb, Heater Control Sub-assy, NO.1
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55902G Bulb, Heater Control Sub-assy, NO.2
55903A Control Sub-assy, Heater, NO.3
55903B Bulb, Heater Control Sub-assy, NO.3
55904A Housing Sub-assy, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55911A Base, Heater Control
55921B Retainer, Heater Control
55942 Guard, Heater Control
55950G Nozzle Assy, Defroster
86442A Board, Heater Control Switch
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87220 Duct Assy, Air
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897A Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
