Toyota Sienta (JPP)

2015-06 → 2022-07 · chassis NHP170,NSP170 · catalogue 119330 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 2 illustrations

Illustrations

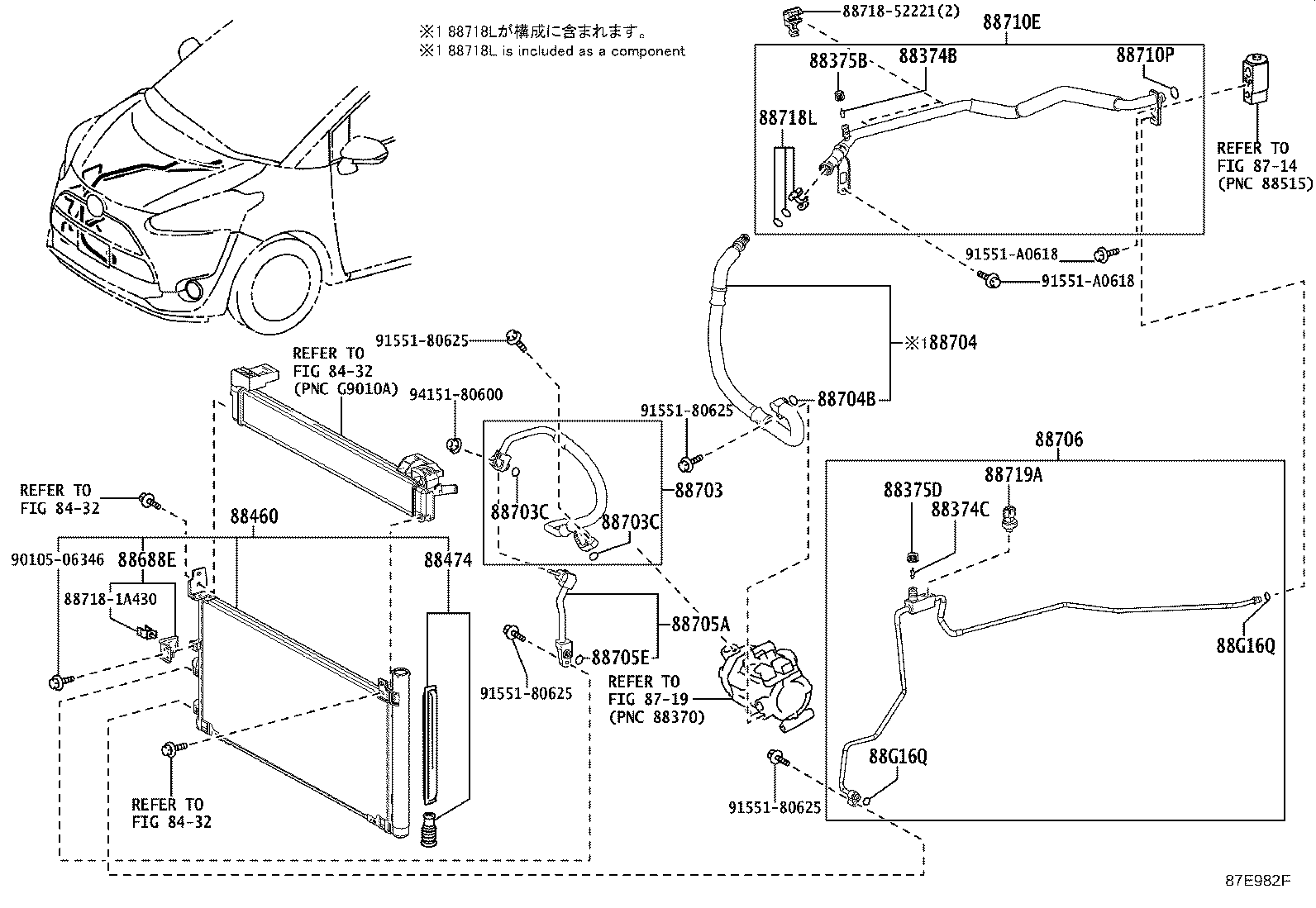

Figure 87E983E 87E983E 2015-06 → — Figure 87E982F 87E982F 2015-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88705A Tube Sub-assy, Discharge
88705E Ring, O, NO.1(FOR DISCHARGE TUBE)
88706 Pipe Sub-assy, Liquid
88710E Tube & Accessory Assy, Air Conditioner
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710P Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88G16Q Ring, O, NO.1(FOR LIQUID TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
