Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

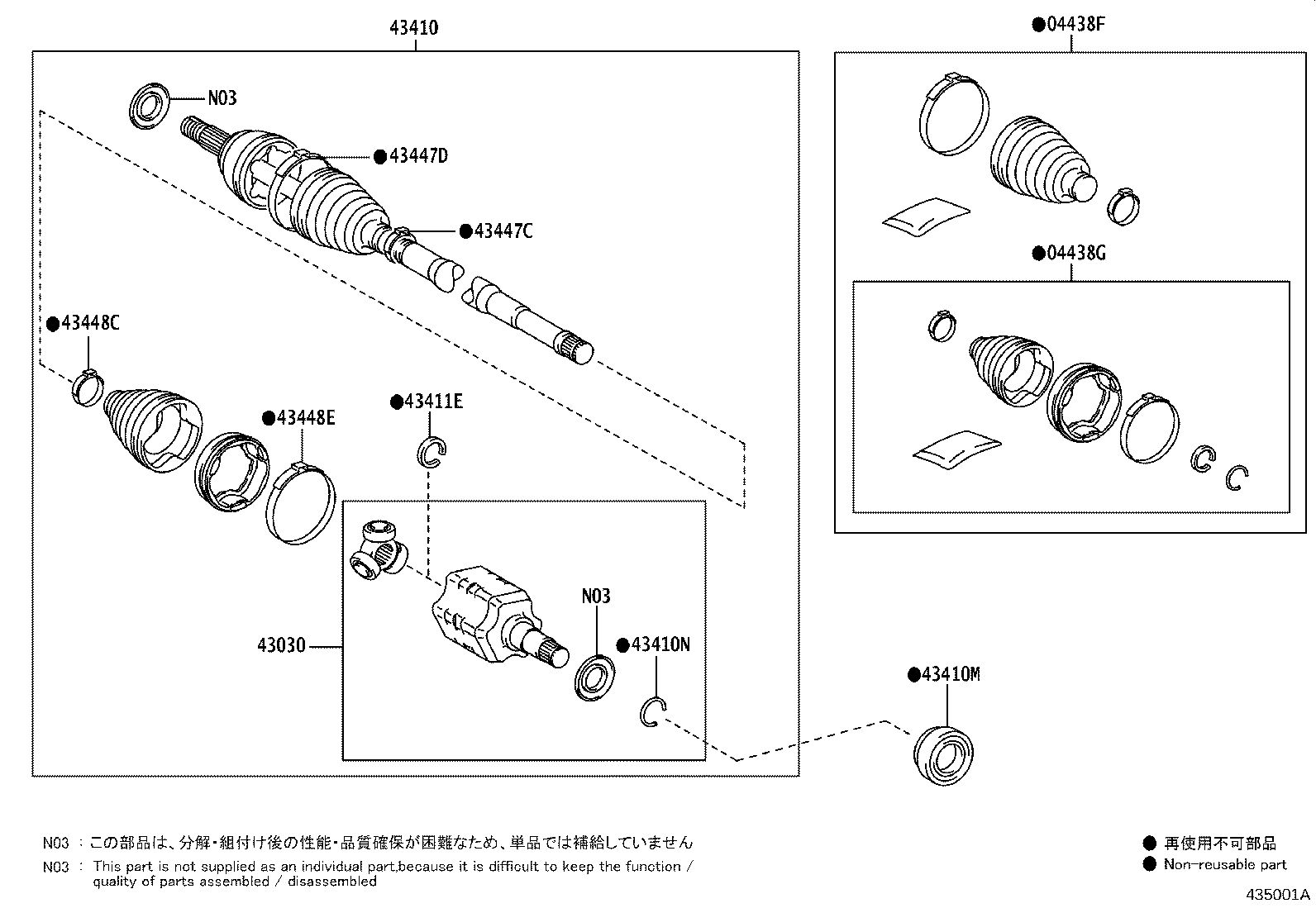

Exploded illustration 435001A 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (2 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (2 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (2 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (2 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (2 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (2 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (2 parts)
435001A · 11 callouts Full size ↗
22 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-12790 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2022-07 → —
MXPL10;MXPC10 U —
04427-12790 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2022-07 → 2024-05 ended
MXPC10 N —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-10020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2022-07 → 2024-05 ended
MXPC10 N —
04437-10020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2022-07 → —
MXPL10;MXPC10 U —
43030 — Joint Assy, Front Drive Inboard, RH
43040-K0010 Joint Assy, Front Drive Inboard, RH
2022-07 → 2024-05 ended
MXPC10 N —
43040-K0010 Joint Assy, Front Drive Inboard, RH
2022-07 → —
MXPL10;MXPC10 U —
43410 — Shaft Assy, Front Drive, RH
43410-52460 Shaft Assy, Front Drive, RH
2022-07 → 2024-05 ended
MXPC10 N —
43410-52460 Shaft Assy, Front Drive, RH
2022-07 → —
MXPL10;MXPC10 U —
43410M — Oil Seal, Front Drive Shaft, RH
90311-35083 Oil Seal, Front Drive Shaft, RH
2022-07 → 2024-05 ended
MXPC10 N —
90311-35083 Oil Seal, Front Drive Shaft, RH
2022-07 → —
MXPL10;MXPC10 U —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2022-07 → —
MXPL10;MXPC10 U —
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2022-07 → 2024-05 ended
MXPC10 N —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2022-07 → 2024-05 ended
MXPC10 N —
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2022-07 → —
MXPL10;MXPC10 U —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-07 → 2024-05 ended
MXPC10 N —
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-07 → —
MXPL10;MXPC10 U —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-07 → 2024-05 ended
MXPC10 N —
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2022-07 → —
MXPL10;MXPC10 U —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-07 → 2024-05 ended
MXPC10 N —
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-07 → —
MXPL10;MXPC10 U —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-07 → 2024-05 ended
MXPC10 N —
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2022-07 → —
MXPL10;MXPC10 U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
