Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

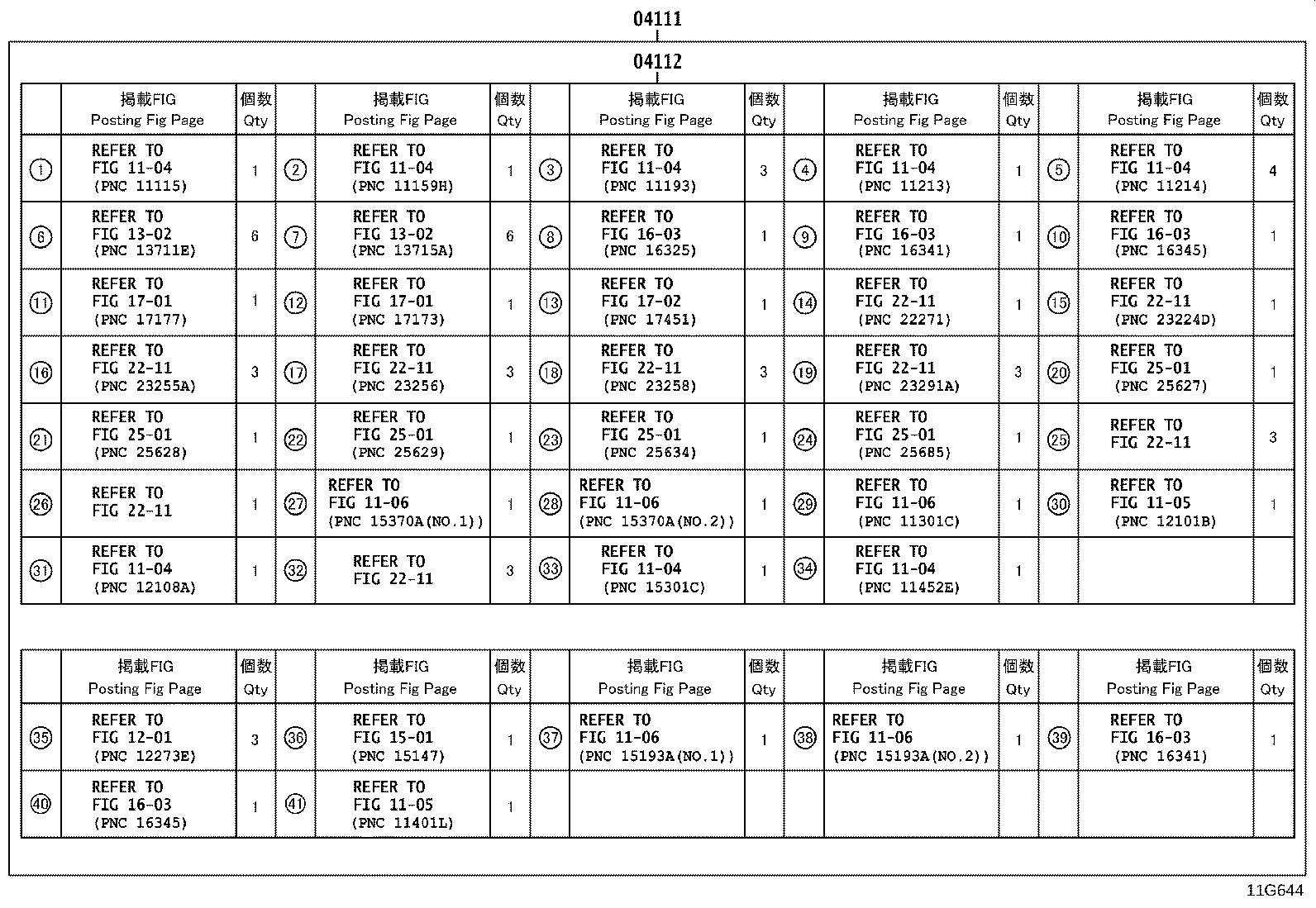

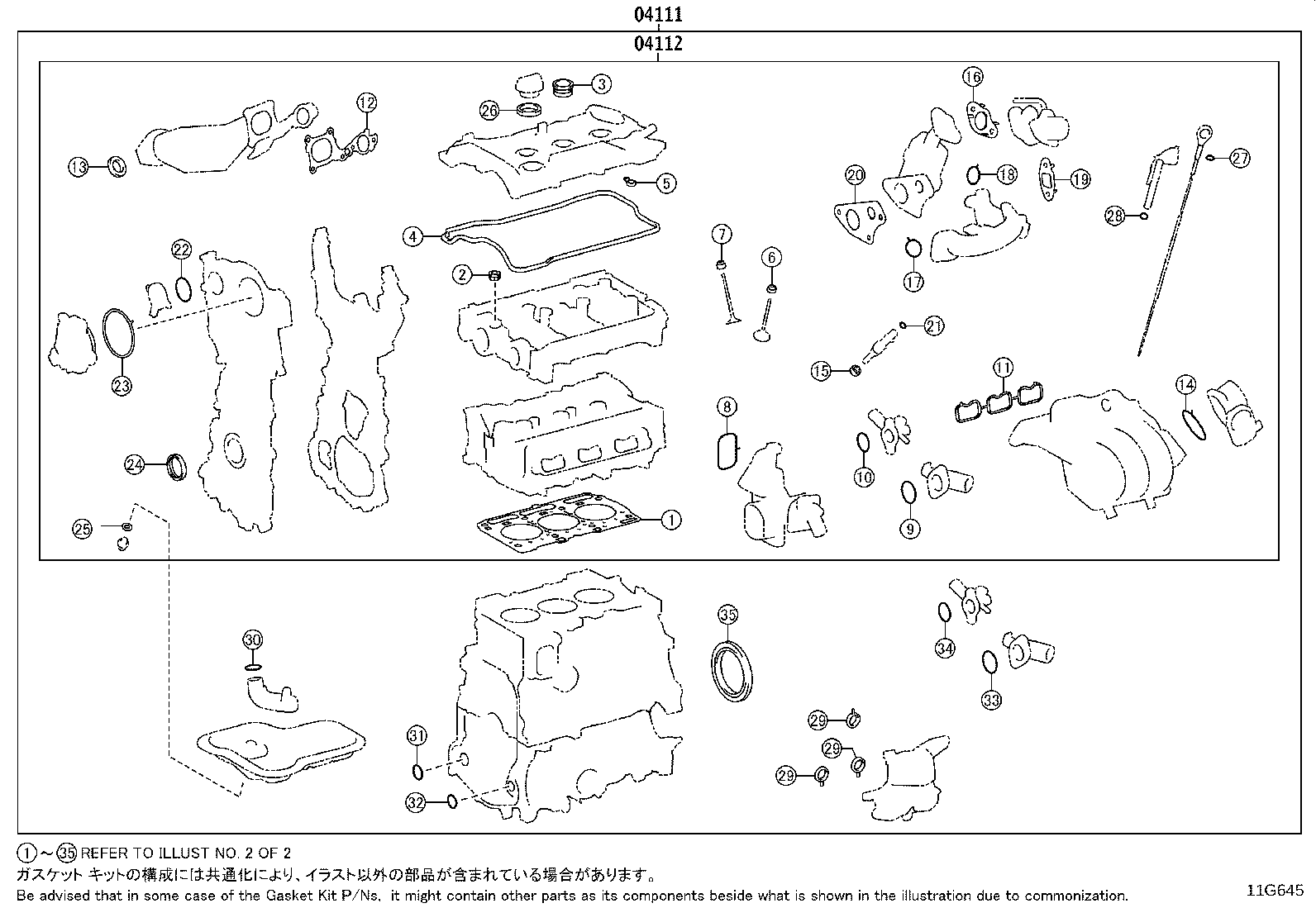

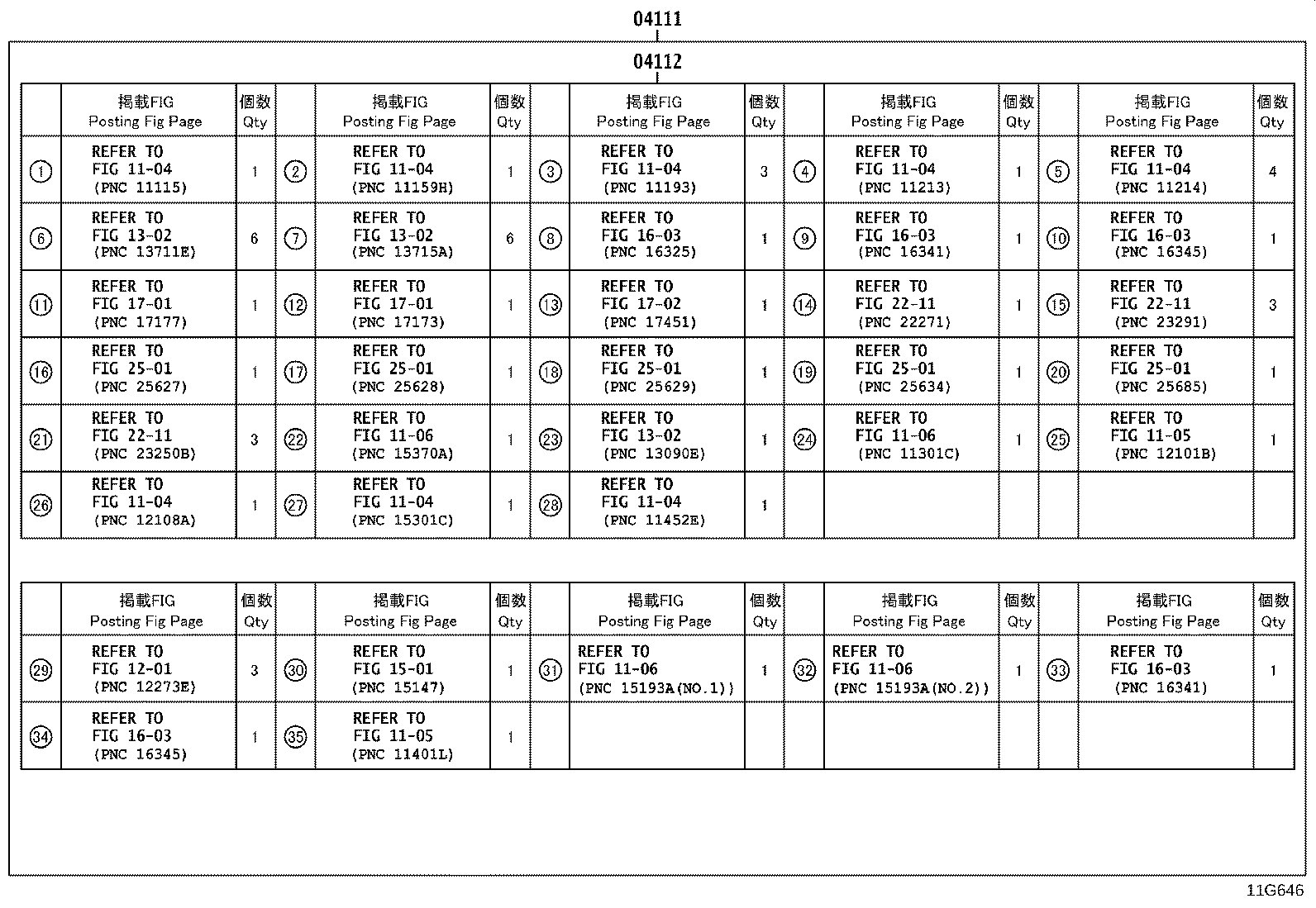

Figure 11G643 11G643 2022-07 → — Figure 11G644 11G644 2022-07 → — Figure 11G645 11G645 2022-07 → — Figure 11G646 11G646 2022-07 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
