Toyota Sienta (JPP)
2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General
Supported model
Data version 2022-07

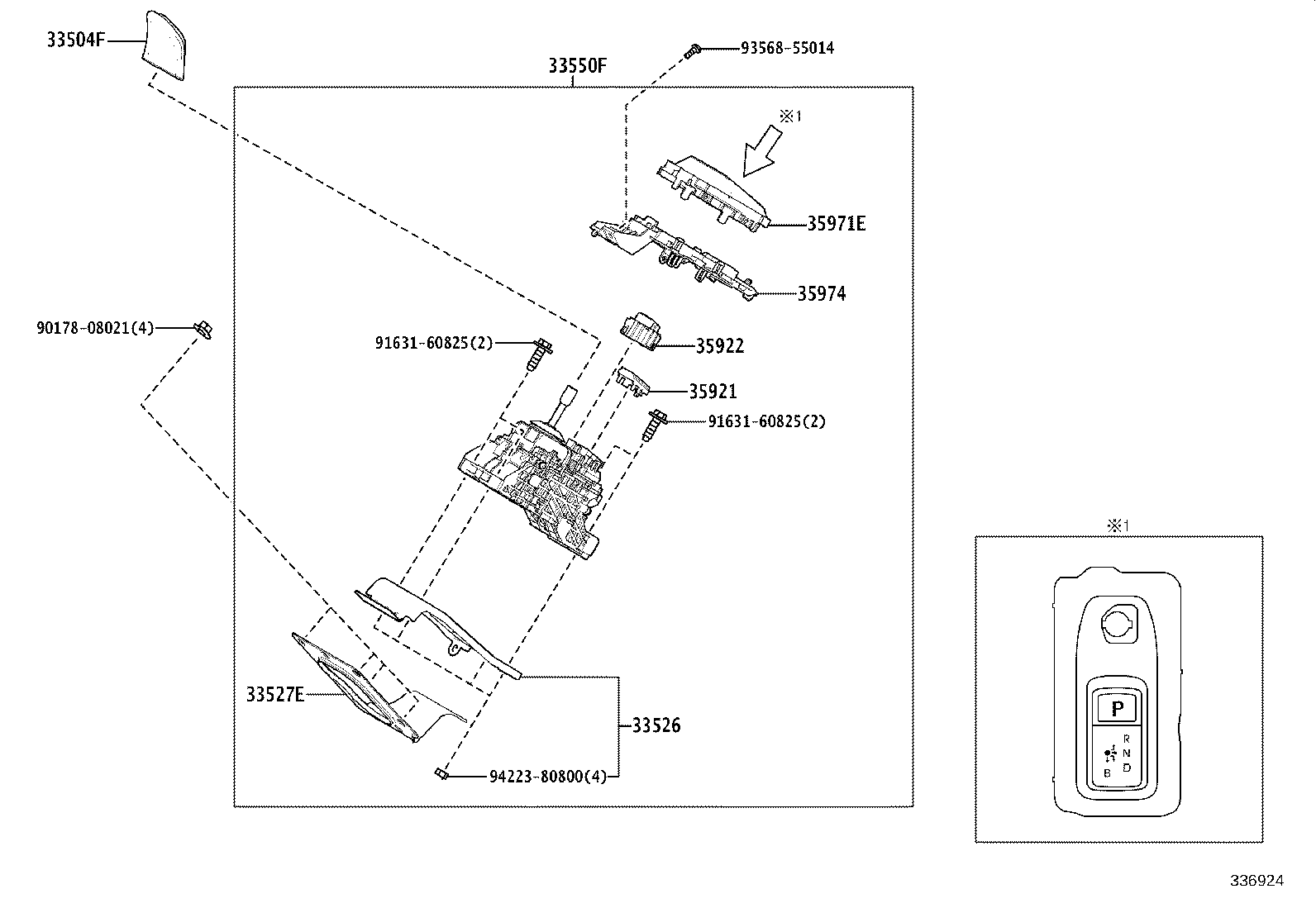

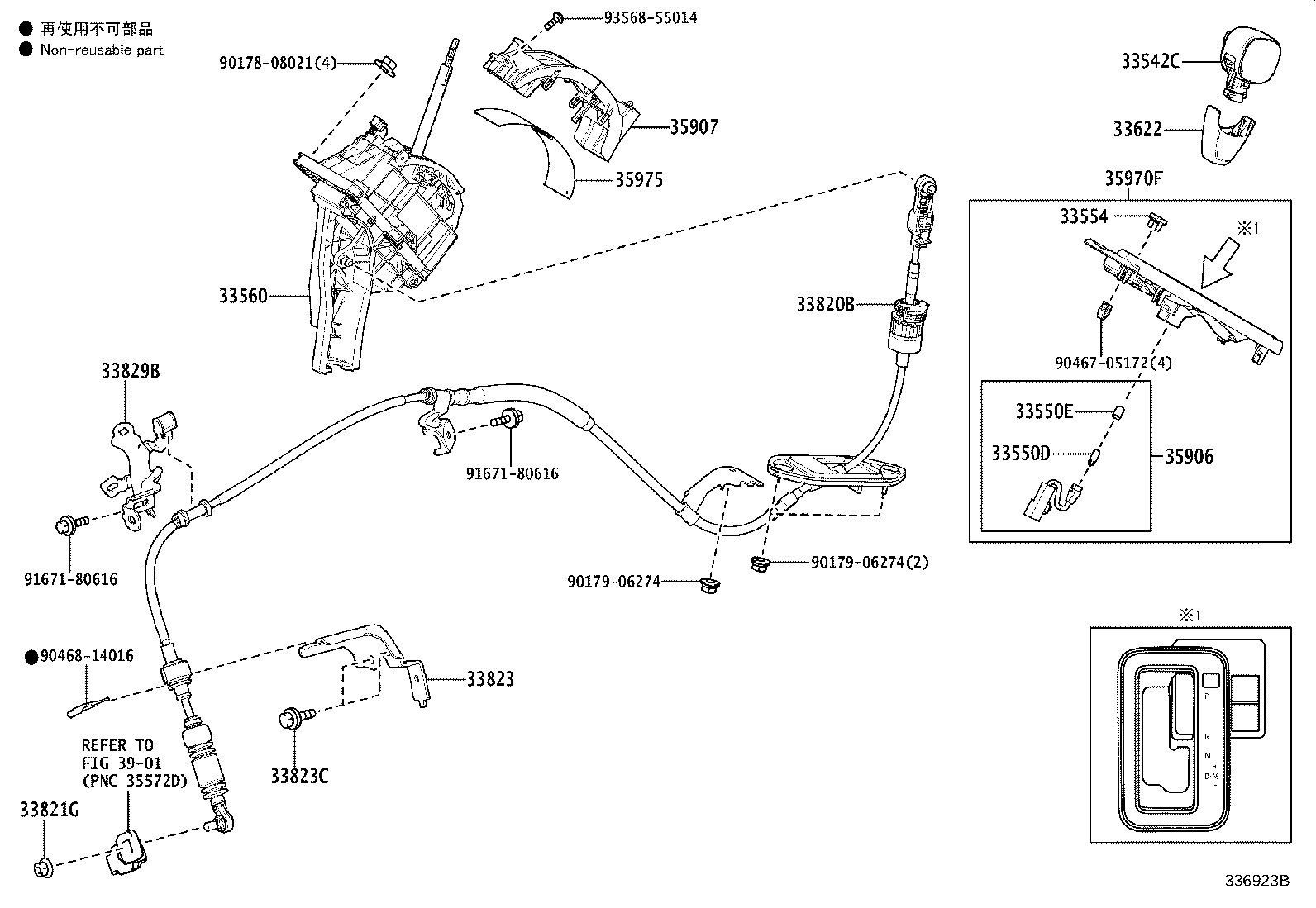

Shift Lever & Retainer
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33526 | Plate, Shift Lever Support, NO.1 |
| 33527E | Plate, Shift Lever Support, NO.2 |
| 33542C | Knob, Shift Lever |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33550F | Shift Assy, Transmission Instrument Panel |
| 33554 | Cap, Shift Lever |
| 33560 | Unit Assy, Shift Lock Control |
| 33622 | Cover, Shift Lever Knob, NO.1 |
| 33820B | Cable Assy, Transmission Control |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33829B | Clamp, Transmission Control Cable |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35921 | Plate, Control Position Indicator |
| 35922 | Knob, Transmission Parking Switch |
| 35970F | Housing Assy, Position Indicator |
| 35971E | Housing, Position Indicator |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
