Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 3 illustrations

Illustrations

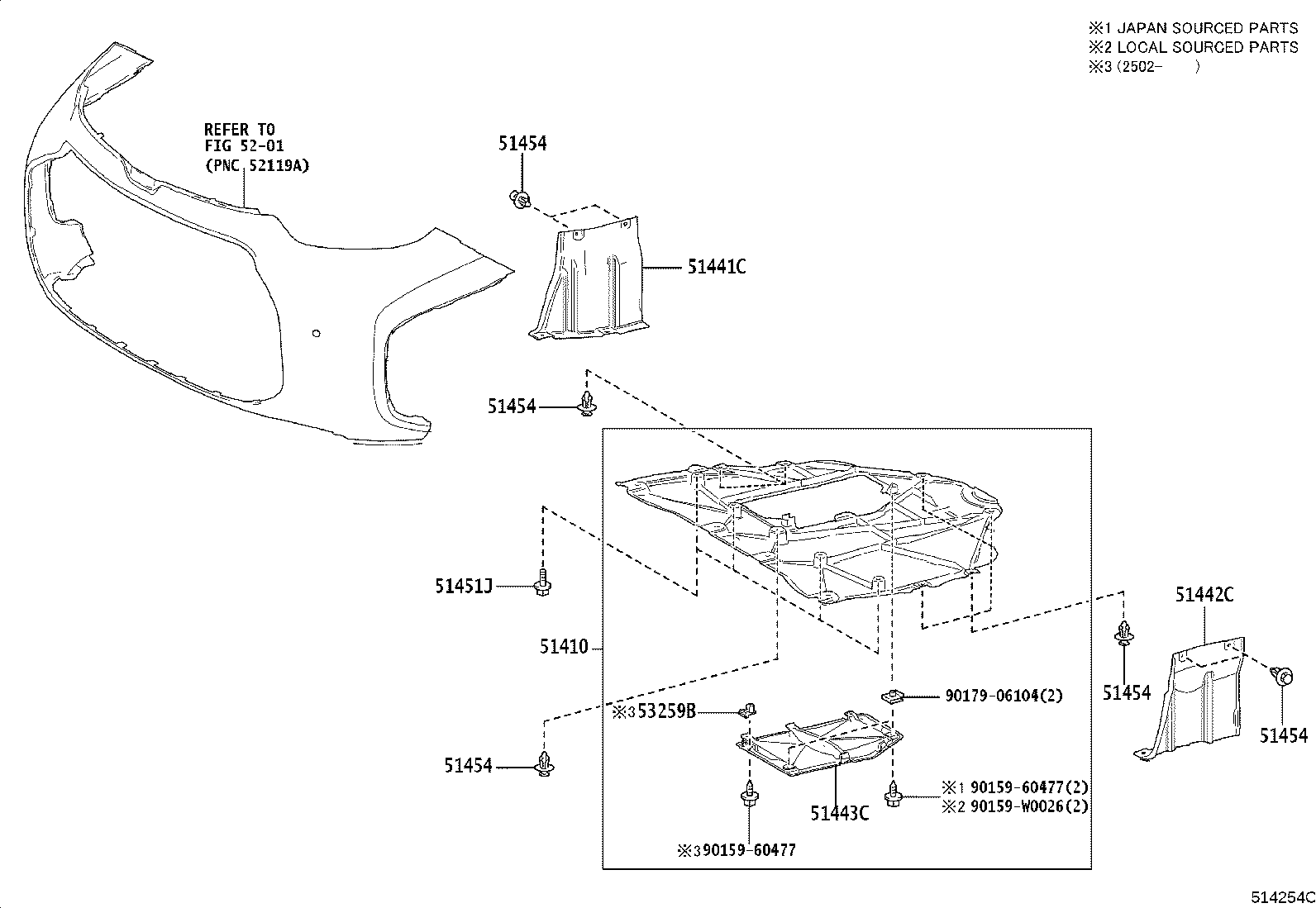

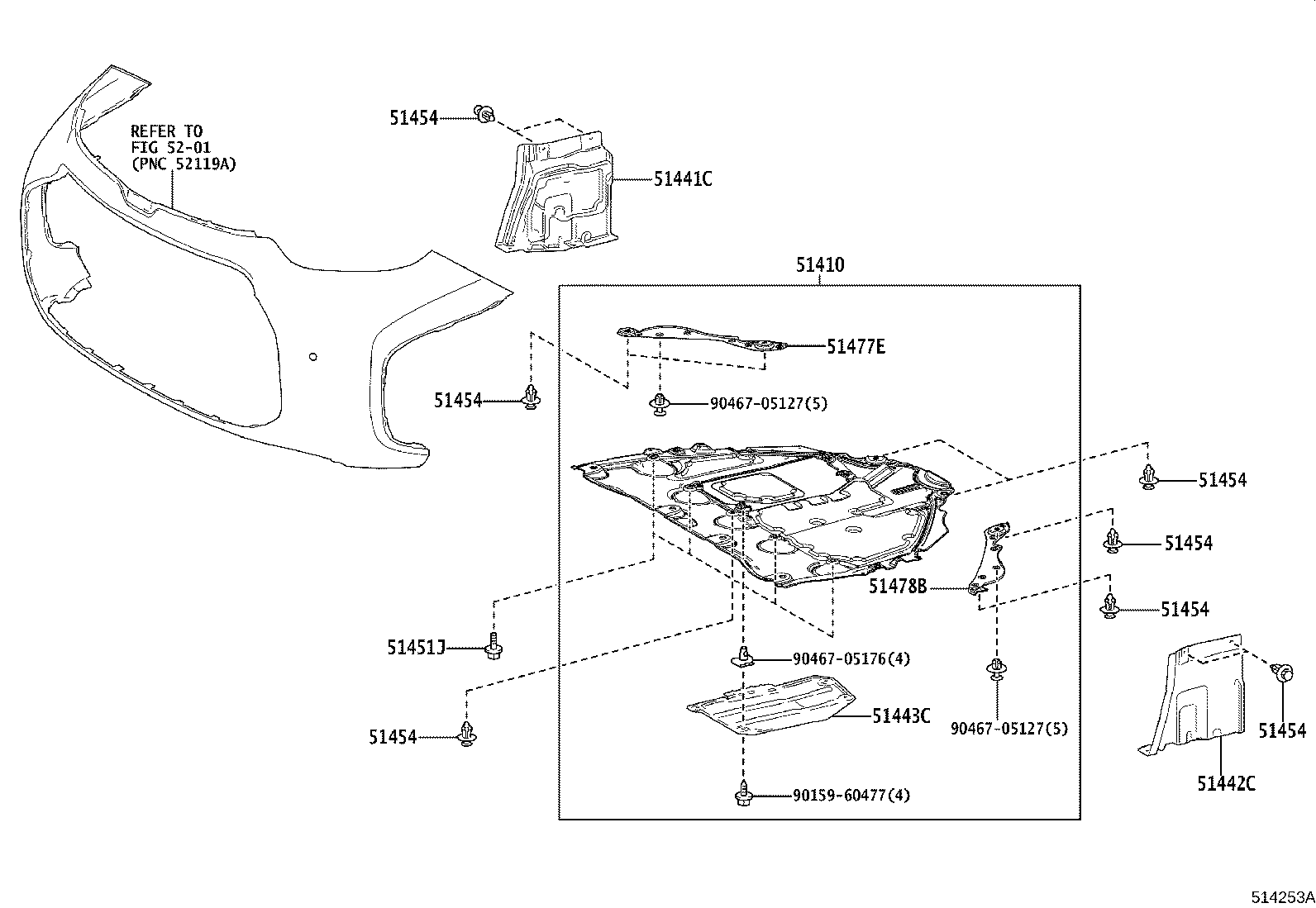

Figure 514272A 514272A 2022-07 → — Figure 514273A 514273A 2022-07 → — Figure 514274C 514274C 2022-07 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51228G Plate, Front Suspension Member
51410 Cover Assy, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51443C Cover, Engine Under, Rear RH
51447D Cover, Engine Under, NO.4 Center
51451J Bolt, NO.1
51454 Clip
51477E Plate, Engine Under Cover Side, RH
51478B Plate, Engine Under Cover Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
