Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07

Front Fender Apron & Dash Panel

42 part groups · 3 illustrations

PNC	Description
16592A	Guide, Radiator Air, NO.3
16594A	Guide, Radiator Air, NO.2
16681A	Plate, Radiator Upper Air Guide
16691A	Plate, Radiator Side Air Guide, Front RH
16695A	Plate, Radiator Side Air Guide, Front LH
17311B	Duct, Air Inlet, NO.1
52143K	Arm, Front Bumper, Lower RH
52144M	Arm, Front Bumper, Lower LH
53028	Support Sub-assy, Radiator, Lower
53035C	Bracket Sub-assy, Front End Panel Mounting, RH
53036C	Bracket Sub-assy, Front End Panel Mounting, LH
53211	Support, Radiator, RH
53212	Support, Radiator, LH
53213C	Support, Radiator, Upper Front
53233A	Bracket, Headlamp, NO.1 RH
53234A	Bracket, Headlamp, NO.1 LH
53301G	Cushion, Hood Bumper
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53705E	Member Sub-assy, Front Apron TO Cowl Side, RH
53706D	Member Sub-assy, Front Apron TO Cowl Side, LH
53711E	Apron, Front Fender, RH
53712D	Apron, Front Fender, LH
53715E	Extension, Front Fender Apron, Rear RH
53716E	Extension, Front Fender Apron, Rear LH
53717D	Gusset, Fender Apron, RH
53718	Plate, Fender Apron, LH
53737G	Plate, Front Apron TO Cowl Side Member, RH
53738L	Plate, Front Apron TO Cowl Side Member, LH
53813C	Extension, Front Fender, RH
53814C	Extension, Front Fender, LH

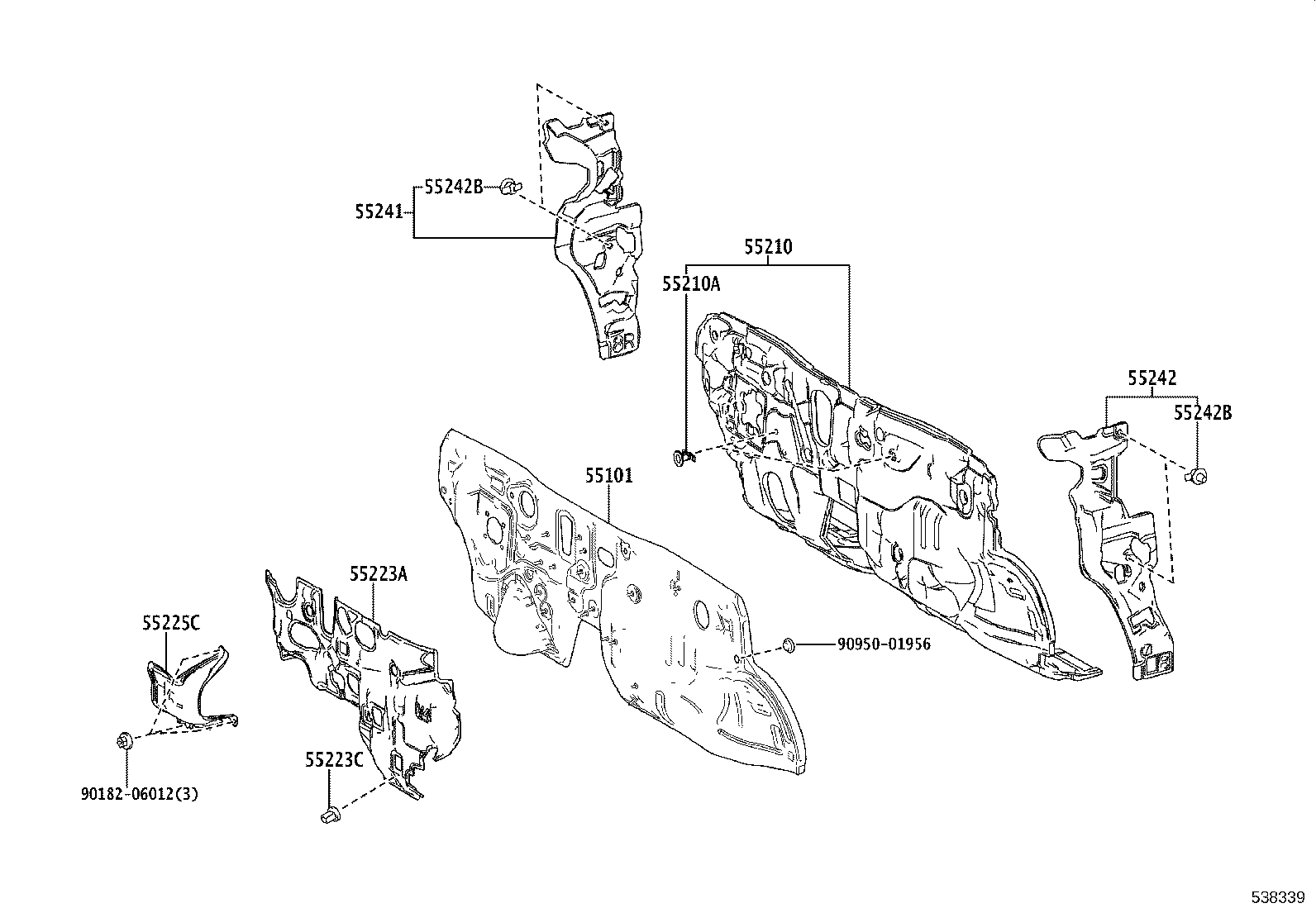

55101	Panel Sub-assy, Dash
55210	Insulator Assy, Dash Panel
55210A	Clip
55223A	Insulator, Dash Panel, Outer
55223C	Clip
55225C	Insulator, Dash Panel Heat
55241	Silencer, Front Panel Side, NO.1 RH
55242	Silencer, Front Panel Side, NO.1 LH
55242B	Clip, Front Panel Side Silencer
57167C	Gusset, Front Crossmember Side, RH
57168B	Gusset, Front Crossmember Side, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
